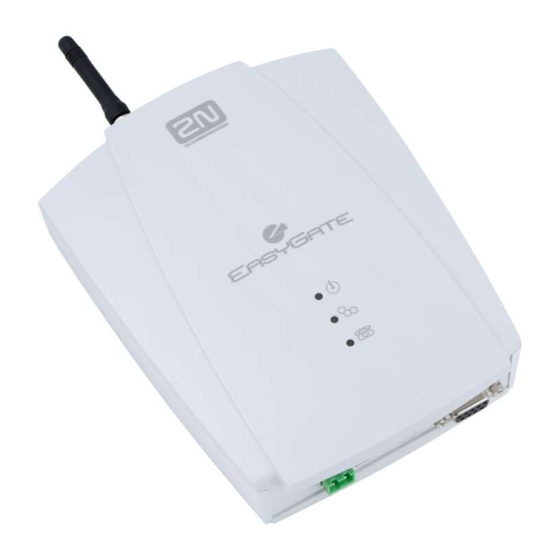

2N Ateus-EasyGate User Manual

Gsm gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ateus-EasyGate and is the answer not in the manual?

Questions and answers

Related Manuals for 2N Ateus-EasyGate

Summary of Contents for 2N Ateus-EasyGate

  • Page 2: Safety Precautions

    Dear customer, Let us congratulate you on having purchased the EasyGate system. This new product has been developed and manufactured to provide the maximum utility value, quality and reliability. We hope you will be fully satisfied with this GSM gateway for a long time.
  • Page 3 The manufacturer continuously meets customer requirements by improving the firmware. For the latest EasyGate processor firmware, programming tool and User Manual see www.2n.cz. For a detailed description of the EasyGate firmware upgrade refer to the section devoted to the PC programming tool.

  • Page 4: Packing List

    Packing List An EasyGate delivery contains the following items: Number of Item Pieces EasyGate 1 pc Antenna for direct connection 1 pc Magnetic Antenna with coax cable 1 pc Supply adapter 1 pc Telephone cable 1 pc PC-connection serial cable 1 pc SMS sending input connector 1 pc...

  • Page 5: Table Of Contents

    CONTENTS EASYGATE PURPOSE ....................... 1 1.1........................1 ASIC UNCTIONS 1.2....................1 DVANTAGES OF INSTALLATION ........................2 2.1........................2 ROPER OCATION 2.2....................3 XTERNAL NTENNA ONNECTION 2.3. SIM C ......................3 NSTALLATION 2.4......................4 ONNECTOR DESCRIPTION 2.5.

  • Page 6: Easygate Purpose

    1. EasyGate purpose 1.1. Basic Functions · The primary purpose of EasyGate is to transmit voice between a GSM network and an attached FXO-interface terminal (PBX, telephone, answering machine, etc.). · You can establish data connections (GPRS, CSD), fax connections (PC-FAX) and send/receive SMS using EasyGate in combination with a PC and appropriate software.

  • Page 7: Installation

    2. Installation 2.1. Proper Location · EasyGate is designed for vertical mounting on suspension holes (use the mounting pattern). This position is the best for signal reception because a vertical antenna is used. EasyGate can be operated in the horizontal position too where the GSM signal is good.

  • Page 8: External Antenna Connection

    2.2. External Antenna Connection Screw the antenna enclosed into the SMA antenna connector. Tighten the antenna connector gently with your hand - never use wrenches! The antenna enclosed has a sufficient gain for trouble-free operation in normal conditions. If the GSM signal is poor or you want to place your antenna separately from EasyGate, you can use an antenna with an SMA-connector terminated cable.

  • Page 9: Connector Description

    2.4. Connector description SMS sending input Telephone line RJ 12, 6/2 Power supply connector DC Jack 2,1mm RS232C serial line D-Sub 9 pins 2.5. Telephone Line Connection 2.5.1. PBX Connection Connect EasyGate to a free CO line of your PBX. Configure your PBX in such a manner that GSM outgoing calls are routed to EasyGate.

  • Page 10: Pc Connection

    A transistor switch or logic signal can be used too. The pin near the telephone line connector is connected to GND of the device the second one is active. Please, respect the loop current polarity. The input is over-voltage protected (up to +12V DC). 2.8.

  • Page 11: Easygate Status Indication

    3. EasyGate Status Indication 3.1. Indication LEDs Name Meaning · Light = EasyGate is powered. Power supply · Flashes once in 2s = HW error, contact the manufacturer. · Light = logged-in to GSM · Flashes once in 1s = logged-out, SIM card inserted ·...
  • Page 12 Dialing end signaling: · Dialing reception has been terminated. Connection is being established. PIN tone: · Enter the PIN code. · This tone is transmitted upon power up if the PIN has to be entered manually. PUK tone: · Enter the PUK code. ·...

  • Page 13: Sim Card Pin Protection

    4. SIM Card PIN protection If a SIM card is PIN-protected and the PIN is not programmed in EasyGate, GSM LED indicates the state and the PIN tone is transmitted on telephone line. 4.1. PIN Entering by PCManager Like other parameters, the PIN code can be entered using a PC programming tool. The PIN will be entered automatically upon next EasyGate power up.

  • Page 14: Voice Function

    5. Voice function Outgoing and incoming call establishing procedures for an analog telephone are described for illustration. The procedures are the same for the EasyGate-PBX connection, just remember to program call routing to EasyGate properly. Check EasyGate’s function by connecting a telephone before. Suppose that a SIM card has been inserted, the PIN code entered or not required, the antenna connected and EasyGate registered to GSM network –...

  • Page 15: Tariff Pulses 16 Or 12 Khz

    5.4. Tariff pulses 16 or 12 kHz EasyGate has tariff pulse transmitter. You can use tariff pulses for outgoing call pricing. EasyGate offer pseudotariff only – tariff metering doesn’t correspond to real price of call, tariff pulses are transmitted according to programmed parameters and call duration.

  • Page 16: Com - Serial Interface

    7. COM – Serial Interface The complete serial interface RS-232C on a 9-pin connector is identical with any external modem. The transmission rate ranges from 1200 to 115200 bps (EasyGate supports autobauding, i.e. responds to an AT command at a rate identical with the AT command transmission rate, and retains set on this rate).

  • Page 17: Fax Transmission - Pc-Fax

    7.3. FAX Transmission - PC-FAX EasyGate allows fax transmissions from your PC. However, do not confuse the PC- Fax service with a standard fax service – no fax machine can be connected to the telephone line! But the PC-Fax can establish connection with a standard fax machine and transmit documents.

  • Page 18: Combination Of Com Traffic With Voice Calls

    7.6. Combination of COM Traffic with Voice Calls As already mentioned, SMS transmission can be made even during telephone calls. The SMS program is only blocked temporarily during outgoing call establishing and incoming call ringing. The same applies to PCManager monitoring. A message announcing that EasyGate is blocked is displayed during voice call establishing.

  • Page 19: Easygate Parameter Programming

    8. EasyGate Parameter Programming All EasyGate parameters have such default values that meet most users’ demands and need not be changed. To change EasyGate parameters in spite of that, you can either: · Use a PC with the PCManager installed. All functions supported by EasyGate can be set using the PC.

  • Page 20: Pc Based Programming

    8.2. PC based Programming For programming, connect EasyGate to a PC with a serial cable and make sure that the EasyGate PCManager is installed. Programming is intuitive and easy. All steps are accompanied with texts hints above all items you point at with the mouse. EasyGate data uploading and storing, including firmware upgrade, are executed in a special mode, in which EasyGate waits for about 3s after power up (all LEDs are on).
  • Page 21 8.2.3. Upgrade The manufacturer responds to clients' requirements with periodical firmware updating. The current EasyGate firmware, PCManager and User Manual are available on www.2n.cz. The latest firmware version is always included in every new PCManager installation. Upgrading procedure: 1. Run the PCManager, select the language for displaying texts on the right-hand side.
  • Page 22 · The GSM provider's name and signal strength received by EasyGate - this information helps you find the optimum signal location (the information is updated in 10s intervals); · The EasyGate line status – standby, outgoing call, incoming call including telephone number.

  • Page 23: Parameter Tables

    8.3. Parameter Tables All programmable parameters are listed in this section. Each parameter is accompanied with the unit used, function number (if available) for programming via a telephone line, description of EasyGate's behavior, setting options, setting step and default (initialization) value. 8.3.1.
  • Page 24 Beep after dialing end Function No.: Select a beep to signal the end of dialing (beginning of outgoing call establishing). Setting options: YES/NO Default setting: YES BabyCall number Function No.: A number to be dialed for the automatic call function. If this item is blank, the function is disabled.
  • Page 25 Line reversal indication for call in progress Function No.: Select call in progress signaling by telephone line polarity reversal. There is voltage of reversed polarity on the telephone line during the whole call. Setting options: YES/NO Default setting: NO Tariff pulse when call starts/ends Function No.: Signaling of call start or end by tariff pulse.
  • Page 26 8.3.2. Routing Parameters All parameters related to the number dialed for an outgoing call are arranged in this table. According to the prefix you can: · Bar the number to be dialed - the calling subscriber hears the busy tone; ·...
  • Page 27 Routing table enable Function No.: Enable the use of the routing table with this parameter. Disabling this parameter you put the table out of use. Setting options: YES/NO Default setting: NO Prefix Function No.: A prefix identifying the call type (GSM, trunk call, free call, etc.). "Other numbers" line is used for calls with prefixes that are not included in the table.
  • Page 28 Extra tariff Function No.: Pseudo tariff metering setting (tariff is based on call duration). The Extra tariff parameter defines transmitting of fixed quantity of tariff pulses after call start. This parameter sets minimal call cost. Setting options: 0-255 Setting step: Default setting: 0 Tariff [s] Function No.:...
  • Page 29 8.3.4. GSM & SIM Parameters GSM operator lock Function No.: Provider blocking is set by manufacturer in EasyGate. If EasyGate is blocked to a GSM provider, no other GSM provider's SIM card can be used. If an unacceptable SIM card is used, the GSM modules does not registered to GSM and the GSM network LED flashes quickly on the EasyGate panel.
  • Page 30 Serial number Function No.: EasyGate serial number - for information only (cannot be changed). Must be used for communication with the manufacturer. GSM operator lock Function No.: Refer to GSM & SIM Parameters. COM enable Function No.: With this parameter you can enable/disable the serial interface function. You can disable communication in the operating mode, maintaining the special programming mode after power up.
  • Page 31 8.3.7. Security Parameters PIN - value Function No.: Fill in the PIN value for automatic PIN entering upon EasyGate power up. It is applied only if the SIM card is PIN secured. If the given PIN fails to match the SIM, it is deleted automatically.

  • Page 32: Troubleshooting

    9. Troubleshooting No LED is on after power up · Check the power supply. All LEDs are on. No call is currently in progress. · EasyGate is in the special PCManager-based programming mode - exit the PCManager to reset EasyGate. ·...

  • Page 33: List Of Abbreviations

    10. List of Abbreviations · - Access Point Name – necessary for the GPRS service · CLIP - Calling Line Identification Presentation · - Circuit Switched Data · - PC serial port · DTMF - Dual Tone Multifrequency - tone dialing ·...

  • Page 34: Technical Parameters

    11. Technical Parameters GSM: MC39i EGSM 900 / GSM 1800 GSM module, GSM bandwidth MC45 EGSM 900 / GSM 1800 / GSM 1900 MC46 EGSM 850 / GSM 1800 / GSM 1900 Transmission power 2 W EGSM 850 / 900 MHz, 1W GSM 1800 / 1900 MHz Receiver sensitivity -105 dBm HR+FR+EFR Half rate+Full rate+Enhanced full rate...
  • Page 35 © 2004, 2N TELEKOMUNIKACE a.s.
