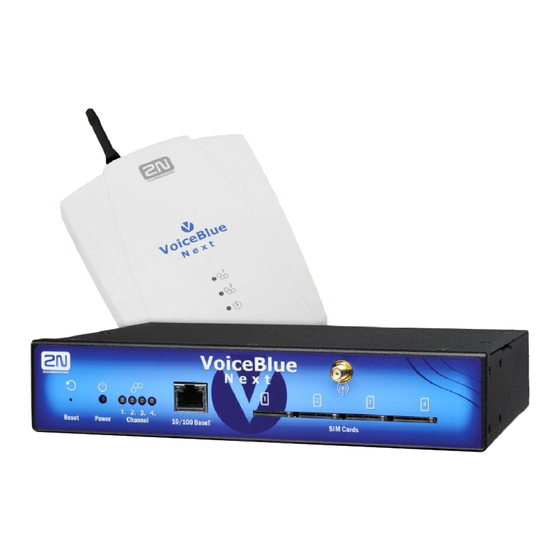

2N VoiceBlue Next User Manual

Voip gateway
Hide thumbs Also See for VoiceBlue Next:
Table of Contents

Advertisement

Quick Links

See also: User Manual
®

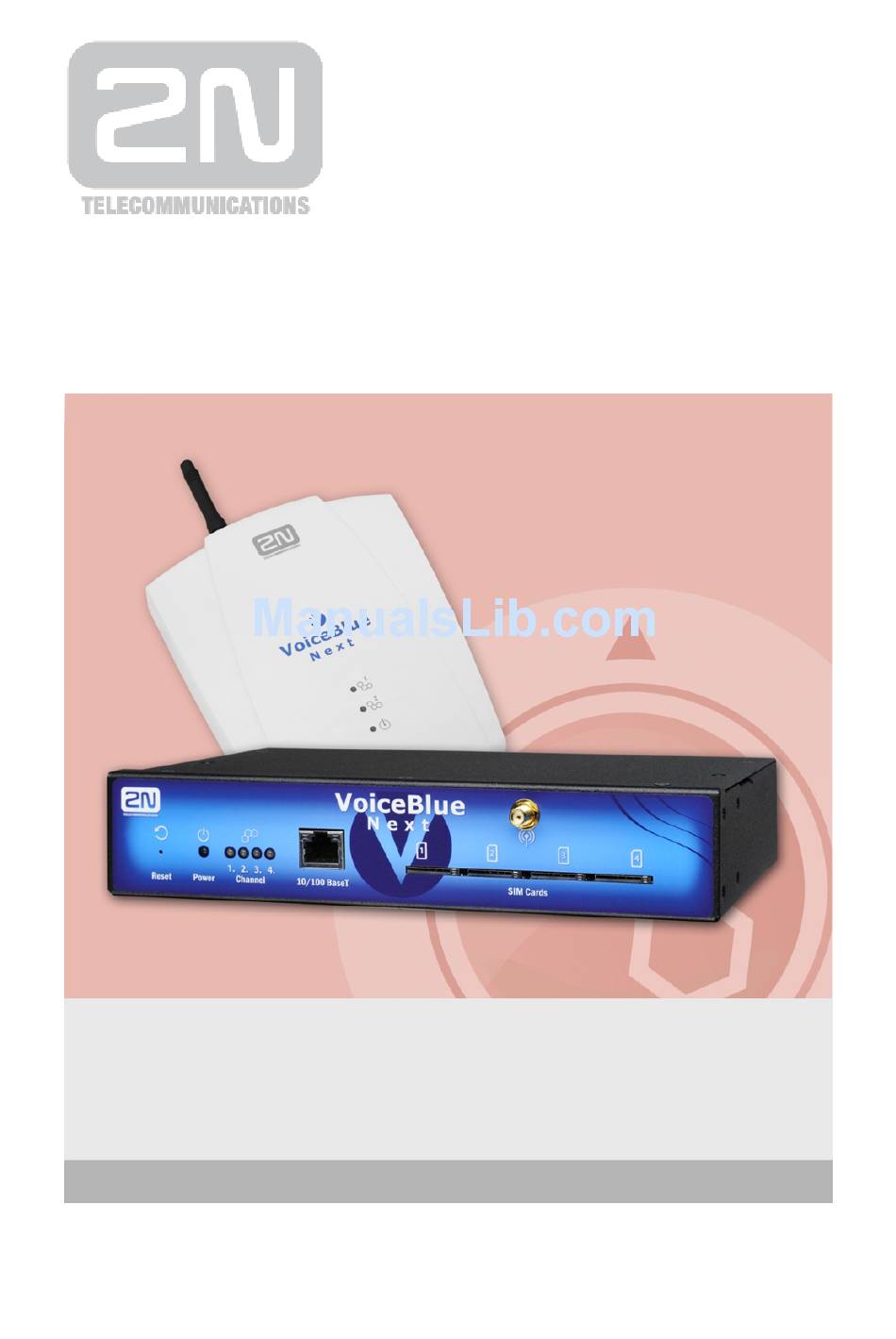

2N VoiceBlue Next
Version
3.4
Firmware
1.16.5
User Manual
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VoiceBlue Next and is the answer not in the manual?

Questions and answers

Related Manuals for 2N VoiceBlue Next

Summary of Contents for 2N VoiceBlue Next

  • Page 1 ® 2N VoiceBlue Next User Manual Version Firmware 1.16.5 www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www.faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...“.

  • Page 3: Table Of Contents

    2.5 VoiceBlue Next Connection to VoIP ........

  • Page 4: Product Overview

    1. Product Overview ® In this section, we introduce the VoiceBlue Next product, outline its application options and highlight the advantages following from its use. This section also includes safety instructions. Here is what you can find in this section: 1.1 Product Description...

  • Page 5: Product Description

    VoiceBlue Next is equipped with all voice mode functions and ® provides the highest user comfort. In addition to voice transmission, 2N VoiceBlue Next enables you to send and receive text messages (SMS). No additional equipment (such as an external phone) is needed for normal operation. You can use the web interface or AT commands for all the gateway settings.

  • Page 6: Safety Precautions

    If necessary, the GSM gateways may be installed at a safe distance from the prohibited area and connected with the original place through an Ethernet cable. Although GSM gateways are not intended for cars or aeroplanes, all relevant prohibitions and regulations regarding mobile phones apply to them too. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 7: Upgrade

    The User Manual relates to the VoiceBlue Next firmware version 01.00.04. ® New four–channel VoiceBlue Next version. ® The User Manual relates to the 2N VoiceBlue Next firmware version 1.14.0. ® The User Manual relates to the VoiceBlue Next firmware version 1.14.0 .

  • Page 8: Terms And Symbols Used

    Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. Future Functions, Innovations grey-marked text in this document designates the functions that are under preparation or development at present. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 9: Description And Installation

    VoiceBlue Next product installation and connection. Here is what you can find in this section: 2.1 Before You Start 2.2 Factory Settings 2.3 Brief Installation Guide 2.4 IP Voice Transmission 2.5 VoiceBlue Next Connection to VoIP ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 10: Before You Start

    Make sure that you are equipped with all system components ® necessary for putting VoiceBlue Next in operation (SIM card, VoIP phone and/or duly configured SIP line of your SIP Proxy, an available 100BaseT socket and a PC for initial settings).
  • Page 11 Connector Lay–Out (4-Channel Version) ® The following connectors are mounted on the VoiceBlue Next bottom: 10/100BaseT Ethernet connector with PoE support RESET button – press for a short time to restart the GSM gateway and for a long time to restart the GSM gateway and download the factory settings.
  • Page 12 SIM Card Placement (2-Channel Version) ® Lift off the SIM card holder on the VoiceBlue Next backside, insert the SIM card and replace the holder, securing the latch. SIM Card Placement (4-Channel Version) ® Insert a SIM card into one of the four SIM holders on the...
  • Page 13 Contact your dealer please for more information. Potential GSM/UMTS Troubles All 2N GSM gateways work reliably under a long-time full load. The following problems may be caused by GSM/UMTS networks: GSM/UMTS module(s) cannot log in, log in slowly, or log out occasionally. This problem may be caused by any of the following situations: The GSM/UMTS signal is low.
  • Page 14 GSM provider for your SIM card/GSM module availability. The manufacturer shall not be held liable for any SIM card or provider service unavailability in the case of a breach of the provider's SIM terms and conditions for the SIM card use. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 15: Factory Settings

    The table below includes the factory settings for the key configuration parameters of the GSM gateway: Parameter Value IP address 192.168.1.2 IP mask 255.255.255.0 IP gateway 192.168.1.1 Username Admin Password Caution Remember to change the username and password during first gateway configuration to avoid unauthorised access! ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 16: Brief Installation Guide

    ® Any excess of the allowed working temperature may not affect the 2N VoiceBlue Next function immediately but may result in faster ageing and lower reliability.
  • Page 17 UPS back-up and due overvoltage protection. Wall Mounting (2-Channel Version) ® Follow the instructions below to wall mount VoiceBlue Next Drill two screws into the wall in a relative distance matching the wall mounting ® holes in the VoiceBlue Next rear.
  • Page 18 Horizontal Mounting (4-Chanel Version) ® VoiceBlue Next is ready for mounting on a horizontal support. You can stick rubber feet (included in the delivery) on the device if necessary. Follow the instructions below: Put the GSM gateway carefully on a stable horizontal support with its bottom side Stick the rubber feet into the corners as shown below.
  • Page 19 Insert the connecting plates (BE CAREFUL! The rear and upper connecting plates have different drilled holes – the upper plate holes are larger and without threading) in the upper and rear holes of one GSM gateway first. Then connect the other unit. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 20: Power Supply Connection

    ® Never connect VoiceBlue Next using the PoE and a local ® adapter at the same time to avoid permanent 2N VoiceBlue Next malfunction! Check whether the antenna is connected before plugging the adapter. Feeding the device without antenna connection may result in the GSM module transmitter damage.

  • Page 21: Antenna Connection

    Subs. 2.2 Caution ® Resetting factory values results in a change of the 2N VoiceBlue Next Ethernet interface configuration! Using a defective Ethernet cable may lead to a high packet loss rate in the Ethernet network and subsequent instability and poor quality of all GSM/UMTS calls! ®...

  • Page 22: Firmware Upgrade

    Warning Use the firmware certified for this gateway type only! Any ® other firmware type may damage 2N VoiceBlue Next irreversibly Follow the instructions below to download firmware easily using the gateway web interface: Connect your PC and the gateway into the Ethernet network.

  • Page 23: Ip Voice Transmission

    The parameters of these blocks are then inserted in frames of the size of 10 bytes. 2–byte frames are generated for noise transmission. ® During call set-up, a codec is selected automatically for voice transmission. 2N VoiceBlue Next supports the codecs included in the table above. The type of codec to ®...
  • Page 24 VoIP–GSM gateway acts as a UA in any case (has the same functions as a VoIP phone), i.e. receives call set-up requirements and, on the basis of its inner LCR table, routes calls to GSM networks. ® None of the SIP–defined server components are integrated in the 2N VoiceBlue Next gateway.
  • Page 25 6XX – global failure (606 – not acceptable). ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 26: Voiceblue Next Connection To Voip

    2.5 VoiceBlue Next Connection to VoIP ® Since VoiceBlue Next communicates using the SIP only, this subsection outlines solutions for its interconnection with networks working with the H.323 signalling ® protocols. VoiceBlue Next can be used either in the Point-to-Point or Point-to-Multipoint mode with the SIP Proxy server.
  • Page 27 PBX extended with VoIP services), which is responsible for all VoIP signalling. ® Multiple source devices (VoIP phones, e.g.) and multiple target devices (2N VoiceBlue Next , e.g.) can be used in this mode. An internal routing algorithm (Least Cost Router, LCR) of your SIP Proxy is used for routing outgoing GSM and other calls in ®...

  • Page 28: Voiceblue Next Configuration

    3. VoiceBlue Next Configuration ® This section describes the VoiceBlue Next configuration. Here is what you can find in this section: 3.1 Factory Reset 3.2 Basic Configuration – Step by Step 3.3 Call Routing 3.4 Web Configuration Interface Gateway control...

  • Page 29: Factory Reset

    Caution Resetting the factory configuration values results in changes of the Ethernet settings and subsequent necessity to reconfigure the gateway. Note Push the RESET button for a short time (0.5 s) to restart the GSM gateway. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 30: Basic Configuration - Step By Step

    3.2 Basic Configuration – Step by Step ® This section will help put your VoiceBlue Next gateway in operation for the first time. Refer to all S. 3 subsections for detailed settings. Install the GSM gateway as instructed in Subs. 2.3.
  • Page 31 ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 32: Call Routing

    Figure 1: Follow Me Function Fig. 1 shows routing of calls in the case of absence of a subscriber in the VoIP network. Subscriber A calls subscriber B, for whom the Mobility Extension function has been ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 33 In addition to rerouting calls in the event of absence, the Mobility Extension allows calls to be forwarded within a VoIP network, which brings the services of the SIP Proxy to a mobile telephone. The description of this function is shown in Fig. 3. Figure 3: Call Forwarding Function ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 34 (default value #). Having ® received the dialling end character, VoiceBlue Next terminates the call between A and B and attempts to make a call between subscribers A and C. Subscriber A then receives the ring tone.

  • Page 35: Lcr Table

    The GSM/UMTS outgoing call routing algorithm is launched whenever the SIP Proxy ® ® routes an outgoing call to VoiceBlue Next . Outgoing calls are routed via VoiceBlue Next as follows: The calling subscriber dials the subscriber number and the SIP Proxy routes it to ®...
  • Page 36 If the incoming call is still not processed, the gateway will receive the call and ® send either a voice message or the dialtone to the caller. After that, 2N VoiceBlue Next awaits the required count of digits necessary for connection set-up.
  • Page 37 Having received the count of digits included in the GSM incoming groups Minimum count of DTMF digits table, the gateway will set up connection to the SIP Proxy. Use the GSM gateway web interface to upload the DISA welcome note. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 38: Web Configuration Interface

    3.4 Web Configuration Interface Essential Data ® VoiceBlue Next web interface supports the following web browsers: MS Internet Explorer v9 Mozilla Firefox v4 and higher Any other web browsers may cause troubles. The recommended screen resolution is 1280x1024 and colour quality 32bit or higher. The configuration interface is available in the English language version only at present.

  • Page 39: Home Page

    There are four more sections in the right–hand upper menu: ® SIM client – for connection to the SIM Star system. SMS – for receiving/sending SMS via the web interface. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 40 Management – for firmware update, license upload and configuration upload/download. The main window displays information on the gateway licence status, firmware and ® bootware versions and the VoiceBlue Next Ethernet interface MAC address. In addition, you can download a new licence here. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 41 Contact your dealer for more information please. Licence key for gateway – item for entering a new gateway connecting licence. Caution By entering a new licence code you restart the GSM gateway and discontinue all current calls! ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 42 Voice message detector Message 35 Voice message detector Message 36 Voice message detector Message 37 Voice message detector You can choose which message will be uploaded or use detection by file name. Detection requires file name: "mess[index message][optional ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 43: Module Status

    Module status This window displays the current status of each GSM/UMTS channel. Refer to Subs. 4.5 for status details. Module control This window helps you control the selected GSM/UMTS module manually. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 44: Online Report

    LOG file into a file and refreshing the listing in the web window. Note The maximum AutoCLIP routing table capacity is 128 records. SIP registration The window displays the current SIP registration state of the gateway. Online report The window displays on–line gateway tracing. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 45: Gateway Configuration

    Saving call data (CDR) – select the call types on which records are to be saved into the CDR file. ® Gateway ID – identifies VoiceBlue Next numerically in the CDR in case multiple devices generate the CDR in the network. Summer / winter time Automatically switch to summer/winter time –...
  • Page 46 Send 200 OK instead of 180/183. Send 200 OK and BYE when rejected from GSM. ® Send 200 OK on REGISTER request – virtual registration of the device in 2N VoiceBlue Next (necessary for registration–requiring equipment). Replace CLIP from GSM with Caller ID.
  • Page 47 VoiceBlue Next will receive requests from any IP address. ® SIP Proxy (GSM–>IP) – IP address of the SIP Proxy to which 2N VoiceBlue Next turns in the case of a GSM incoming call. SIP registrar – IP address of the SIP registration server.
  • Page 48 Minimum digits from VoIP – minimum count of digits to be dialled into GSM. Maximum digits from VoIP: maximum count of digits to be dialled into GSM. ® Wait for next digit [s] – timeout during which VoiceBlue Next awaits further digits dialled from VoIP to GSM. Calls Relax timeout [s] –...
  • Page 49 Here you can convert the release cause received from GSM/UMTS into another ISDN release cause. The resultant ISN cause number will be transformed into a VoIP SIP code as included in the table below: Conversion table: ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 50 Service or option not Not implemented implemented User not member of CVG Decline Incompatible destination Bad request Invalid message Bad request Recover on timer expiry Request timeout The other received CAU from Internal server error netw. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 51 See the two items below for outgoing and incoming group settings. GSM outgoing groups ® VoiceBlue Next allows you to work with two groups of outgoing calls for each of which you can set variable connection set–up modes and count of used minutes and sent SMS messages for a selected period.
  • Page 52 Roaming is enabled for networks with MCC+MNC code 23002 230XX Roaming is enabled for networks with MCC+MNC codes 23000 – 23099 XX001 Roaming is enabled for networks with MCC+MNC codes 00001 – 99001 XXXXX Roaming is enabled for any network ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 53 Set the LCR table (assign prefixes to tariffs) correctly to ensure full functionality of this feature. If routing to a specific tariff is not applied in the LCR table, global free minutes will be used. Free minutes Count of free minutes for a specific tariff offered by the provider. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 54 X is the count of free minutes obtained from the GSM/UMTS provider to avoid limit excesses. The manufacturer is not liable for any additional call costs in case the GSM/UMTS provider's free minute/SMS limits are exceeded. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 55 GSM incoming groups ® VoiceBlue Next allows you to work with two groups of incoming calls for each of which you can set variable connection set-up modes. General settings Mode – set how the gateway should process incoming GSM calls: Reject incoming calls –...
  • Page 56 Default count of digits – the default length of the number to be dialled into GSM/UMTS when routing via the selected prefix list. Use this parameter if the Digits count parameter is not included in the Accepted prefixes table. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 57 AutoDial – enable/disable CLIP routing for the selected CLIP. Dial to VoIP – enter the VoIP destination number for CLIP routing. Auto CallBack – enable/disable CallBack for the selected CLIP. Limit – set the maximum call length (in minutes). ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 58: Ethernet Configuration

    Caution Incorrect settings, e.g. enabling the DHCP client service, may ® result in a denial of access to the 2N VoiceBlue Next configuration. To avoid this, restore the GSM gateway default settings. Refer to Subs. 3.1 for details.

  • Page 59: Web Configuration

    Login configuration ® The window helps you set the access password and name for the 2N VoiceBlue Next web interface. Use the same data for Telnet connection too. Caution Remember to change the username and password during first gateway configuration to avoid unauthorised access! Web configuration Set additional parameters for the gateway web interface.
  • Page 60 This section helps you assign SMS groups to User groups for SMS sending/receving purposes. The GSM gateway can contain up to four User groups. Caution The count of user accounts is file-licensed. Refer to Management–>Licence key for the current GSM gateway licence details. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 61 SMTP/POP3 protocol is used. With SMPP, the delivery information is active automatically in case the service is required by the SMPP counterparty or via an incoming SMS message from the GSM/UMTS network. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 62 Description – set the User group details. Identical SMS limit – set the check of identical SMS messages, i.e. sequentially sent messages with identical SMS PDUs. When the set limit is exceeded, the excessive SMS messages are discarded without being sent. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 63 SMS. The sender information will be displayed at the beginning of the SMS message. SMTP - Add "Subject" to SMS – add 'Subject' from the Email message to the outgoing SMS. The subject information will be displayed at the beginning of the SMS message. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 64 SMPP. Never replace original address Replace if the original address is empty Always replace original address address – enter addressee's new telephone number TON – type of number – numbering plan indicator ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 65 SMS will be routed according to the rules set above. Note The rules are applied to incoming SMS sequentially, starting from the first rule. If all the set rules are met in a row, the SMS is routed according to the row. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 66 SMS will be routed according to the rules set above. Note The rules are applied to outgoing SMS sequentially, starting from the first rule. If all the set rules are met in a row, the SMS is routed according to the row. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 67 Outgoing SMS count – Waiting / Sending /Sent Waiting – count of waiting SMS messages Sending – count of currently sent SMS messages Sent – count of sent SMS messages waiting for delivery acknowledgement ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 68 AutoCLIP routing table The window displays the current state of the AutoCLIP table. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 69 Another VoiceBlue NEXT (ESME) gateway and a PC on which the SMPP (ESME) application is running are connected to these accounts via SMPP. An SMS coming to 2N ® VoiceBlue NEXT via SMPP is routed according to the gateway outgoing routing rules and sent to GSM.
  • Page 70 Read the User Manual carefully and check all parameters. Find answers to the frequently asked questions at http://faq.2n.cz Consult your servicing partner. You are recommended to attend a 2N certified training to improve your installation chances. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 71 SMTP/POP3 Basic Configuration – Step by Step ® This section helps you define the VoiceBlue NEXT basic parameters for SMS sending/receiving via SMTP/POP3. Read the Messaging subsection carefully before setting details. Figure 1 shows sending/receving SMS via SMTP/POP3. Having created user accounts ®...
  • Page 72 Read the User Manual carefully and check all parameters. Find answers to the frequently asked questions at http://faq.2n.cz Consult your servicing partner. You are recommended to attend a 2N certified training to improve your installation chances. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 73: Common Settings

    The SNMP trap is sent automatically whenever the defined value is exceeded. SNMP General Enabled – enable/disable the SNMP service. Community – SNMP community is a group that owns the device and control stations on which SNMP is running. Default value = public. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 74 MIB browser. Caution The SNMP service works properly on condition that SNMP is licensed in the Management section. The primary IP address, transport port and community parameters are completed. SNMP is enabled in the Monitoring section.e ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 75 Number of SMS/SMPP messages in memory exceeds defined max level buffer Number of SMS/SMPP messages in memory decreased under defined max level Number of SMS/SMPP messages in memory exceeds defined max level Number of SMS/SMPP messages in memory decreased under defined max level ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 76 Others SIM Client ® This section is displayed for those GSM gateways only that support the 2N SIM Star system connection – remote SIM card function. This subsection helps you send and receive SMS via the modules. also user account sending/receiving.
  • Page 77 Licence key ® This section helps you upload the licence file/code to VoiceBlue NEXT provides information on the current licence file. Refer to Gateway Control for more details. Caution By inserting a new licence code you restart the GSM gateway...
  • Page 78 Documentation Download the User Manual saved in the gateway. Caution The User Manual version will not change during the gateway firmware upgrade. Click on the link to www.2n.cz for the latest User Manual version! ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 79: Terminal

    4. Terminal ® This section describes communication with VoiceBlue Next using a terminal. Here is what you can find in this section: 4.1 Terminal-Based Communication 4.2 AT Interface 4.3 LOGs 4.4 CDR 4.5 SDR 4.6 Available Status Messages 4.7 Statistics 4.8 Tracing...

  • Page 80: Terminal-Based Communication

    It uses an extended set of AT commands for configuration. Refer to Subs.4.2 for the list of terminal AT commands. Example of a login window: [ VoiceBlue Next ] V–01.00.01 B–00.91 Date/time: 15.1.2010/20:56:53.98 SNumber: M202–1501270008 Login: Admin Password: ** Access Data ®...

  • Page 81: At Interface

    4.2 AT Interface ® VoiceBlue Next uses the list of AT commands derived from the standard AT set for configuration and monitoring purposes. The configuration entering commands start with AT%parameter_id. The configuration writing out commands start with AT&section. The following list of AT commands is universal and some commands may not be ®...
  • Page 82 Received GSM signal level from all GSM modules Send command for AT commands directly to AT&Gxx=atcmd GSM module AT&Gxx=at+cnum – SIM card telephone number AT&Gxx=at+cpin="xxxx" – PIN entering AT&Gxx=at+clck="sc",1"xxxx" – PIN request enable AT&Gxx=at+clck="sc",0"xxxx" – PIN request disable ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 83 Call file listing (PRIGW awaits pressing of any AT&C key after every 20 lines) Call file listing and deleting (PRIGW awaits AT&CR pressing of the # key to delete this line /with call info/ from memory and sends next line) ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 84: Configuration Commands

    ...hour when the modules start to log in randomlymin ...minimum number of modules in a group (2..15) that always remain logged–in Username/password for access via IP port (this AT%X80=name/pass parameter is write only– you cannot see its value) ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 85 SMS sent sec – minimum call length (not for cdr info)sec2 – accuracy of call length measurement (not for cdr info)pseudo – default = 0 AT%G#2=netid,clir,min,sms, Basic parameters of SIM card in slot 2 sec,sec2,pseudo List of Networks ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 86 SMS control can be activated for only SMS Control one session at a time A6 – activate control via used session55 – AT!G=# deactivate control via used session99 – deactivate control on all sessions AT^MS=ch Module status ch=0 – 31 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 87 SMS status saved on SIM card. AT^SR=ch.ix Possible answers: *smserr (busy,read) or *smspdu SMS delete – request for deletion of an SMS AT^SD=ch,ix message (or SMS status message). Possible answers: *smserr (busy,delete) or *smsdel ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 88 GSM group 1..8. Possible answers: *smserr (busy,write) or *smsout Command for changing SMS storage. Mem (1;2;3) = type of SMS storageSiemens:1=SM, 2=ME, 3=MEEricsson:1=SM, 2=ME, AT^SS=ch,mem 3=MEWavecom:1=SM, 2=ME, 3=SRHuawei:1=SM, 2=SM, 3=SMSierraWir.:1=SM, 2=ME, 3=SRMotorola:1=IM, 2=IM, 3=IM ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 89: Logs

    Gateway / Gateway control – LOG file section or use the AT&L AT command for Telnet sessions. The following list of LOG statuses is ® universal and some LOGs may not be included in VoiceBlue Next Type Text Description POWER...
  • Page 90 Error of isdn layer 3: timeout in status # on module G3–ERR (g##) tout sts # Error of connecting layer 4: timeout in status # on call C4–ERR (p##/g##) between channel p## and GSM module g## ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 91: Cdr

    (to be implemented in higher firmware versions) / gateway ID (optional) Column called party number (CDN) Column 11: calling party number (CGN) Column 12: SIM card slot number / SIM card IMSI or SCID ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 92: Sdr

    First row – SMS sending time or total sending time for all parts of a long Second row – time of SMS adding to the outgoing/incoming SMS database Column 8 part number/total Column 9 gateway id ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 93: Available Status Messages

    4.6 Available Status Messages The following list of statuses is universal and some messages may not be included in ® VoiceBlue Next GSM Layer Statuses GSM Layer 2 What Name Description Follows INIT GSM module initialisation start PINREQ SIM0 Module switch to internal SIM card...
  • Page 94 Rest status, ready for call Call request received from GSM or ISDN, awaiting further dialling or MORE timeout SET-UP Call request sent to opposite interface PROC Call request confirmed, awaiting call answer ACTIVE Connected call DISC Call disconnection in progress ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 95 Initialisation of EEPROM (configuration) or Flash (upgrade) HW–ERR HW error of plugged-in board SYSERR System error (memory error, etc.) G2–ERR GSM module layer 2 error (gate2) G3–ERR GSM module layer 3 error (gate3) C4–ERR Link layer error (call4) ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 96 Record Type in Call File Name Description I–FD Unconnected incoming call attempt I–OK Connected incoming call O–FD Unconnected outgoing call attempt O–OK Connected outgoing call ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 97: Statistics

    0:00:00 Statistics of incoming calls on all GSM modules [Statistics of incoming calls on all modules] network (reset) minutes hhhh:mm:ss calls reject failed c.offs errors ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––– #vi inc ( 0.00) 0:00:00 #grpinc ( 0.00) 0:00:00 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 98 #m1 out ( 2.01) 0:00:00 Statistics of calls on specific GSM modules [Statistics of calls on module #0] sim/dir net/grp minutes hhhh:mm:ss calls reject failed c.offs smses ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––– #1 inc 0:00:00 ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––– #1 out 0:00:00 ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 99 [Statistics of calls on module #1] sim/dir net/grp minutes hhhh:mm:ss calls reject failed c.offs smses ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––– #1 inc 0:00:00 ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––– #1 out 0:00:00 ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 100: Tracing

    4.8 Tracing ® VoiceBlue Next allows for operation tracing (VoIP, SIP, GSM). Tracing is accessible in one session only at a time, the other tracing requests are rejected with BUSY. With regard to a rather extensive volume of data, we recommend that the Write communication into file function should be activated before tracing.

  • Page 101: External Sms Control

    Ericsson: 1=SM, 2=ME, 3=ME Wavecom: 1=SM, 2=ME, 3=SR Huawei: 1=SM, 2=SM, 3=SM SierraWir.: 1=SM, 2=ME, 3=SR Motorola: 1=IM, 2=IM, 3=IM (SM = SIM card, ME = module, SR = status report memory, IM = inbox memory) ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 102 Content of SMS message or status confirmation. ch,ix,sts,len,pdu,csum An SMS message or status confirmation was deleted *smsdel: ch,ix from position ix. *smserr: Response to an error command. ch[/id],ix,req,err,cms *smssel: ch,cnt Confirmation of an SMS storage change. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 103: Technical Parameters

    TCP, UDP, IP, RTP, TELNET, http, DHCP Connector 1x 10/100BaseT Ethernet Administration AT commands, web interface VoIP Signalling DTMF RFC2833 Count of voice channels Voice codecs G.711 PCM at 64 kbps G.729 Annex AB A–law/u–Law (optional) companding ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 104 Power input Up to 20W Interface Protocols TCP,UDP,IP,RTP,TELNET,http,DHCP Connector 1x 10/100BaseT Ethernet Administration AT commands, web interface VoIP Signalling DTMF RFC2833 Count of voice channels Voice codecs G.711 PCM at 64 kbpsG.729 Annex AB A–law/u–Law (optional) companding ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 105 HR/FR/EFR/AMR USIM/SIM card Small plug-in 3V One external antenna (integrated antenna splitter) SMA FEMALE Antenna connector Others Working 5°C – 45°C temperature Air humidity Max 95% at 40°C * according to the GSM module type used ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 106: Supplementary Information

    6. Supplementary Information ® This section provides supplementary information on VoiceBlue Next Here is what you can find in this section: 6.1 Troubleshooting 6.2 List of Abbreviations 6.3 Regulations and Directives 6.4 General Instructions and Cautions ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 107: Troubleshooting

    6.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz ® No LED is shining on VoiceBlue Next ® VoiceBlue Next is disconnected from the power supply. ® VoiceBlue Next fails to log in to the GSM network. Check the SIM card.

  • Page 108: List Of Abbreviations

    SW (Software) TCP (Transmission Control Protocol) UCMD (UDP commands) UDP (User Datagram Protocol) UMTS (Universal Mobile Telecommunication System) UPS (Uninterruptible Power Supply) USSD (Unstructured Supplementary Service Data) VoIP (Voice over Internet Protocol) WAN (Wide Area Network) ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 109: Regulations And Directives

    6.3 Regulations and Directives Europe ® VoiceBlue Next conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 – on radio equipment and telecommunications terminal equipment and the mutual...

  • Page 110: General Instructions And Cautions

    The manufacturer also assumes no responsibility for additional costs incurred by the consumer as a result of making calls using a line with an increased tariff. ® TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 111: Electric Waste And Used Battery Pack Handling

    Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or shirt–circuited either. ® TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 112 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz PR1561 v3.4 ® TELEKOMUNIKACE a.s., www.2n.cz...
