Table 2: Back View Features; Figure 3: Back View - Motorola TC55 User Manual

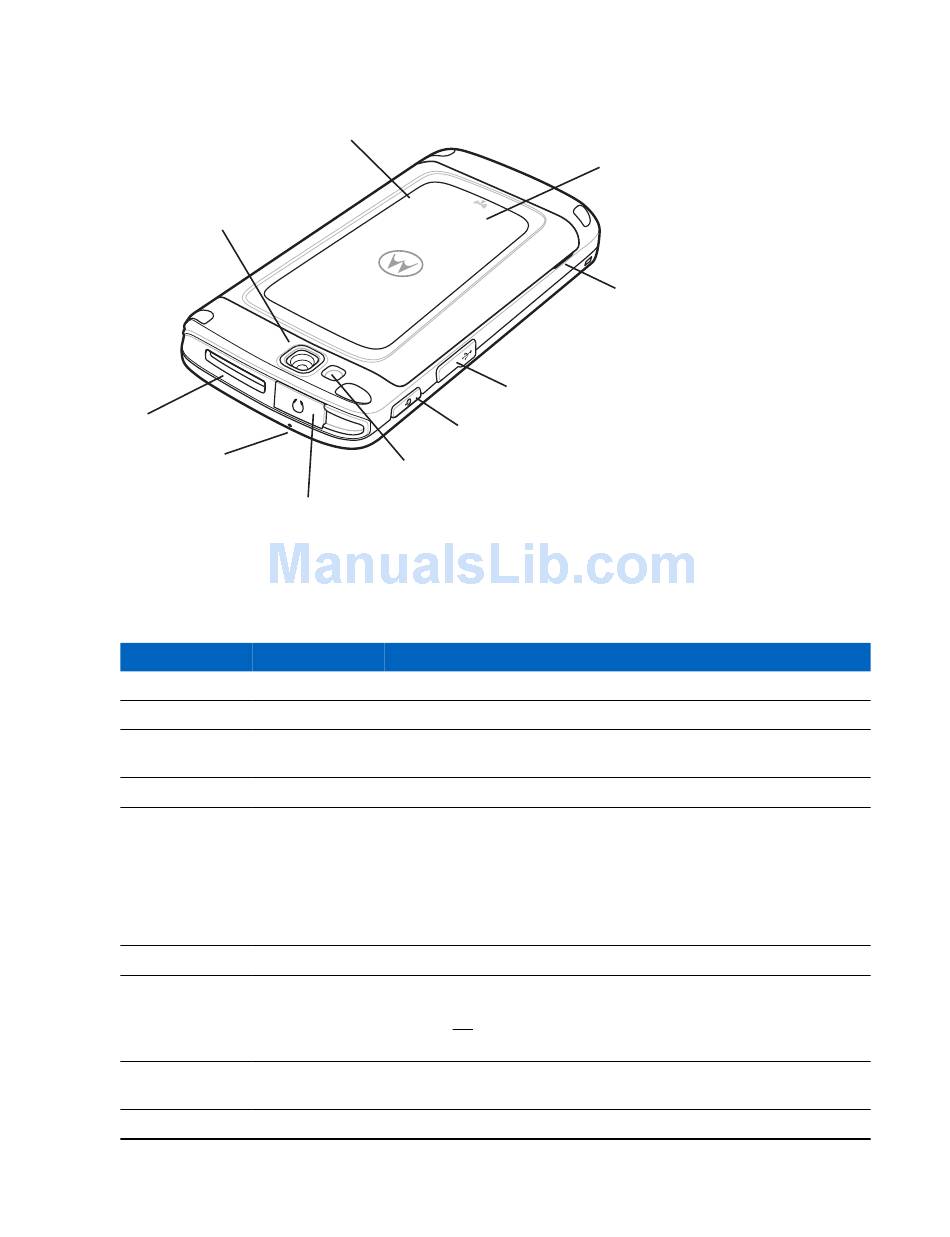

Figure 3: Back View

23
22
21
20

Table 2: Back View Features

Number Item
14 Battery Cover
15 NFC Antenna
16 Battery Cover
Notch
17 USB Port
18 Power Button
19 Flash
20 Headset Jack
21 Secondary
Microphone
22 Exit Window
14
17
18
19
Function
Provides access to the battery, SIM and microSD card holders.
Provides NFC communication with their NFC devices and NFC cards.
Assists in battery cover removal.
Provides USB client and host communications.
Press and hold to turn on the TC55. Press to turn the screen on or off.
Press and hold to select one of these options:
• Power off - Turn off the TC55.
• Reset - Reboot the TC55 if software stops responding.
• Airplane mode - Disable all wireless connections.
Provides illumination for the camera.
Connects to headsets (3.5 mm plug).
Note: Do not use 2.5 mm to 3.5 mm adapters. Use only headsets with
straight plugs.
Use for making voice recordings and communications in speakerphone
mode.
Provides data capture using the linear imager (optional).
Getting Started | 27
15
16
Table continued...
MN000015A01 | September 2013
