Figure 93: Settings Screen; Figure 94: Wi-Fi Screen - Motorola TC55 User Manual

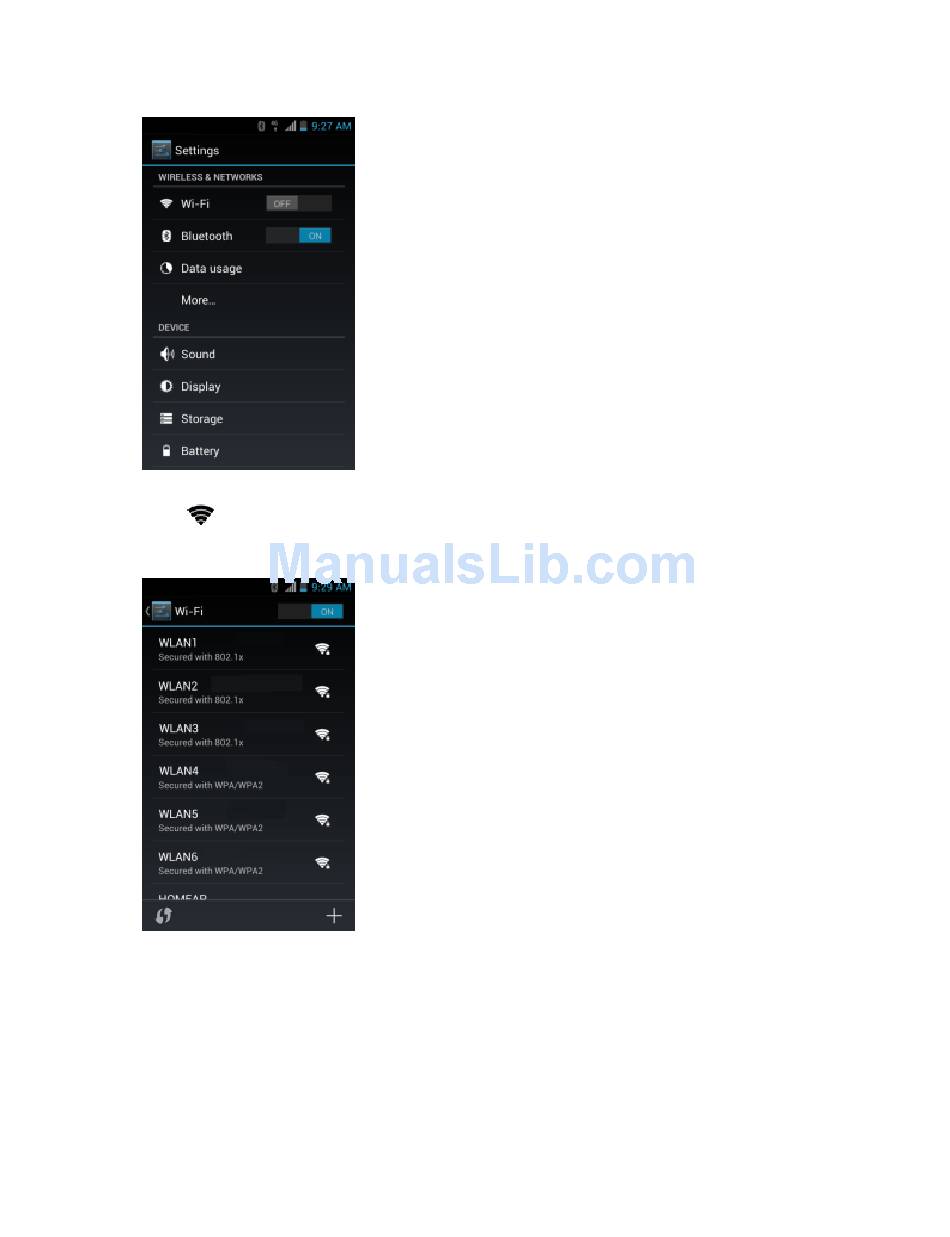

Figure 93: Settings Screen

3 Slide the Wi-Fi switch to the ON position.
4 Touch
Wi-Fi. The TC55 searches for WLANs in the area and lists them.

Figure 94: Wi-Fi Screen

5 Scroll through the list and select the desired WLAN network.
6 For open networks, touch profile once or press and hold and then select Connect to network or for secure
networks enter the required password or other credentials then touch Connect. See the system administrator for
more information.
The TC55 obtains a network address and other required information from the network using the dynamic host
configuration protocol (DHCP) protocol. To configure the TC55 with a fixed internet protocol (IP) address, See
Configuring the Device to Use a Static IP Address on page
7 In the Wi-Fi setting field, Connected appears indicating that the TC55 is connected to the WLAN.
116.
MN000015A01 | September 2013
Wireless | 113
