104 | Data Capture

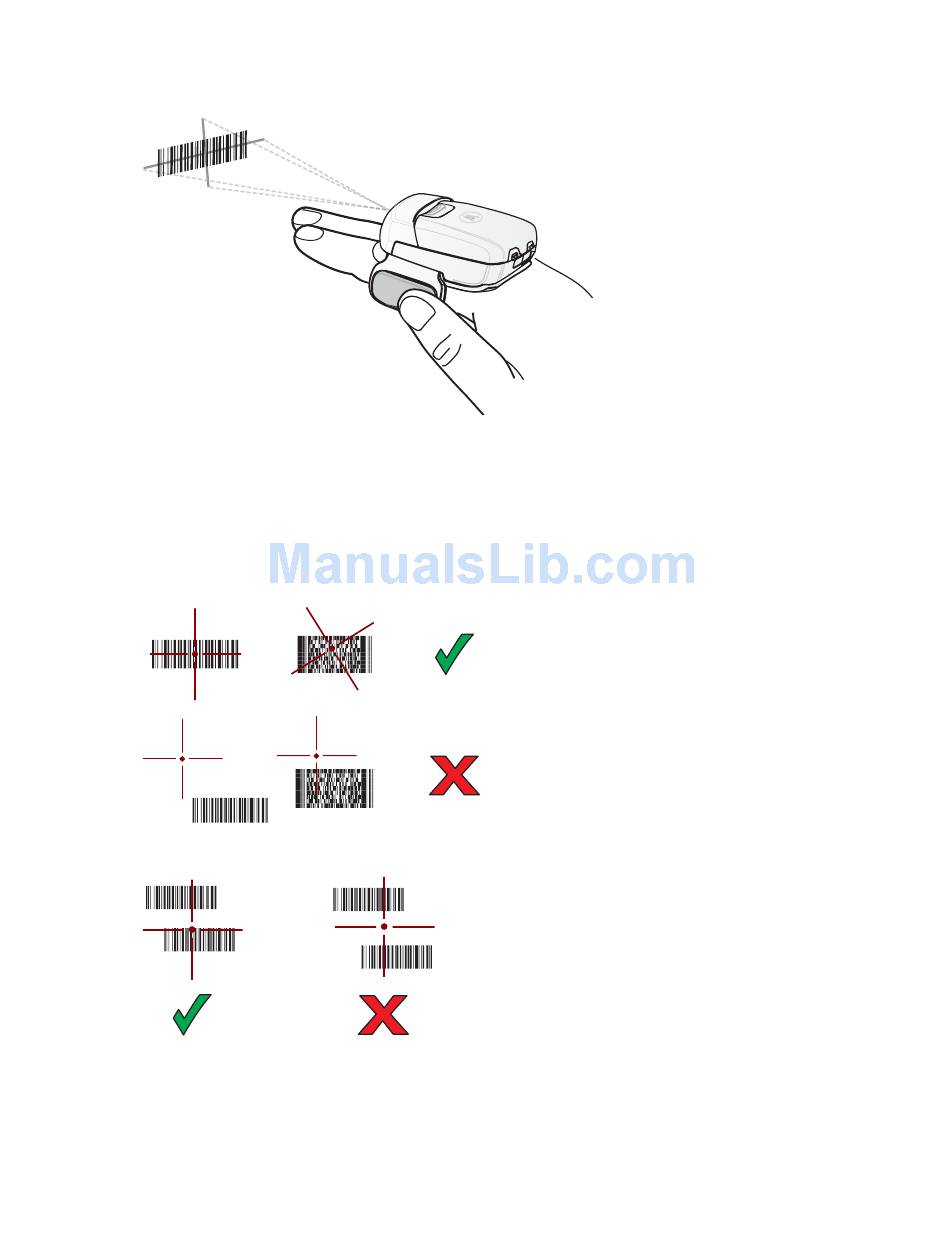

Figure 87: Bar Code Scanning with RS507

3 Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS507 LEDs light green, a beep sounds to indicate the bar code was decoded successfully. Note that when
the RS507 is in Pick List Mode, the RS507 does not decode the bar code until the center of the crosshair touches
the bar code.

Figure 88: Aiming Pattern

Figure 89: Pick List Mode with Multiple Bar Codes in Aiming Pattern

4 The captured data appears in the text field.
September 2013 | MN000015A01
