LV-671Z User's Manual

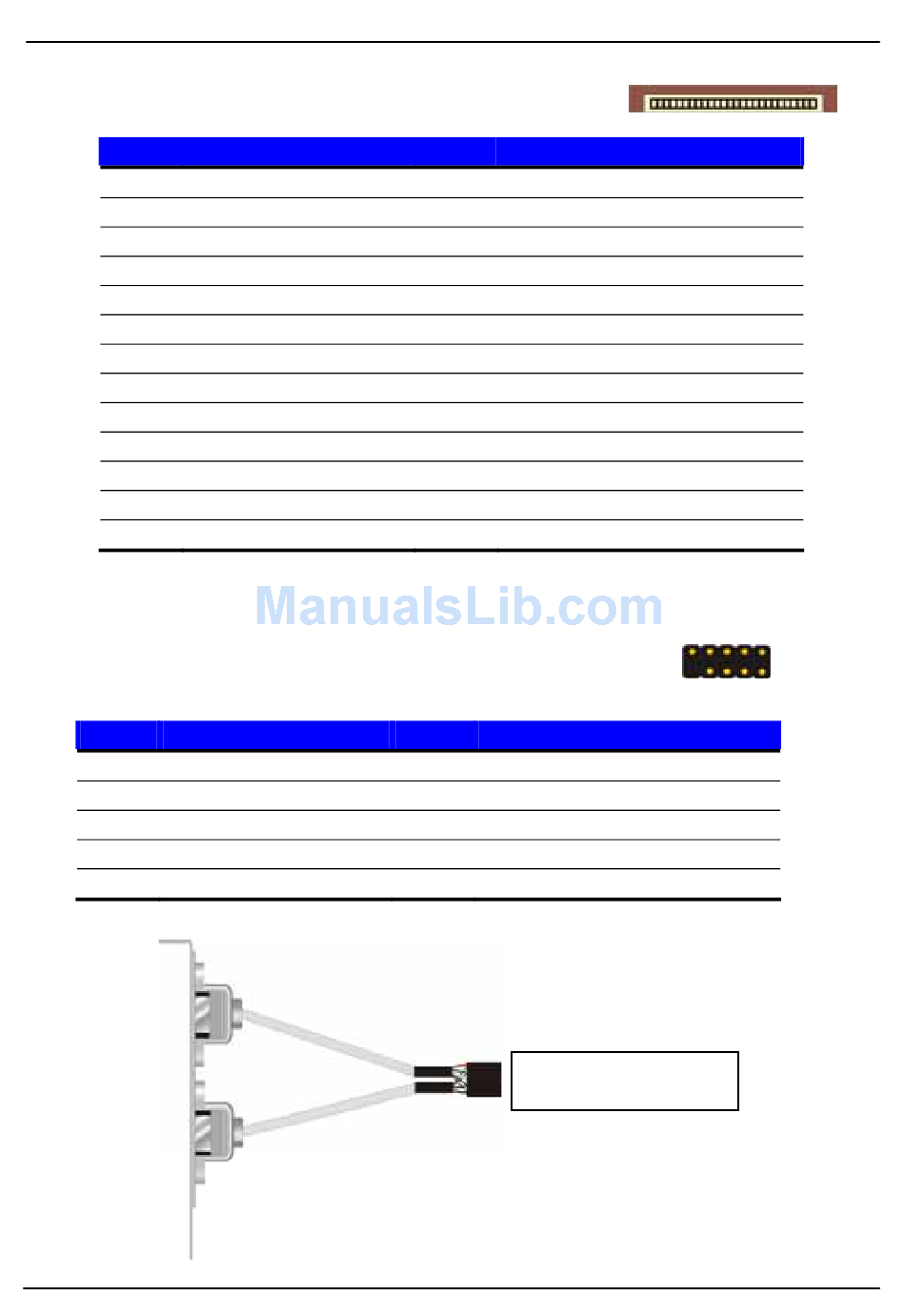

A.2 <Floppy Port>
Connector: FDD
Type: 26-pin connector
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
A.3 < USB Interface >
Connector: CN_USB1, CN_USB2
Type: 10-pin (5 x 2) header for dual USB Ports
Pin Description
1 VCC
3 Data0-
5 Data0+
7 Ground
9 N/C
PS. You can obtain an optional USB cable on bracket for to 2 USB ports.
Floppy Port
Description
VCC
VCC
VCC
DRV1
MTR1
RPM
N/C
Ground
Ground
N/C
N/C
Ground
Ground
Pin Description
2 INDEX
4 DRV0
6 DSKCHG
8 N/C
10 MTR0
12 DIR
14 STEP
16 WRITE DATA
18 WRITE GATE
20 TRACK 0
22 WRPTR
24 RDATA-
26 SEL
Pin Description
2 VCC
4 Data1-
6 Data1+
8 Ground
10 N/C
Optional USB Cable
I/O Port Pin Assignment
9 1
10 2
45
