3.1 <Watchdog Timer Setting>
The watchdog timer makes the system auto-reset while it stops to work for a period. The
integrated watchdog timer can be setup as system reset mode by program.
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87
2E, 87
2E, 07
2F, 08
2E, 30
2F, 01
2E, F5
2F, 00
2E, F6
2F, 05
* Minute: bit 3 = 0; Second: bit 3 = 1

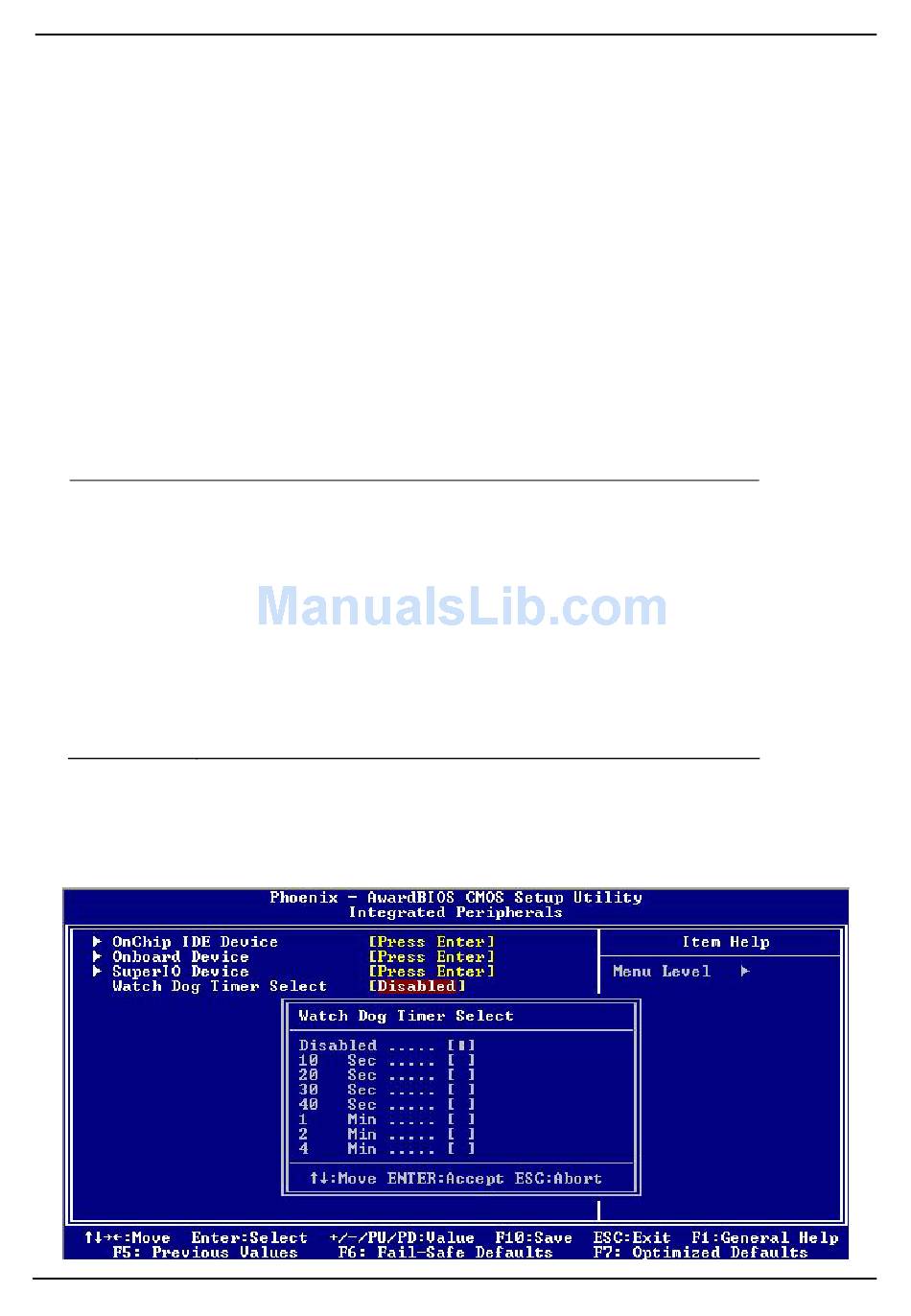

You can select Timer setting in the BIOS, after setting the time options, the system will
reset according to the period of your selection.

Watchdog Timer Setting

Logical Device 8
Activate
Set as Second*
Set as 5
