LV-671Z User's Manual

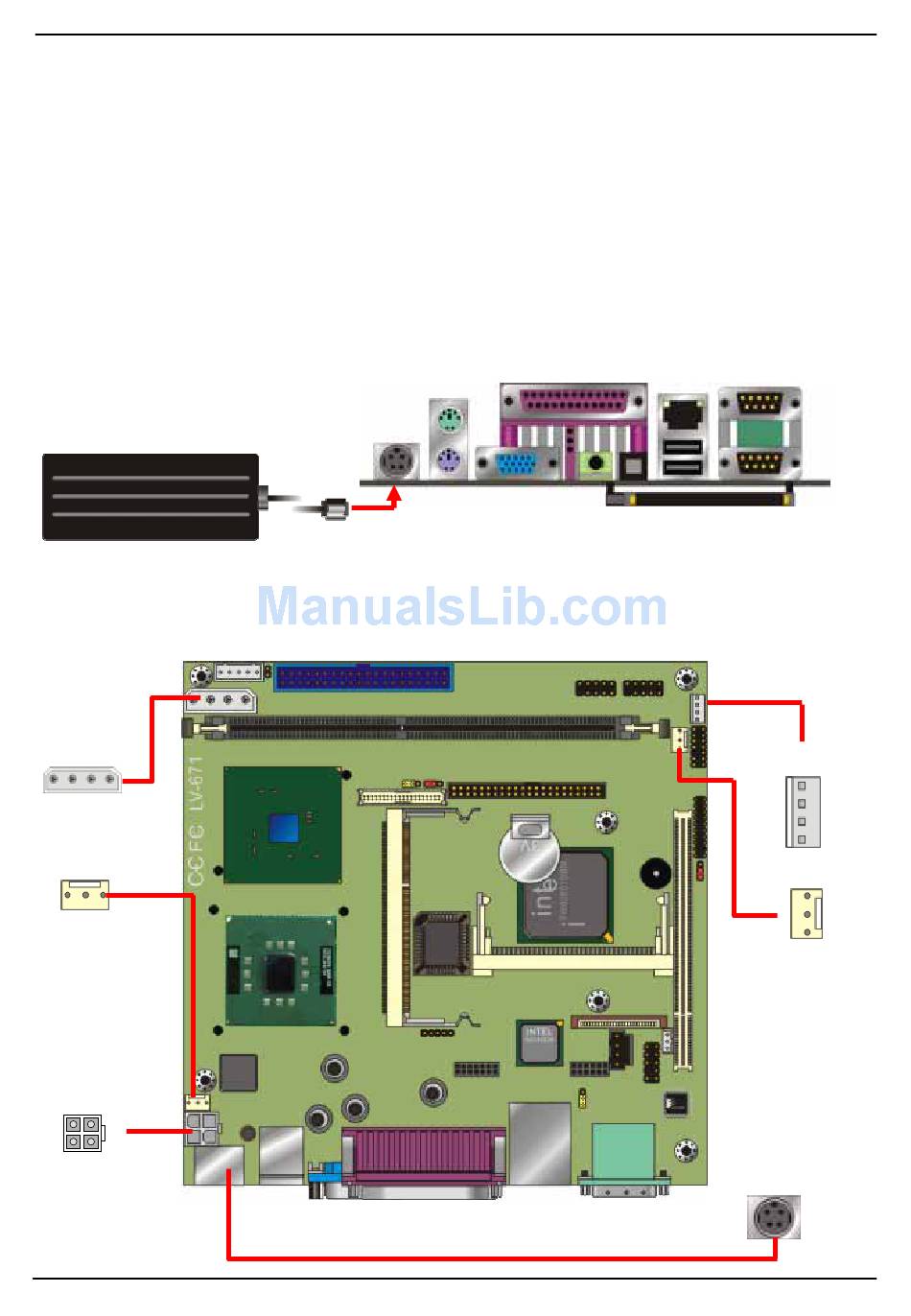

2.11 <Power and Fan connector>
The board comes with a 4-pin Mini-DIN power connector for DC 12V/19V auto-switching
input, it also has one 4-pin P4 additional use power connector for internal power supply,
you can choose one pf them to meet your application.
The board has two power connectors for 5V/12V output to powering your ATAPI drives
directly, and it has two fan connectors for CPU and system cooling.
How to power the board
Type 1: Use DC 12V/19V adapter with 4-pin MINI-DIN connector for DC_IN
DC 12V/19V Adapter
Type 2: Use standard internal P4 power supply for CN_12V
We strongly recommend users to use type 1 for powering the board.
CN_BPWR
1
4
CPUFAN
3
1
CN_12V
3
1
4
2
Power and Fan Connector
Hardware Setup
CN_SPWR
1
4
SYSFAN
3
1
DC_IN
3
1
4
2
29
