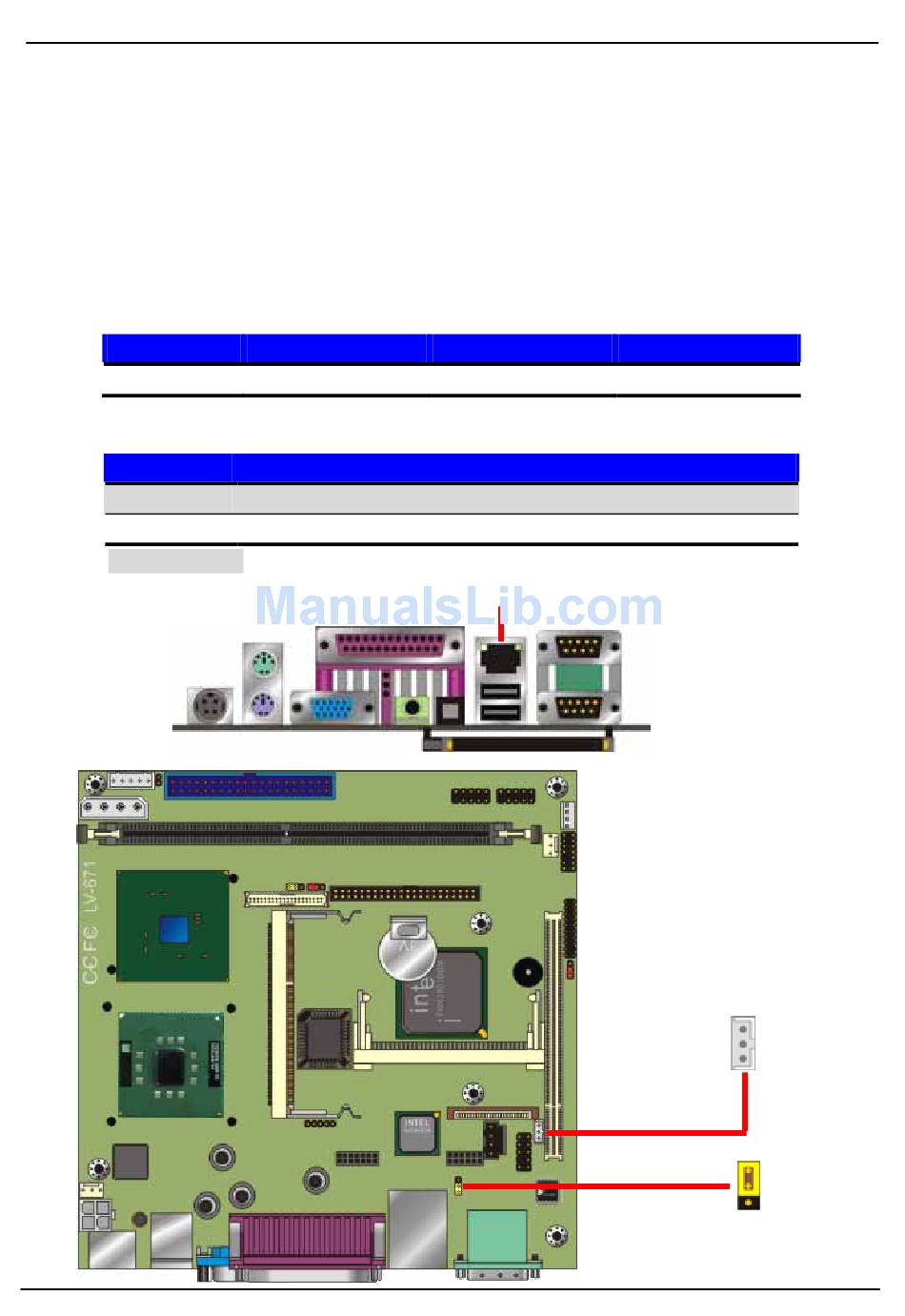

2.10 <Ethernet Interface>
The board integrates
10Base-T/100Base-TX/1000Base-T auto-switching Ethernet with full duplex and IEEE
802.3U compliant. The LAN function comes with a RJ45 jack on the rear I/O panel. The
CN_WOL is for the Wake-Up-On-LAN function link with PCI LAN Card.
Connector: CN_WOL
Type: onboard 3-pin (1 x 3) wafer connector
Pin
Description
Jumper: JLAN
Type: onboard 3-pin header
JRTC
1-2
2-3
Default setting
28
with Intel 82540EM Gigabit
1
WOL-Ctrl
Mode
Enable Onboard LAN controller
Disable Onboard LAN controller
controller at the type of
2
Ground
+5V Standby
RJ45
Hardware Setup
3
CN_WOL
1
3
1
3
JLAN
Ethernet Interface
