AXIOMTEK PANEL1173-841 User Manual

Axiomtek 17" tft expandable intel 2 duo industrial panel pc with 2 pci user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PANEL1173-841
®
™
17" TFT Expandable Intel
Core
2 Duo
Industrial Panel PC with 2 PCI
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANEL1173-841 and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK PANEL1173-841

Summary of Contents for AXIOMTEK PANEL1173-841

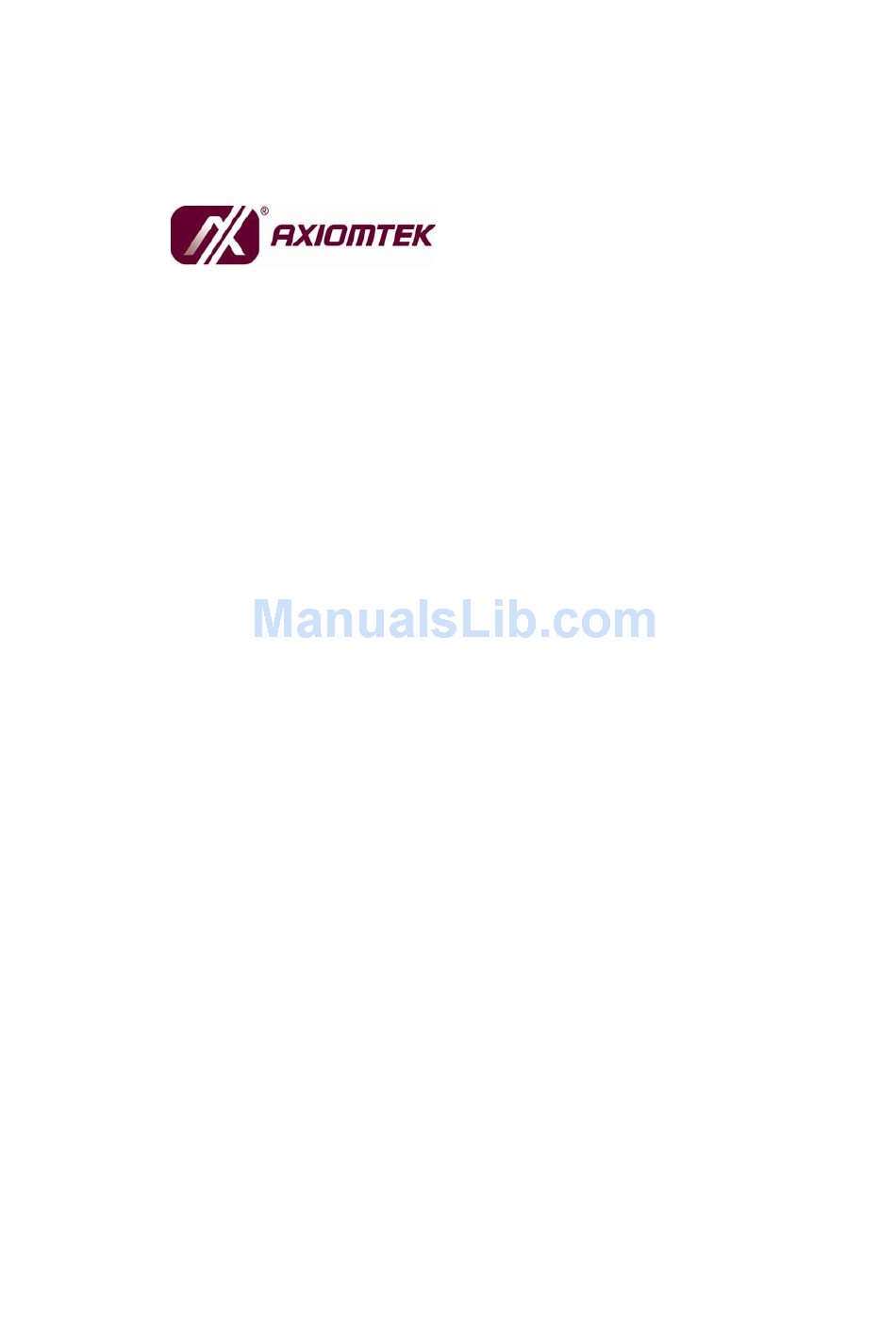

  • Page 1 PANEL1173-841 ® ™ 17” TFT Expandable Intel Core 2 Duo Industrial Panel PC with 2 PCI User’s Manual...
  • Page 2 Disclaimers This manual has been carefully checked and believed to contain accurate information. AXIOMTEK Co., Ltd. assumes no responsibility for any infringements of patents or any third party’s rights, and any liability arising from such use. AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document.

  • Page 3: Safety Approvals

    Safety Approvals CE Marking FCC Class A FCC Compliance This equipment has been tested in compliance with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are meant to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The PANEL1173-841 Series does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.
  • Page 5 When handling boards and components, wear a wrist- grounding strap, available from most electronic component stores. Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. ® ® Intel and Pentium are registered trademarks of Intel Corporation.

  • Page 6: Table Of Contents

    Table of Contents Disclaimers ... ii Safety Approvals ... iii Safety Precautions ...iv C h a p t e r 1 ... 1 General Description... 2 System Specifications ... 3 1.2.1 Main CPU Board ... 3 1.2.2 I/O System... 3 1.2.3 System Specification ...
  • Page 7 C h a p t e r 4 ... 61 System ... 61 Touch Screen ... 62 4.2.1 Specification ... 62 4.2.2 Driver Installation – Windows 2000/XP/Vista... 63 4.2.3 Driver Installation - DOS ... 66 A p p e n d i x Power Supply Specification... 69...
  • Page 8 MEMO viii...

  • Page 9: Chapter 1

    This chapter contains general information and detailed specifications of the PANEL1173-841. Chapter 1 includes the following sections: General Description System Specification Dimensions Front View & I/O Outlets Package List Introduction PANEL1173-841 User’s Manual C h a p t e r 1...

  • Page 10: General Description

    PANEL1173-841 User’s Manual General Description The PANEL1173-841 is a 17” Industrial panel PC which features ® ™ ® Intel Core 2 Duo processor and Intel Q965 chipset to provide powerful computing performance. This panel PC also offers the expansion ability with two PCI slots. It adopts built-in speaker and WLAN module for wireless connectivity.

  • Page 11: System Specifications

    Standard I/O Three serial ports with power, two RS-232 and one RS- 232/422/485 One PS/2 for Keyboard and Mouse Interface Four USB Ports 2.0 compliant Two IEEE1394a Ports Introduction PANEL1173-841 User’s Manual ® Core 2 Duo/Core Solo , max up to...

  • Page 12: System Specification

    PANEL1173-841 User’s Manual One DVI-I Output Ethernet First port with i82566DM Gigabit Ethernet PHY, Second port with RTL8111B for Gigabit/Fast Ethernet Audio HD Audio for two channels output MIC-In, Line-Out Storage Four SATA-300 interface Box-Header One 26-pin for shared LPT/FDD(optional)
  • Page 13 10% to 85% @ 40℃, Non-Condensing Altitude 10,000 ft. (3,000 meters) Vibration (Operating) 5 to 500 Hz, 1 G random Shock (Operating) 10 G peak acceleration (11 msec. duration) NOTE All specifications and images are subject to change without notice. Introduction PANEL1173-841 User’s Manual...

  • Page 14: Dimensions

    PANEL1173-841 User’s Manual Dimensions This diagram shows you dimensions and outlines of the PANEL1173- 841. Introduction...

  • Page 15: Front View And I/O Outlets

    Front View and I/O Outlets 1.4.1 Front View Please refer to the following illustration for features and controls of the PANEL1173-841 front bezel. SEL+ SEL- Backlight ON/OFF Introduction PANEL1173-841 User’s Manual Function...

  • Page 16: I/O Outlets

    PANEL1173-841 User’s Manual 1.4.2 I/O Outlets The following figure shows the I/O locations of the PANEL1173-841. Connector COM1 (RS-232/422/485) DVI-I Giga LAN x 2 IEEE 1394a x 2 USB v2.0 x 4 Mic-in, Line-Out Connector COM 2 & COM 3...

  • Page 17: Package List

    Package List The package bundled with your PANEL1173-841 should contain the following items: P1173-841 x 1 AC power cord x 1 Panel mount kit x 7 Driver CD x1 LGA 775 CPU Cooler x 1 DVI TO VGA Adaptor x 1 PS/2 Splitter –...
  • Page 18 PANEL1173-841 User’s Manual MEMO Introduction...

  • Page 19: Chapter 2

    The PANEL1173-841 is convenient for your various hardware configurations in flexible ways, such as CPU (Central Processing Unit), HDD (Hard Disk Drive), Memory Module (DRAM), CD-ROM, Add-On card, and more. The chapter 2 will show you how to install the hardware. It includes:...
  • Page 20 PANEL1173-841 User’s Manual Step 1 Unscrew screws to remove the rear chassis. Step 2 Remove the riser card fix kit. Hardware Installation...
  • Page 21 PANEL1173-841 User’s Manual Step 3 Install the CPU and DDR DRAM in the PANEL1173-841. DRAM Hardware Installation...

  • Page 22: Installing The The Hard Disk Drive

    PANEL1173-841 User’s Manual Installing the the Hard Disk Drive The PANEL1173-841 offers a convenient drive bay module for users to install HDD. The system offers users one 3.5” Hard Disk Drives for installation. If you want to install dual 3.5” HDD, or 2.5” HDD, the PANEL1173-841 also provides the dual 3.5”...
  • Page 23 Fix the Hard Disk to the HDD bracket and connect the cable to complete the installation. Installing Dual 3.5” HDD If installing the dual 3.5” HDD, please follow the steps: Step 1 Change HDD bracket from 3.5” to dual 3.5”. Hardware Installation PANEL1173-841 User’s Manual (4-1) (4-2)
  • Page 24 PANEL1173-841 User’s Manual Step 2 Fix the Hard Disk to the HDD bracket to complete the installation. Hardware Installation...
  • Page 25 PANEL1173-841 User’s Manual Note When installing Dual 3.5” HDD, users must install a fan to decrease system heat. Installation step as following: Installing fan when using dual 3.5” HDD Step 1 Screw the fan to the right side of cover.
  • Page 26 PANEL1173-841 User’s Manual (1-2) (1-3) Step 2 Connect power cable of fan to 3 pin fan connector (CN3) in motherboard. Hardware Installation...
  • Page 27 (2-1) (2-2) Installing 2.5” HDD If installing the 2.5” HDD, please follow the steps: Step 1 Change HDD rubber of HDD bracket from 3.5” to 2.5”. Hardware Installation PANEL1173-841 User’s Manual...
  • Page 28 PANEL1173-841 User’s Manual Step 2 Fix the Hard Disk to the HDD bracket to complete the installation. Hardware Installation...

  • Page 29: Cd-Rom Installation

    CD-ROM Installation The PANEL1173-841 offers a convenient drive bay module for users to install CD-ROM. When installing the CD-ROM, refer to the following instructions and illustration: Step 1 Unscrew screws to remove the rear chassis. Step 2 Remove the riser card fix kit.

  • Page 30: Add-On Card Installation

    PANEL1173-841 User’s Manual Add-on Card Installation The PANEL1173-841 provides a riser card for PCI slots expansion. The riser card assembly can accommodate both half-size expansion cards. To install the riser card, refer to the following figure and instructions below: Step 1 Remove the rear chassis.
  • Page 31 Step 4 Insert the add-on card in the socket firmly until it is completely seated. Hardware Installation PANEL1173-841 User’s Manual...

  • Page 32: Serial Port Interface

    PANEL1173-841 User’s Manual Serial Port Interface The PANEL1173-841 has four onboard serial ports, COM1, COM2, COM3, COM4 are RS-232 Port Connector. The connector, COM1, COM2, COM3 are DB-9 connector, and the following table shows the pin assignments of this connector.
  • Page 33 Signal TXC+ CRT-RED CRT-BLUE VGAGND NOTE It doesn’t support display in LCD and DVI-D simultaneously. DVI-D is only available after booting up in Windows XP. Hardware Installation PANEL1173-841 User’s Manual Signal Ground TXC- CRT-GREEN CRT-HSYNC...

  • Page 34: Ethernet

    PANEL1173-841 User’s Manual Ethernet The PANEL1173-841 provides a NE2000 compatible Ethernet (RJ-45) interfaces. For network connection, just plug in one cable end of the system’s 10/100/1000-Base-T Hub into a standard RJ-45 connector. Please refer to detailed pin assignment list below:...

  • Page 35: Mountings Way - Panel/ Rack

    PANEL1173-841 User’s Manual Mountings Way – Panel/ Rack There are two mounting ways available for the PANEL1173-841 system: Panel and Rack mounting. 2.8.1 Panel Mounting The PANEL1173-841 is designed for panel mount application. To mount the PANEL1173-841, the standard set of mounting kit (included in the system packaging) is needed.

  • Page 36: Rack Mounting

    PANEL1173-841 User’s Manual 2.8.2 Rack Mounting The PANEL1173-841 also support rack mounting. The rack mounting kit is optional. Please refer to the following procedure. 1. Fix five screws each side. 2. Complete the rack mounting. Hardware Installation...

  • Page 37: Chapter 3

    PANEL1173-841 User’s Manual C h a p t e r 3 Phoenix-Award BIOS Utility The Phoenix-Award BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a battery-backed-up RAM (CMOS RAM) to save the Setup information whenever the power is turned off.

  • Page 38: Control Keys

    PANEL1173-841 User’s Manual Control Keys Move cursor to the previous item Up arrow Move cursor to the next item Down arrow Move cursor to the item on the left hand Left arrow Move to the item in the right hand...

  • Page 39: The Main Menu

    CMOS default settings via its built-in override feature. It is strongly recommended that you should avoid changing the chipset’s defaults. Both Award and your system manufacturer have carefully set up these defaults that provide the best performance and reliability. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 40: Standard Cmos Setup Menu

    PANEL1173-841 User’s Manual Standard CMOS Setup Menu The Standard CMOS Setup Menu displays basic information about your system. Use arrow keys to highlight each item, and use <PgUp> or <PgDn> key to select the value you want in each item.
  • Page 41 All, But The system booting will not stop for a keyboard or Disk/Key disk error; it will stop for other errors. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual landing zone number of sectors SECTORS MODE HDD access mode...

  • Page 42: Advanced Bios Features

    PANEL1173-841 User’s Manual Press <Esc> to return to the Main Menu page. Advanced BIOS Features This section allows you to configure and improve your system, to set up some system features according to your preference. Phoenix-Award BIOS Utility...
  • Page 43 Scroll to this item and press <Enter> to view the CPU Feature sub menu. Hard Disk Boot Priority Scroll to this item and press <Enter> to view the sub menu to decide the disk boot priority. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...
  • Page 44 PANEL1173-841 User’s Manual Virus Warning This option flashes on the screen. During and after the system boot up, any attempt to write to the boot sector or partition table of the hard disk drive will halt the system with the following message. You can run an anti-virus program to locate the problem.
  • Page 45 “Disabled”. Enabled Enable typematic rate and typematic delay programming. Disable typematic rate and typematic delay Disabled programming. The system BIOS will use default value of these 2 items, controlled by keyboard. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...
  • Page 46 PANEL1173-841 User’s Manual Typematic Rate (Chars/Sec) This option refers to character numbers typed per second by the keyboard. The default value is “6”. 6 characters per second 8 characters per second 10 characters per second 12 characters per second 15 characters per second...
  • Page 47 PCI bus configurations and provide future expandability. Small Logo (EPA) Show If enabled, the EPA logo will appear during system booting up; if disabled, the EPA logo will not appear. Press <Esc> to return to the Main Menu page. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 48: Advanced Chipset Features

    PANEL1173-841 User’s Manual Advanced Chipset Features This section contains completely optimized chipset’s features on the board that you are strongly recommended to leave all items on this page at their default values unless you are very familiar with the technical specifications of your system hardware.
  • Page 49 DVMT/Fixed Memory Size DVMT (Dynamic Video Memory Technology) allows you to select a maximum size of dynamic amount usage of the video memory. The system would configure the video memory dependent on your application. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 50: Integrated Peripherals

    PANEL1173-841 User’s Manual Boot Display This item is for Intel define ADD card only. Press <Esc> to return to the Main Menu page. Integrated Peripherals This section allows you to configure your SuperIO Device, IDE Function and Onboard Device. Phoenix-Award BIOS Utility...
  • Page 51 IDE channels. Select Enabled to activate each channel separately. The default value is “Enabled”. NOTE Choosing Disabled for these options willautomatically remove the IDE rimaryMaster/Slave PIO and/or IDE Secondary Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...
  • Page 52 PANEL1173-841 User’s Manual Master/Slave PIO items on the menu. IDE Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 to 4 provide successively increased performance.
  • Page 53 Onboard Paralellel Port This item allows you to determine access onboard parallel port controller with which I/O address. The options available are 378H/IRQ7, 278H/IRQ5, 3BC/IRQ7, Disabled. The 3BC option does not support any EPP modes. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...
  • Page 54 PANEL1173-841 User’s Manual Parallel Port Mode Select an operating mode for the onboard parallel (printer) port. Select Normal unless your hardware and software require one of the other modes offered in this field. The options available are EPP1.9, ECP, SPP, ECPEPP1.7, EPP1.7.

  • Page 55: Power Management Setup

    PANEL1173-841 User’s Manual Power Management Setup The Power Management Setup allows you to save energy of your system effectively. It will shut down the hard disk and turn OFF video display after a period of inactivity. Phoenix-Award BIOS Utility...
  • Page 56 PANEL1173-841 User’s Manual ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The function is always “Enabled”. ACPI Suspend Type This item specifies the power saving modes for ACPI function. If your operating system supports ACPI, such as Windows 98SE,...
  • Page 57 If you want an incoming call on a modem to automatically resume the system from a powersaving mode, use this item to specify the interrupt request line (IRQ) used by the modem. You might have to Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...
  • Page 58 PANEL1173-841 User’s Manual connect the fax/modem to the board Wake On Modem connector for working this feature. Suspend Mode After the selected period of system inactivity (1 minute to 1 hour), all devices except the CPU shut off. The default value is “Disabled”.
  • Page 59 PCI PIRQ[A-D]# This item can be used to detect PCI device activities; if no activity, the system will enter the sleep mode. Press <Esc> to return to the Main Menu page. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 60: Pnp/Pci Configuration Setup

    3.10 PnP/PCI Configuration Setup This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
  • Page 61 Maximum Payload Size defines the maximum TLP (Transaction Layer Packet) data payload size for the device. Press <Esc> to return to the Main Menu page. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 62: Pc Health Status

    PANEL1173-841 User’s Manual 3.11 PC Health Status This section supports hardware monitering that lets you monitor those parameters for critical voltages, temperatures and fan speed of the board. Shutdown Temperature It helps you set the maximum temperature they system can reach before powering down.

  • Page 63: Frequency/Voltage Control

    PCI slot without a module, to reduce EMI (ElectroMagnetic Interference). Spread Spectrum If spread spectrum is enabled, EMI (ElectroMagnetic Interference) generated by the system can be significantly reduced. Press <Esc> to return to the Main Menu page. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 64: Load Optimized Defaults

    PANEL1173-841 User’s Manual 3.13 Load Optimized Defaults This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features. To load SETUP defaults value to CMOS SRAM, enter “Y”. If not, enter “N”.

  • Page 65: Set Supervisor/User Password

    Features Setup Menu and its Security option. If the Security option is set to “System”, the password is required during boot up and entry into Setup. If set as “Setup”, prompting will only occur prior to entering Setup. Phoenix-Award BIOS Utility PANEL1173-841 User’s Manual...

  • Page 66: Save & Exit Setup

    PANEL1173-841 User’s Manual 3.15 Save & Exit Setup This allows you to determine whether or not to accept the modifications. Typing “Y” quits the setup utility and saves all changes into the CMOS memory. Typing “N” brigs you back to Setup utility.

  • Page 67: Exit Without Saving

    PANEL1173-841 User’s Manual 3.16 Exit Without Saving Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.
  • Page 68 PANEL1173-841 User’s Manual MEMO Phoenix-Award BIOS Utility...

  • Page 69: Chapter 4

    C h a p t e r 4 Driver Installation System PANEL1173-841 supports Windows 2000/XP/Vista. To facilitate the installation of the system driver, please carefully read the instructions in this chapter before start installing. 1. Here is the path for the system driver: Panel series\P1173-841\Driver 2.

  • Page 70: Touch Screen

    PANEL1173-841 User’s Manual Touch Screen 4.2.1 Specification Touch Screen 5-wire Analog Resistive type Touch Screen Controller DMC9000 (10-bit A/D converter inside) Communications RS-232 Baud Rate 19200 and 9600 baud selection Resolution 2048 x 2048 Mode Selection PnP or non-PnP Power Input...

  • Page 71: Driver Installation - Windows 2000/Xp/Vista

    4.2.2 Driver Installation – Windows 2000/XP/Vista The PANEL1173-841 provides a driver of the touch screen that users can install it under operating system Windows 2000/XP/Vista. To facilitate this touch screen driver installation, users should read the instructions in this chapter carefully before start the installation.
  • Page 72 PANEL1173-841 User’s Manual Select the “Standard Calibrate” tab. Driver Installation...
  • Page 73 Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Driver Installation PANEL1173-841 User’s Manual...

  • Page 74: Driver Installation - Dos

    PANEL1173-841 User’s Manual 4.2.3 Driver Installation - DOS Using “INSTALL.EXE” Utility to Install PenMount Software Driver Insert Driver CD and select the Panel series\P1173- 841\Driver\Step5 - Touch\Driver\DOS\Install.exe Press ENTER key to install the drivers to drive C or use keyboard to key-in the hard disc drive that you plan to install the driver.
  • Page 75 To demonstrate or test touch screen operation, please select “3” DRAWING TEST in PM.BAT file of the Utility Directory. Drawing will be shown on the screen.The demonstration program “ICECREAM.EXE” in the “PENMOUNT” directory can be applied, too. Driver Installation PANEL1173-841 User’s Manual...
  • Page 76 PANEL1173-841 User’s Manual MEMO Driver Installation...

  • Page 77: Appendix Power Supply Specification

    The +3.3V and +5V total output shall not exceed 105 watts. The +3.3.V, +5V, and +12V total output shall not exceed 230 watts and the total output for this subject power supply is 250 watts. Power Supply Specification PANEL1173-841 User’s Manual A p p e n d i x Ripple/Noise 50mV 0.3A...
  • Page 78 PANEL1173-841 User’s Manual LOAD CAPACITY SPECIFICATIONS The cross regulation defined as follows, the voltage regulation limits DC include DC Output ripple & noise. LOAD +3.3V Condition_1 Condition_2 0.5A 0.3A Condition_3 0.5A Condition_4 Condition_5 Condition_6 4.5A Condition_7 Condition_8 9.7A HOLD-UP TIME (@FULL LOAD) 115V / 60Hz : 17 mSec.
  • Page 79 Required Minimum 230V Efficiency Environmental Requirements Operating temperature range: 10°C to 50°C Storage temperature range: -20°C to +80°C Humidity, non-condensing: 5% ~ 95%RH, Non- Condensing Power Supply Specification PANEL1173-841 User’s Manual 1 mSec. minimum Typical Full load Light load load...
  • Page 80 PANEL1173-841 User’s Manual Vibration: 0.25G, 10~250Hz Shock: -40G, 11mSec for Storage, -10G, 11mSec for operating Reliability The power supply reliability, when calculated by MIL- HDBK;latest revision, are exceed 100,000 hours with all output at maximum load and an ambient temperature of 25℃.
