AXIOMTEK GOT3126T-832 User Manual

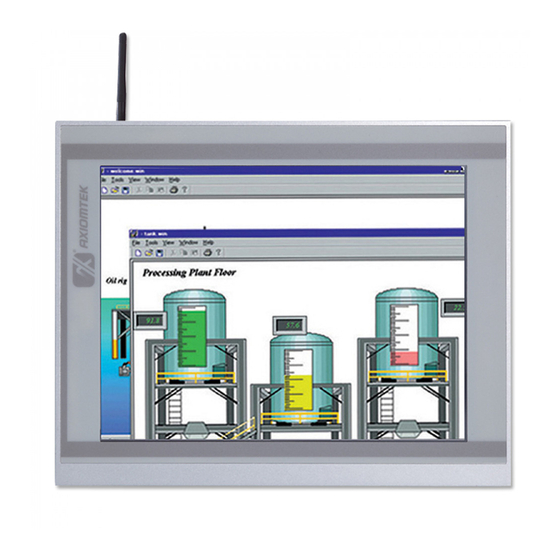

All-in-one 12.1” svga tft fanless compact-size panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT3126T-832
All-in-One
12.1" SVGA TFT Fanless
Compact-Size
PANEL PC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT3126T-832 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT3126T-832

Summary of Contents for AXIOMTEK GOT3126T-832

  • Page 1 GOT3126T-832 All-in-One 12.1” SVGA TFT Fanless Compact-Size PANEL PC User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Disconnect the power cords from the GOT3126T-832 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT3126T-832 Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Specifications ..................2 Dimensions and Outlines ..............4 I/O Outlets .................... 5 Packing List ..................6 Chapter 2 Hardware and Installation ...... 7 Open back cover .................
  • Page 5 Chapter 4 Drivers Installation ......37 System ....................37 Touch Screen ..................37 Embedded O.S................... 39...
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

     Package List General Description ® The GOT3126T-832 adopts a 12.1-inch SVGA TFT LCD with 450-nit brightness and an Intel Atom processor N2600 1.6 GHz to provide excellent computing performance and thermal resistance. This fanless platform is especially designed for operating under heavy-duty environment including steel refinery, oil pipe, ship, machine maker operating systems and many more.

  • Page 8: Specifications

    GOT3126T-832 User’s Manual WLAN Antenna Supported (optional) GOT3126T-832 has a PCI Express Mini Card slot for optional add-ons such as wireless LAN card for 802.11 b/g connections & 3G/GPRS application, graphics-enhanced video card, universal analog TV/FM tuner/AV capture card, and more. It also provides an optional fixed rotational WLAN antenna for wireless network connection.
  • Page 9 GOT3126T-832 User’s Manual System Specification 12.1” SVGA(800x600) LCD with LED backlight   5 wired resistive Touch  Fanless Heat Dispensing Design  IP65 aluminum front bezel  Disk drive housing:  One 2.5” SATA drive  Net Weight ...

  • Page 10: Dimensions And Outlines

    GOT3126T-832 User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of GOT3126T-832. Introduction...

  • Page 11: I/O Outlets

    GOT3126T-832 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT3126T-832. Function Function POWER SWITCH (ATX) COM 2 (RS-232) Power Input connector (phoenix) 2X Ethernet (RJ-45) type) 2 X USB 2.0 2 X USB 2.0...

  • Page 12: Packing List

    GOT3126T-832 unit x 1  Driver CD x1  Phoenix connector x 1  Panel mount kit x 6  Screws for HDD x 4 If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 13: Hardware And Installation

    GOT3126T-832 User’s Manual Chapter 2 Hardware and Installation The GOT326T-832 provides rich I/O ports and flexible expansions for you to meet different demand, for example CF card. The chapter will show you how to install the hardware. It includes: ...

  • Page 14: Open

    GOT3126T-832 User’s Manual Open back cover This section tells users how to open back cover. Please follow the steps below. Step 1 Unscrew ten screws on the back cover. Please refer the photo below. Step 2 Remove the back cover.

  • Page 15: Cf Card Installation

    GOT3126T-832 User’s Manual CF card Installation ™ The GOT3126T-832 provides one CF slot for users to install CompactFlash card. Please refer to the following instructions for installation: Step 1 Unscrew a screw on the cover of CF card slot on left side of GOT.

  • Page 16: Serial Ports Interface

    GOT3126T-832 User’s Manual Serial Ports Interface The GOT3126T-832 has four serial ports. COM1 is RS-232/422/485, while COM2 and COM3 are RS-232. The following table shows you the pin assignments of this connector: Jumper Description Jumper Setting RS-232 (Default) RS-422 COM 1 RS-485 2.3.1...

  • Page 17: Ethernet

    No use No use Ethernet The GOT3126T-832 is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 18: Mountings: Panel / Wall / Vesa

    Mountings: Panel / Wall / VESA There are 4 application options for the GOT3126T-832, Panel/Wall/Desktop/VESA mountings. 2.5.1 VESA-ARM/Wall-Mount The GOT3126T-832 provides two ways for VESA mount: 100x100 mm. Screw four screws to fix the kit (option) in the back chassis. Wall mount: Hardware and Installation...

  • Page 19: Panel-Mount Kit Assembly

    GOT3126T-832 User’s Manual VESA mount: 2.5.2 Panel-mount Kit Assembly The GOT3126T-832 is designed for panel mount application. To mount the GOT3126T-832, the standard set of mounting kit (included in the system packaging) is needed. Hardware and Installation...

  • Page 20: Hdd Installation

    GOT3126T-832 User’s Manual HDD Installation The GOT3126T-832 provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: Step 1 Refer section 2.1 to open the back cover. Step 2 Unscrew 4 screws to take off the HDD bracket.
  • Page 21 GOT3126T-832 User’s Manual Step 4 Fix the HDD bracket into the system, and plug the data and power cable to HDD. Installation completes. Hardware and Installation...

  • Page 22: Dram Installation

    GOT3126T-832 User’s Manual DRAM Installation The GOT3126T-832 provides one 204-pin DDR3 SODIMM socket that support system memory up to 2GB. Please follow steps below to install the memory modules: Step 1 Refer to section 2.1 to open the back cover and find out DIMM socket on main board (SBC87832).
  • Page 23 GOT3126T-832 User’s Manual Step 3 Insert the DRAM to the DIMM socket, and then push it down firmly until it is clipped by the socket. Step 4 Installation completes. Hardware and Installation...

  • Page 24: Wireless Lan Card Installation

    GOT3126T-832 User’s Manual Wireless LAN Card Installation The GOT3126T-832 provides one Mini card slot for user to install one wireless LAN card. When installing the wireless LAN card, refer to the following instructions and illustration: Step 1 Refer to section 2.1 to open the back cover and find out mini-card slot on main board.

  • Page 25: Power

    Remove the antenna plug from the top of back cover, then Install the antenna on the antenna connector Power GOT3126T-832 equips with a phoenix type power connector. It adopts 10VDC to 30VDC. Please follow the signs on power connector to connect DC power source. －:Power negative...
  • Page 26 GOT3126T-832 User’s Manual This page is intentionally left blank. Hardware and Installation...

  • Page 27: Ami Bios Setup Utility

    GOT3126T-832 User’s Manual Chapter 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del> key immediately.

  • Page 28: Main Menu

    GOT3126T-832 User’s Manual Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below ...

  • Page 29: Advanced Menu

    GOT3126T-832 User’s Manual Advanced Menu  Launch Storage OpROM This item can enable or disable boot option for legacy mass storage devices with option ROM. The Advanced menu also allows users to set configuration of the CPU and other system devices.
  • Page 30 GOT3126T-832 User’s Manual  ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 31 GOT3126T-832 User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Hyper-Threading Use this item to enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
  • Page 32 GOT3126T-832 User’s Manual  IDE Configuration SATA Controller(s) The optional settings are: [Disabled]; [Enabled]. Configure SATA as The optional settings are: [IDE]; [AHCI]. AMI BIOS Setup Utility...
  • Page 33 GOT3126T-832 User’s Manual  USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 34 GOT3126T-832 User’s Manual  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the...
  • Page 35 GOT3126T-832 User’s Manual  PC Health Status This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. AMI BIOS Setup Utility...

  • Page 36: Chipset Menu

    GOT3126T-832 User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► Host Bridge Host Bridge For items marked with “”, please press <Enter> for more options.
  • Page 37 GOT3126T-832 User’s Manual  Memory Information This item is for memory frequency and timing settings. Press <Enter> to go to the sub menu. AMI BIOS Setup Utility...

  • Page 38: Boot Menu

    GOT3126T-832 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Boot Settings Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup NumLock State Use this item to select the power-on state for the NumLock..

  • Page 39: Security Menu

    GOT3126T-832 User’s Manual Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

  • Page 40: Save & Exit Menu

    GOT3126T-832 User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 41 GOT3126T-832 User’s Manual Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes. Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this option.
  • Page 42 GOT3126T-832 User’s Manual This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 43: System

    Chapter 4 Drivers Installation System GOT3126T-832 supports Windows 7 32-bit and WES 7. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Step 1 Step 2 Select all files and follow the installing procedure.
  • Page 44  Driver Installation- Windows 7 The GOT3126T-832 provides a touch screen driver that users can install it under the operating system Windows 7. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.

  • Page 45: Embedded O.s

    WIN 7. Note: For the better system performance, please close the Windows AERO or change to Windows Basic mode. Embedded O.S. The GOT3126T-832 provides the Windows 7 Embedded. The O.S. is supported devices which are listed below.  WES 7...
  • Page 46 GOT3126T-832 User’s Manual PenMount Touch screen Before you can use and calibrate it, here is what you should do: Set up Penmount touch device driver by executing C:\Penmount\ Windows 2000-XP V5.0\setup.exe. When the installation is finished, an icon “PM” appears on the Taskbar.
