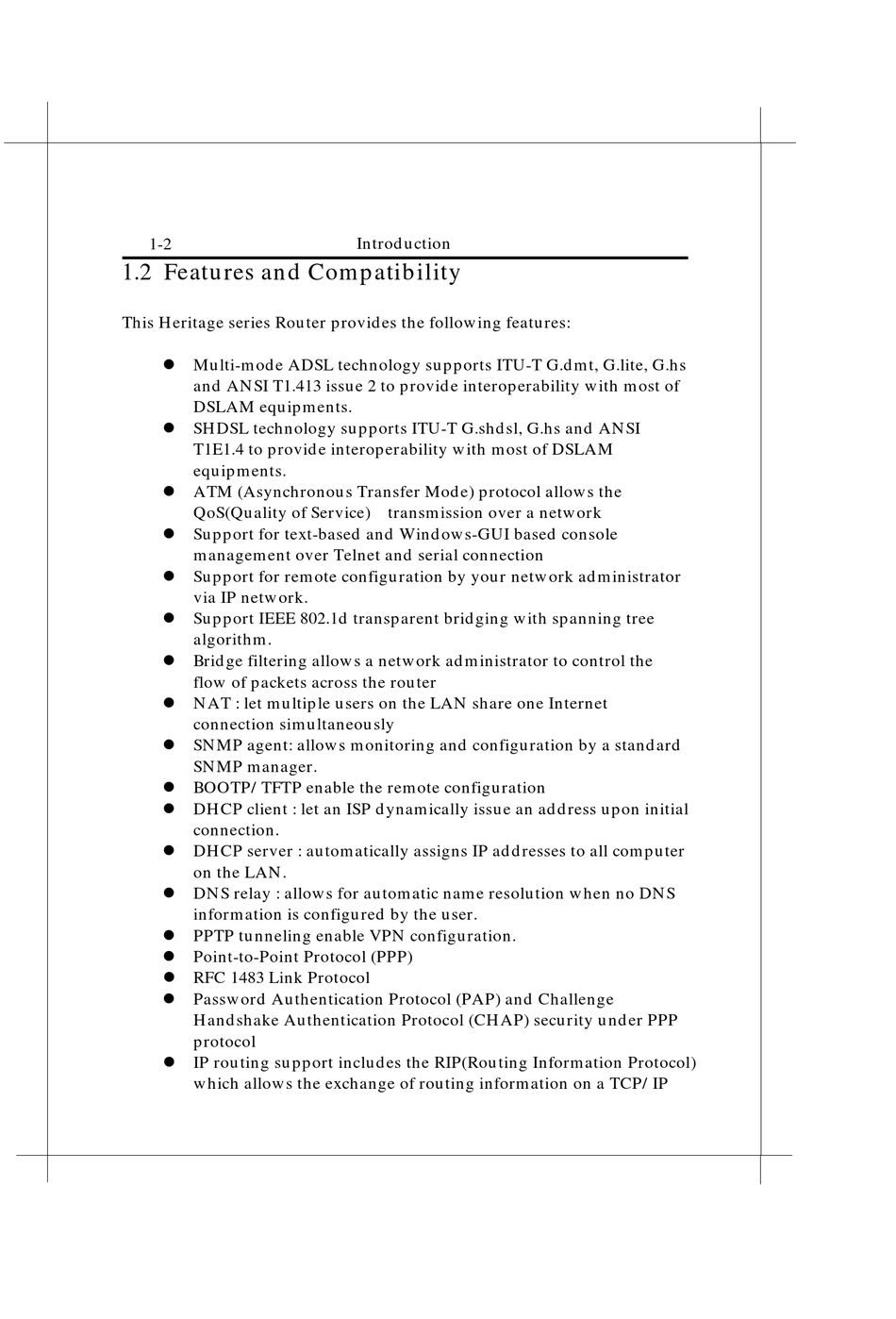

1.2 Features and Compatibility

This Heritage series Router provides the following features:
Multi-mode ADSL technology supports ITU-T G.dmt, G.lite, G.hs
!
and ANSI T1.413 issue 2 to provide interoperability with most of
DSLAM equipments.
SHDSL technology supports ITU-T G.shdsl, G.hs and ANSI
!
T1E1.4 to provide interoperability with most of DSLAM
equipments.
! ATM (Asynchronous Transfer Mode) protocol allows the
QoS(Quality of Service) transmission over a network
! Support for text-based and Windows-GUI based console
management over Telnet and serial connection
! Support for remote configuration by your network administrator
via IP network.
Support IEEE 802.1d transparent bridging with spanning tree
!
algorithm.
Bridge filtering allows a network administrator to control the
!
flow of packets across the router
NAT : let multiple users on the LAN share one Internet
!
connection simultaneously
SNMP agent: allows monitoring and configuration by a standard
!
SNMP manager.
BOOTP/TFTP enable the remote configuration
!
! DHCP client : let an ISP dynamically issue an address upon initial
connection.
DHCP server : automatically assigns IP addresses to all computer
!
on the LAN.
DNS relay : allows for automatic name resolution when no DNS
!
information is configured by the user.
PPTP tunneling enable VPN configuration.
!
! Point-to-Point Protocol (PPP)
! RFC 1483 Link Protocol
! Password Authentication Protocol (PAP) and Challenge
Handshake Authentication Protocol (CHAP) security under PPP
protocol
! IP routing support includes the RIP(Routing Information Protocol)
which allows the exchange of routing information on a TCP/IP
