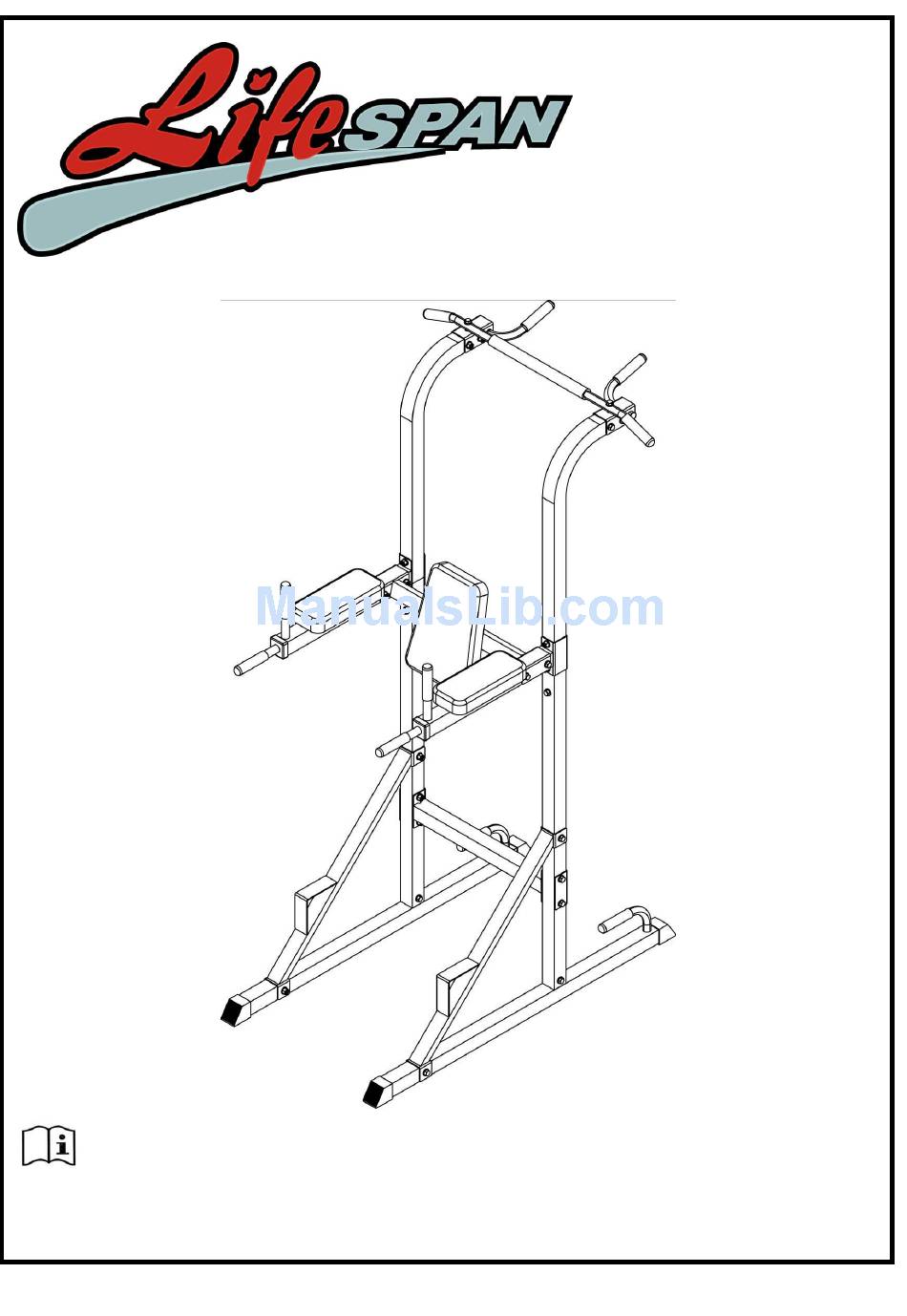

- Page 1 VKR COMBO BENCH OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference.
- Page 2 TABLE OF CONTENTS ASSEMBLY INSTRUCTIONS EXPLODED DIAGRAM PARTS LIST WARRANTY X-25...
-
Page 3: Assembly Instructions
1. ASSEMBLY INSTRUCTIONS PARTS LIST: PART NO DESCRIPTION Q’TY BOTTOM TUBE LOW UPRIGHT TUBE UP UPRIGHT TUBE LEFT LAT BAR MIDDLE CONNECT TUBE UP CONNECT TUBE FOOT SUPPORT TUBE LEFT ARM TUBE RIGHT ARM TUBE HANDLE TUBE LAT BAR RIGHT LAT BAR BACK CUSHION ARM CUSHION HEX BOLT M10*70mm... - Page 4 STEP 1: 1. Attach low upright tube (02) to bottom tube (01) using hex bolt M10*20 (17) and washer φ10 (20). 2. Attach middle connect tube (05) to low upright tube (02) using hex bolt M10*70 (15), washer φ10 (20) and nylon lock nut M10 (22). 3.
- Page 5 STEP 2: 1. Attach up upright tube (03) to low upright tube (02) using hex bolt M10*20 (17) and washer φ10 (20). X-25...
- Page 6 STEP 3: 1. Attach left arm tube (08) and right arm tube (09) to low upright tube (02) and up upright tube (03) using hex bolt M10*70 (15), hex bolt M10*20 (17), washer φ10 (20) and nylon lock nut M10 (22). 2.
- Page 7 STEP 4: 1. Attach left lat bar (04) and right lat bar (12) to up upright tube (03) using hex bolt M10*70 (15), washer φ10 (20) and nylon lock nut M10 (22). 2. Attach lat bar (11) to left lat bar (04) and right lat bar (12) using hex bolt M10*90 (16), washer φ10 (20) and nylon lock nut M10 (22).
- Page 8 STEP 5: Attach back cushion (13) to up connect tube (06) using hex bolt M8*20 (19) and washer φ8 (21). Attach arm cushion (14) to left arm tube (08) and right arm tube (09) using hex bolt M8*65 (18) and washer φ8 (21).
- Page 9 2. EXPLODED DIAGRAM X-25...
- Page 10 3. PARTS LIST Description Description Computer Square end cap J60*30*15 Computer wire 33L/R Front connect pole cover R Bolt M5*10 Bolt ST4.2*16 End capφ25*16 Bolt M8*75 Mid-handbar 36L/R Connect pole Washer d6*Φ12*1.0 37L/R Pedal L/R Bolt ST4.0*19 Bolt M8*45 Pulse pad 配 Φ25 管 Nut M8 Sponge tube Φ23*5*500 Bushing Φ31.8*Φ19.2*30...
- Page 11 d8*Φ32*2.0 Washer Bolt ST4.2*25 Bushing 1 Φ32*3*Φ28*16*Φ14.3 56L/R Nick cover L/R 25L/R Swing pole L/R Plastic cover Bushing Φ14*Φ8.3*59 26L/R Left swing pole cover 27L/R Right swing pole cover Computer wire 2 Handlebar post Frame Bolt M8*16 Pulse wire washer d8*Φ16*1.5 Spring washer d8*Φ20*2*R30 4.
