USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................6
DMX-512 Connection...........................................................6
Rigging the Fixture..............................................................7
Main Control Menu..............................................................7
DMX Profile.................................................................................... 9
Cleaning & Maintenance...............................................................15
Parts List.......................................................................................15
Advertisement
Table of Contents
Related Manuals for Mega Lite Axis Prime 1OR
Summary of Contents for Mega Lite Axis Prime 1OR
-

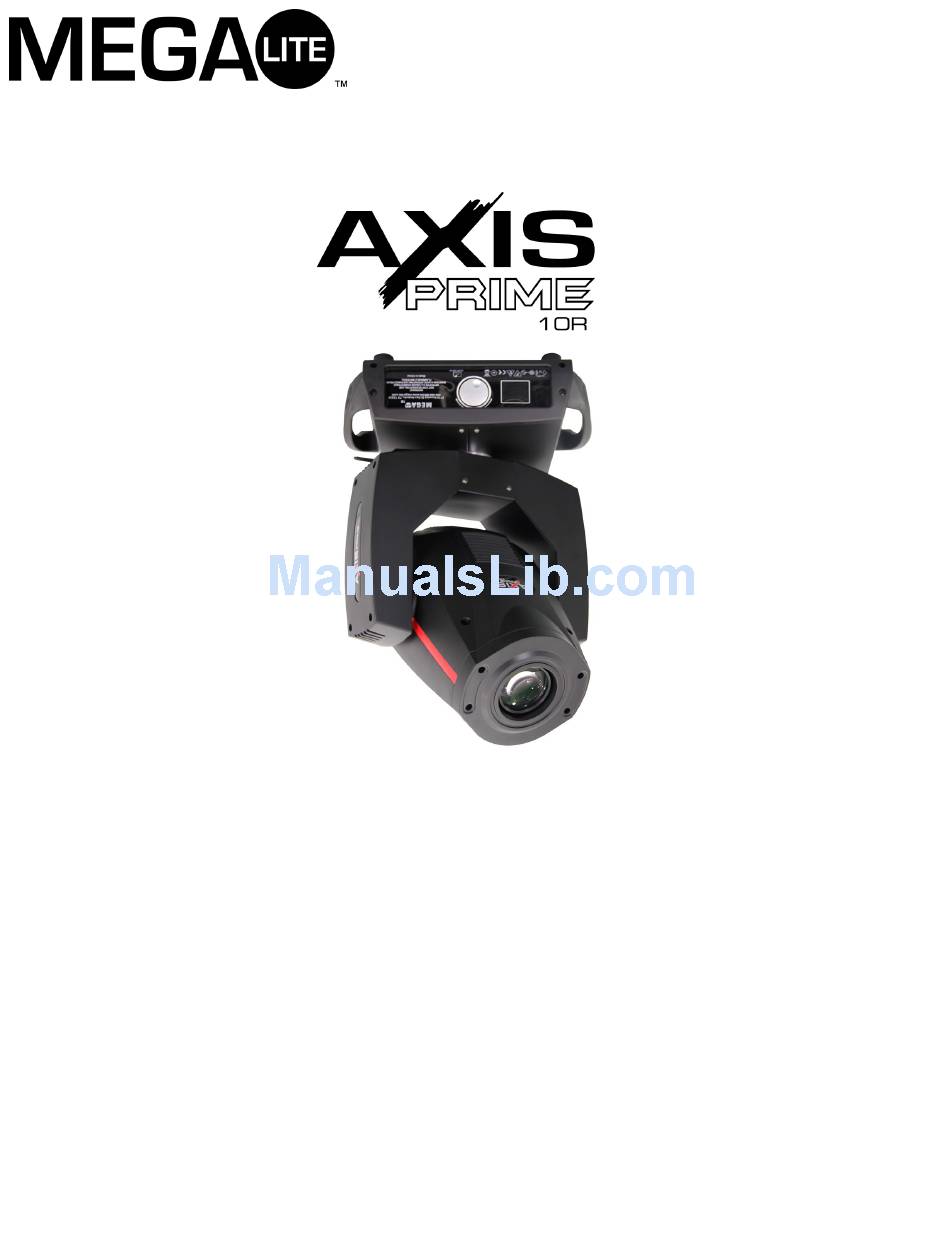

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..6 DMX-512 Connection……………………………..…………………...6 Rigging the Fixture……………………………….…………………….7 Main Control Menu……………..…………………………………..….7 DMX Profile..................9 Cleaning & Maintenance...............15 Parts List..................15... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Lamp Flight Case 1120 - AXIS Prime 10R LOSR280 –Osram HRI280W P-1120 DUALCASE Mechanical Specifications 9 ” 4 3/8 ” Pan: 540° Tilt: 270° DMX Connectors: 3-pin and 5-pin XLR connectors 14 3/8 ” Thermal: Maximum ambient temperature 40° C Maximum surface temperature 80°... - Page 5 Color 1: Open 2: Red 3: Orange 4: Light Blue 5: Green 6: Lilac 7: Pink 8: Yellow 9: Magenta 10: Blue 11: CTO 12: Lavender 13: CTB 14: UV Gobo’s Fixed Static Gobo Wheel Removable Rotating Gobo Wheel 1: Open 1: Open 2: Gobo 1 2: Gobo 1...
-
Page 6: Main Power Connection
Main Power Connec- Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 7: Rigging The Fixture
Rigging the fix- Caution! 1. The installations must be carried out by an authorized dealer or trained profes- sional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi- ence including but not limited to calculating working loads, material being used and periodic safety inspections. - Page 8 XY Set Up= Invert Pan or Tilt, Control Speed, Pan Setting 360,540,630 (New Menu) Address >001 XY Set up > Feature Shortcut= Will take the shortest distance to get to a Color or Gobo Display > Shortcut >Open FullColr= Off is half Color option, On is full Color option Feature >...
-
Page 9: Dmx Profile
Axis Prime 10R 16 Ch Mode Small DMX Channel Function Description Value Open Red + White 10-14 Red + Orange 15-19 Orange 20-24 Orange +Light Blue 25-29 Light Blue 30-34 Light Blue + Green 35-39 Green 40-44 Green +Lime Green 45-49 Lime Green 50-54... - Page 10 No Function 0-127 Prism 128-255 Prism (Note Prism will not work on all Focus & Zoom Positions) Prism Index 0-127 Prism Clockwise Rotation (Fast to Slow) 128-178 Rotation Stop Rotation 179-204 Counter Clockwise Rotation (Fast to Slow) 205-255 Open 0-20 Gobo 1 21-41 Gobo 2...
- Page 11 Open Red + White 10-14 Red + Orange 15-19 Orange 20-24 Orange +Light Blue 25-29 Light Blue 30-34 Light Blue + Green 35-39 Green 40-44 Green +Lime Green 45-49 Lime Green 50-54 Lime Green + Lilac 55-59 Lilac 60-64 Lilac + Pink 65-69 Pink 70-74...
- Page 12 Open Linear Iris 10-127 Iris Effect Iris effect (Small to Big) 128-178 Open 179-189 Iris Effect (Big to Small) 190-250 Open Large 251-255 No Function 0-127 Prism Prism 128-255 (Note Prism will not work on all Focus & Zoom Positions) Focus Focus 0-255...
- Page 13 Open Red + White 10-14 Red + Orange 15-19 Orange 20-24 Orange +Light Blue 25-29 Light Blue 30-34 Light Blue + Green 35-39 Green 40-44 Green +Lime Green 45-49 Lime Green 50-54 Lime Green + Lilac 55-59 Lilac 60-64 Lilac + Pink 65-69 Pink 70-74...
- Page 14 Open 0-11 Gobo 1 12-23 Gobo 2 24-35 Gobo 3 36-47 Gobo 4 48-59 Gobo 5 60-71 Gobo 6 72-83 Gobo 7 84-95 Gobo 8 96-107 Static Gobo Gobo 9 108-119 Gobo 10 120-131 Gobo 11 132-143 Gobo 12 144-155 Gobo 13 156-167 Gobo 14...
-
Page 15: Cleaning & Maintenance
Cleaning and maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installa- tions and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 16: Warranty Information
• Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Mega-Lite 5718 Kenwick St San Antonio, TX 78238 Ph 210-684-2600 Fax 210-855-6279 www.mega-lite.com / info@mega-lite.com...
