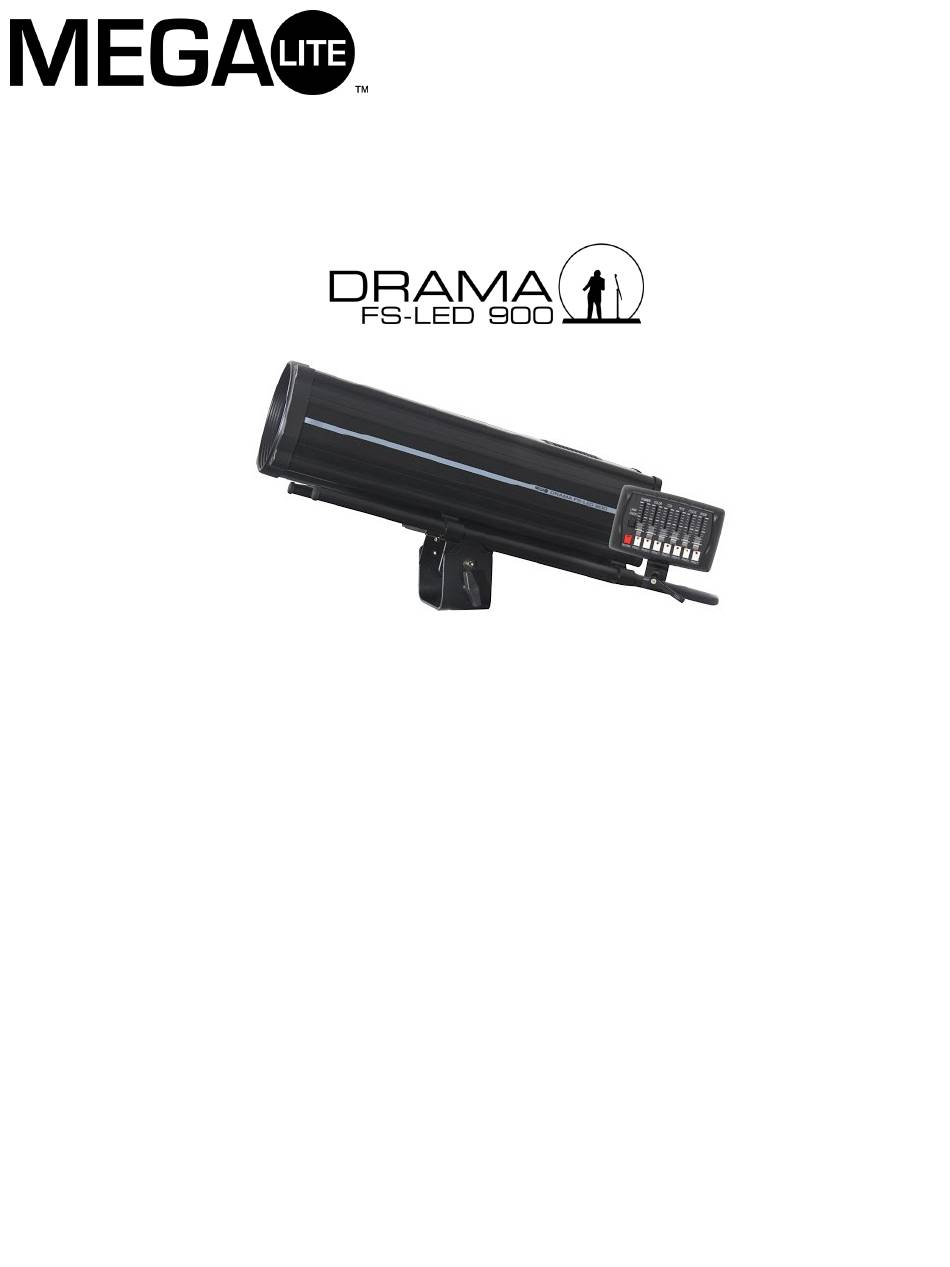

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information Specifications Photometrics Main Power Connection DMX-512 Connection DMX Profile Rail Mounted Controller Main Control Menu Size and Weight Rigging the Fixture Cleaning & Maintenance Parts List... -
Page 3: Safety Information
Check that the unit has not been damaged during transport Check that the unit has not been damaged during transport Protection Against Fire Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 1. Maintain a minimum of 1 foot distance from any type of flame. 3. -
Page 4: Specifications
Technical Information Part Numbers Fixture 7048-Drama FS LED 900 Mechanical Specifications DMX Connectors: 3 and 5-pin XLR connectors in/out Power Connections: Panel mount Power Con type in/out connection (Nema 5-15 to Blue power con type cable included) Thermal: Maximum ambient temperature 40° C Maximum surface temperature 60°... -
Page 5: Photometrics
Photometrics... -
Page 7: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. Power link only 3 units @110V or 6 units @ 220V The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz... -
Page 8: Dmx Profile
DMX Profile Drama LED FS 900 DMX Channel Function Description Value Init Dimmer Dimmer Off to Full 0-255 No Function Strobe (slow to fast) 2-127 Pulse (slow to fast) 128-159 Strobe Reverse Pulse (slow to fast) 160-191 Random (slow to fast) 192-255 Iris Iris (Open to Close) -
Page 9: Main Control Menu
Main Control Menu The control board on the fixture base is your interface to access and control all the functions on the unit. It’s LCD display gives you a code view of the options and functions. The following will explain each func- tion and its options. - Page 10 —Personality— Display Adjust Display Turned: Invert Display reading On or Off Display Adjust Select Logo: For manufacturing Use Iris Reverse Select Language: Select Between English and Chinese Color Presetting Shut Presetting —Personality— Iris Reverse Invert Iris Operation On or Off Display Adjust Iris Reverse Color Presetting...
-
Page 11: Size And Weight
Front View 34.5” (with out controller) 13.5” 17.75” 3.5” 13.25” 8.15” Top View 10.33” Drama FS LED 900 P-Stand-2 (included) Size Size 10.33” x 34.5” x 13.5” 38.25” x 71.25” Max Packaged Size Packaged Size 39.5” x 15” x 15.5”... -
Page 12: Rigging The Fixture
Rigging the Fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 13: Warranty Information
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
