USER MANUAL
Table of Contents
Safety Information.........................2
What's Included.............................2
Specifications................................3
Main Power Connection................4
Main Control..................................5
DMX Profile...................................7
Size & Weight................................9
Installation....................................10
Cleaning & Maintenance...............10
Warranty........................................11
Customer Service..........................12
Advertisement
Table of Contents
Related Manuals for Mega Lite Color Pick LED Par Q190
Summary of Contents for Mega Lite Color Pick LED Par Q190
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information......2 What’s Included......2 Specifications........3 Main Power Connection....4 Main Control........5 DMX Profile........7 Size & Weight........9 Installation........10 Cleaning & Maintenance....10 Warranty........11 Customer Service......12... -
Page 2: Safety Information
Use quality clamps or bolts when positioning unit. Do not open unit while it is on. Risk of electrical shock. Mechanical What is Included 1pc Color Pick LED Par Q190 1pc Power Conn type to Nema 5-15P Cable connection 1pc User Manual... -
Page 3: Specifications

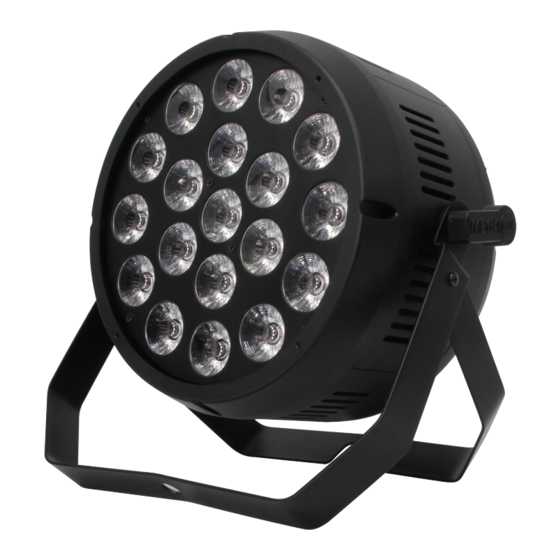

Specifications Part Numbers Fixture 4050 - Color Pick LED Par Q190 Mechanical Specifications Housing: Aluminum Fastening System: Mounting Yoke with Kick Stand Power Connection: Power Con Type In and Out Signal Connection: 5 Pin XLR in and Out Lens Angle: 25°... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. (F20AL250V) Max Power Link 7 units @ 110V, 14@ 220V. This device is equipped with auto switching power supply that will allow the fixture to work from 100V-240V AC 50/60Hz. -
Page 5: Main Control
Main Power Connection The control board on the fixture base is your interface to Control Board access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. Menu Up Down Enter Press Up or Down to access the menu. - Page 6 Strobe Fixture can be set to strobe any color combination by selecting flash function. There is 15 strobe speed settings. Once flash speed is selected you must engage the R,G,B,W dimmer settings to select color and intensity to strobe Dimmers Press Enter use the up/down button to select the intensity of each color for manual display control use.
-
Page 7: Dmx Profile
DMX Profile Color Pick LED Par Q190 4Ch Mode DMX Channel Function Description Value Init LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 LED Color Warm White LED Intensity 0-255... - Page 8 210-219 Program 20 210-219 Program 21 220-229 Program 22 230-255 Macro Speed Slow to Fast 0-255 Color Pick LED Par Q190 16Ch Mode DMX Channel Function Description Value Init LED Color Center Red LED intensity 0-255 LED Color Center Green LED Intensity...
-
Page 9: Size & Weight
Size and Weight 11.12” 9” Fixture Size: 11.12” X 9“ X 9.87” Fixture Weight: 6.5 lb Packaged Size: 11.5” X 11.5” X 12” Packaged Weight: 8 lb... -
Page 10: Installation
Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures, if you have doubts concerning the safety do not install. 3 Unit is to be 24 inches away from flammable materials. 4. -
Page 11: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. -
Page 12: Customer Service
Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
