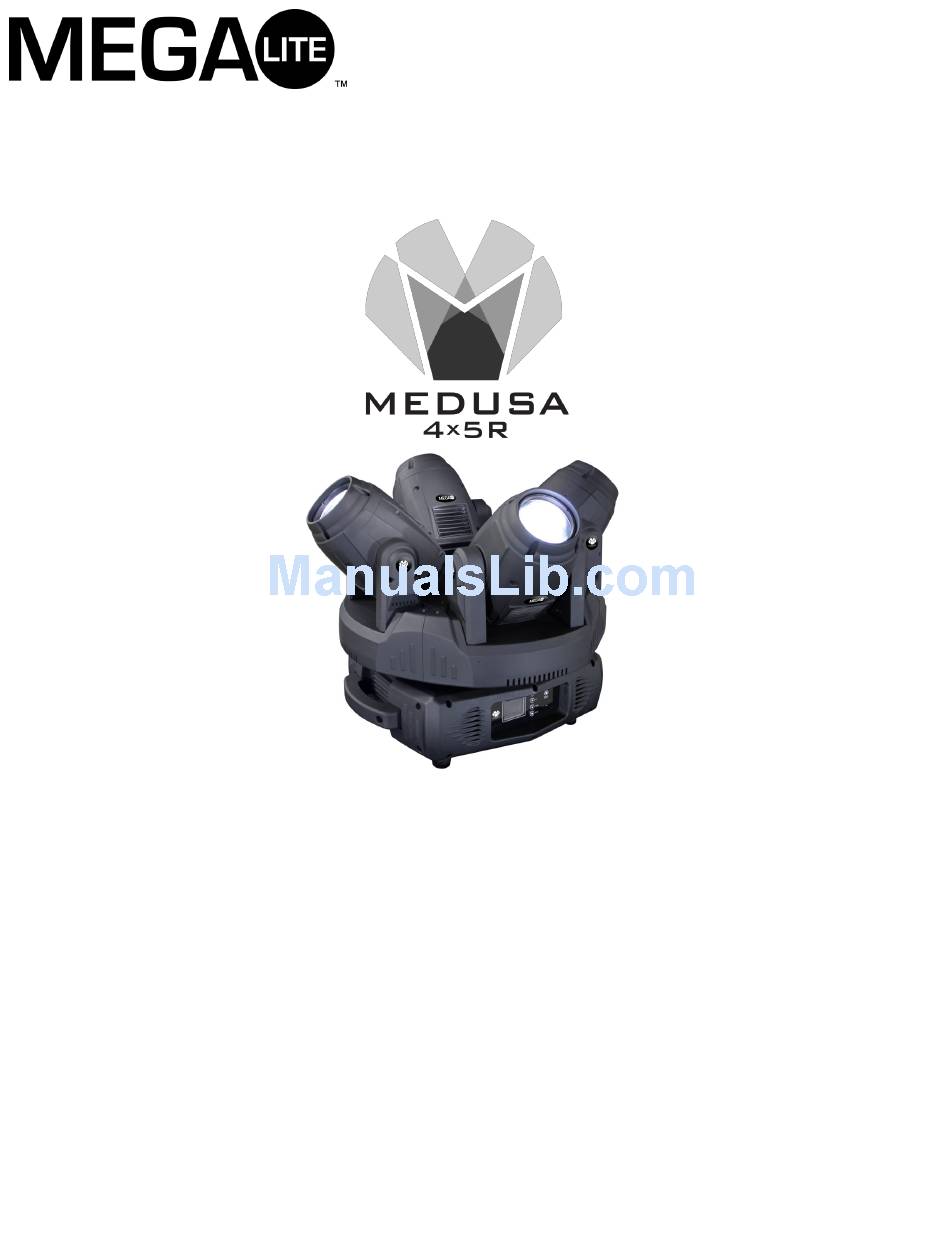

USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................5
DMX-512 Connection...........................................................5
Main Control Menu..............................................................6
DMX Profile.....................................................................................7
Rigging the Fixture............................................................18
Cleaning & Maintenance...............................................................19
Parts List.......................................................................................19
Advertisement
Table of Contents
Related Manuals for Mega Lite 1170
Summary of Contents for Mega Lite 1170
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...5 Main Control Menu……………..…………………………………..….6 DMX Profile..................7 Rigging the Fixture……………………………….…………………..18 Cleaning & Maintenance...............19 Parts List..................19... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Lamp Flight Case 1170 - Medusa 4x5R L-Phillips 5R 189W 1170-RC Road Case Mechanical Specifications Pan: Infinity and 540° 8/16bit Tilt: 104° 8/16bit DMX Connectors: 3 and 5-pin XLR connectors Fixture Flight Case for Shipping Power Connectors: Neutrik Power Con to Nema 5-15 cable mounted Size: 26.5”... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with a auto switching power supply that will allow you to work from 90V-260V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 6: Main Control Menu
Main Control Menu MENU The control board on the fixture base is your interface to access and control all the functions on the unit. Its LCD display gives you views of the options and functions. The following will explain each function and DOWN its options. - Page 7 Lamp Hours = Track the amount of time the lamp has been on per hour. Software Version = Displays the latest version of software installed in the fixture. Lamp Hours Software Version Information Lamp = Manually turn on or off all or individually lamps for the fixture. Check On for lamp on or Check off for lamps off.
-
Page 8: Dmx Profile
DMX Profile Medusa 11 Ch Mode Init Val- DMX Channel Function Description Value Pan Course 0-255 Tilt Tilt Course 0-255 Open White White / Red 8-11 Red / Blue 12-15 Blue 16-19 Blue / Green 20-23 Green 24-27 Green / Yellow 28-31 Yellow 32-35... - Page 9 Gobo 10 50-54 Gobo 11 55-59 Gobo 12 60-64 Gobo 13 65-69 Gobo 14 70-74 Gobo 15 75-79 Gobo 16 80-84 Gobo 17 85-89 Gobo 1 Shake (slow to fast) 90-97 Gobo 2 Shake (slow to fast) 98-105 Gobo 3 Shake (slow to fast) 106-113 Gobo 4 Shake (slow to fast) 114-121...
- Page 10 No Function 0-39 Lamp On All 40-43 Lamp On Head 1 44-47 Lamp On Head 2 48-51 Lamp On Head 3 52-55 Lamp On Head 4 56-59 Lamp Off All 60-63 Lamp Off Head 1 64-67 Lamp Off Head 2 68-71 Lamp Off Head 3 72-75...
- Page 11 Magenta / Pink 44-47 Pink 48-51 Pink / Light Blue 52-55 Light Blue 56-59 Light Blue / Sun 60-63 64-67 Sun / Dark Blue 68-71 Dark Blue 72-75 Dark Blue / Light Green 76-79 Color Head 1 Light Green 80-83 Light Green / Orange 84-87 Orange...
- Page 12 Gobo 9 Shake (slow to fast) 154-161 Gobo 10 Shake (slow to fast) 162-169 Gobo 11 Shake (slow to fast) 170-177 Gobo 12 Shake (slow to fast) 178-185 Gobo 13 Shake (slow to fast) 186-193 Gobo 14 Shake (slow to fast) 194-201 Gobo 15 Shake (slow to fast) 202-209...
- Page 13 Orange 88-91 Orange / UV 92-95 96-99 UV / CTO 100-103 104-107 Color Head 2 CTO / CTB 108-111 112-115 CTB / White 116-127 Clockwise Color Scroll (fast to slow) 128-189 Color Stop 190-193 Counter Clockwise Color Scroll (fast to slow) 194-255 Open Gobo 1...
- Page 14 Shutter Open 96-127 Pulse Effect Sequence (slow to fast) 128-159 Shutter Open 160-191 Shutter Head 2 Random Strobe (slow to fast) 192-223 Shutter Open 224-255 Dimmer Head 2 Dimmer off to full 0-255 Focus Head 2 Focus 0-255 No Function Prism Engage 6-127 Prism Head 2...
- Page 15 Open Gobo 1 Gobo 2 10-14 Gobo 3 15-19 Gobo 4 20-24 Gobo 5 25-29 Gobo 6 30-34 Gobo 7 35-39 Gobo 8 40-44 Gobo 9 45-49 Gobo 10 50-54 Gobo 11 55-59 Gobo 12 60-64 Gobo 13 65-69 Gobo 14 70-74 Gobo 15 75-79...
- Page 16 Tilt Head 4 Tilt Course 0-255 Tilt Fine Head 4 Tilt Fine 0-255 Open White White / Red 8-11 Red / Blue 12-15 Blue 16-19 Blue / Green 20-23 Green 24-27 Green / Yellow 28-31 Yellow 32-35 Yellow / Magenta 36-39 Magenta 40-43...
- Page 17 Gobo 13 65-69 Gobo 14 70-74 Gobo 15 75-79 Gobo 16 80-84 Gobo 17 85-89 Gobo 1 Shake (slow to fast) 90-97 Gobo 2 Shake (slow to fast) 98-105 Gobo 3 Shake (slow to fast) 106-113 Gobo 4 Shake (slow to fast) 114-121 Gobo 5 Shake (slow to fast) 122-129...
-
Page 18: Rigging The Fixture
All Motor Reset 80-84 Scan Motor Reset 85-87 Color Motor Reset 88-90 Gobo Motor Reset 91-93 Shutter & Dimmer Motor Reset 94-96 Other Motor Reset 97-99 Internal Program 1 100-119 Control Internal Program 2 120-139 Internal Program 3 140-159 Internal Program 4 160-179 Internal Program 5 180-199... -
Page 19: Cleaning & Maintenance
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by author- ized dealers only Should you have further questions , please contact your dealer. Parts List 1170-MOTPR Prism Motor 1170-RC Single Unit Road Case... -
Page 20: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
