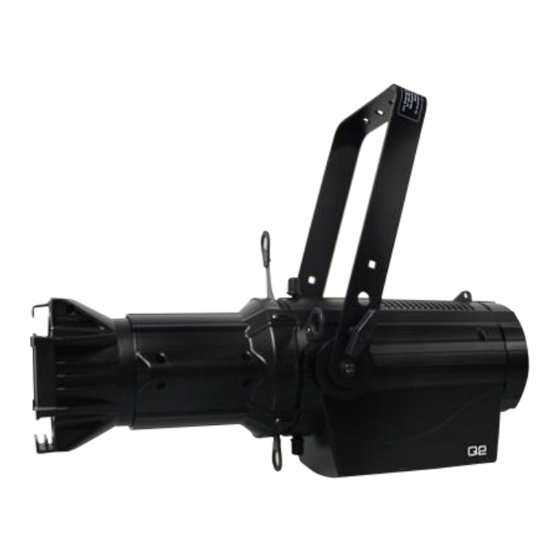

Summary of Contents for Mega Lite Drama Profile Q2

  • Page 1: Table Of Contents

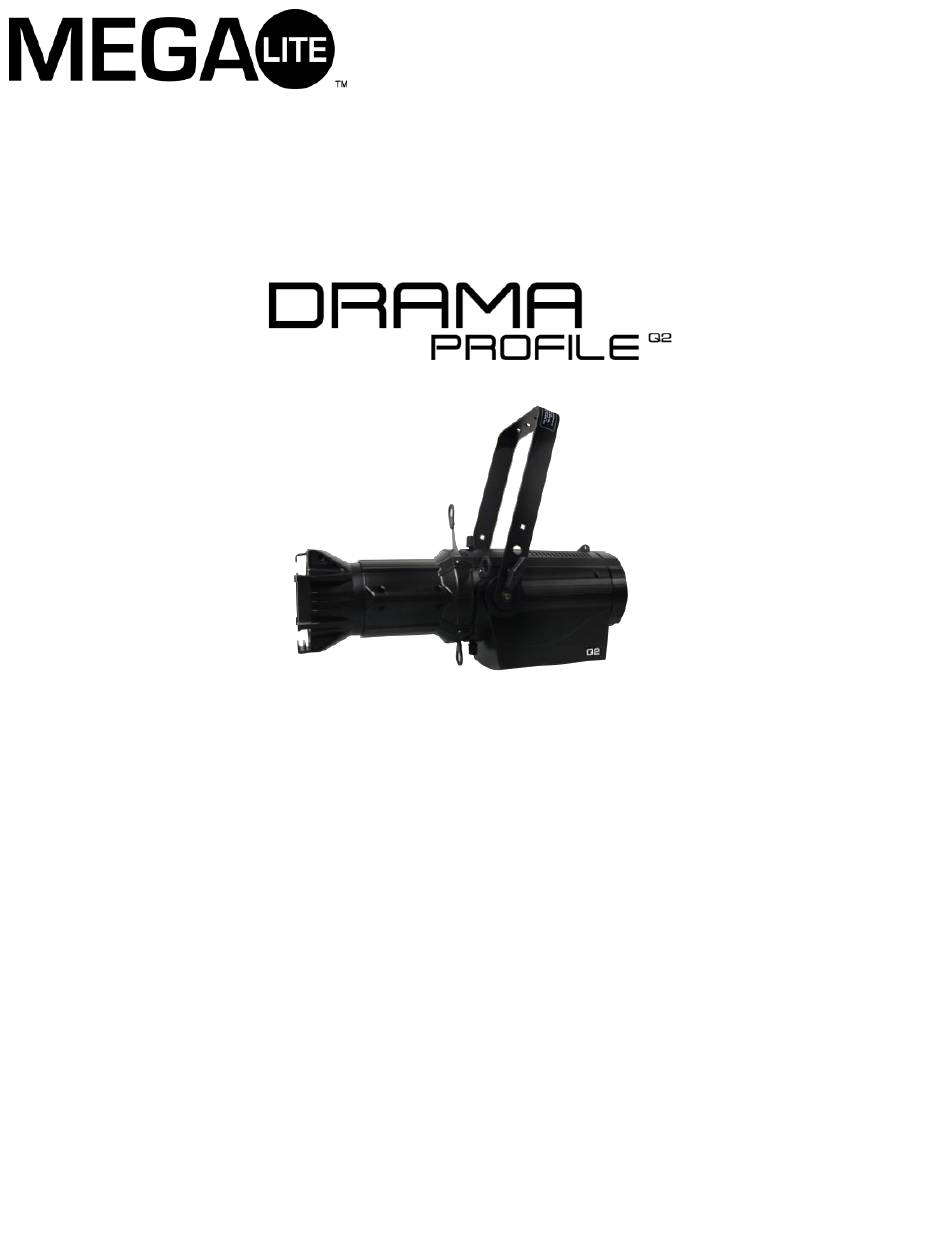

    USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Photometrics……………………………………………………………5 Main Power Connection…………………………...…………………..6 DMX-512 Connection……………………………..…………………...6 Main Control Menu……………..…………………………………..….7 Rigging the Fixture……………………………….…………………….8 DMX Profile..................9 Cleaning & Maintenance...............10 Parts List..................10...
  • Page 3 Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5.
  • Page 4: Specifications

    Specifications Part Numbers Fixture 7060Q2 - Drama Profile Q2 Mechanical Specifications 8.37” DMX Connectors: 5-pin XLR in/out connectors Power Connectors: Power Con Type in/out connectors Thermal: Maximum ambient temperature 110° F Maximum surface temperature 140° F 10.5” Fastening System: Mounting Yoke...
  • Page 5: Photometrics

    Photometrics @ 10 Feet with 19 degree lens CW Only All LED’s ON Red Only Green Only Blue Only...
  • Page 6: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. Power link maximum 6 units at 110V This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU)
  • Page 7: Main Control Menu

    Display Control Main Control The control board on the fixture base is your interface to access and Menu control all the functions on the unit. It’s LCD display gives you a code view of the options and functions. The following will explain each func- tion and its options.
  • Page 8: Rigging The Fixture

    1 DMX Address Manual Control 2 Channel Mode 3 Demo Mode Press the Enter button to select Manual control Functions. Select the fixtures LED Color you would like to manually control . Press Enter to confirm the color setting 4 Manual Control (Note: The fixture will recall the set manual control attributes even after the fixture is turned off and on) Manual Mode Green...
  • Page 9: Dmx Profile

    DMX Profile Drama Profile Q2 4 Channel Mode DMX Chanel Function Description Value Init LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 LED Color White LED Intensity 0-255 Drama Profile Q2 7 Channel Mode...
  • Page 10 Drama Profile Q2 8 Channel Mode DMX Chanel Function Description Value Init Dimmer Dimmer Off to Full 0-255 LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 LED Color White LED Intensity...
  • Page 11: Cleaning & Maintenance

    Cleaning and maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
  • Page 12 Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
