USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................6
DMX-512 Connection...........................................................6
Main Control Menu..............................................................7
Rigging the Fixture..............................................................8
DMX Profile.....................................................................................9
Cleaning & Maintenance...............................................................13
Parts List.......................................................................................13
Advertisement
Table of Contents
Related Manuals for Mega Lite spotbot LED CYM 300
Summary of Contents for Mega Lite spotbot LED CYM 300
-

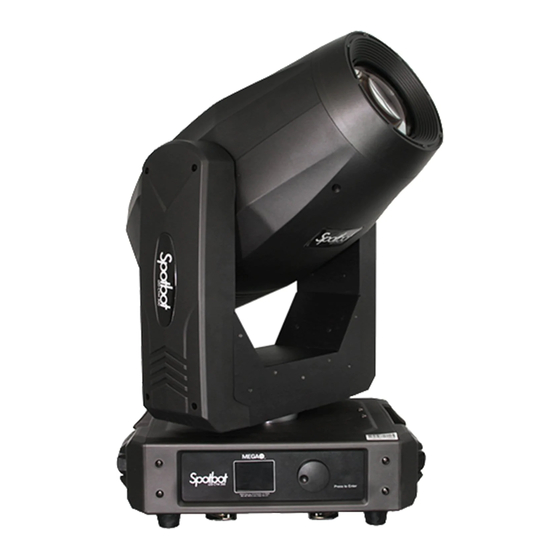

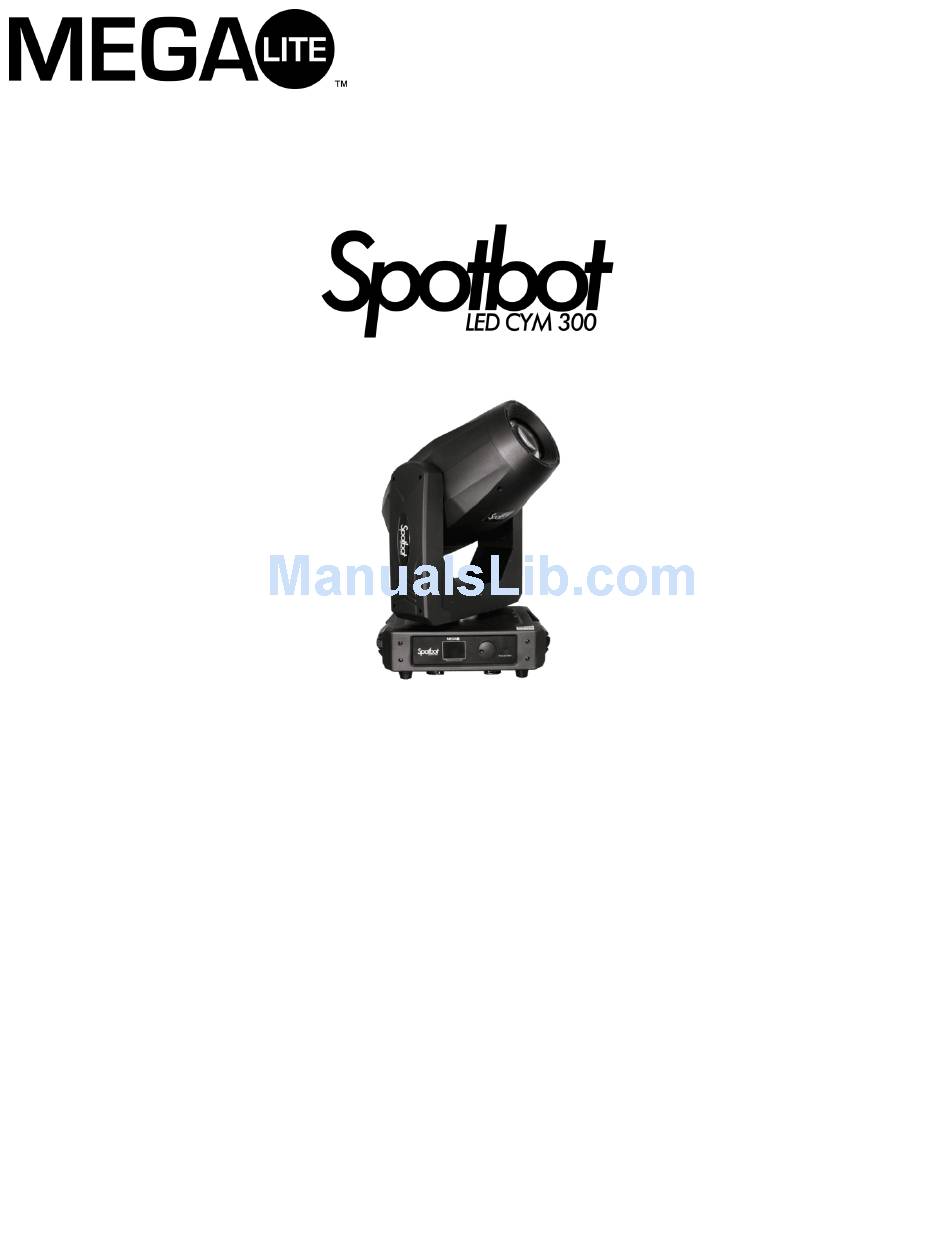

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..6 DMX-512 Connection……………………………..…………………...6 Main Control Menu……………..…………………………………..….7 Rigging the Fixture……………………………….…………………….8 DMX Profile..................9 Cleaning & Maintenance...............13 Parts List..................13... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Lamp Flight Case 1180 - Spotbot L CH Luminus 300W Led 1180-RC2 Dual Road Case Mechanical Specifications 9.25” 15” Pan: 540° 8/16 Bit Tilt: 270° 8/16 Bit 4.75” DMX Connectors: 3 and 5-pin XLR connectors Power Connectors: Power Con Type 7.25”... - Page 5 Colors Color Selection 1 Color Selection 2 Color Selection 3 Lime Green 4926K Orange 4260K Dark Blue Green 3889K Cyan Magenta Yellow Static Gobo’s Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 10 Rotating Gobo’s...
-
Page 6: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 7: Main Control Menu
Display Control Main Control The control board on the fixture base is your interface to access and control all the functions on the unit. It’s LCD display gives you a code view of the options and functions. The following will explain each func- tion and its options. -
Page 8: Rigging The Fixture
Demo pre-programmed chases Demo Return Demo 1. Test Program 1 2. Test Program 2 3. Test Program 3 Stop Option 1. Pan / Tilt: Pan and Tilt invert control direction 2. Curve: LED Intensity dimming curve option Return Option 3. Display: Invert display direction 1. -
Page 9: Dmx Profile
DMX Profile SpotBot 26Ch Mode DMX Channel Function Description Value Init Value 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 P/T Speed Pan and Tilt Speed (fast to slow) 0-255 Dimmer Dimmer off to full 0-255 Closed 0-10... - Page 10 Gobo 1 Shake (Slow to Fast) 56-62 Gobo 2 Shake (Slow to Fast) 63-69 Gobo 3 Shake (Slow to Fast) 70-76 Gobo 4 Shake (Slow to Fast) 77-83 Gobo 5 Shake (Slow to Fast) 84-90 Static Gobo Gobo 6 Shake (Slow to Fast) 91-97 Gobo 7 Shake (Slow to Fast) 98-104...
-
Page 11: Color Selection
SpotBot 21Ch Mode DMX Channel Function Description Value Init Value 0-255 Tilt Tilt 0-255 P/T Speed Pan and Tilt Speed (fast to slow) 0-255 Dimmer Dimmer off to full 0-255 Closed 0-10 Strobe (Slow to Fast) 4-103 Open 104-107 Strobe Pulse (Slow to Fast) 108-207 Shutter Open... - Page 12 Gobo 1 Shake (Slow to Fast) 56-62 Gobo 2 Shake (Slow to Fast) 63-69 Gobo 3 Shake (Slow to Fast) 70-76 Gobo 4 Shake (Slow to Fast) 77-83 Gobo 5 Shake (Slow to Fast) 84-90 Static Gobo Gobo 6 Shake (Slow to Fast) 91-97 Gobo 7 Shake (Slow to Fast) 98-104...
-
Page 13: Cleaning & Maintenance
Cleaning and maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 14: Warranty Information
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
