Section Four: TROUBLE SHOOTING
5 amp 120 Volt
Grill Probe
Fast Blow Cartridge Fuse Housing
Termination
PIT BOSS Digital Temperature Control

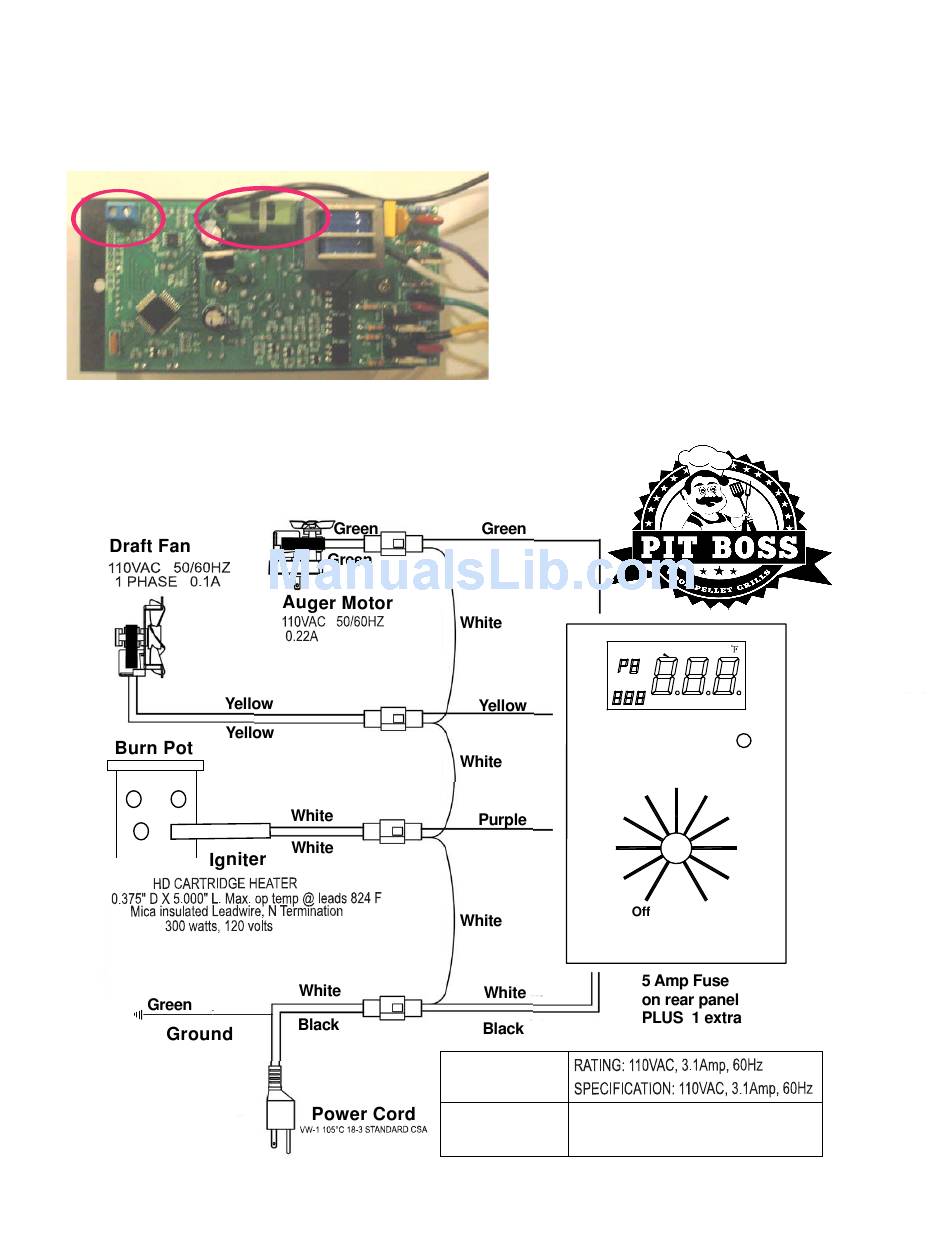

Pit Boss Wire Diagram
The Pit Boss Digital Temperature Control
system is an intricate and valuable piece
of technology.
Back
For protection from power surges and
electrical shorts, the control utilizes a
View
5 amp, 120 Volt Fast—Blow Fuse.
