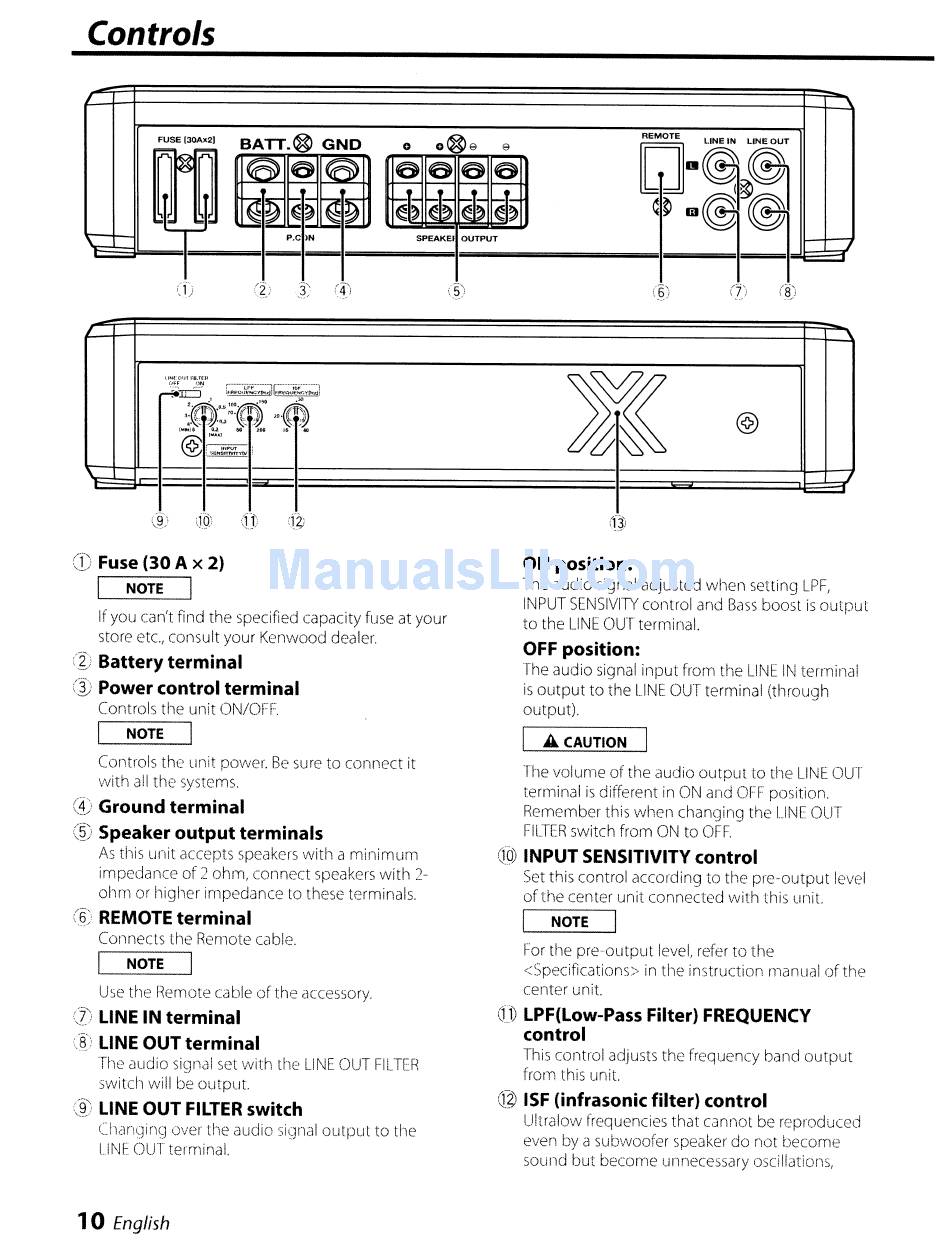

Controls
o
o@e
e
aaaa
, ,
, ,
~I~ ~I~
_I~ ~I~
SPEAKEI OUTPUT
~1~"(I'rt
nl.TUI
~~, .:':-;;:~~.~:Jl~;;;~:J:~;~~l
·;m.,~·ro ".~
1_;'
O,J.
W
aN
15
...
@r'~:
'-=
' - I
~
- -
i
~1:;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;=I:;;;;;;;;;;;;;;;;;;==iil:::;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;::::4;;~=:1
CD
Fuse (30 A x 2)
I
NOTE
I
If you can't find the specified capacity fuse at your
store etc., consult your Kenwood dealer.
(~)
Battery terminal
C~
Power control terminal
Controls the unit ON/OFF.
I
NOTE
I
Contrds the unit power. Be sure to connect it
with all the systems.
Cit;
Ground terminal
C~)
Speaker output terminals
As this unit accepts speakers with a minimum
impedance of 2 ohm, connect speakers with 2-
ohm or higher inipedance to these terminals.
C§)
REMOTE terminal
Connects the Remote cable.
NOTE
Use the
f~emote
cable of the accessory.
CD
LINE IN terminal
\8)
LINE OUT terminal
The audio
si~lnal
set with the LINE OUT FILTER
switch will be output.
(~)
LINE OUT FILTER switch
Changing over the audio signal output to the
Uf\lF OUT terminal.
10
English
ON position:
The audio signal adjusted when setting LPF,
INPUT SENSIVITY control and Bass boost is output
to the LINE OUT terminal.
OFF position:
The audio signal input from the LINE IN terrninal
is output to the LINE OUT terminal (throuqh
output).
I
A
CAUTION
I
The volume of the audio output to the LINE OUT
terminal is different in ON arid OFF position.
Remember this when changing the LINE OUT
FILTER switch from ON to OFF.
@)
INPUT SENSITIVITY control
Set this control according to the pre-output level
of the center unit connected with this unit.
NOTE
For the pre-output level, refer
to
the
<Specifications> in the instruction manual of the
center unit.
0j)
LPF(Low-Pass Filter) FREQUENCY
control
This control adjusts the frequency band output
from this unit.
Q~
ISF (infrasonic filter) control
Ultralow frequencies that cannot be reproduced
even by a subwoofer speaker do not become
sound but become unnecessary oscillations,
