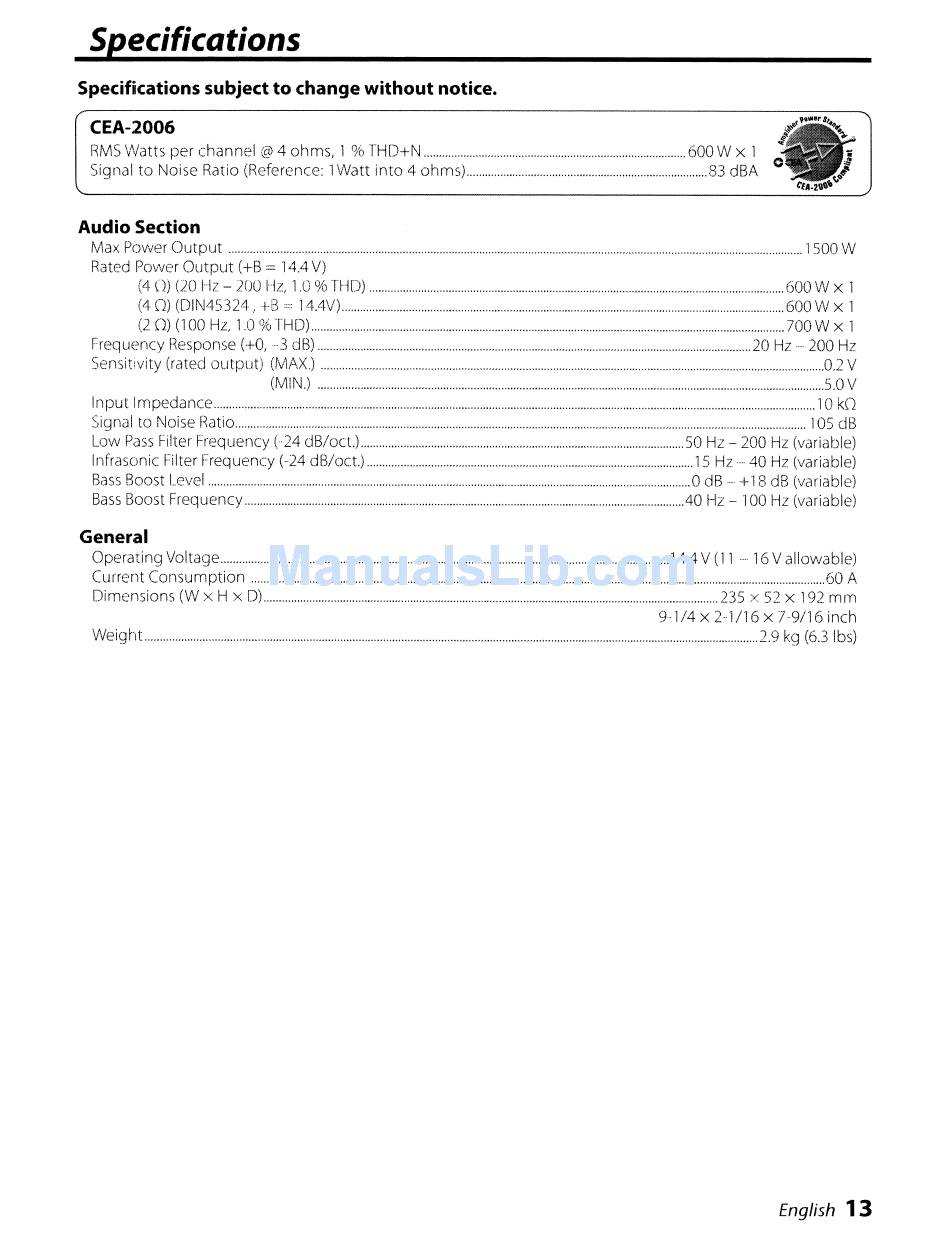

..1I'ecifications
Specifications subject to change without notice.
CEA-2006
RIv\S Watts per channel
@
4 ohms, 1
%
THD+N
600 IN
x
1
Signal to Noise Ratio (Reference: 1Watt into 4 ohrm)
83 dBA
Audio Section
Max Power Output
1500 IN
Rated Power Output (+B = 14.4 V)
(40) (20 liz - 200 Hz, 1.0
%
THD)
600 W
x
1
(40) (DIN45324 , +8 • • • • • 14.4V)
600 W
x
1
(20) (100 Hz,
1.0 %
THD)
700
W xl
Frequency Response (+0, ····3 cJB)
20 Hz
200 Hz
Sensitivity (rated output) (MA.X.)
0.2 V
(~J1IN.)
.5.0 V
Input Impedance
10 kO
Signal to i\Joise Ratio
105 dB
Low Pass Filter Frequency (24 dB/oct.)
50 Hz - 200 Hz (variable)
Infrasonic Filter Frequency (-24 dB/oct.)
15 Hz
40 Hz (variable)
Bass Boost Level
0 dB -- + 18 dB (variable)
Bass Boost Frequency
40 Hz - 100 Hz (variable)
General
Operating Voltage
14.4 V (11- 16 V allowable)
Current Consumption
60 A
Dimensions (W
x
H
x
D)
235
x
52
x
192 mm
9-1/4
x
2-1/16
x
7-9/16 inch
Weight
2.9 kg (6.3lbs)
English
13
