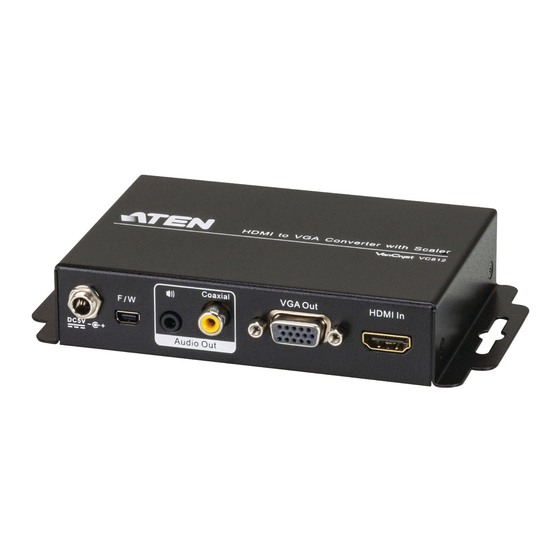

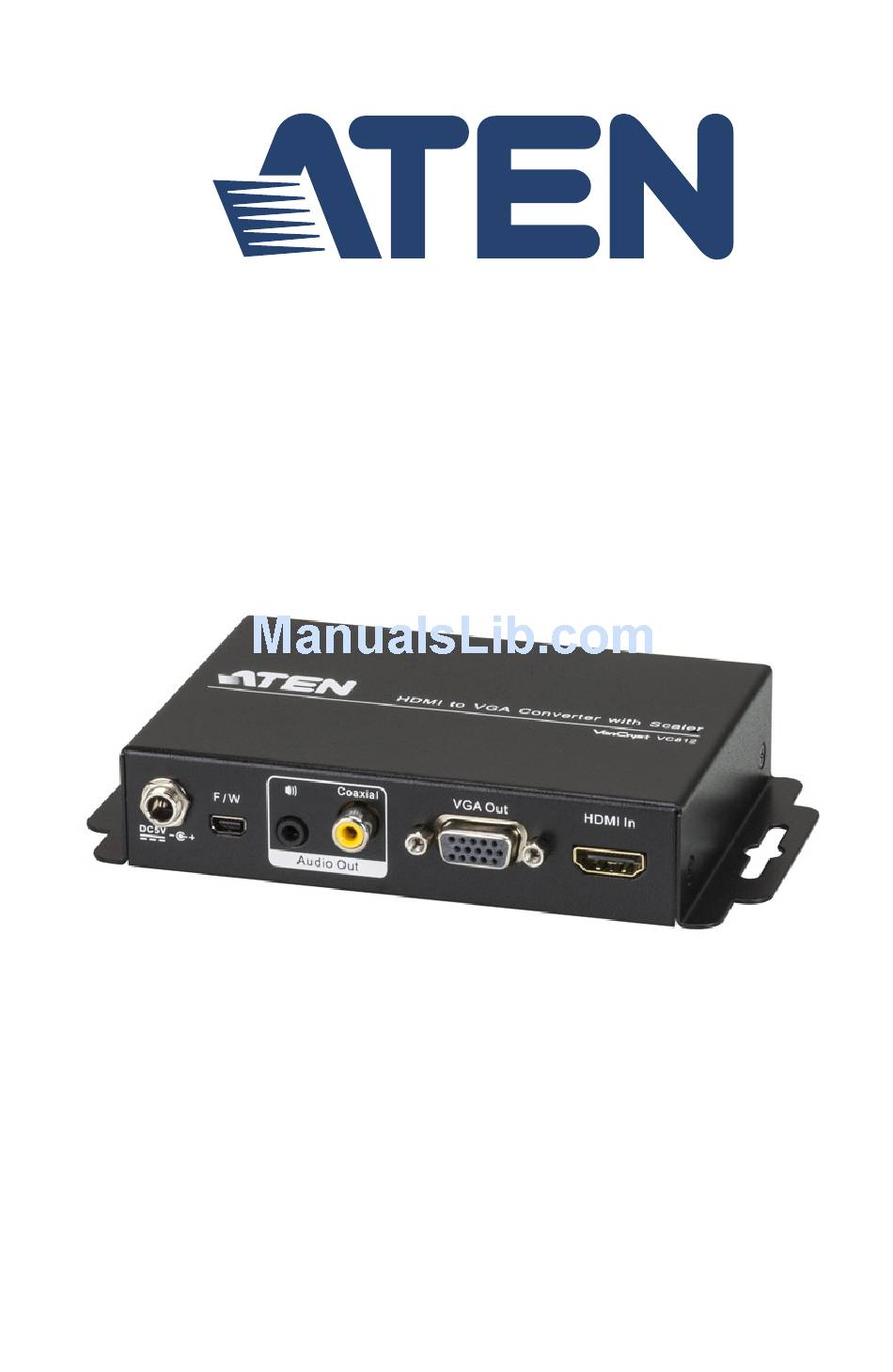

- Page 1 HDMI to VGA Converter with Scaler VC812 User Manual www.aten.com...
- Page 2 VC812 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: User Information
VC812 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2013–2014 ATEN® International Co., Ltd. Manual Date: 2014-07-03 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VC812 User Manual Contents FCC Information ..........ii User Information . - Page 6 VC812 User Manual 3. Operation Overview........... 9 On-Screen Display (OSD) .
-
Page 7: About This Manual
VC812 User Manual About this Manual This User Manual is provided to help you get the most from your VC812 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 enables you to use a non-HDMI display to access HDMI content. It supports input resolutions 480p, 720p, 1080p, 1080i, and up to 1900 x 1200 PC input resolution. -
Page 10: Features
VC812 User Manual Features Converts HDMI signals to VGA output Supports analog/stereo audio Superior video quality – up to 1080p; 1920 x 1200 Scaler – a premium scaling engine that converts various video input resolutions into the display's native resolution, while adjusting the picture ratio automatically for maximum viewing comfort. -
Page 11: Requirements
The following equipment is required for a complete VC812 installation: Source Devices(s) The source device should have the following: HDMI Type A connector PC or laptop with Mini USB port (for configuration via VC812 Utility Tool) Display Device VGA based video device with HDB... -
Page 12: Components
Component Description F/W Upgrade switch Set this to Off to operate the VC812 in Normal Mode. Note: In case the firmware needs to be upgraded, turn the switch On to have the VC812 enter Firmware Upgrade mode. Contact your product dealer for more details. -
Page 13: Rear View
Component Description Power Jack Plug in the provided power adapter to this power jack to power on the VC812. Firmware Upgrade For device configuration via the utility tool, connect this Port port to a PC or laptop using a USB to mini USB cable. - Page 14 VC812 User Manual This Page Intentionally Left Blank...
-
Page 15: Hardware Setup
3. Make sure that all devices you will be installing are properly grounded. Mounting For convenience and flexibility, the VC812 can be mounted on the wall or a rack. To mount a unit, screw the built-in brackets into any convenient location on the wall or a rack. -
Page 16: Installation
VC812 User Manual Installation Installation of the VC812 is simply a matter of plugging in the appropriate cables. To install the VC812, refer to the installation diagram as you perform the following steps: 1. Use an HDMI cable to connect the HDMI output port on the video source device to the HDMI In port on the VC812. -
Page 17: Operation
The VC812 HDMI to VGA converter with Scaler offers easy and flexible operation through its built-in On-Screen Display (OSD) and the Utility Tool, which can be installed on a computer connected to the VC812’s mini USB port. On-Screen Display (OSD) -
Page 18: Output Setup
VC812 User Manual Output Setup In the OSD Menu screen, highlight 1. Output Setup and press the Menu pushbutton to open the Output Setup submenu, as follows: Select the submenu option you want to configure – each option is further discussed in the proceeding sections. -
Page 19: Default Pattern
Diagonal Hatch H-Ramp Audio Source Select the EDID audio channel you want the VC812 to use. The selection includes 2ch and 7.1ch. Image In the OSD Menu screen, navigate to 2. Image and press the Menu pushbutton to open the Image submenu, as follows: Adjust the picture quality of the display by setting the values for contrast, brightness, sharpness, saturation, hue and sharpness. -
Page 20: Adjustment
VC812 User Manual B/W extension: Turn the black and white extension On or Off. This is set to Off by default. Color Tone: Select the color tone for the display. Options are Off (default), Skin or Green. Edge Enhance: Select the degree of display image edge enhancements –... -
Page 21: System
Adjustment submenu, as follows: View the current input resolution and firmware version, as well as reset the VC812 to its factory default settings. Input Res. Info: This shows the current input resolution used by the device. -
Page 22: Utility Tool
VC812 User Manual Utility Tool The VC812 HDMI to VGA converter with Scaler comes with a software CD that contains the VC812 Utility Tool for quick and easy configuration of the device. To manage the VC812 using the utility tool, connect your computer to the installation via the Mini USB port. - Page 23 3. Operation You can cycle through the Menu options in the order shown in the table below. Menu Page Sub-Menu Page(s) Main screen Com Port Resolution Info Input Port / Resolution Output Port Out Quick Selection Aspect Ratio / Freeze / Blank 1080p60 / 1080i60 / 720p60 / 480p60 Output Setup Output Resolution...
-
Page 24: Output Setup
VC812 User Manual Output Setup Select the Output Resolution, Output Mode and Default Pattern that you want the VC812 to use. Output Resolution From the drop down menu, select the screen resolution that you want to use for your display. Some of the available options are as follows:... -
Page 25: Default Pattern
3. Operation Output Mode From the drop down menu, select the color space setting for your display. Choices include RGB, YC444 and YC422. Click the Apply button to use the value entered. Default Pattern From the drop down menu, select the color component for your display. Available options are as follows: Disable Window... -
Page 26: Adjustment
VC812 User Manual For the following options, use the left and right screen buttons to increase or decrease the value. Setting Value Contrast 0-255 (default is 128) Brightness 0-255 (default is 128) Saturation 0-255 (default is 128) 0-255 (default is 128) -
Page 27: System
View the current input resolution and firmware version, as well as reset the VC812 to its factory default settings. Click the Get button to have the VC812. display the latest values in use. In-Sync Info: This shows the current input resolution used by the device. -
Page 28: Powering Off And Restarting
VC812 User Manual Powering Off and Restarting If you power off the VC812, follows these steps before powering it on again: 1. Power off the attached devices. 2. Unplug the power adapter cable from the VC812. 3. Wait 10 seconds, and then plug the power adapter cable back in. -
Page 29: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 30 VC812 User Manual Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock. Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.
-
Page 31: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 32: Specifications
VC812 User Manual Specifications Function VC812 Connectors 1 x HDMI Type A female Input HDMI In 1 x HDB-15 female (Black) Output Video Out 1 x RCA female (Yellow) Digital Coaxial Audio Analog Stereo Audio 1 x 3.5 mm stereo jack...
