Summary of Contents for ATEN VC881

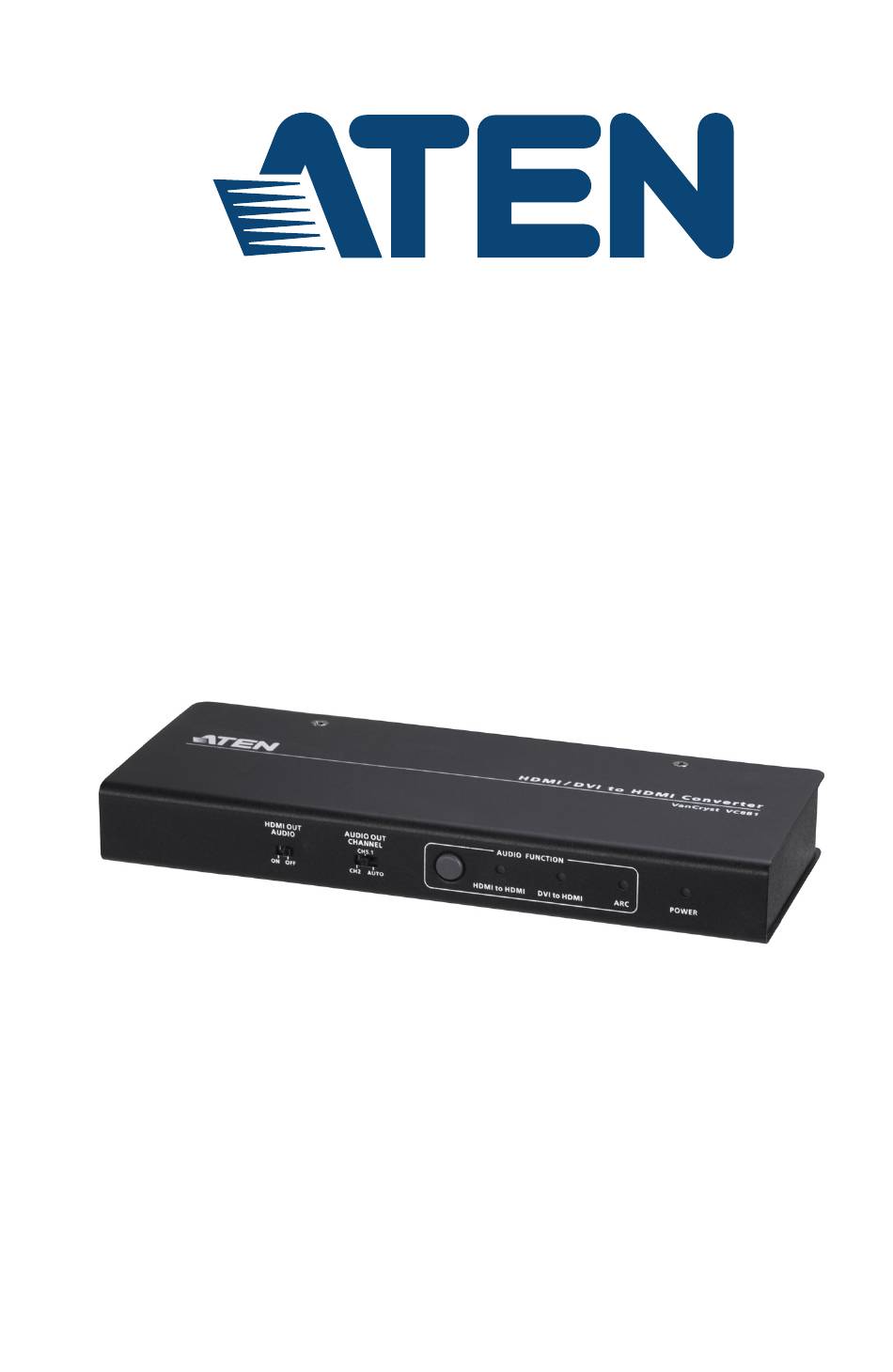

- Page 1 4K HDMI/DVI to HDMI Converter with Audio De-embedder VC881 User Manual www.aten.com...
-
Page 2: Rohs
VC881 User Manual Preface EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VC881 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2018 ATEN® International Co., Ltd. Manual Date: 2018-08-21 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VC881 User Manual Contents Preface EMC Information ..........ii RoHS. -
Page 6: About This Manual
VC881 User Manual About this Manual This User Manual is provided to help you get the most from your VC881 4K HDMI/DVI to HDMI Converter. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International... - Page 8 VC881 User Manual This Page Intentionally Left Blank viii...
-
Page 9: Introduction

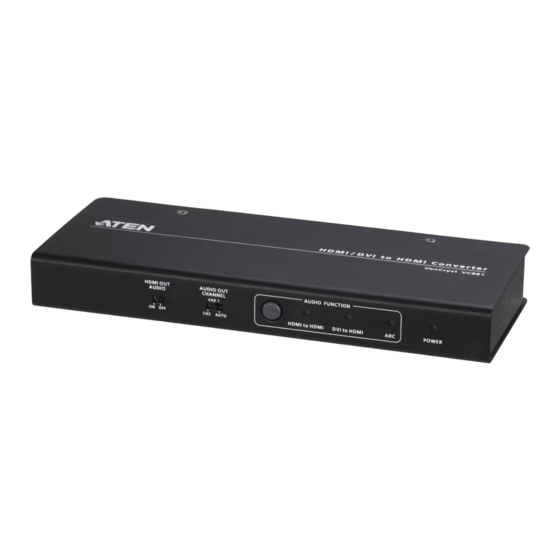

Introduction Overview The VC881 is a 4K HDMI/DVI to HDMI converter that can output HDMI video and extracts the HDMI audio to a speaker or a home theater system. This provides you the flexibility to output high quality audio in the S/PDIF, coaxial, or stereo audio format. -
Page 10: Requirements
Cables 1 x grounding wire 1 x HDMI cable for connecting the HDMI source device to the VC881 1 x DVI cable for connecting the DVI source device to the VC881 1 x audio cable for connecting the DVI source device to the VC881... -
Page 11: Hardware Setup
You must unplug the power cords of any computers that have the Keyboard Power On function. Components Use the following illustration and the table to find out what each component on the VC881 does. Front View Rear View 12 13... - Page 12 Lights up when the ARC function is selected. Power LED Lights up when the VC881 unit is receiving power. Power Jack Receives a power adapter to supply power to the VC881 unit. Audio In Receives an audio cable to transmit audio signals from a DVI source device to the VC881 unit.
- Page 13 Chapter 2. Hardware Setup Component Description Firmware Upgrade Receives an upgrade cable for device firmware upgrades. Port For details, see Firmware Upgrades, page 9. Grounding Terminal Receives a grounding wire.
-
Page 14: Installation
Speaker Home Theater System 1. Ground the VC881 by connecting one end of the grounding wire to the grounding terminal, and the other end to a suitable grounded object. Note: Do not omit this step. Proper grounding helps prevent damage to the unit from power surges or static electricity. - Page 15 5. Plug in the supplied power adapter to the VC881’s Power Jack. 6. Power on all equipment. The VC881’s power LED lights green. 7. Based on your setup scenario, set the VC881’s audio settings as described in the following table.
- Page 16 VC881 User Manual This Page Intentionally Left Blank...
-
Page 17: Operation
Note: The firmware upgrade cable is not included in the package. Please contact your dealer for more information. 3. Press and hold the Firmware Upgrade button on the VC881’s rear panel. 4. Release the Firmware Upgrade button until all panel LEDs blink. The VC881 is now in the Firmware Upgrade mode. - Page 18 VC881 User Manual This Page Intentionally Left Blank...
-
Page 19: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 20 VC881 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 21: Mounting
Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 22: Technical Support
VC881 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 23: Specifications
Appendix Specifications Function VC881 Switches Side Switch x 1 (HDMI Audio Out - ON/OFF) Side Switch x 1 (audio Out Channel - AUTO/CH5.1/CH2) Mode Selection Pushbutton x 1 (Audio Function Selection - HDMI to HDMI, DVI to HDMI, ARC) Video Input... - Page 24 VC881 User Manual Function VC881 Humidity 0–80% RH, Non-condensing Physical Properties Housing Metal Weight 0.47 kg Dimensions 20.20 cm x 8.49 cm x 2.50 cm...
-
Page 25: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
