I/O Parameters
Top Back
Top Back Button

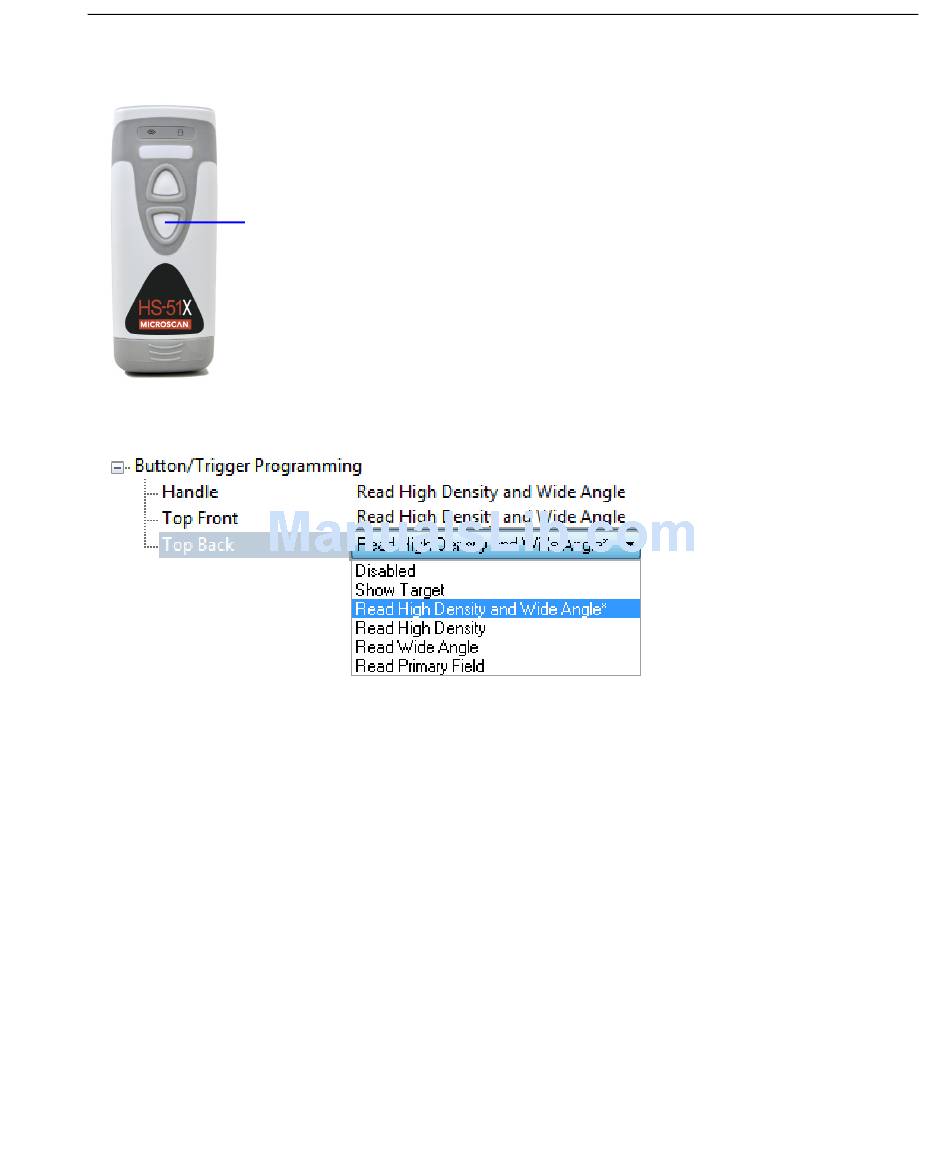

The Top Back Button can be configured as Disabled, or to Show Target, Read High
Density and Wide Angle (default), Read High Density, Read Wide Angle, or Read
Primary Field.
Disabled
Top Back Button functionality will be disabled.
Show Target
The target LEDs will illuminate when the Top Back Button is held down.
Read High Density and Wide Angle (Default)
Both High Density and Wide Angle will be activated to capture an image when the Top
Back Button is held down.
Rear High Density
High Density will be activated to capture an image when the Top Back Button is held down.
Read Wide Angle
Wide Angle will be activated to capture an image when the Top Back Button is held down.
Read Primary Field
The most recent field (High Density or Wide Angle) to have produced a Good Read will
be activated to capture an image when the Top Back Button is held down.
