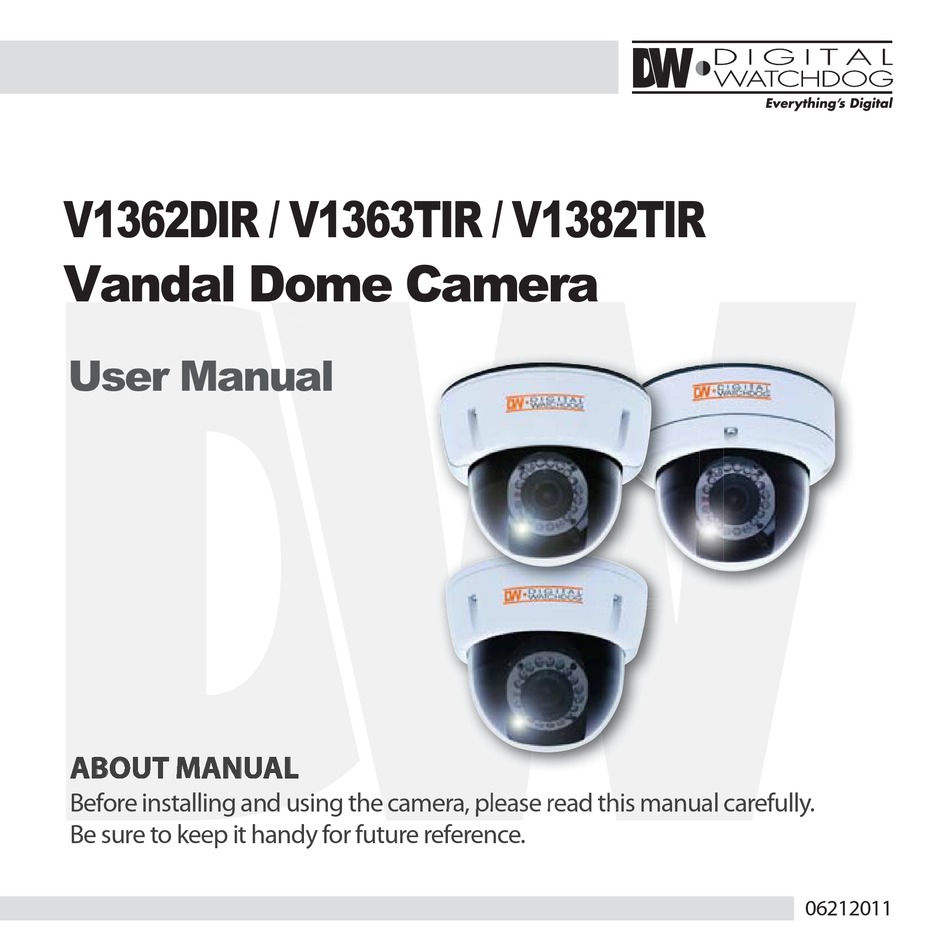

V1362DIR / V1363TIR / V1382TIR Vandal Dome Camera User Manual ABOUT MANUAL Before installing and using the camera, please read this manual carefully. era, pleas s e read th h is manua Be sure to keep it handy for future reference. - Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short- circuits, or other damages.
- Page 3 TROUBSHOOTING Before sending your camera out for repair, check the items below. If the problem persists after checking these items, contact your service center. No Video Is the coaxial cable attached securely? Is there adequate illumination? Out-of-Focus Video Is the lens in focus? Is the lens dirty? (commercially available) and a soft cloth or lens cleaning paper.
-
Page 4: Dimensions In Millimeters
DIMENSIONS IN MILLIMETERS * 103.1 109.6 41.3 91.0 85.0 ø145 ø5.0 85.0 91.0 117.0 125.0 ø4.5 VIDEO (YELLOW) BNC JACK L= 300mm DC 12V or AC24V BLACK 5mm TWIST SOLDERING... -
Page 5: Installation
INSTALLATION * Loosen the Fixing Screw (D), using a screw driver. 2. Separate the Upper Case (A) and the Base (E). 3. Detach the Gimbal (C) from the Base (E). 4. Cut a hole in the ceiling for routing the cables. 5. - Page 6 CONNECTION * DC12V DC12V / AC24V 300.0 CAUTION : CHECK FOR POLARITY WHEN USING A DC12V POWER SUPPLY.
-
Page 7: Camera Settings
CAMERA SETTINGS * LENS ADJUSTMENT 1. Focus Lever 2. Zoom Lever 1. Set the zoom level to the desired position by moving the Zoom Lever. 2. Set the focus, using the Focus Lever. - Page 8 CAMERA SETTING FOR SIDE OSD CONTROL BOARD * V1362DIR, V1363TIR, V1382TIR FUNCTIONAL OF CONTROL BOARD [1] SW Functional control of O.S.D(On Screen Display) [2] CON1 Second Video output connector [3] CON2 RS-485 connector RIGHT DOWN LEFT CON1 CON2...
-
Page 9: Remote Control Instructions
REMOTE CONTROL * REMOTE CONTROL Instructions 1. Set the Camera iD in the OSD menu. The default Menu Access and Control setting is 001. NOTE : Zoom Function Control you must reset the power for the new settings to apply. Once you reset the power, the camera will recognize the new Camera ID. -
Page 10: Module Osd Menu
MODULE OSD MENU * (V1362DIR) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER FUNCTION MOTION PRIVACY MIRROR ALARM MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 MASK 4 COLOR SET SYNC SETUP EXIT SYNC CAMERA ID EXIT TITLE EDIT SAVE &... -
Page 11: Osd Menu
OSD MENU * (V1362DIR) EXPOSURE BRIGHTNESS MANUAL (ELC LEVEL : 0 ~ 100) / DC (DC LEVEL : 0 ~ 31) SHUTTER 1/60, 1/100FLC, 1/120 ~ 1/100000 OFF / ON BLC (Back Light Compensation) OFF / 12dB ~ 36dB AGC (Auto Gain Control) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET... - Page 12 FUNCTION MIRROR OFF/ MIRROR SHARPNESS 0 ~ 49 GAMMA USER / 0.45 / 0.6 / 1.00 OFF / ON (0 ~ 50) SLC (Side Light Compensation) OFF / ON (0 ~ 55) HME (Highlight Masking Exposure) OFF /ON DIS (Digital Image Stabilizer) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET MOTION (OMNI-Plus Cameras Only)
- Page 13 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON COLOR SET BLACK / GRAY / COLOR 1~ 6 EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO V-PHASE 0 ~ 199...
- Page 14 MODULE OSD MENU * (V1363TIR) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER R-Y GAIN C_SUP BLC / HME B-Y GAIN A_SUP STARLIGHT NIGHT-UP FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA FREEZE NEGATIVE D-ZOOM 3D DNR SYNC SETUP EXIT SYNC TITLE EDIT...
- Page 15 OSD MENU * (V1363TIR) EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60, FLK, 1/250 ~ 1/100000 BLC/HME OFF / BLC / HME HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) STARLIGHT AUTO (x2 ~ x256) / OFF NIGHT-UP NORMAL / HIGH EXIT JUMP EXIT / SAVE &...
- Page 16 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF / ON D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) ON (0~100) / OFF 3D-DNR 3D Digital Noise Reduction OFF / INDOOR / OUTDOOR Dynamic Range Compressor...
- Page 17 SYNC SYNC INTERNAL / LINE EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET SETUP TITLE EDIT OFF / ON PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600) (RS485 Control) The protocol is PELCO-D. LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL CRT / LCD...
- Page 18 MODULE OSD MENU * (V1382TIR) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER R-Y GAIN C_SUP B-Y GAIN A_SUP MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGATIVE MASK 5 3D DNR MASK 6 D-ZOOM...
- Page 19 OSD MENU * (V1382TIR) EXPOSURE BRIGHTNESS 0 ~ 99 SHUTTER 1/60, 1/100FLC, 1/120~1/100000 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX_DR OFF / ON (0~20) (Electronic Wide Dynamic Range) STARLIGHT AUTO (x2 ~ x256) / OFF (x32 is recommended for low light application.) EXIT JUMP...
- Page 20 FUNCTION MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 49 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ) OFF / ON SLC (Side Light Compensation) OFF / ON...
- Page 21 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON PRIVACY MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO...
-
Page 22: Specifications
SPECIFICATIONS * Model V1362DIR Camera TYPE Color/BW Vandal Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) X 508(V) 768(H) X 494(V) Scanning System 525 line, 2:1 Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz... - Page 23 SPECIFICATIONS * Model V1363TIR Camera TYPE Color/BW Vandal Dome Camera Mount Surface Super HAD II CCD Image Device Size 1/3" Pixels-Total 811(H) X 508(V) 768(H) X 494(V) Scanning System 525 line, 2:1 Interlace Horizontal Frequency Internal Mode 15.734Hz Horizontal Frequency Line-Lock Mode 15.750Hz Vertical Frequency Internal Mode 59.94Hz...
- Page 24 SPECIFICATIONS * Model V1382TIR Camera TYPE Color/BW Vandal Dome Camera Mount Surface Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) X 508(V) 768(H) X 494(V) Scanning System 525 line, 2:1 Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
-
Page 25: Warranty Information
WARRANTY INFORMATION * Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Series against defects in materials or workmanship as follows. LABOR : if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge. -
Page 26: Limits And Exclusions
