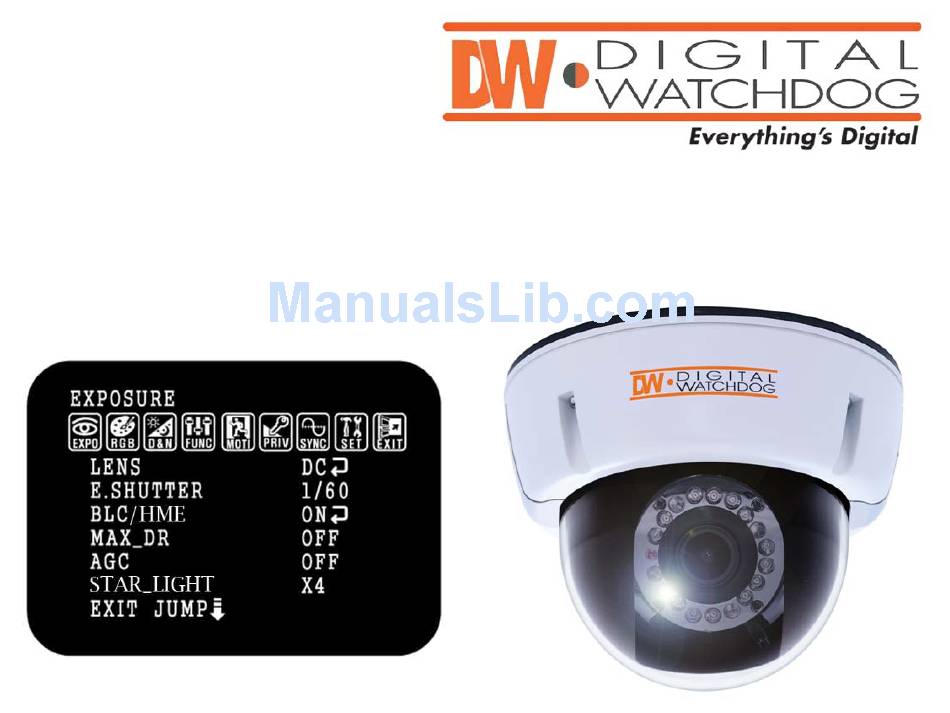

- Page 1 Infinity OMNI-Plus V1382TIR User Manual Version #2: Camera with ICON Menu 11192010...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ... - Page 3 FEATURES 1/3” Sony Super HAD II CCD High Resolution 560TV Lines OMNI-Focus 2.9~8.5mm 3X Motorized Zoom, Auto Iris 70ft Range IR with Intelligent Camera Sync True Day & Night / TDN5 (Electro Magnetic Mechanism) Max-DR (Electronic Wide Dynamic Range) Enables the camera to capture perfect images in both bright and dark environments simultaneously. 3D-DNR (3D Digital Noise Reduction) Produces less noise and more color during low-light application.
- Page 4 DIMENSION (mm) & POWER REQUIREMENT POWER REQUIREMENT: 12VDC @1A 24VAC @ .500mA RS485 (Black+ & White -) Power Wire Maximum Distance COAXIAL CABLE TYPE MAXIMUM DISTANCE Wire Gauge 12VDC 24VAC 24 AWG 80ft 323ft RG59/ U 750feet 22 AWG 128ft 513ft 20 AWG 203ft...
-
Page 5: Installation And Adjustment
INSTALLATION AND ADJUSTMENT Included with DW Vandal Camera: Mounting Template User Manual One Security L-Key One Single Sided Hex Key One Double Sided Hex key Secondary BNC Cable for a Field Monitor Four (4) Screws and Four (4) Dry Wall Anchors 3 Axis Gimbal Guide IR Remote Controller... -
Page 6: Inside The Box
INSTALLATION AND ADJUSTMENT INSIDE THE BOX Digital Watchdog Infinity Vandal Camera Mounting template Pack of four (4) wood screws and four (4) dry wall anchors One double sided hex key One single sided hex key One security L-key User manual... -
Page 7: Video Output
CONNECTION DC12V / AC24V Video Output BNC Cable Main Monitor Spot Monitor Cable Field Test Monitor... - Page 8 CAMERA OSD & IR REMOTE CONTROLLER Key Button Menu Access and Control Dip Switch for the IR Remote Controller Zoom Function Control Mini Joystick for the Menu Setup ID Buttons RIGHT Motion Alarm On &OFF DOWN LEFT Field Test Monitor Video Output NOTE: RS485 Connector Press [KEY] + [ID] (Default is “001”...
-
Page 9: Day & Night
EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range) - Page 10 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
- Page 11 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
-
Page 12: Save And Exit
SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default... -
Page 13: Specifications
Camera TYPE Color / BW V1382TIR SPECIFICATIONS: Mount Surface Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768(H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
