User Manual

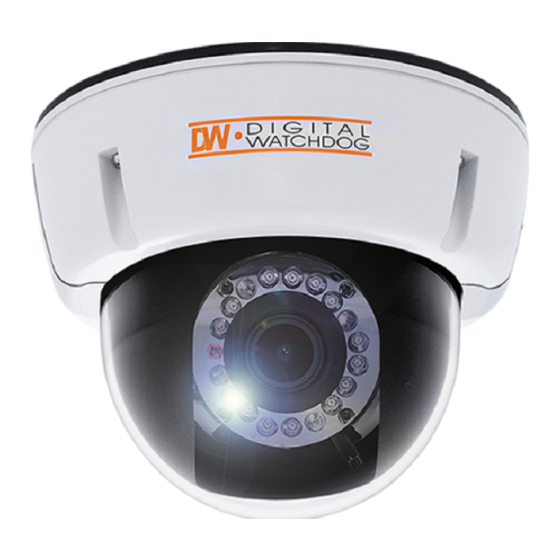

V1362DIR / V1363TIR /
V1382TIR / V1382TIRH / V1365T
Vandal Dome Camera
User Manual
5436 W Crenshaw St. Tampa, FL 33634
Tel: 866-446-3595 / 813-888-9555
Fax: 813-888-9262
www.Digital-Watchdog.com
technicalsupport@dwcc.tv
Technical Support Hours: Monday-Friday
8:30am to 8:00pm Eastern Time
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
01302012
Advertisement
Table of Contents
Related Manuals for Digital Watchdog V1362DIR
Summary of Contents for Digital Watchdog V1362DIR
-

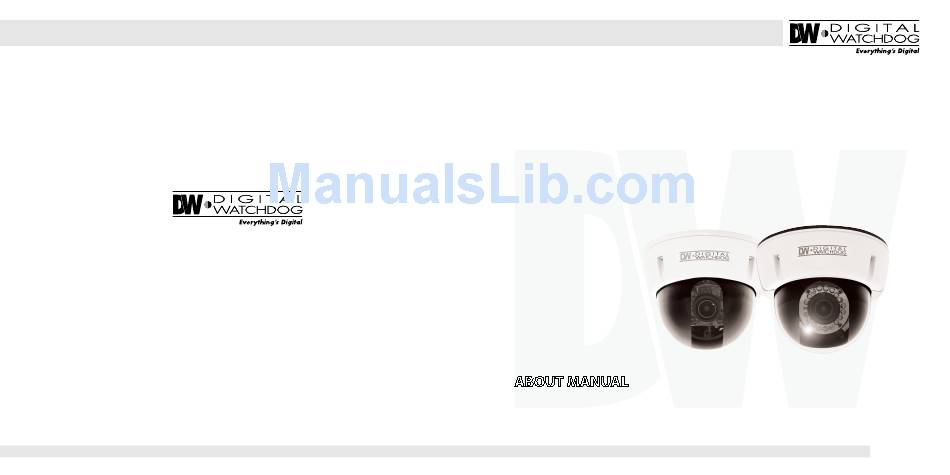

Page 1: User Manual
V1362DIR / V1363TIR / V1382TIR / V1382TIRH / V1365T Vandal Dome Camera User Manual 5436 W Crenshaw St. Tampa, FL 33634 Tel: 866-446-3595 / 813-888-9555 Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours: Monday-Friday 8:30am to 8:00pm Eastern Time ABOUT MANUAL Before installing and using the camera, please read this manual carefully. - Page 2 PRECAUTIONS TROUBSHOOTING Do not open or modify. Before sending your camera out for repair, check the items below. ■ Do not open the case except during maintenance and installation, If the problem persists after checking these items, contact your service ■...
- Page 3 FEATURES * - FEATURES * - V1362DIR V1363TIR 1/3" Sony Super HAD II CCD 1/3” High Resolution CCD ■ ■ 540 TV Lines High Resolution 560 TV Lines ■ ■ 3.3 ~ 12mm Varifocal Auto Iris Lens 3.3 ~ 12mm Varifocal Auto Iris Lens ■...
- Page 4 FEATURES * - FEATURES * - V1382TIR V1382TIRH 1/3” Sony Super HAD Ⅱ CCD 1/3” Sony Super HAD Ⅱ CCD ■ ■ High Resolution 560 TV Lines High Resolution 560 TV Lines ■ ■ OMNI-Focus 2.9~8.5mm 3X Motorized Zoom, Auto Iris 70ft Range IR with Intelligent Camera Sync OMNI-Focus 2.9~8.5mm 3X Motorized Zoom, Auto Iris 70ft Range IR with Intelligent Camera Sync ■...
-
Page 5: Dimension (Mm)
FEATURES * - DIMENSION (mm) * V1365T 1/3" Pixim Seawolf CMOS Sensor ■ 690 Horizontal TV Lines ■ 3.3 ~ 12mm Varifocal Auto Iris Lens ■ TDN (True Day and Night/IR Cut Filter) ■ 103.1 3D-DNR (3D Digital Noise Reduction) ■... -
Page 6: Installation
INSTALLATION * CONNECTION * A. Loosen the Fixing Screw (D), using a screw DC12V driver. B. Separate the Upper Case (A) and the Base (E). C. Detach the Gimbal (C) from the Base (E). D. Cut a hole in the ceiling for routing the cables. DC12V / AC24V E. -
Page 7: Camera Setting
CAMERA SETTING FOR SIDE OSD CONTROL BOARD * CAMERA SETTING * V1362DIR, V1363TIR, V1382TIR, V1382TIRH, V1365T ■ LENS ADJUSTMENT FUNCTIONAL OF CONTROL BOARD 1. Focus Lever [1] SW Functional control of O.S.D(On Screen Display) 2. Zoom Lever [2] CON1 Second Video output connector... -
Page 8: Remote Control
MODULE OSD MENU * REMOTE CONTROL * V1382TIR, V1382TIRH V1362DIR ■REMOTE CONTROL Instructions EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE Set the Camera iD in the OSD menu. The default Menu Access and Control SHUTTER setting is 001. NOTE : If the Camera ID is modified,... - Page 9 OSD MENU * V1362DIR EXPOSURE FUNCTION BRIGHTNESS MANUAL (ELC LEVEL : 0 ~ 100) / DC (DC LEVEL : 0 ~ 31) MIRROR OFF/ MIRROR SHUTTER 1/60, 1/100FLC, 1/120 ~ 1/100000 SHARPNESS 0 ~ 49 OFF / ON GAMMA USER / 0.45 / 0.6 / 1.00...
- Page 10 MODUEL OSD MENU * V1363TIR EXPOSURE COLOR DAY&NIGHT PRIVACY MASK 1 OFF / ON BRIGHTNESS WB MODE D&N MODE AE PREFERENCE R-Y GAIN C_SUP MASK 2 OFF / ON BLC / HME B-Y GAIN A_SUP MASK 3 OFF / ON MASK 4 OFF / ON STARLIGHT...
- Page 11 OSD MENU * FUNCTION V1363TIR MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 31 EXPOSURE GAMMA 0.05 ~ 1.00 / USER BRIGHTNESS 0 ~ 100 FREEZE OFF / ON SHUTTER 1/60 / FLK / 1/250 ~ 10000 / SENS-UP x2 ~ x256 NEGATIVE OFF / ON BLC/HME OFF / BLC / HME...
- Page 12 MODUEL OSD MENU * V1382TIR, V1382TIRH SYNC EXPOSURE COLOR DAY&NIGHT SYNC INTERNAL / AUTO BRIGHTNESS WB MODE D&N MODE EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET SHUTTER R-Y GAIN C_SUP SETUP B-Y GAIN A_SUP TITLE EDIT OFF / ON MAX_DR PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600)
- Page 13 OSD MENU * FUNCTION V1382TIR, V1382TIRH MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 49 EXPOSURE GAMMA 0.05 ~ 1.00 / USER BRIGHTNESS 0 ~ 99 FREEZE OFF / ON SHUTTER 1/60, 1/100FLC, 1/120~1/100000 NEGATIVE OFF / ON OFF / ON BLC (Back Light Compensation) OFF / LOW / MIDDLE / HIGH 3D-DNR 3D DNR (3D Digital Noise Reduction)
- Page 14 MODULE OSD MENU * PRIVACY -V1365T MASK 1 OFF / ON MASK 2 OFF / ON EXPOSURE COLOR DAY&NIGHT MASK 3 OFF / ON BRIGHTNESS WB MODE D&N MODE MASK 4 OFF / ON AE PREFERENCE COLOR GAIN MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET...
- Page 15 OSD MENU * FUNCTION -V1365T MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS -8 ~ 8 EXPOSURE GAMMA 25(0.25) ~ 100(1.0) BRIGHTNESS -48 ~ 60 3D DNR MOVIE / INFO AE PREFERENCE OUTDOOR / INDOOR ZOOM:1(x1.0) ~ 12(x8) OFF / BLC (PERCENTILE 10 ~ 50) D-ZOOM PAN(-100~100)/TILT(-100~100) (Digital Zoom/Pan using the camera mini joystick) LOW / NORMAL / MEDIUM / HIGH / CUSTOM...
-
Page 16: Specifications
SPECIFICATIONS * SYNC SYNC INT1(SYNC to 59.64Hz)/INT2(SYNC to 60.01Hz)/LL LIMIT/V PHASE/RETURN) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET Model V1362DIR SETUP Camera TYPE Color/BW Vandal Dome Camera CAM ID:1 ~ 255 Mount Surface ID DISPLAY : OFF / ON... - Page 17 SPECIFICATIONS * SPECIFICATIONS * Model V1363TIR Model V1382TIR Camera TYPE Color/BW Vandal Dome Camera Camera TYPE Color/BW Vandal Dome Camera Mount Surface Mount Surface Image Size 1/3" High Resolution CCD Image Device Super HAD II CCD Pixels-Total 811(H) x 508(V) Size 1/3"...
- Page 18 SPECIFICATIONS * SPECIFICATIONS * Model V1382TIR V1365T Model Camera TYPE Color/BW Vandal Dome Camera General Spec Mount Surface CCD Type 1/3" 420K Pixels Color Image Device Super HAD II CCD Total number of pixels 768(H) X 548(V) 0.22Lux (F1.2, 30IRE-COLOR) Size 1/3"...
-
Page 19: Warranty Information
WARRANTY INFORMATION * LIMITS AND EXCLUSIONS * Digital Watchdog (referred to as “the Warrantor”) There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential warrants the Camera Series against defects in damages, including without limitation and damage to recording media, materials or workmanship as follows.
