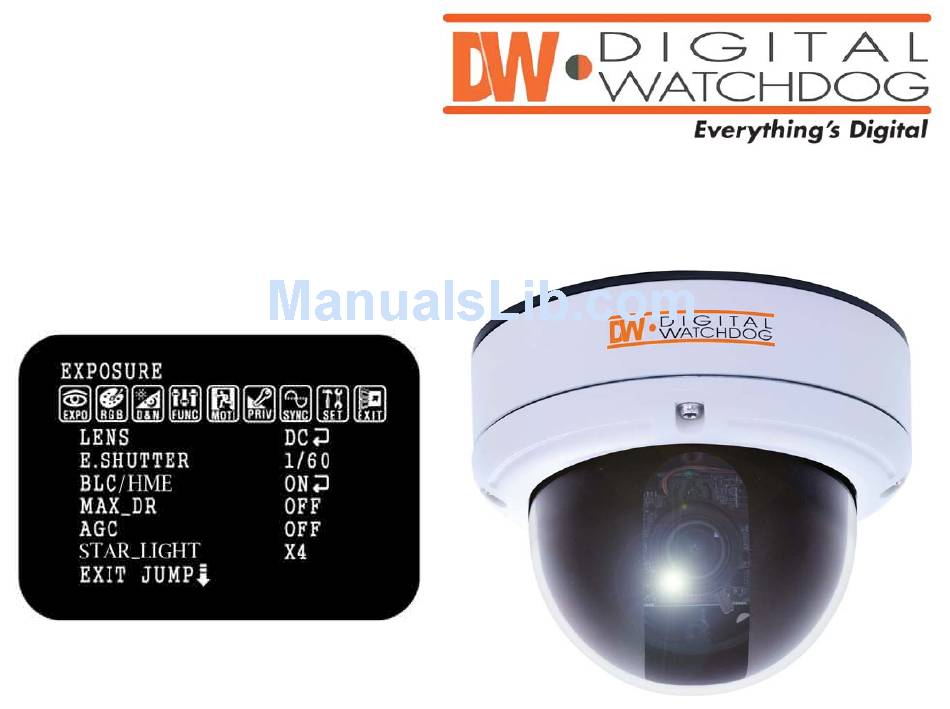

- Page 1 Starlight V3363DH User Manual Version #2: Camera with ICON Menu 11192010...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. ... - Page 3 FEATURES 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens Electronic Day and Night Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) Dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image. 3D-DNR (3D Digital Noise Reduction) Produces less noise and more color during low-light application.
- Page 4 DIMENSION (mm) & POWER REQUIREMENT POWER REQUIREMENT: 12VDC @1A 24VAC @ .500mA Power Wire Maximum Distance COAXIAL CABLE TYPE MAXIMUM DISTANCE Wire Gauge 12VDC 24VAC 24 AWG 80ft 323ft RG59/ U 750feet 22 AWG 128ft 513ft 20 AWG 203ft 815ft RG6/U 1,000feet 18 AWG...
-
Page 5: Installation
INSTALLATION Included with DW Vandal Dome Camera: Mounting Template User Manual Security L-Key Single Sided Hex Key Double Sided Hex Key Secondary BNC Cable for Field Monitor Four (4) Screws and Four (4) Dry Wall Anchors 3 Axis Gimbal Guide Camera Installation Use the mounting template to mount the camera. - Page 6 INSTALLATION A. Use the supplied L Wrench to remove the four fixing screws from the dome cover. B. Align the camera unit with the surface of the ceiling . Draw marks on the ceiling in the places where the screw holes will be drilled.
- Page 7 CONNECTION DC12V / AC24V Video Output BNC Cable Main Monitor Spot Monitor Cable Field Test Monitor...
-
Page 8: Lens Adjustment
LENS ADJUSTMENT A.Adjust the panning (360 ) and tilt (60 ) position. B. Use the Zoom lever to set the zoom position. C. Use the Focus lever to set the focus. -
Page 9: Camera Settings
CAMERA SETTINGS... -
Page 10: Day & Night
EXPOSURE LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (Auto Gain Control) MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range) - Page 11 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF/ ON OFF / LOW / MIDDLE / HIGH 3D-DNR 3D-DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) OFF / ON SLC (Side Light Compensation)
- Page 12 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP CAMERA ID 0 ~ 255 TITLE...
-
Page 13: Save And Exit
SYNC SYNC INTERNAL / AUTO V-PHASE 0 ~ 199 EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET EXIT EXIT Exit the menu SAVE&EXIT Exit the menu and save the setting FACTORY SET Reset the menu setting to factory default... -
Page 14: Specifications
Camera TYPE Color / BW V3363DH SPECIFICATIONS: Mount Surface Image Device Super HAD II CCD Size 1/3" Pixels-Total 811(H) x 508 (V) Pixels-Effective 768 (H) x 494 (V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz F1.2 0.14 Lux...
