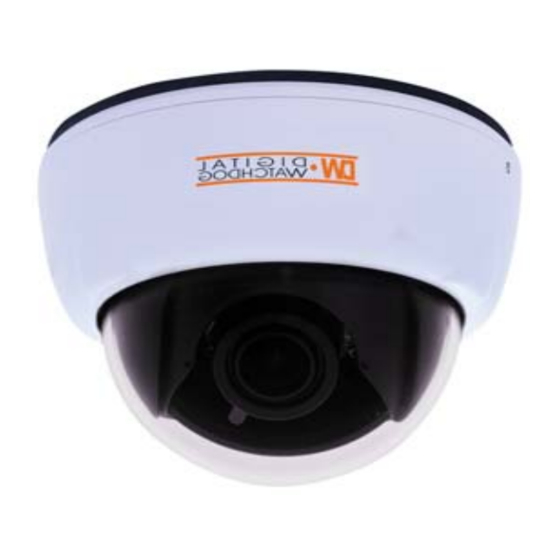

INSTRUCTION MANUAL
V2262D Series
About manual
Before installing and using the camera, please read this
Before installing and using the camera, please read this
manual carefully.
manual carefully.
Be sure to keep it handy for future reference.
Be sure to keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2262D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Watchdog V2262D Series

Summary of Contents for Digital Watchdog V2262D Series

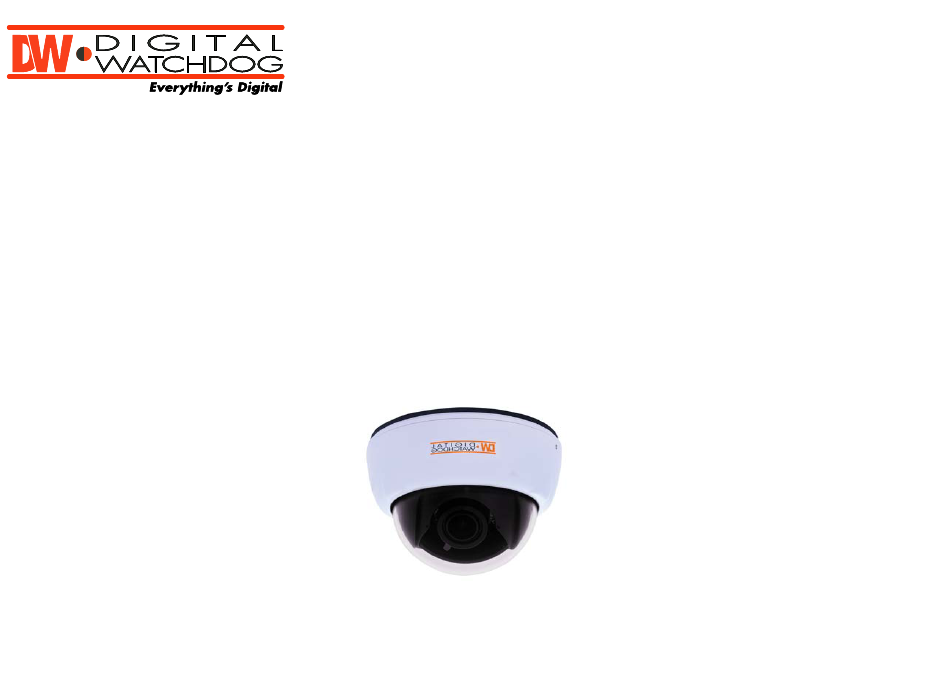

  • Page 1 Technical Support : 1-866-446-3595 / 813-888-9555 Technical Support : 1-866-446-3595 / 813-888-9555 INSTRUCTION MANUAL V2262D Series About manual Before installing and using the camera, please read this Before installing and using the camera, please read this manual carefully.
  • Page 2 PRECAUTIONS ■ Do not open or modify ■ Do not open or modify Before installing and using the camera, please read this manual Before installing and using the camera, please read this manual Do not open the case except during maintenance and installation, Do not open the case except during maintenance and installation, carefully.

  • Page 3: Troubleshooting

    TROUBLESHOOTING Before sending the camera out for repair, check the items below. Before sending the camera out for repair, check the items below. If the problem persists after checking these items, contact your service If the problem persists after checking these items, contact your service center.

  • Page 4: Dimension (Mm)

    DIMENSION (mm)

  • Page 5: Installation

    INSTALLATION...
  • Page 6 INSTALLATION (cont.) A. Cut the hole in the ceiling for routing the cables. A. Cut the hole in the ceiling for routing the cables. B. Loosen the screws from the dome cover. B. Loosen the screws from the dome cover. C.
  • Page 7 CONNECTION DC12V CAUTION : Check for polarity when using a DC 12V power supply.

  • Page 8: Lens Adjustment

    LENS ADJUSTMENT B. Focus lever B. Focus lever A. Zoom Lever A. Zoom Lever A. Set the zoom level to the desired position by moving Zoom lever. B. Set the Focus by moving Focus lever.

  • Page 9: Warranty Information

    WARRANTY INFORMATION Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Series against defects in materials or workmanship as follows: Series against defects in materials or workmanship as follows:...
  • Page 10 LIMITS AND EXCLUSIONS LIMITS AND EXCLUSIONS There are no express warranties except as listed above. The Warrantor will There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without not be liable for incidental or consequential damages (including, without limitation, damage to recording media) resulting from the use of these limitation, damage to recording media) resulting from the use of these...
  • Page 11 Model V2262D Camera TYPE Color Anti-Vandal Digital Dome Camera Mount Surface Image Device Super HAD CCD Size 1/3" Pixels-Total 537(H) x 505(V) Pixels-Effective 510(H) x 492(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min.
