Digital Watchdog V3363D User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Table of Contents
5436 W Crenshaw St. Tampa, FL 33634
Tel: 866-446-3595 / 813-888-9555
Fax: 813-888-9262
www.Digital-Watchdog.com
technicalsupport@dwcc.tv
Technical Support Hours: Monday-Friday
8:30am to 8:00pm Eastern Time
V3363D, V3363D922
V3363DH
V3367WD, V3367WTIR

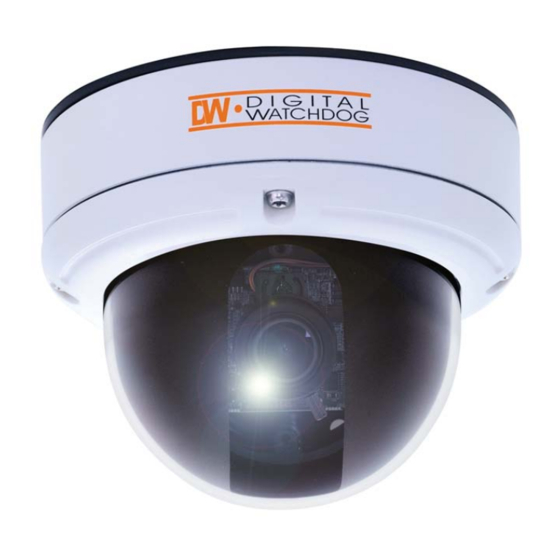

Vandal Dome Camera
User Manual
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
01312012

Advertisement

loading

  Also See for Digital Watchdog V3363D

Digital Watchdog Starlight V3363DH User Manual
Digital Watchdog Starlight V3363DH User Manual 15 pages

  Related Manuals for Digital Watchdog V3363D

  Summary of Contents for Digital Watchdog V3363D

  • Page 1 V3363D, V3363D922 V3363DH V3367WD, V3367WTIR Vandal Dome Camera User Manual 5436 W Crenshaw St. Tampa, FL 33634 Tel: 866-446-3595 / 813-888-9555 Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours: Monday-Friday 8:30am to 8:00pm Eastern Time ABOUT MANUAL Before installing and using the camera, please read this manual carefully.
  • Page 2 PRECAUTIONS TROUBSHOOTING Do not open or modify. Before sending your camera for repair, check the following or contact our technical specialist. ■ Do not open the case except during maintenance and installation, ■ for it may be dangerous and can cause damages. No VIDEO Do not put objects into the unit.
  • Page 3 FEATURES * FEATURES * - V3363D - V3363D922 1/3" High Resolution CCD 1/3" High Resolution CCD ■ ■ High Resolution 560 TV Lines High Resolution 560 TV Lines ■ ■ 3.3 ~ 12mm Varifocal Auto Iris Lens 9~22mm Varifocal Auto Iris Lens ■...
  • Page 4 FEATURES * FEATURES * - V3363DH - V3367WD 1/3" High Resolution CCD 1/3” Sony Super HAD II CCD ■ ■ High Resolution 560 TV Lines High Resolution 560 TV Lines ■ ■ 3.3~12mm Varifocal Auto Iris Lens 3.3~12mm Varifocal Auto Iris Lens ■...

  • Page 5: Dimensions In Millimeters

    FEATURES * DIMENSIONS IN MILLIMETERS * - V3367WTIR 1/3” Sony Super HAD II CCD ■ High Resolution 560 TV Lines ■ 3.3~12mm Varifocal Auto Iris Lens ■ 100ft Range IR with Intelligent Camera Sync 102.0 ■ True Day & Night / TDN5 (Electro Magnetic Mechanism) ■...

  • Page 6: Installation

    INSTALLATION * INSTALLATION * 1. Mounting Template A. Use the supplied L Wrench to remove the four fixing 2. User Manual screws from the dome cover. 3. Security L-Key B. Align the camera unit with the surface of the ceiling. 4.
  • Page 7 CONNECTION * CMAERA SETTINGS * LENS ADJUSTMENT ■ 12VDC/24VAC VIDEO OUT a. Focus lever b. Zoom Lever 300.0 1. Set the zoom level as desired positiong by moving Zoom lever. CAUTION : CHECk FOR POLARITy WHEN USING A DC12V POWER SUPPLy. 2.

  • Page 8: Module Osd Menu

    CAMERA SETTING FOR SIDE OSD CONTROL BOARD * MODULE OSD MENU * -V3363D, V3363D922, V3363DH EXPOSURE COLOR DAy&NIGHT BRIGHTNESS WB MODE D&N MODE AE PREFERENCE R-y GAIN C_SUP BLC / HME B-y GAIN A_SUP STARLIGHT 2nd Video Joystick key NIGHT-UP...
  • Page 9 OSD MENU * -V3363D, V3363D922, V3363DH EXPOSURE FUNCTION BRIGHTNESS 0 ~ 100 MIRROR OFF/MIRROR/V-FLIP/ROTATE SHUTTER 1/60 / FLK / 1/250 ~ 10000 / STARLIGHT x2 ~ x256 SHARPNESS 0 ~ 31 BLC/HME OFF / BLC / HME FREEZE OFF / ON HIGH / MIDDLE / LOW / OFF NEG.IMAGE...
  • Page 10 MODULE OSD MENU * SyNC -V3367WD, V3367WTIR SyNC INTERNAL / AUTO EXIT JUMP EXPOSURE COLOR DAy&NIGHT SETUP BRIGHTNESS WB MODE D&N MODE TITLE EDIT OFF / ON E.SHUTTER R-y GAIN C_SUP PC CONTROL CAM ID / ID DISPLAy (OFF/ON) / BAUDRATE (2400/4800/9600/19200/38400/57600) B-y GAIN A_SUP (RS485 Control)
  • Page 11 OSD MENU * FUNCTION -V3367WD, V3367WTIR MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 49 GAMMA 0.45 ~ 1.00 / USER EXPOSURE FREEZE OFF / ON BRIGHTNESS 0 ~ 99 E.SHUTTER NEGA. OFF/ ON 1/60, 1/100FLC, 1/120~1/100000 OFF / ON OFF / LOW / MIDDLE / HIGH 3D-DNR BLC (Back Light Compensation) 3D DNR (3D Digital Noise Reduction)

  • Page 12: Warranty Information

    WARRANTy INFORMATION * PRIVACy MASK 1 OFF / ON MASK 2 OFF / ON Digital Watchdog (referred to as “the Warrantor”) MASK 3 OFF / ON warrants the Camera Series against defects in MASK 4 OFF / ON materials or workmanship as follows.

  • Page 13: Limits And Exclusions

    LIMITS AND EXCLUSIONS * SPECIFICATIONS * -V3363D Camera TYPE Color/BW V3363D There are no express warranties except as listed above. Mount Surface The Warrantor will not be liable for incidental or consequential Image Size 1/3" damages (including, without limitation, damage to recording media)
  • Page 14 SPECIFICATIONS * SPECIFICATIONS * -V3363D922 -V3363DH Camera TYPE Color/BW V3363D922 Camera TYPE Color/BW V3363DH Mount Surface Mount Surface Image Image Size 1/3" Size 1/3" Pixels-Total 811(H) X 508(V) Pixels-Total 811(H) X 508(V) Pixels-Effective 768(H) X 494(V) Pixels-Effective 768(H) X 494(V) Scanning System 525 line, 2:1 Interlace...
  • Page 15 SPECIFICATIONS * SPECIFICATIONS * -V3367WD -V3367WTIR Camera TYPE Color/BW V3367WD Camera TYPE Color/BW V3367WTIR Mount Surface Mount Surface Image Device Super HADⅡCCD Image Device Super HADⅡCCD Size 1/3" Size 1/3" Pixels-Total 811(H) X 508(V) Pixels-Total 811(H) X 508(V) Pixels-Effective 768(H) X 494(V) Pixels-Effective 768(H) X 494(V) Scanning...
  • Page 16 MEMO MEMO...
