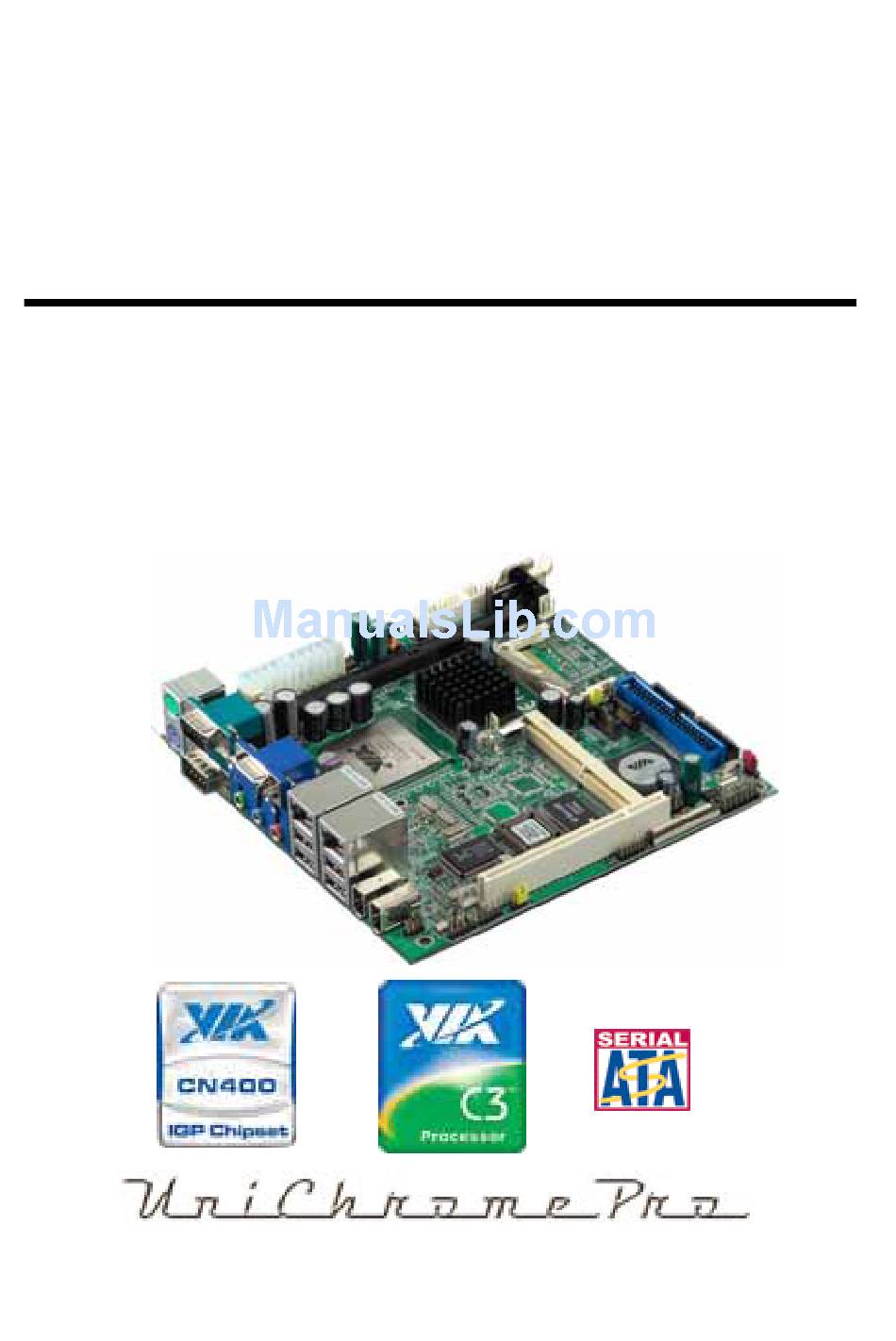

- Page 1 LV-667 Mini-ITX Motherboard User’s Manual Edition 1.2 2010/01/07...
- Page 2 LV-667 User’s Manual Copyright Copyright 2004 - 2005. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-667 User’s Manual Packing List Please check the package before you starting setup the system Hardware: LV-667 series motherboard x 1 Cable Kit: 40-pin ATA100 IDE flat cable x 1 26-pin slim type floppy cable x 1 Serial ATA ribbon cable x 1... -
Page 4: Table Of Contents
LV-667 User’s Manual Index Chapter 1 <Introduction> ..................7 1.1 <Product Overview>................. 7 1.2 <Product Specification> ................8 1.3 <Mechanical Drawing>................11 1.4 <Block Diagram>..................12 Chapter 2 <Hardware Setup>................13 2.1 <Connector Location>................13 2.2 <Jumper Reference> ................14 2.3 <Connector Reference>................. - Page 5 LV-667 User’s Manual 2.15 <Power and Fan Connector> ............... 32 2.15.1 <Power Input> ................32 2.15.2 <Fan Connector>..............32 2.16 <Indicator and Switch>................. 33 Chapter 3 <System Configuration>..............35 3.1 <SATA RAID Configuration>..............35 3.2 <Audio Configuration> ................37 3.3 <Display Configuration>................. 38 Chapter 4 <BIOS Setup>...
- Page 6 LV-667 User’s Manual (The Page is Left For Blank)
-
Page 7: Chapter 1

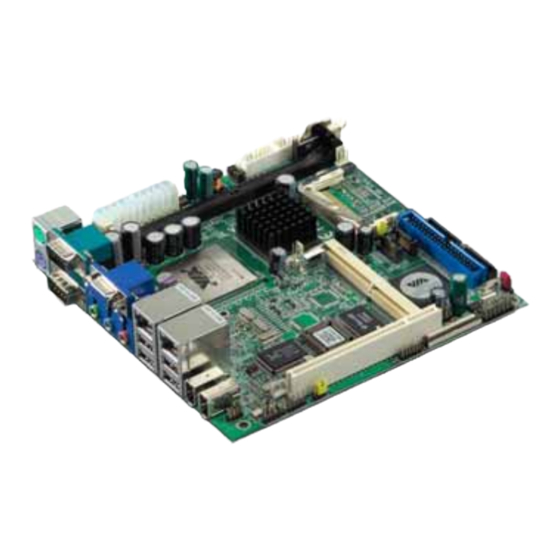

Introduction Chapter 1 <Introduction> 1.1 <Product Overview> LV-667 is the Mini-ITX motherboard based on VIA chipset. It integrates the last VIA embedded chipset for CN400 with VT8237, DDR266/333/400 SDRAM, and serial ATA with RAID to provide the economical embedded platform. -
Page 8: Product Specification
LV-667 User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Embedded VIA C3/Eden processor Ratio: 1.0GHz/800MHz L1/L2 Cache: 128/64KB Front side bus: 133MHz Fanless with Eden 800MHz processor Optional up to 1.2GHz with 200MHz FSB Memory 1 x 184-pin DDR 266/333/400 SDRAM up to 1GB... - Page 9 LV-667 User’s Manual Introduction Optional SDTV/HDTV Interface Codec VIA VT1625 TV system NTSC (M and J) or PAL (B, D, G, H, I, M, N and Nc) TV system Output Interface Composite, S-Video, Component (YPbPr) and D terminal Output Format...
- Page 10 LV-667 User’s Manual Introduction Software support Operation Windows 98SE/ME, Windows 2000, Windows XP System Windows CE 4.0 or later, Windows XP Embedded Linux (Fedora Core 1, Mandrake 9.2 and Red Hat 9.0) Ordering Code LV-667 VIA CN400 with Embedded C3 1.0GHz, VGA, SATA, 5.1CH...
-
Page 11: Mechanical Drawing
LV-667 User’s Manual Introduction 1.3 <Mechanical Drawing> (Measured by Inches) (Measured by Mini-meter) Product Specification... -
Page 12: Block Diagram
LV-667 User’s Manual Introduction 1.4 <Block Diagram> Embedded VIA C3 1.0GHz processor CRT/LCD Monitor Optional HDTV Optional DVI 1 x 184-pin Optional LVDS DDR266/333/400 Up to 1GB Optional AGP8x CN400 Ultra V-Link 1GB/s 6 x USB2.0 Ports 2 x SATA... -
Page 13: Chapter 2
LV-667 User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_1394 CN_WOL CN_AUDIO CN_VGA CDIN DIMM CN_IR SPDIF CN_DVI ATXPWR CN_HDTV CPUFAN CN_DIO CN_SDTV CN_USB CN_COM3 MINI_AGP JFRNT CN_COM4 IDE1 IDE2 CN_SATA1 CN_SATA2 SYSFAN COM2 USB_RJ45_2 COM1 USB_RJ45_1 1394_1 1394_2... -
Page 14: Jumper Reference
LV-667 User’s Manual Hardware Setup 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JDOM IDE1 Pin-20 voltage setting JLAN LAN2 Enable/Disable setting JCFSEL Compact Flash address mode setting JC1/JC2/JC3/JC4 Serial port output voltage setting JLAN JRTC JDOM JCFSEL JC4/JC3/JC2/JC1... -
Page 15: Connector Reference
LV-667 User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DIMM 184-pin DDR SDRAM DIMM Standard IDE1 40-pin primary IDE connector Standard IDE2 44-pin secondary IDE connector Standard 26-pin slim type floppy connector Standard CN_SATA1/2 7-pin Serial ATA connector... -
Page 16: Cpu And Memory Setup
LV-667 User’s Manual Hardware Setup 2.4 <CPU and Memory Setup> 2.4.1< CPU> The board supports Embedded VIA C3/Eden processor, default ratio is C3 1.0GHz with CPU cooler fan, Eden ESP8000 (800MHz) with heatsink only. 2.4.2 <Memory> The board supports one 184-pin DDR266/333/400 SDRAM and up to 1GB of capacity, only non-ECC, unbuffered memory is supported. -
Page 17: Cmos Setup
LV-667 User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 18: Enhanced Ide & Cf Interface
LV-667 User’s Manual Hardware Setup 2.6 <Enhanced IDE & CF Interface> The board supports two enhanced IDE interface, dual channel for 4 ATAPI devices with ATA133. Based on embedded application, the board has one 40-pin IDE connector with jumper selectable for pin-20 +5V supported, and one 44-pin IDE connector. The jumper JDOM is two-pin type for pin-20 supplied with +5V to apply the DOM (Disk on Module). -
Page 19: Serial Ata Interface
LV-667 User’s Manual Hardware Setup 2.7 <Serial ATA Interface> Based on VIA VT8237 Southbridge, the board supports two Serial ATA interfaces with RAID 0 and 1 array function. The following is the list of the specification of the Serial ATA. -
Page 20: Floppy Port
LV-667 User’s Manual Hardware Setup 2.8 <Floppy Port> The board provides a slim type floppy port; please use the 26-pin ribbon cable in the package to connect the floppy device. Floppy rear side Lift up this plastic bar Slot the cable in (Blue paste for outside) -
Page 21: Lan Interface
LV-667 User’s Manual Hardware Setup 2.9 <LAN Interface> The board provides two 10/100Mbps LAN interfaces with VIA VT6103 PHY and REALTEK 8100B PCI controller, and compliant with standard IEEE 802.3 Ethernet interface for 100BASE-TX. The jumper of JLAN can let you enable/disable LAN2 with REALTEK 8100B. -
Page 22: Onboard Display Interface
LV-667 User’s Manual Hardware Setup 2.10 <Onboard Display Interface> Based on VIA CN400, the board supports integrated S3 Graphics UniChrome Pro IGP graphics, with BIOS selectable 16/32/64MB shared with system memory for frame buffer. 2.10.1 <Analog VGA Interface> The board provides a DB15 VGA connector on the rear I/O panel, and one CN_VGA... -
Page 23: Dvi Interface (Lv-667D Only)
LV-667 User’s Manual Hardware Setup 2.10.2 <DVI Interface (LV-667D only)> The board provides optional DVI-D interface with VIA VT1632, compliant with DVI 1.0 standard, and supports dual display (clone or extended desktop) function with CRT. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.54mm) -
Page 24: 3
LV-667 User’s Manual Hardware Setup 2.10.3<TV-out Interface (LV-667T only)> The board provides an HDTV and SDTV interface with VIA VT1625, supports PAL and NTSC of TV system, and dual display (clone or extended desktop) function with CRT. Connector: CN_SDTV Connector type: 8-pin header SDTV connector (pitch = 2.54mm) - Page 25 LV-667 User’s Manual Hardware Setup To connect the TV set, please follow the diagram below to setup your system: YPrPb Component Cable (For HDTV) S-Video & Composite Cable (For SDTV) Onboard Display Interface...
-
Page 26: Onboard Audio Interface
LV-667 User’s Manual Hardware Setup 2.11 <Onboard Audio Interface> The board provides the onboard AC97 5.1-channel audio interface with VIA VT1616, with three phone jacks on rear I/O panel for Line-out, Line-in, MIC(stereo)-in as 2-channel sound system, and Front, Rear, Center as 5.1-channel sound system. It also has one 10-pin header for additional audio output and 4-pin S/PDIF interface for optical/coaxial output. - Page 27 LV-667 User’s Manual Hardware Setup Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.00mm) Description Description Line – Left Ground Line – Right MIC1 MIC2 Ground Line Out – Left Line Out – Right Ground Connector: CDIN (LV-667E8 series do not have this connector) Type: 4-pin header (pitch = 2.54mm)
-
Page 28: Usb2.0 & Ieee1394 Interface
LV-667 User’s Manual Hardware Setup 2.12 <USB2.0 & IEEE1394 Interface> Based on VIA VT8237, the board provides 6 USB2.0 ports, and 3 IEEE1394a with VIA VT6306. The USB2.0 interface provides up to 480Mbps of transferring rate, the IEEE1394a provides up to 400Mbps of transferring rate. - Page 29 LV-667 User’s Manual Hardware Setup Connector: CN_1394 Type: 8-pin header (pitch = 2.00mm) Description Description CPWR TPB2- TPB2+ TPA2- TPA2+ Connector: CN_USB Type: 10-pin (5 x 2) header for USB5/6 Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you...
-
Page 30: Gpio Interface
LV-667 User’s Manual Hardware Setup 2.13 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm... -
Page 31: Serial Port
LV-667 User’s Manual Hardware Setup 2.14 <Serial Port> The board provides four RS232 serial ports, with jumper selectable +5V/+12V output for COM3 and COM. Connector: CN_COM3/4 Type: 10-pin (5 x 2) header for COM3/4 Description Description DCD/+5 RI/+12V Jumper: JC1/3... -
Page 32: Power And Fan Connector
LV-667 User’s Manual Hardware Setup 2.15 <Power and Fan Connector> 2.15.1 <Power Input> Connector: ATXPWR Type: 20-pin ATX power connector PIN assignment 5VSB PWOK PSON 3.3V 3.3V 3.3V 2.15.2 <Fan Connector> Connector: CPUFAN (LV-667E8 series do not have this connector), SYSFAN... -
Page 33: Indicator And Switch
LV-667 User’s Manual Hardware Setup 2.16 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 34 LV-667 User’s Manual (This Page is Left For Blank)
-
Page 35: Chapter 3
LV-667 User’s Manual System Configuration Chapter 3 <System Configuration> 3.1 <SATA RAID Configuration> The board supports two Serial ATA ports onboard, and supports RAID 0, 1 and JBOD disk array, the RAID 0, 1 and JBOD are specified below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. - Page 36 LV-667 User’s Manual System Configuration You also can edit disk array under OS, please install the VIA RAID Utility in the driver CD. (To getting start, please click here to learn more information) (Click here to build RAID 0) (Click here to build RAID JBOD)
-
Page 37: Audio Configuration
LV-667 User’s Manual System Configuration 3.2 <Audio Configuration> The board provides 5.1 channel audio interface with driver installed, please install the VIA audio driver in the CD before getting start to enjoy the 5.1 channel sound system. (To enable 5.1-channel sound mode) -
Page 38: Display Configuration
LV-667 User’s Manual System Configuration 3.3 <Display Configuration> The board provides onboard analog VGA interface, and optional digital display interface with HDTV, LVDS and DVI, please install the VIA video driver before enjoy the vivid display. Based on the VIA CN400 with S3 UniChrome Pro graphic, the board provides dual display function for clone or extended desktop modes with secondary display device attached. - Page 39 LV-667 User’s Manual System Configuration Please select S3Display for advanced device setting. Connected Devices Click check box to enable/disable device Specified display setup When you set dual display clone mode, you’ll see the same screen display on two devices. When you set the dual display for extended desktop mode, you can have the independent desktop on the second device.
- Page 40 LV-667 User’s Manual (This Page is Left for Blank)
-
Page 41: Chapter 4
LV-667 User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 42 LV-667 User’s Manual (This Page is Left for Blank)
-
Page 43: Appendix A
LV-667 User’s Manual I/O Port Pin Assignment Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 40-pin (20 x 2) box header Description Description Reset Ground Ground Ground IOW-/STOP Ground IOR-/HDMARDY Ground IORDY/DDMARDY IDESEL DACK- Ground CBLID... - Page 44 LV-667 User’s Manual Connector: IDE2 Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground IOW-/STOP Ground IOR-/HDMARDY Ground IORDY/DDMARDY Ground DACK- Ground ASP1 Ground Ground Ground IDE Port...
-
Page 45: Floppy Port
LV-667 User’s Manual I/O Port Pin Assignment A.2 <Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DRV0 DSKCHG DRV1 MTR1 MTR0 STEP Ground WRITE DATA Ground WRITE GATE TRACK 0 WRPTR Ground RDATA- Ground A.3 <IrDA Port> Connector: CN_IR... -
Page 46: Vga Port
LV-667 User’s Manual A.4 < VGA Port > Connector: VGA Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground 5VCDA BLUE Ground HSYNC LVGA5V VSYNC Ground Ground 5VCLK A.5 <Serial ATA Port> Connector: CN_SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.6 <Serial Port>... -
Page 47: Lan Port
LV-667 User’s Manual I/O Port Pin Assignment A.8 <LAN Port> Connector: RJ45_1/2 Type: RJ45 connector with LED on bracket Description A.9 <PS/2 Keyboard & Mouse Port> Connector: Keyboard Type: 6-pin Mini-DIN connector on bracket Description KB_CK BVCC IOGND KB_DT Connector: Mouse... - Page 48 LV-667 User’s Manual (This Page is Left for Blank)
-
Page 49: Appendix B
LV-667 User’s Manual I/O Port Pin Assignment Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com... - Page 50 LV-667 User’s Manual (This Page is Left for Blank)
-
Page 51: Appendix C
LV-667 User’s Manual System Resources Appendix C <System Resources> C.1 <I/O Port Address Map> Address Range Devices x0000 - x000F Direct memory access controller x0010 - x001F Motherboard resources x0020 - x0021 Programmable interrupt controller x0022 - x003F Motherboard resources... - Page 52 LV-667 User’s Manual System Resources Address Range Devices x03F6 - x03F6 Primary IDE controller (dual fifo) x03F7 - x03F7 Standard Floppy Disk Controller x03F8 - x03FF Communications Port (COM1) x0400 - x047F Motherboard resources x04D0 - x04D1 Motherboard resources x0500 - x050F...
-
Page 53: Memory Address Map
LV-667 User’s Manual System Resources C.2 <Memory Address Map> Range Devices x00000000 - x0009FFFF System board extension for ACPI BIOS x000A0000 - x000AFFFF VIA/S3G UniChrome Pro IGP x000B0000 - x000BFFFF VIA/S3G UniChrome Pro IGP x000C0000 - x000CEFFF VIA/S3G UniChrome Pro IGP... -
Page 54: System Irq & Dma Resource
LV-667 User’s Manual System Resources C.3 <System IRQ & DMA Resource> C.3.1 <IRQ> IRQ Number Devices System timer Standard 101/102-Key or Microsoft Natural Keyboard Programmable interrupt controller Communications Port (COM2) Communications Port (COM4) Communications Port (COM3) Communications Port (COM1) VIA Rhine II Fast Ethernet Adapter... -
Page 55: Dma
LV-667 User’s Manual System Resources IRQ Number Devices PS/2 Compatible Mouse Port Numeric data processor Primary IDE controller (dual fifo) VIA Bus Master PCI IDE Controller Secondary IDE controller (dual fifo) VIA Bus Master PCI IDE Controller C.3.2 <DMA> Channel... - Page 56 LV-667 User’s Manual (This Page is Left for Blank)
-
Page 57: Appendix D
LV-667 User’s Manual Power Consumption Test Appendix D <Power Consumption Test> Hardware Embedded VIA C3 1.0GHz Memory HYNIX DDR400 1GB Seagate ST340014A (not counted) CDROM SONY DDU1621 DVD-ROM (not counted) Power Supply AOPEN FSP300-60ATV Software Windows XP SP1 English Version... -
Page 58: Contact Information
Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
