Options - Icom IC-M423 Instruction Manual

11

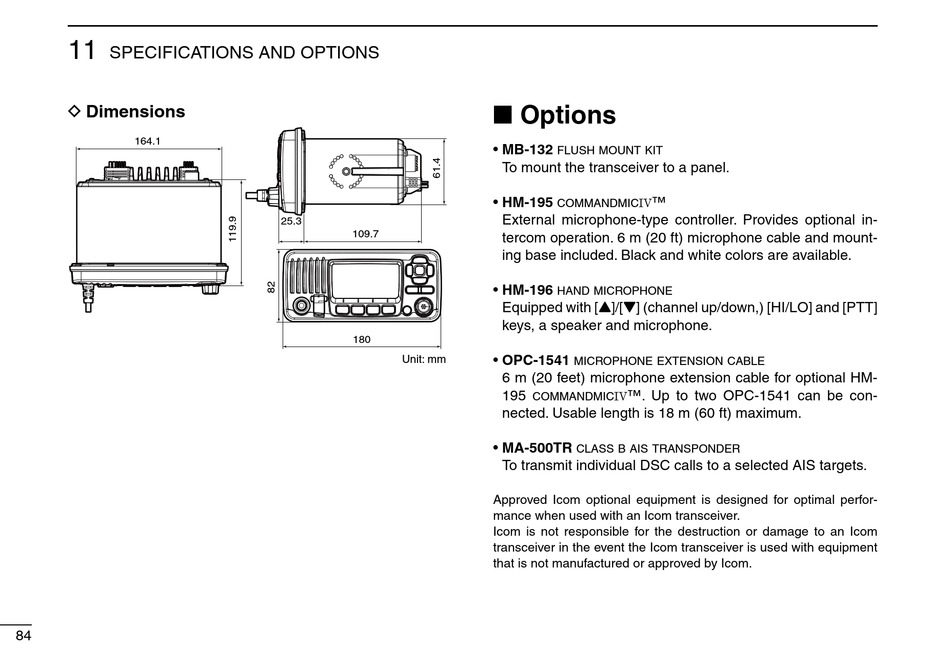

SPECIFICATIONS AND OPTIONS
D Dimensions
164.1
84
25.3
109.7
180
Unit: mm

Options

■
• MB-132
flush mount kit
To mount the transceiver to a panel.
• HM-195
™
commandmiciv
External microphone-type controller. Provides optional in-
tercom operation. 6 m (20 ft) microphone cable and mount-
ing base included. Black and white colors are available.
• HM-196
hand microphone
Equipped with [Y]/[Z] (channel up/down,) [HI/LO] and [PTT]
keys, a speaker and microphone.
• OPC-1541
microphone extension cable
6 m (20 feet) microphone extension cable for optional HM-
195 ™. Up to two OPC-1541 can be con-
commandmiciv
nected. Usable length is 18 m (60 ft) maximum.
• MA-500TR
class b ais transponder
To transmit individual DSC calls to a selected AIS targets.
Approved Icom optional equipment is designed for optimal perfor-
mance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
