Menu Screen Operation - Icom IC-M423 Instruction Manual

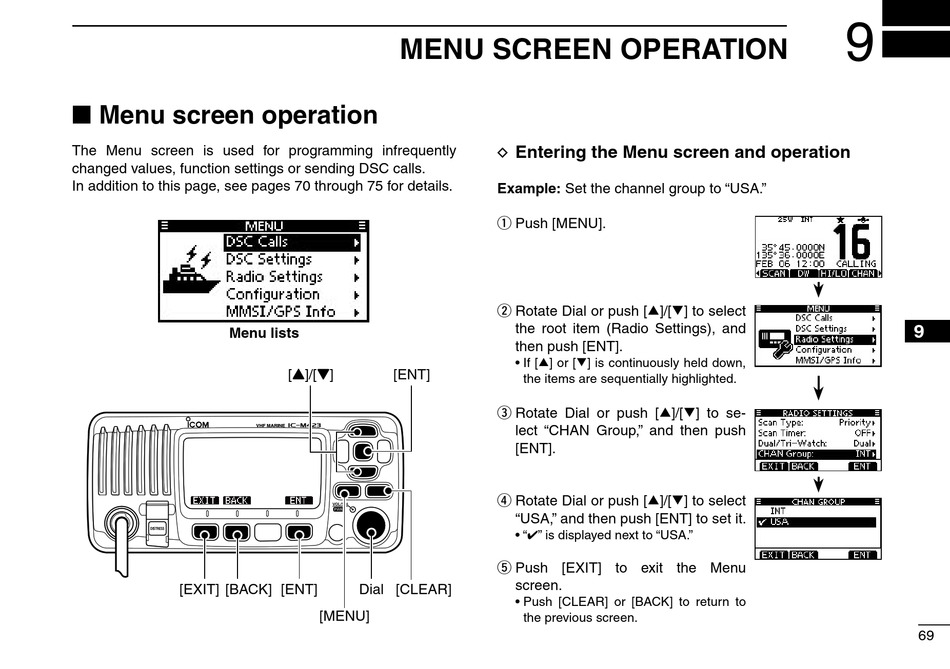

■ Menu screen operation

The Menu screen is used for programming infrequently
changed values, function settings or sending DSC calls.
In addition to this page, see pages 70 through 75 for details.
Menu lists
[EXIT] [BACK]
MENU SCREEN OPERATION
[Y]/[Z] [ENT]
[ENT] Dial [CLEAR]
[MENU]
Entering the Menu screen and operation
D
Example: Set the channel group to "USA."
Push [MENU].
q
Rotate Dial or push [ ∫]/[√] to select
w
the root item (Radio Settings), and
then push [ENT].
• If [∫] or [√] is continuously held down,
the items are sequentially highlighted.
Rotate Dial or push [ ∫]/[√] to se-
e
lect "CHAN Group," and then push
[ENT].
Rotate Dial or push [ ∫]/[√] to select
r
"USA," and then push [ENT] to set it.
• "✔" is displayed next to "USA."
Push [EXIT] to exit the Menu
t
screen.
• Push [CLEAR] or [BACK] to return to
the previous screen.
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
69
