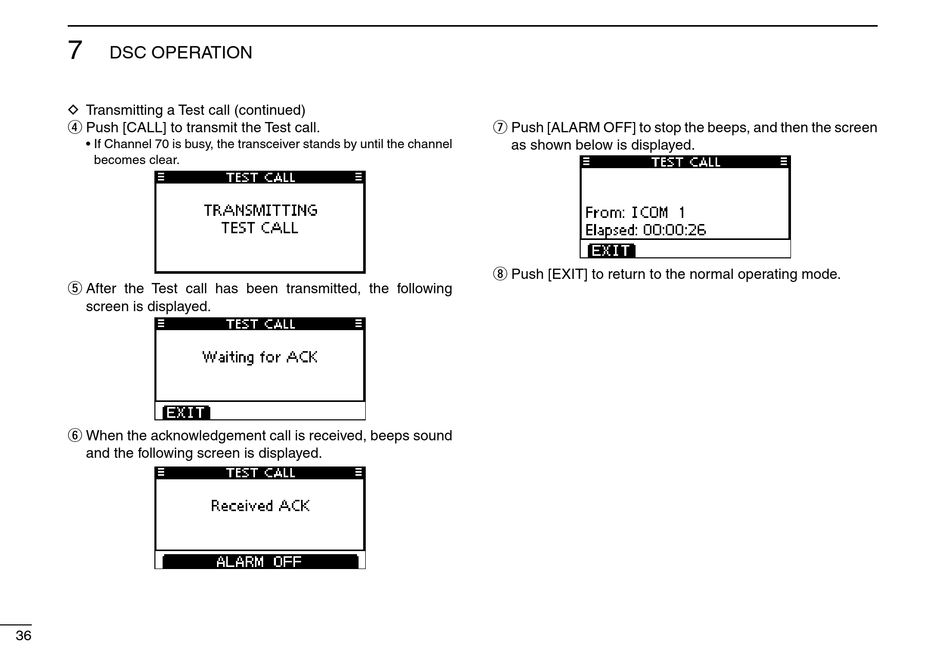

Icom IC-M423 Instruction Manual page 42

7
DSC OPERATION
D Transmitting a Test call (continued)
Push [CALL] to transmit the Test call.
r
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
After the Test call has been transmitted, the following
t
screen is displayed.
When the acknowledgement call is received, beeps sound
y
and the following screen is displayed.
36
Push [ALARM OFF] to stop the beeps, and then the screen
u
as shown below is displayed.
Push [EXIT] to return to the normal operating mode.
i
