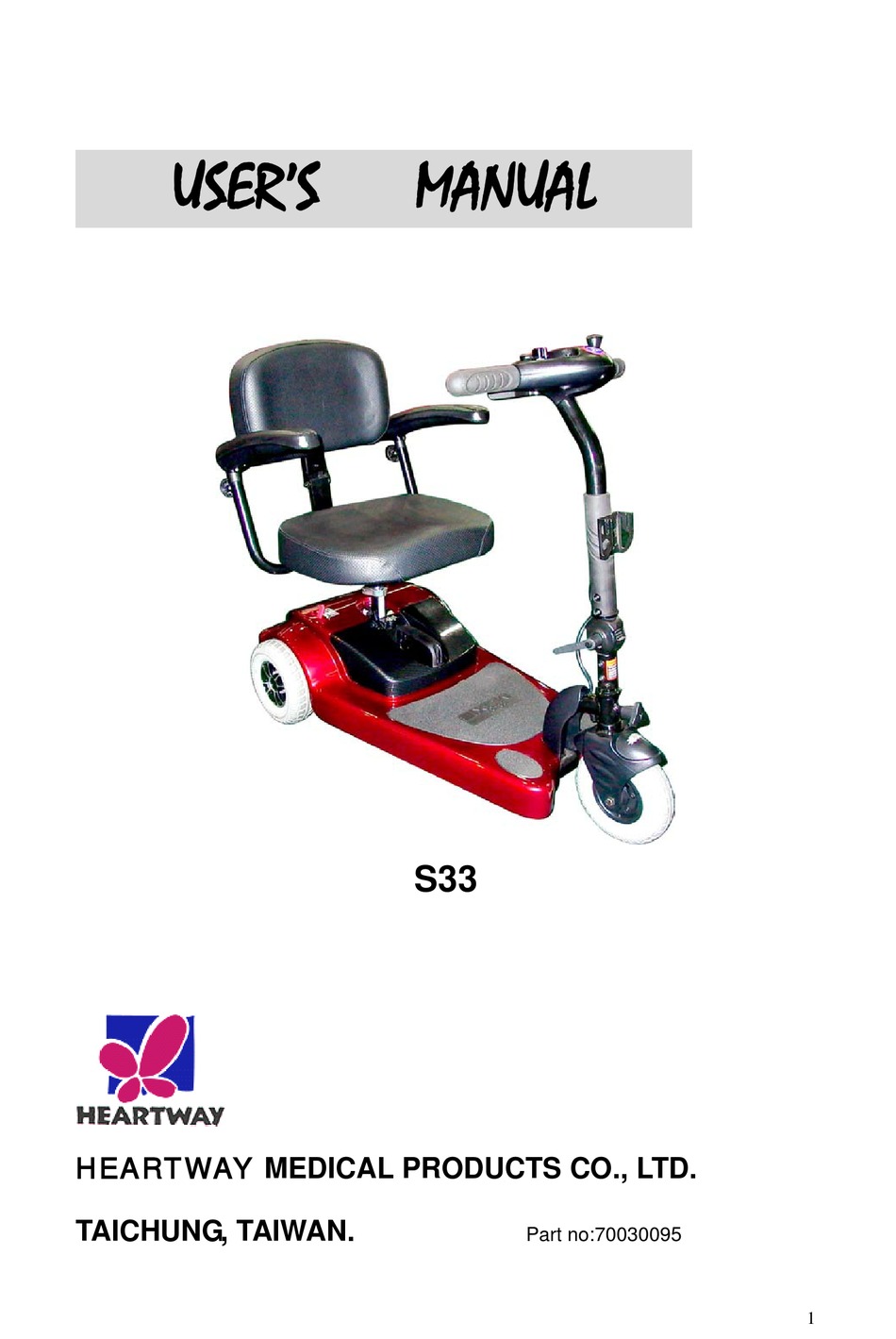

- Page 1 USER’S MANUAL HEARTWAY MEDICAL PRODUCTS CO., LTD. TAICHUNG, TAIWAN. Part no:70030095...
- Page 2 COMPONENTS Your power scooter is shipped partially disassembled for protection during shipping. After unpacking, please check whether you have received the following main components as our standard specification (See Fig.1). 1. Chassis 5.Left Armrest 2. Seat 6.Right Armrest 3. Front Basket 7.Seat Post 4.
-
Page 3: Safety Instruction
9. When driving up curbs, always check the height of the curb to ensure that it does not exceed 1-1/2” height. Transfers, Reaching and Bending 10. Transferring on and off the S33 requires a good sense of balance. To eliminate the possibility of injury, we recommend performing the following tasks before attempting a transfer: →... -
Page 4: Use While Under The Influence Of Medication Or Alcohol
General 12. Always use a seat belt, and keep your feet on the scooter all the time. 13. For safety reasons, make sure that your weight does not exceed the recommended weight limit of the scooter. Consult your dealer for the specified weight limits for your particular model. - Page 5 damage the powered scooter’s control system. The intensity of the EM energy can be measured in volts per meter(V/m).Each powered scooter can resist EMI up to a certain intensity. This is called “immunity level”. The higher the immunity level, the greater the protection.
-
Page 6: Environmental Conditions
ENVIRONMENTAL CONDITIONS Environmental conditions may affect the safety and performance of your power scooter. Water and extreme temperatures are the main elements that can cause damage and affect performance. A) Rain, Sleet and Snow If exposed to water, your power scooter is susceptible to damage to electronic or mechanical components. - Page 7 ASSEMBLY INSTRUCTION It is very easy to assemble your S33 scooter. Please follow the procedure below. Tiller Positioning (#1) Loosen the quick release lever, fold the tiller up to vertical position and tighten the quick release lever.(See Fig 2). Quick release...
- Page 8 the chassis support tube (See Fig 6), then close the quick release to the tightened position. Quick Release open position (Fig 5) (Fig 6) Note: There is a slot on the end of the seat post (See Fig 3). One rod is welded inside the chassis support tube.
-
Page 9: Adjustments For Seating Confort
A. Tiller Angle Adjustment You can adjust the angle of the tiller by releasing the quick release lever when using the S33 scooter (See Fig 2) Note: When you want to adjust the tiller angle, you have to lift the tiller upper to make sure the stopper go into the groove by releasing the quick release lever. -
Page 10: Fix The Tiller Direction
C. Fix the Tiller direction There is one pop pin located on the bottom of the tiller (Fig 11). Pull the pop pin and rotate to the right or left direction will lead the tiller fixed. Also one decal shows on the front cover to explain how to operate. (Fig 12) Pop Pin (Fig 1 1) (Fig 1 2) -
Page 11: Operation
OPERATION The power scooter is simple to operate. However, we recommend that you read carefully the following instructions to become familiarized with your new vehicle. A Word of Caution: Before you turn the power on, always be aware of the environment that surrounds you to select your desired speed. - Page 12 2. Manual Speed Adjuster: This allows you to pre-select your desired speed. The adjuster is proportional to speed and can be set anywhere between minimum and maximum. Turn the adjuster knob counter-clockwise to minimum for a very gentle operation, and clockwise towards maximum to increase your speed. 3.
-
Page 13: Controller Display
→When the vehicle is in operation, the surface of the charger will become slightly warm. →In case of emergency, let go of the finger lever control and the vehicle will come to a stop. B. Controller Display The controller display is a multifunction visual display. It can provide a lot of information of the vehicle.(shown as Fig 13) ＃When the needle falls into the red sector, your batteries are low on power and need to be recharged. -
Page 14: Thermal Protection
D. Electromagnetic Brakes: Your power scooter comes with Electromagnetic Brakes., i.e. an automatic magnetic disc safety brake which is also known as Fail-Safe brake. The electro- magnetic Brakes are automatic and work when the power scooter is ON but in a steady state (i.e. -
Page 15: Batteries And Charger
Lead-acid batteries should be charged as often as possible. Specification of the battery that we recommend: for S33 is Type: Deep –cycle sealed lead-acid or gel cell... - Page 16 →Plug the other end of power cord into a standard wall outlet. →When charging is completed, battery capacity indicator is shown. →Disconnect the charger power cord from the wall outlet when the batteries are fully charged. Charger Port Door (Fig 17) Important! Make sure voltage input is correctly selected for your location (110V or 220V) and adjust manually.
- Page 17 According to the battery type and condition of the batteries, they usually can be fully charged in 4-10 hours. This will be indicated when the status light in the battery charger side panel turns green. Charging the battery longer than necessary will not harm the battery.
-
Page 18: Maintenance And Repair
MAINTENANCE & REPAIR Your power scooter is designed for minimal maintenance. However, like any motorized vehicle, it requires routine maintenance. To keep your S33 for years of trouble-free operation, we recommend the following maintenance checks as scheduled. DAILY CHECKS 1. Visual check on the conditions of tyres 2. - Page 19 Motor Brush caps New Motor Brush Worn Motor Brush (Fig 20) (Fig 21) 2. Inspect the state of the battery terminals every six months. Make sure that they are not corroded and the connections are tight. Periodically apply a thin film of petroleum jelly on the surface of terminals to guard against corrosion.
- Page 20 Number of Fault Impact on Notes Flashes Scooter Battery Drive Battery charge is empty. Recharge the batteries. If the voltage too inhibited scooter is left off for a few minutes, battery charge may recover sufficiently to allow driving for a short period of time.
- Page 21 Note: If you experience any technical problems, it is recommended that you check with your local dealer before attempting to troubleshoot on your own. The following symptoms could indicate serious problems with your power scooter. Contact your local dealer if any of the following arises: 1.
-
Page 22: Limitted Warranty
LIMITTED WARRANTY Five –Year Warranty: Power scooter frame We will repair the frame with new or refurbished parts, free of charge, In the event of defective materials or workmanship. One –Year Limited Warranty: Electronic controller, drive train components We will repair these products with new or refurbished parts, free of charge, for one-year from the original date of purchase in the event of defective materials or workmanship. - Page 23 Limitation and Exclusions: Products subjected to negligence, abuse, misuse, improper operation, improper maintenance, improper storage, or improper transporting are not covered by warranty. The warranty shall not apply to problems arising from normal wear or failure to follow instructions. We shall not be liable for incidental or consequential damages resulting from the use of this product or arising out of any breach of this warranty.
