  • Page 2 When on any sort of an incline or decline slope, never place the power mobility in freewheel mode. Seat belt is regarded as optional accessory for S26 power scooter Seat belt can be installed onto the seat (see photo below) Please consludt with the local authorized dealer for safety belt installation Moving of adult disabled persons by self driving.
  • Page 3 SAFETY SYMBOL Year of manufacture see label on the product. The following symbols are used in the scooter to identify Heartway Medical Products Co., Ltd. warnings, mandatory actions and prohibited actions. It is very No.18, Jingke Central 1st Rd., Nantun Dist.
  • Page 4 ⇨ The stopping distance on slopes can be significantly greater than on level ground S26 should be turned off prior to entering or existing the seat. Make sure the scooter is fully un-folded before driving. Please refer to our official website for general product information at www.heartway.com.tw...

  • Page 5: Safety Instruction

    SAFETY INSTRUCTION General Never use electronic radio Make sure that there are Always use a seat belt Never operate the scooter Do not make a sharp turn or no obstacles behind you transmitters such as and keep your feet on while you are under the a sudden stop while riding walkie-talkies, or cellular phones.
  • Page 6 WARNING Don’t operate scooter on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on the scooter. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme cautions. To prevent injury to yourself or others, always ensure that the power is switched off when getting on or off of the scooter.
  • Page 7 Operating in rain, snow, salt, mist conditions and on icy or slippery surfaces may have an adverse affect on the electrical system. Never sit on your scooter when it is being used in connection with any type of lift or elevation product. Your scooter is not designed with such use in mind and any damage or injury incurred from such use is not the responsibility of Heartway.

  • Page 8: Weight Limitation

    ◆ Weight Limitation 1. Please refer to the specifications table for weight capacity information. Power scooter is rated for a maximum weight capacity. 2. Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids your warranty. Heartway will not be held responsible for injuries or property damage resulting from failure to observe weight limitations.

  • Page 9: Electromagnetic Interference (Emi)

    The United States Food and drug Administration (FDA) suggests that the following statement be incorporated to the user’s manual for all power scooter like the S26. Power scooters may as susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy emitted from sources such as radio stations, TV stations, amateur radio (HAN) transmitter, two-way radios, cellular phones and alarm systems of shops.

  • Page 10: Product Specification

    PRODUCT SPECIFICATION WARNING MODEL The stopping distance on the slope can be significantly greater than on the level ground. WEIGHT CAPACITY 120 KG SEAT: TYPE/SIZE 16" Fish-on Indication/ Intended Purpose 228mmx65mm(9"x2.5") – Pneumatic Tire/30-35 DRIVE WHEEL (intended of use): 200mmx50mm(8"x2") – Pneumatic Tire/30-35 FRONT CASTER (WHEEL) Moving of disabled by self driving.

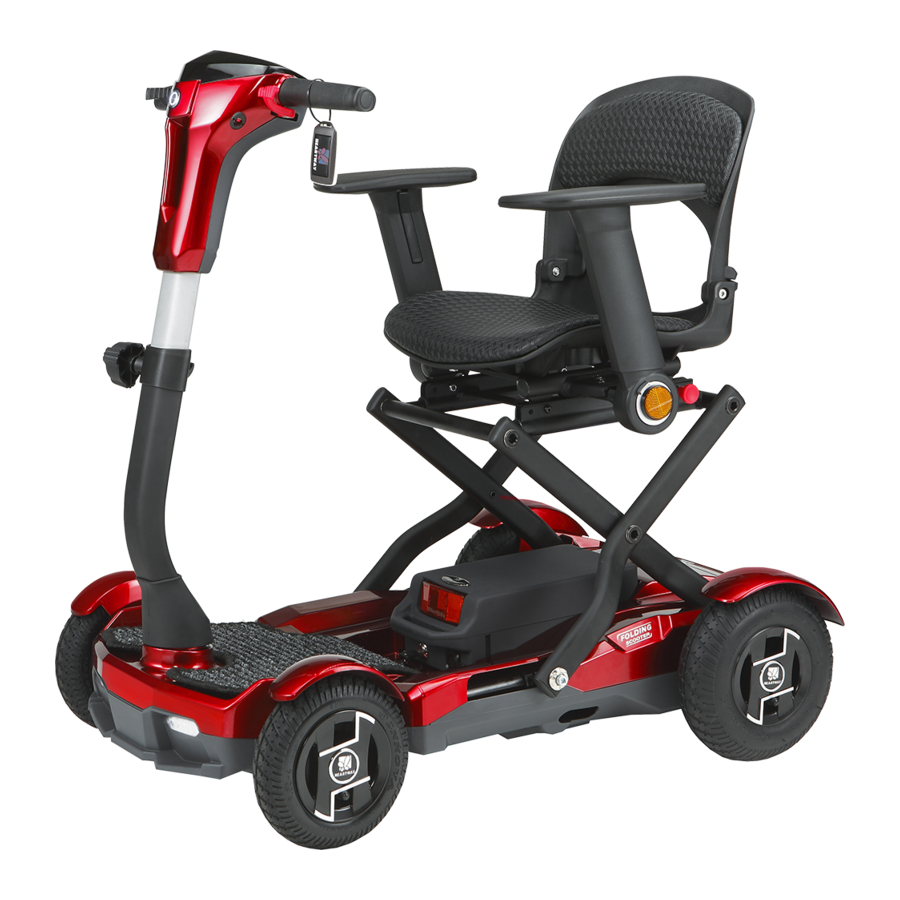

  • Page 11 It is very easy to fold your S26 scooter automatically. S26 power scooter has aluminum alloy body and can be easily folded to fit in the car for transportation/storage. It also has easy to use controls and adjustable tiller positioning.
  • Page 12 ADJUSTMENTS To Unfold The Scooter Switch the scooter on and off (the keyless remote does not need to be present) The folding button on the scooter tiller should now be illuminated red. Press the button for one second and release. The scooter will start unfolding and will automatically stop when complete.

  • Page 13: Operation Of Control Panel

    For outdoor operation of this vehicle we recommend that you select a speed that is comfortable for you to control it safely. The following steps are required to operate your vehicle safely with the controller-can use for S26 Function overview ⇨Keyless to power on...

  • Page 14: Multi-Information Display

    OPERATIONS Start-up Press the power start-up button to enter the receiving mode. As soon as the user place the keyless remote within the sensor range, the panel will be turned on within the next two seconds Multi-information display In power on mode, press the MODE key to switch between Time display, Temperature display, and Trip display. Press the MODE one time to temperature display.
  • Page 15 OPERATIONS Speed control display LED head-up display - The range scales show the speed from minimum speed to maximum speed Navigation status display indicator will be on/light, when the throttle control lever (forward) is pressed indicator will be on/light, when the throttle control lever (backward) is pressed Battery gauge display This shows the battery level and will change depending on the available battery power.

  • Page 16: Free-Wheeling

    OPERATIONS Code pairing/programming Turn off the power. Press start-up key key to enter the receiving mode. Press/hold the MODE key for five seconds to turn off the HEADLIGHT to decode the KEYLESS. Press the start-up key again to turn off the scooter. Drive forward/backward mode switch Press the start-up key to enter the receiving mode.

  • Page 17: Parking Brake

    Always remember to engage the motors before turning the power ON. ◇ Do not attempt to disengage the drive motors while seated on your S26. Personal injury may result. Ask your attendant for assistance. ◇ Do not disengage the drive motors while on an incline. This power mobility could roll uncontrollably on its own, causing personal injury.

  • Page 18: Battery & Charging Instruction

    BATTERY & CHARGING INSTRUCTION Items Specifications Remarks 2.1 Rated capacity 21Ah 4.4A discharge at 20°C 2.8V/cell cut off, Rated charge 2.2 Typical capacity 23.2Ah 4.4A discharge at 25°C 2.8V/cell cut off, Rated charge 2.3 Nominal Voltage 25.2V 3.6V/cell 2.4 Charge Max Voltage 29.4V 4.2V/cell 2.5 Charge current...
  • Page 19 BATTERY & CHARGING INSTRUCTION Items Specifications Remarks 2.10 Charge cell balance Cell balancing enable when Vcell_max-Vcell_min ≥ 50mV and Cell banlacing during Vcell_max ≥ 3.9V. charge. Cell balance release when Vcell_max < 3.9V or Vcell_max Vcell_min < 10mv 2.11 Discharge temperature ≤...
  • Page 20 BATTERY & CHARGING INSTRUCTION Items Specifications Remarks 2.16 Safety over temperature PF CFET OFF and I > 500 mA for 20 sec Permanent Failure ( CFET OFF / DFET OFF) 2.17 Charge FET failure PF CFET OFF and I > 500 mA for 20 sec Permanent Failure ( CFET OFF / DFET OFF) 2.18 Discharge FET failure PF...
  • Page 21 WARNING If the power scooter is not in use, we recommend that the batteries are charged periodically. Note: Do not use any automotive batteries. They are not designed to handle a long, deep discharge and also are unsafe for use in power scooter.
  • Page 22 CHARGING INSTRUCTIONS BATTERY CHARGER The battery charger takes the standard wall outlet voltage (alternating current) and converts it into DC voltage (direct current).The batteries use direct current to run your power scooter. When the batteries are fully charged, the amperage from the charger is almost at zero. This is how the charger maintains a charge but does not overcharge the battery.

  • Page 23: Charging Instructions

    CHARGING INSTRUCTIONS Indicator Power Status The Indicator Signal Chart Signal (Bi-color LEF) (Dual color LED) Stand-by Constant RED Constant GREEN End of charge Pre-charge state Constant RED Charge state Over current Flash between RED and Over voltage GREEN every second Over Temperature Zero voltage pre-charge Flash between RED and...
  • Page 24 CHARGING INSTRUCTIONS WARNING ◇ Always charge your batteries in well ventilated areas. ◇ The charger is intended for indoor use only. Please protect it from the moisture. ◇ For maximum performance, it is recommended that you replace both batteries at the same time if the batteries are weak. ◇...
  • Page 25 BATTERY MAINTENANCE INSTRUCTION Read through the charger operating instruction before using it. Make sure you charge the battery every time after you use the power scooter or scooter. If the charger indicates red light, please kindly check if the charger is defected or if the cable wiring connection is poor. Please keep the battery terminals clean otherwise the charging condition will be poor.

  • Page 26: Maintenance And Repair

    MAINTENANCE & REPAIR Your power scooter is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your S26 for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. DAILY CHECKS •...
  • Page 27 TROUBLE SHOTTING & FAULT REPAIR Dynamic 50 AMP CONTROLLER: Your power wheelchair is fitted with DYNAMIC controller, which continuously monitors the operating conditions of your power wheelchair. If it detects a problem it will indicate with error message by flashing light on the power ON/ OFF light. You must count the number of the flash, and see the list to check what kind of error has happened according to the number) If, when powered up, there is an error with the system, then the status indicator will flash red.

  • Page 28: Circuit Diagram

    CIRCUIT DIAGRAM...
  • Page 29 BOM LIST...

  • Page 30: Warranty Declaration

    WARRANTY DECLARATION Quality/ Warranty Declaration Heartway will provide warranty parts, according to Heartway warranty replacement policy, to the importers/distributers/dealers, if the damaged/defective parts are found or reported during the warranty coverage period. However, the warranty coverage does not cover/apply to normal wear and tear or damage due to accident, abuse, misuse, modification, water, pets, children, improper storage or acts of God.
