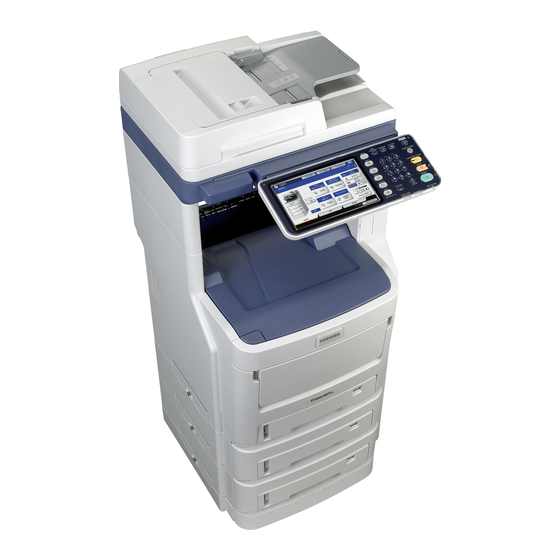

Toshiba e-STUDIO287CS User Manual

Multifunctional digital color systems
Hide thumbs

Advertisement

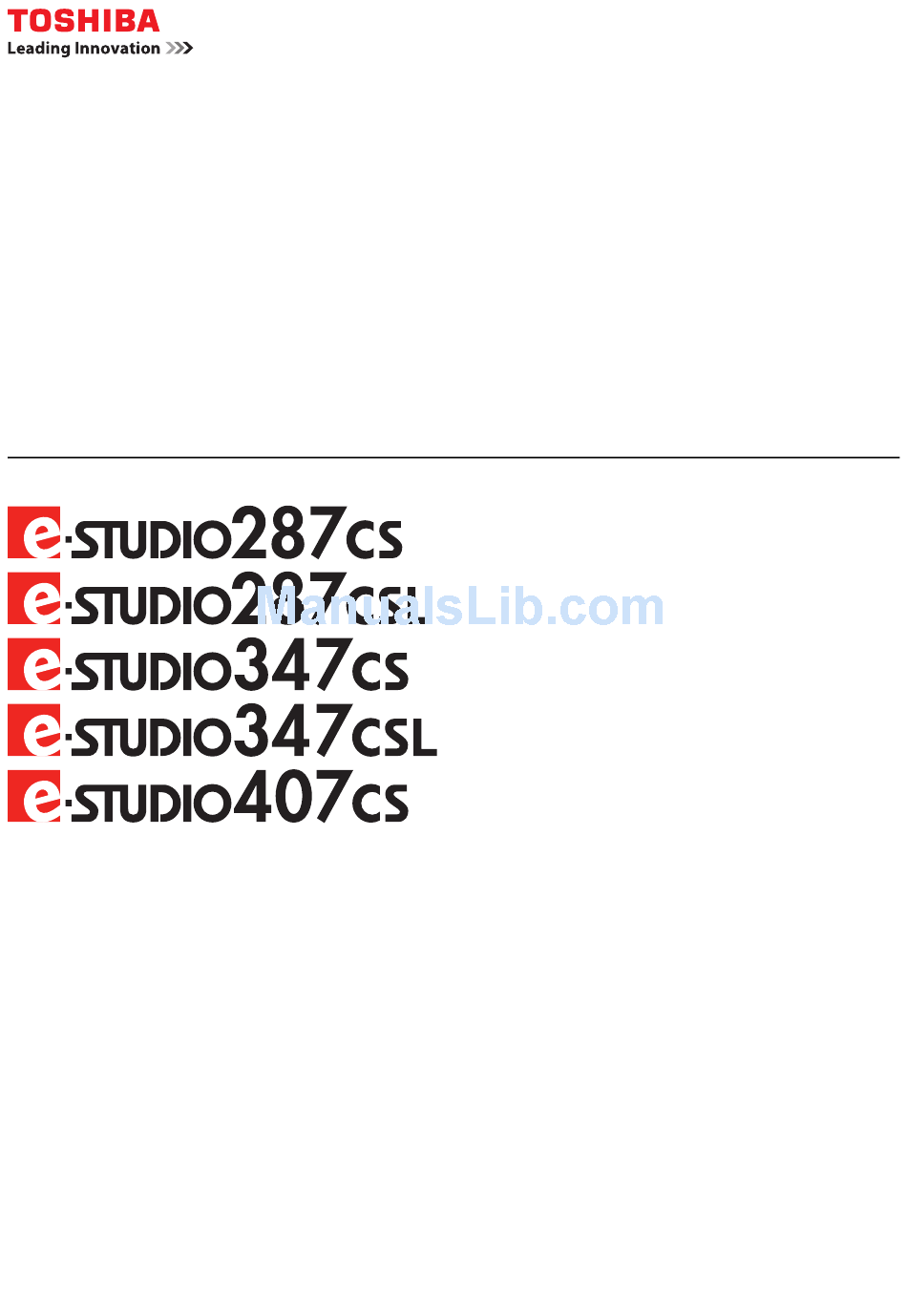

MULTIFUNCTIONAL DIGITAL COLOR SYSTEMS
User’s Manual

Troubleshooting Guide

Advertisement

Table of Contents
loading

  Related Manuals for Toshiba e-STUDIO287CS

  Summary of Contents for Toshiba e-STUDIO287CS

  • Page 1: Troubleshooting Guide

    MULTIFUNCTIONAL DIGITAL COLOR SYSTEMS User’s Manual Troubleshooting Guide...
  • Page 2: Table Of Contents

    The illustrations of the machine used in this document may be different from what you actually see on your machine. Table of contents 1 Troubleshooting......4 Checking the client status........23 Hardware Problems ...........24 When a Paper Jam Occurs.......5 Print jobs not output..........24 During Paper Jams ..........5 Envelope creased ..........
  • Page 3 Table of contents Battery Disposal ........74 Raw TCP or LPR print in a Windows operating system environment..........36 4 Index ..........75 IPP print in a Windows operating system environment ................37 Novell print in a NetWare environment ....37 Macintosh environment.......... 38 UNIX/Linux environment ........
  • Page 4: Troubleshooting

    Troubleshooting When a Paper Jam Occurs..........P.5 TROUBLESHOOTING FOR THE HARDWARE ....P.16 TROUBLESHOOTING FOR PRINTING......P.20 TROUBLESHOOTING FOR COPYING ......P.25 TROUBLESHOOTING for FAX........... P.27 TROUBLESHOOTING FOR SCANNING......P.30 TROUBLESHOOTING FOR e-Filing ........P.31 TROUBLESHOOTING FOR NETWORK CONNECTIONS ..P.33 CHECKING THE EQUIPMENT STATUS WITH TopAccess ..
  • Page 5: When A Paper Jam Occurs

    When a Paper Jam Occurs ● When a Paper Jam Occurs During Paper Jams When a paper jam occurs during printing, an alarm will sound, and the following message will be displayed on the screen: "Paper is jammed. Open the cover indicated by the flashing light, and verify the jam."...
  • Page 6: When Paper Jam Occurs Inside The Machine

    When a Paper Jam Occurs Pull the jammed paper slowly to remove it. If the Bypass tray is not in use, close the Bypass tray. • When paper is fed from Drawer 1, or Drawer 2/3/4 (Option) Bypass tray Front cover When Paper Jam Occurs Inside the Machine •...
  • Page 7 When a Paper Jam Occurs Pull the fuser unit lock control lever (blue) Push the fuser unit lock control lever (blue) in the direction of the arrow. toward the back to lock it in place. Fuser unit Fuser unit lock control lock control lever (blue) lever (blue)
  • Page 8: When An Error Remains After Removing Jammed Paper

    When a Paper Jam Occurs When an Error Remains After Removing Cover the drum cartridges with paper to prevent direct exposure to light. Jammed Paper Remove any remaining jammed paper using the following procedure. Hold the Document holder lever and lift the Document holder.
  • Page 9: Paper Jam On Both Sides Of The Printer Unit

    When a Paper Jam Occurs Paper Jam on Both Sides of the Printer Replace the image drum cartridges. Unit Image drum cartridges There is a paper jam near the duplex unit. Press the jam release lever of the duplex unit on the back of device, and open the duplex unit cover.
  • Page 10: When Paper Jam Occurs In Drawer 2/3/4 (Option)

    When a Paper Jam Occurs When Paper Jam Occurs in If the paper is not automatically ejected, Drawer 2/3/4 pull out the duplex unit cover. (Option) Note Here, a paper jam in Drawer 2 is used as an example. The same procedure is used for Drawer 3/4. •...
  • Page 11: When Paper Jam Occurs In Inner Finisher (Option)

    When a Paper Jam Occurs Hold both sides of the Bypass tray, and fold Close the Bypass tray. it down. Bypass tray Bypass tray This completes the procedure. Pull the central lever upward, and open the When Paper Jam Occurs in Inner front cover.
  • Page 12: When A Document Is Jammed

    When a Paper Jam Occurs Close the finisher cover. When a Document is Jammed When a document becomes jammed, an alarm will sound and a message will appear in the touch panel. Open the RADF cover to remove the jammed document. Pull the RADF cover open lever to open the RADF cover.
  • Page 13 When a Paper Jam Occurs If you can see the edge of the jammed Pull the jammed paper slowly to remove it. document, pull it out gently. Jammed paper If you were able to remove the document, Return the document holding pad to its close the inner cover and proceed to step original position.
  • Page 14: When A Staple Jammed

    When a Paper Jam Occurs Remove the top staple sheet. When a Staple Jammed When Staple Jam Occurs in Inner Finisher (Option) Hold the Document holder lever and lift the Document holder. Document Holding the knob, raise the guide, and holder return it to its original position.
  • Page 15: When Staple Jam Occurs In Offline Stapler (Option)

    When a Paper Jam Occurs Return the document holder to its original Place the cartridge. position. Close the offline stapler cover. When Staple Jam Occurs in Offline Stapler (Option) Open the offline stapler cover. Pull out the cartridge and remove the jammed staple.
  • Page 16: Troubleshooting For The Hardware

    TROUBLESHOOTING FOR THE HARDWARE ● TROUBLESHOOTING FOR THE HARDWARE When This Screen Is Displayed Various screens are displayed on the touch panel depending on the state of the equipment. This section describes how to solve problems with some of the screen examples. Screen Description / Remedy A message appears on the upper part of the screen to...
  • Page 17: Messages Displayed On The Touch Panel

    TROUBLESHOOTING FOR THE HARDWARE Messages Displayed on the Touch Panel A message appears on the upper part of the screen to notify users of a problem, etc. The major examples of problems and how to solve them are described in the table below. Message Problem Description Corrective Action...
  • Page 18 TROUBLESHOOTING FOR THE HARDWARE Message Problem Description Corrective Action READY (FINISHER FULL) The receiving tray of the finisher is full Remove the paper from the receiving tray of the finisher. of paper. READY (INNER TRAY FULL) The exit tray of the equipment is full of Remove the paper from the exit tray of the equipment.
  • Page 19: Error Codes

    TROUBLESHOOTING FOR THE HARDWARE Message Problem Description Corrective Action Toner near Empty (***) Toner is running out. “***” indicates Some toner is still left in the toner cartridge while this message is the color. displayed. You do not have to replace the toner cartridge yet. (The colors are shown in Check the color of the toner on the touch panel and prepare the abbreviations when two or more...
  • Page 20: Troubleshooting For Printing

    TROUBLESHOOTING FOR PRINTING ● TROUBLESHOOTING FOR PRINTING Print Job Problems This section describes how to clear the print jobs errors. Clearing print job errors Problem Description A print job error occurs and [JOB STATUS] blinks when the paper specified by the computer is not set in the drawers of the equipment.
  • Page 21: Cannot Remember The Document Password For A Private Print Job

    TROUBLESHOOTING FOR PRINTING Cannot remember the document password for a Private Print job Problem Description I cannot remember the document password for my Private Print job. Corrective Action The document password for a Private Print job is never shown, once the job has been sent to the equipment. To print the failed Private Print job, submit the document again as a new Private Print job.
  • Page 22: Command Line Options Not Processed

    TROUBLESHOOTING FOR PRINTING Command line options not processed Problem Description All the print options are sent to the equipment at the beginning of the print job. If the print file already contains print commands, they overwrite the command line options you set. For example, if the print file specifies Letter paper, and you specify A4 paper with the lp command, the document is printed on Letter size paper.
  • Page 23: Cannot Print With Smb Print

    TROUBLESHOOTING FOR PRINTING No. Check... Corrective Action Have you set the protocol settings so they are Set up the proper protocol. Next Step compatible with your network and client protocol   settings? Have you set up the appropriate type(s) of print Check the settings required for your printing Next Step ...
  • Page 24: Hardware Problems

    TROUBLESHOOTING FOR PRINTING Corrective Action The checklist below will help you identify the source of the error and direct you to information resolving the problem. If the problem persists after you have followed all of the steps, contact your dealer. No.
  • Page 25: Troubleshooting For Copying

    TROUBLESHOOTING FOR COPYING ● TROUBLESHOOTING FOR COPYING Copying Problems See the table below when you have a problem in operating copy function or have an unexpected copy output. Problem Description Cause Corrective Action Functions cannot be set. Another function that is unavailable for the Some functions cannot be combined.
  • Page 26 TROUBLESHOOTING FOR COPYING Problem Description Cause Corrective Action Copied image has black streaks The scanning area or guides are stained. Clean them. in the horizontal direction. Copied image has white streaks The LED print head is stained. Clean the LED print head. or color streaks in the vertical direction.
  • Page 27: Troubleshooting For Fax

    TROUBLESHOOTING for FAX ● TROUBLESHOOTING for FAX Troubleshooting Error codes Below is a list of error codes that you might see in the lists or reports. Error Code Description Remedy 0012 Original misfeed Clear the misfed original. 0013 Cover open Firmly close the open cover.
  • Page 28: Transmission/Reception Trouble

    TROUBLESHOOTING for FAX Transmission/reception trouble Below is a list of trouble you might encounter during the transmission/reception. Transmission troubles Trouble Check Point TRANSMIT is not displayed even if the • Is the modular cord disconnected? [START] button is pressed. • Is the power plug unplugged from the power outlet? •...
  • Page 29: Fax Unit Specifications

    TROUBLESHOOTING for FAX FAX Unit Specifications Model Name GD-1340 Size of Original LG, 13.5"LG, 13"LG, LT, ST (North America) Size of Original A4, A5, B5, FOLIO (A/B format) Recording Paper Size 8.5" x 14" (LG), 8.5" x 11" (LT), 5.5" x 8.5" (ST) (North America) Recording Paper Size 210 mm x 297 mm (A4), 148 mm x 210 mm (A5),...
  • Page 30: Troubleshooting For Scanning

    TROUBLESHOOTING FOR SCANNING ● TROUBLESHOOTING FOR SCANNING Scanning Problems This section describes troubleshooting for using scan data. Cannot E-mail my scans Problem Description I have scanned a document and sent the copy as an e-mail attachment, but the e-mail does not reach the specified e-mail address. Corrective Action Check the following points: •...
  • Page 31: Troubleshooting For E-Filing

    TROUBLESHOOTING FOR e-Filing ● TROUBLESHOOTING FOR e-Filing e-Filing Web Utility Problems This section describes troubleshooting for the web browser-based e-Filing web utility. You will also find the error messages and the corrective actions for each message. e-Filing Web Utility terminates the session Problem Description The message “This operation will end your e-Filing session.”...
  • Page 32 TROUBLESHOOTING FOR e-Filing Message Corrective Action Cannot start e-Filing Session. The Disk is Full. Erase unnecessary data from the Control Panel. For instructions on how to delete data from the Control Panel, refer to the e-Filing Guide. Cannot create a Box. The Disk is full. Erase unnecessary data using the administrative function or deleting the data in boxes for making hard disk space.
  • Page 33: Troubleshooting For Network Connections

    TROUBLESHOOTING FOR NETWORK CONNECTIONS ● TROUBLESHOOTING FOR NETWORK CONNECTIONS Locating the Equipment in the Network Cannot locate the equipment in the network Problem Description I cannot locate the equipment in the network. Corrective Action Improper settings may cause problems in locating the equipment in the network. Try the checklist below to detect the cause of the problem.
  • Page 34: Cannot Locate The Equipment With Local Discovery

    TROUBLESHOOTING FOR NETWORK CONNECTIONS Cannot locate the equipment with Local Discovery Problem Description Local Discovery cannot detect the equipment. Corrective Action The equipment is normally located automatically by SNMP. When the TWAIN driver, File Downloader, Address Book Viewer, Backup/ Restore Utility, Remote Scan driver, N/W-Fax driver or printer driver cannot automatically discover the equipment over the network, the most likely cause is limitations of the protocols supported by the computer.
  • Page 35: Equipment Does Not Respond To Ping Command

    TROUBLESHOOTING FOR NETWORK CONNECTIONS Equipment does not respond to ping command Problem Description The equipment does not respond to a ping command. Corrective Action Check the network settings following the checklist below. No. Check... Corrective Action Confirm that the TCP/IP protocol suite is installed on the Refer to the networking section of your operating system Next Step ...
  • Page 36: Printing Problems (Network Related)

    TROUBLESHOOTING FOR NETWORK CONNECTIONS Check... Corrective Action Is the LDAP server correctly running? Next Step Confirm that LDAP server is correctly running.   Is the LDAP server setting correctly set? Enter the correct LDAP setting. Reenter the correct  password carefully because it is displayed by asterisks.
  • Page 37: Ipp Print In A Windows Operating System Environment

    TROUBLESHOOTING FOR NETWORK CONNECTIONS Check... Corrective Action Can you print to the equipment? See the following section to fix the problem:   P.22 "Cannot print with the equipment (network connection problems)" IPP print in a Windows operating system environment No.
  • Page 38: Macintosh Environment

    TROUBLESHOOTING FOR NETWORK CONNECTIONS Macintosh environment No. Check... Corrective Action Are the IP address properties correctly set? Next Step Set up the IP address correctly.   Can you access any other network device from the Refer to your Macintosh networking documentation or Next Step ...
  • Page 39: Location Does Not Contain Information About Your Hardware

    TROUBLESHOOTING FOR NETWORK CONNECTIONS  Client software DVD now required Problem description When adding a new printer driver, the end user did not choose the Have Disk option; instead, the user selected the machine name from the Add Printer list. Corrective action 1.
  • Page 40: N/W-Fax Driver General Errors

    TROUBLESHOOTING FOR NETWORK CONNECTIONS N/W-Fax Driver General Errors  “Could not connect to the MFP device” appears Problem description When users are trying to access to the properties of the N/W-Fax driver, an error message “Could not connect to the MFP device” appears.
  • Page 41: Client Software Authentication Problems

    TROUBLESHOOTING FOR NETWORK CONNECTIONS Message Corrective Action No certificate No certificate is installed or you do not specify the certificate file name. Make sure to install the certificate and specify the certificate file name correctly. Peer error certificate Installed CA certificate cannot verify the server certificate in the RADIUS server.
  • Page 42: Checking The Equipment Status With Topaccess

    CHECKING THE EQUIPMENT STATUS WITH TopAccess ● CHECKING THE EQUIPMENT STATUS WITH TopAccess Hardware Status Icons on TopAccess [Device] Tab When the equipment requires maintenance or when an error occurs with the equipment, the icons indicating the status information appear near the graphic image of the equipment on the TopAccess [Device] tab. The following are the icons displayed and their descriptions.
  • Page 43: Error Messages

    CHECKING THE EQUIPMENT STATUS WITH TopAccess Staples Empty This icon indicates no staples are left in the Finisher. Call for Service Contact your dealer to have the equipment inspected. Error Messages When a message appears on the [Device] Tab of TopAccess, see the table below for the corrective action. TopAccess Message Corrective Action Cover Open - Please Close Cover.
  • Page 44: Error Codes

    CHECKING THE EQUIPMENT STATUS WITH TopAccess TopAccess Message Corrective Action Magenta Toner Near Empty - Please Prepare New Toner Cartridge. Prepare the new toner cartridge. Yellow Toner Near Empty - Please Prepare New Toner Cartridge. Prepare the new toner cartridge. Close duplexing unit cover Close the duplexing unit cover.
  • Page 45: Error Codes On Transmission And Reception

    CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Not authorized to perform printing in the specified The user has not been authorized to perform this operation. Ask your 4321 setting administrator. Image data generation failure Check if the file to be printed is broken. Perform printing again or use another 4411 printer driver.
  • Page 46 CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Address Book reading failure Turn the power OFF and then back ON. Perform the job in error again. Reset 1C61 the data in the Address Book and perform the job again. If the error still persists, contact your service representative.
  • Page 47 CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Exceeding maximum offramp destinations Ask the sender to specify up to 40 destinations for one offramp gateway job. 3D20 The equipment cannot perform offramp gateway transmission for more than 40 destinations.
  • Page 48: Error Codes On Scan Jobs

    CHECKING THE EQUIPMENT STATUS WITH TopAccess Error codes on scan jobs Memo The error indications on scan jobs are done as follows: • On TopAccess log list, messages indicating the status are displayed. • On the touch panel of the equipment, error codes are displayed. See the listings below. Error Code Problem Description Corrective Action...
  • Page 49 CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Save as File Wrong Job status Turn the power OFF and then back ON. Try it again. If the error still 2D10, 2D12, 2D13 persists, contact your service representative. Not enough memory Wait for a while and try again.
  • Page 50 CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Store to USB Wrong Job status Turn the power OFF and then back ON. Try the problem job again. If the 2E10, 2E12, 2E13 error still persists, contact your service representative. Not enough memory Wait for a while and try again.
  • Page 51 CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Insufficient permission to access e-Filing box Check if the user is authorized to perform this job. 2A72 using scan utility Store to e-Filing Job status failed Turn the power OFF and then back ON. Try the problem job again. If the 2B11 error still persists, contact your service representative.
  • Page 52 CHECKING THE EQUIPMENT STATUS WITH TopAccess Error Code Problem Description Corrective Action Insufficient system storage The file is too large for the mailbox. Confirm the mailbox size on the mail 2552 server. Transmit again in text mode or with a lower resolution. If the error still persists, divide the document and transmit again.
  • Page 53: Maintenance

    Maintenance Replacing Consumables / Maintenance Units....P.54 Maintenance ............... P.67 Moving or Transporting the Machine ....... P.72...
  • Page 54: Replacing Consumables / Maintenance Units

    Caution To assure an optimal performance, we recommend that you use TOSHIBA toner cartridges. • Some parts inside the device become hot and can cause burns. Do not touch areas Contact your dealer to purchase the toner cartridges for replacement.
  • Page 55 Replacing Consumables / Maintenance Units Replace the Toner Cartridges Rotate the blue lever on the toner cartridge in the direction of the arrow until it stops. Hold the Document holder lever and lift the Document holder. Lever Document Document holder holder Document holder lever...
  • Page 56 Replacing Consumables / Maintenance Units Remove the toner cartridge carefully from Rotate the blue lever on the toner cartridge the machine. in the direction of the arrow until it stops. Groove Note Toner cartridge • If the light-shielding film is dropped on the toner Cartridge while exchanging toner cartridges, the LED lens guide...
  • Page 57: Replacing The Image Drum Cartridge

    Replacing Consumables / Maintenance Units Close the top cover. Replacing the Image Drum Cartridge Warning • Do not expose the toner or the toner cartridge to fire. The toner might explode and cause burns. Top cover • Do not store toner cartridges close to a fire. The toner can ignite and cause fires or burns.
  • Page 58: Replacing The Image Drum Cartridge

    Replacing Consumables / Maintenance Units Recommended Schedule for Replacing the Press the top cover open button to open the top cover. Image Drum Cartridge When the image drum cartridge nears the end of its lifespan, Caution There is a risk of getting burned. the message [*Image Drum Near Life] (* represents the specific color) will appear on the touch panel to notify you that it is time to prepare a new image drum cartridge.
  • Page 59: Drum Cartridge

    Replacing Consumables / Maintenance Units Prepare a new image drum cartridge. Gently shake it up and down and side to side several times. Note • Do not tilt the image drum. The toner might spill. • The image drum (the green tube) is fragile; handle it carefully.
  • Page 60: Replacing The Fuser Unit

    Replacing Consumables / Maintenance Units Install the image drum cartridge. Replacing the Fuser Unit Make sure that the label color of the image drum cartridge matches the label color in the machine. Recommendation for Replacing the Fuser Unit Gently install the image drum cartridge. When the fuser unit nears the end of its lifespan, the message [Time to Replace Fuser] will appear on the touch panel to notify you that it is time to prepare a new fuser.
  • Page 61 Replacing Consumables / Maintenance Units Hold the Document holder lever and lift the Grip the handle of the fuser unit and pull it Document holder. up and out. LED head Document holder Document Fuser unit lock holder lever control lever (blue) Push the top cover open button to open the top cover.
  • Page 62: Replacing The Belt Unit

    Replacing Consumables / Maintenance Units Close the top cover. Note • Even after the message [Replace Belt] appears, you may still be able to print by opening and closing the top cover. However, we recommend replacing the belt unit as soon as possible.
  • Page 63 Replacing Consumables / Maintenance Units Memo • For information on how to return used belt units, see "Collection of Used Consumables" in the section of customer support / maintenance product warranty / product warranty. If you choose not to return your used belt unit, place it in a plastic bag and dispose of it according to local regulations.
  • Page 64: Replacing The Inner Finisher Cartridge

    Replacing Consumables / Maintenance Units Return the four image drum cartridges to Replacing the Inner Finisher the machine. Cartridge Press the [ON/OFF] button until a "pip" Image drum sound is heard. "Shutdown is in progress." cartridges appears for a while, and then the power is turned OFF.
  • Page 65 Replacing Consumables / Maintenance Units Pull out the cartridge. Install the new cartridge. Take the empty staple case out of the staple Close the finisher cover. cartridge. Return the document holder to its original position. Install a new staple case into the staple cartridge.
  • Page 66: Replacing The Offline Stapler Cartridge

    Replacing Consumables / Maintenance Units Replacing the Offline Stapler Cartridge Open the offline stapler cover. Remove the empty cartridge. Attach the new cartridge. Close the offline stapler cover. - 66 -...
  • Page 67: Maintenance

    Maintenance ● Maintenance Cleaning the Surface of the Machine Cleaning the platen (glass surface) If the platen (glass surface) is dirty, black specks or streaks Note may appear on your copies and prints, as well as on documents you send to others. To maintain print quality, clean •...
  • Page 68: Clean The Document Transporting Roller And Document Holding Roller

    Maintenance Open the inner cover. Clean the document transporting Clean the roller with a soft, damp cloth. roller and document holding roller Roller If the document transporting roller is dirty, black specks or Inner cover streaks may appear on your copies and prints, as well as on documents you send to others.
  • Page 69: Clean The Feed Roller

    Maintenance Clean the roller with a soft, damp cloth. Clean the feed roller Clean the feed roller and pad when you experience frequent paper jams. Roller Roller When cleaning the drawer Pull the cassette out. Wipe the two feed rollers with a soft, damp cloth.
  • Page 70: Clean The Led Heads

    Maintenance Open the feed roller cover by pressing the Clean the LED heads projection. Clean the LED heads if white streaks appear or fading occurs Memo when printing, or when characters become smudged. • When the front part of the bypass tray is up, put it down Turn OFF power to the machine.
  • Page 71 Maintenance Gently wipe the surface of each LED head lens with soft tissue. LED head LED head lens Note • Do not use solvents such as methyl alcohol or paint thinners. They will damage the LED heads. Close the top cover. Top cover Return the document holder to its original position.
  • Page 72: Moving Or Transporting The Machine

    Moving or Transporting the Machine ● Moving or Transporting the Machine For the equipment with additional Moving the Machine drawer units installed Turn OFF power to the machine. Before moving the machine, remove the anti-tip feet and then Press the [ON/OFF] button until a "pip" unlock the casters (two places).
  • Page 73: Appendix

    Appendix Battery Disposal..............P.74...
  • Page 74: Battery Disposal

    Battery Disposal ● Battery Disposal This machine uses a lithium-ion battery. If the terminal of the battery short-circuits, explosion or fire may occur. To waste the battery, insulate the negative and positive poles to avoid short-circuit. - 74 -...
  • Page 75: Index

    Index...
  • Page 76 Battery Disposal ......... 74 LDAP authentication ......35 Trouble ..........28 LDAP search ........35 Local Discovery ........34 Locating the equipment ....33 LPR print ........23 Cannot perform scanning from a PC with Office 2013 ........30 Clients ..........23 Command line option ......22 Copying Maintenance ........
  • Page 77 ©2012 - 2014 TOSHIBA TEC CORPORATION All rights reserved Under the copyright laws, this manual cannot be reproduced in any form without prior written permission of TTEC.
  • Page 78 MULTIFUNCTIONAL DIGITAL COLOR SYSTEMS User’s Manual Troubleshooting Guide 1-11-1, OSAKI, SHINAGAWA-KU, TOKYO, 141-8562, JAPAN R121220M8102-TTEC ©2012 - 2014 TOSHIBA TEC CORPORATION All rights reserved Ver02 F 2014-06 OME120273B0 Patent; http://www.toshibatec.co.jp/en/patent/ FC-287CS/347CS/407CS, FC-287CSL/347CSL...

This manual is also suitable for:

E-studio287cslE-studio407csE-studio347csE-studio347csl
