  • Page 1: User Manual

    TB400 User Manual Version 6.10.0.07 Yeastar Technology Co., Ltd...

  • Page 2: Table Of Contents

    NeoGate TB400 User Manual Table of Contents 1. INTRODUCTION ........................3 1.1 Hardware Specification ....................3 1.1.1 Exterior Appearance ....................3 2. SYSTEM SET UP ........................5 2.1 Installation of BRI Module..................... 5 2.2 Ethernet Line Connection ....................5 2.3 Power Supply Connection ....................

  • Page 3: Introduction

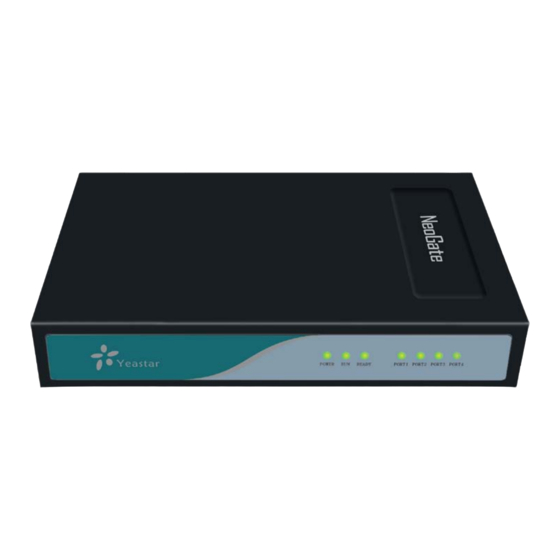

    1. Introduction NeoGate Gateway for Maximum Efficiency & Cost Savings NeoGate TB400 is a device for connecting BRI Network to VoIP Network directly, which can support two-way communication: BRI to VoIP or VoIP to BRI. It is the best solution ever to connect IP-based telephone systems, soft switches, and IP-PBXs to BRI network.
  • Page 4 NeoGate TB400 User Manual ⑤BRI 2 Orange Shining: BRI 2 connected ⑥BRI 3 Orange Shining: BRI 3 connected ⑦BRI 4 Orange Shining: BRI 4 connected 2) Back Side Figure 1-2 NeoGate TB400 Back Side www.yeastar.com...

  • Page 5: System Set Up

    NeoGate TB400 User Manual 2. System set up 2.1 Installation of BRI Module. Open the case of NeoGate, adjust the pins to the slots and insert then insert the spins into the slots. Note1: Please turn off the device when installing the modules.

  • Page 6: Neogate Configuration

    NeoGate TB400 User Manual 3. NeoGate Configuration 3.1 Manager Login From your web browser, input the IP address of the NeoGate server. If this is the first time you are configuring NeoGate, please use the default settings below: IP Address: http://192.168.5.150...

  • Page 7: Bri Settings

    NeoGate TB400 User Manual Figure 3-2 NeoGate Status Description: Status OK: The port is idle. : No line connects to this port. Disconnected 3.2.2 BRI Settings 3.2.2.1 Basic Settings Figure 3-3 Trunk Name: A name of this Trunk. Ex: 'BRI1' etc.

  • Page 8: Callerid Prefix Settings

    NeoGate TB400 User Manual Duration are deleted. This parameter is ignored if set to 0. 3.2.2.2 CallerID Prefix Settings You can add prefix to the incoming call here. Figure 3-4 3.2.2.3 Advanced Settings Figure 3-5 ·Switch Type: National: National ISDN type2 (common in US)
  • Page 9 NeoGate TB400 User Manual Euroisdn: Euro ISDN Qsig: Minimalistic protocol to build a ‘network’ with two or more pbx of different vendors. ·PRI Dialplan Sets an option required for some (rare) switches that require a dialplan parameter to be passed. This option is ignored by most PRI switches. It may be necessary on a few pieces of hardware.

  • Page 10: Voip Settings

    NeoGate TB400 User Manual Used with AT&T PRIs.If outbound calls are being rejected due to \"Mandatory information element missing\" and the missing IE is 0x20, then you need this setting. Echo Cancellation Disable or enable echo cancellation. Hide CallerID Whether to Hide Caller ID.

  • Page 11: Register To Sip

    NeoGate TB400 User Manual Figure 3-7 3.3.1.2 Register to SIP ‘Register to SIP’, It use to register to SIP Server or SIP Proxy. ·Hostname/IP Service provider’s hostname or IP address.5060 is the standard port number used by SIP protocol. Don’t change this part if it is not required.

  • Page 12: Service Provider

    NeoGate TB400 User Manual Figure 3-8 3.3.1.3 Service Provider ·Hostname/IP Service provider’s hostname or IP address. Note: 5060 is the standard port number used by SIP protocol. Don’t change this part if it is not required. Figure 3-9 3.3.1.4 Advanced Setting ·Max.

  • Page 13: Advanced Settings

    NeoGate TB400 User Manual Clear Stat The date of each month the system will clear the call history. DTMF Mode You can set the DTMF mode here (rfc2833,info,inband,auto, default is rfc2833). Max. Channels Set the maximum channels here. 0 means no limit.
  • Page 14 NeoGate TB400 User Manual Figure 3-11 1) General ·UDP Port Port use for sip registrations, Default is 5060. ·RTP Port Start Beginning of RTP port range ·RTP Port End End of RTP port range ·Max Registration/Subscription Time Put down the maximum duration (in seconds) of a SIP registration. Default is 3600 seconds.
  • Page 15 NeoGate TB400 User Manual before timed out. Default is 20 seconds. 2) NAT Note: Configuration of this section is only required when using remote extensions. ·Enable STUN STUN (Simple Traversal of UDP through NATs) is a protocol for assisting devices behind a NAT firewall or router with their packet routing.
  • Page 16 NeoGate TB400 User Manual Yes = Use NAT. Ignore address information in the SIP/SDP headers and reply to the sender's IP address/port. No = Use NAT mode only according to RFC3581. Never = Never attempt NAT mode or RFC3581 support.

  • Page 17: Route List

    NeoGate TB400 User Manual 3.4 Route List 3.4.1 Manage Calling Routes Calling routing mainly works for guides outgoing/incoming calls to go through trunks. Click ‘New Calling Route’ and fill in the corresponding information in the popup window. Figure 3-13 1）General ·Route Name...
  • Page 18 NeoGate TB400 User Manual Example 2: 1NXXNXXXXX will match a phone number starting with a 1, followed by a 3-digit area code, and then 6 digit number. ·Strip digits from front Allows the user to specify the number of digits that will be stripped from the front of the phone number before the call is placed.

  • Page 19: Dod List

    NeoGate TB400 User Manual Figure 3-14 3.4.2 DOD List DOD(Direct Outward Dialing). Set the Caller number to the outbound trunk. www.yeastar.com...

  • Page 20: Blacklist

    NeoGate TB400 User Manual Figure 3-15 3.4.3 Blacklist Number Blacklist is used to block an incoming call you do not want to answer and block outgoing call. If the incoming call or outgoing call number is registered in the number blacklist, the caller will hear the following: “The number you have dialed is not in service.

  • Page 21: Network Setting

    NeoGate TB400 User Manual The absolute maximum amount of time permitted for a call. A setting of 0 disables the timeout. Default value is 6000s. ·HTTP Bind Port/Web Access Port Port use for HTTP sessions. Default: 80 Figure 3-17 3.5.2 Network Setting 1) LAN ·DHCP...
  • Page 22 NeoGate TB400 User Manual ·Subnet Mask Set the subnet mask for NeoGate. ·Gateway Set the gateway for NeoGate. ·Primary DNS Set the primary DNS for NeoGate. ·Secondary DNS Set the secondary DNS for NeoGate. 2) Advanced Settings A VLAN is a logical local area network (or LAN) that extends beyond a single traditional LAN to a group of LAN segments, given specific configurations.

  • Page 23: Password Settings

    NeoGate TB400 User Manual Figure 3-18 3.5.3 Password Settings The default password is ‘password’. To change the password, enter the new password and click update. The system will then prompt you re-login using your new password. Figure 3-19 3.5.4 Date and Time Set the date and time for NeoGate.

  • Page 24: Backup And Restore

    NeoGate TB400 User Manual Figure 3-20 3.5.5 Backup and Restore You can backup your configure in this page. After back up, you can see the back up in the list. You can restore the configure in this page also. Note: the restore will only work after reboot.

  • Page 25: Firmware Update

    NeoGate TB400 User Manual Figure 3-22 3.5.7 Firmware Update Upgrading of the firmware is possible through the Administrator web interface using a TFTP Server or an HTTP URL. Enter your TFTP Server IP address and firmware file location, then click start to update the firmware.

  • Page 26: Reports

    NeoGate TB400 User Manual Figure 3-23 3.6 Reports 3.6.1 Call Logs The call Log captures all call details, including Source, Destination, Start Time, End Time, Duration, Billable Duration, Disposition, Communication Type, etc. Administrator can export CDR data to a CSV file.
  • Page 27 NeoGate TB400 User Manual Figure 3-25 www.yeastar.com...

  • Page 28: Application

    NeoGate TB400 User Manual 4. Application Application 1 Figure 4-1 Application 2 Figure 4-2 <Finish> www.yeastar.com...
