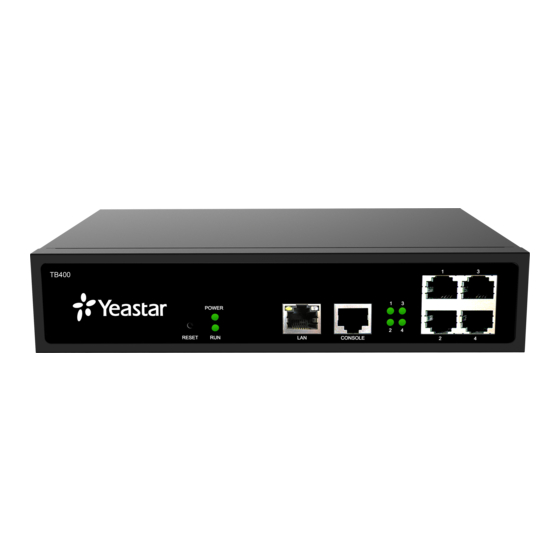

Yeastar Technology TB400 Manual

Yeastar Technology TB400 Manual

How to connect tb bri voip gateway to 3cx
Hide thumbs Also See for TB400:

Advertisement

Quick Links

How to Connect Yeastar TB BRI VoIP Gateway to 3CX
How to Connect Yeastar TB BRI VoIP
Gateway to 3CX
Version: 1.0
Date: 2015.07.28
Yeastar Information Technology Co. Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TB400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yeastar Technology TB400

  • Page 1 How to Connect Yeastar TB BRI VoIP Gateway to 3CX How to Connect Yeastar TB BRI VoIP Gateway to 3CX Version: 1.0 Date: 2015.07.28 Yeastar Information Technology Co. Ltd.
  • Page 2: Table Of Contents

    How to Connect Yeastar TB BRI VoIP Gateway to 3CX Contents 1. Introduction......................1 2. Connect 3CX Phone System to TB400 .............. 2 2.1 Create a SIP Trunk on 3CX ................2 2.2 Create a VoIP Trunk on TB400................ 4 3.
  • Page 3: Introduction

    After connecting Yeastar TB BRI gateway and 3CX phone system, physical trunk BRI trunk will be extended on 3CX phone system. The following features can be achieved:  Make outbound calls from 3CX via the BRI trunks of TB400.  Receive calls from BRI trunks of TB400 at 3CX. Description:...
  • Page 4: Connect 3Cx Phone System To Tb400

    Generic SIP Trunk 2) Enter the Yeastar TB400's IP and click "Next". Note: the TB400 and 3CX Phone System must reside inside the same LAN. Figure 4 VoIP Provider 3) Enter External Number and Authentication ID (You can enter any number that is not the same with extension numbers of 3CX, take 9999 as an example here).
  • Page 5 How to Connect Yeastar BRI VoIP Gateway to 3CX Figure 5 Configure SIP Trunk 4) Configure the default destination of inbound route to Digital Receptionist for the SIP trunk and click “Next”. Note: If you want to change the inbound route, you can double click the trunk you want on the "Ports/Trunk Status"...
  • Page 6: Create A Voip Trunk On Tb400

    6) On "Ports/Trunk Status" page, we can check the trunk status. Figure 8 SIP Trunk Status 2.2 Create a VoIP Trunk on TB400 Path: Gateway→VoIP Settings→VoIP Trunk Figure 9 Create a Service Provider SIP Trunk on TB400  Trunk Type: Service Provider ...
  • Page 7: Sip To Bri

    BRI trunk on TB400. Figure 11 SIP to BRI Step 1. Create one outbound route on 3CX. To make external calls from 3CX through TB400’s BRI trunk, you need to create one outbound route on 3CX. Click "Add Outbound Rule" on 3CX.
  • Page 8 Now, you can use 3CX phone system’s extension to make external calls through the TB400’s BRI trunk 1. Do not forget to add digit 9 before the called number cause prefix is set to 9 on 3CX outbound route. For example, if you want to call...
  • Page 9: Bri To Sip

    How to Connect Yeastar BRI VoIP Gateway to 3CX 4. BRI to SIP In this section, we configure incoming calls to 3CX through BRI trunk on TB400. Figure 15 BRI to SIP Step 1. Create an inbound route on 3CX.
  • Page 10 How to Connect Yeastar BRI VoIP Gateway to 3CX Figure 16 Inbound Route on 3CX Phone System Step 2. Configure the “bri_2_sip” Route on TB400. Path: Gateway→Routes Settings→Route List Figure 17 Port to IP Route Page  give a name for the route, “bri_2_sip”.
  • Page 11 How to Connect Yeastar BRI VoIP Gateway to 3CX  Hotline: set Hotline to 9999, which is the same number with the DID number set on 3CX Inbound route. Step 3. Test a call. Dial the BRI trunk1 number 617839972 on your mobile phone, the call will be routed to 3CX’s digital receptionist 800.
