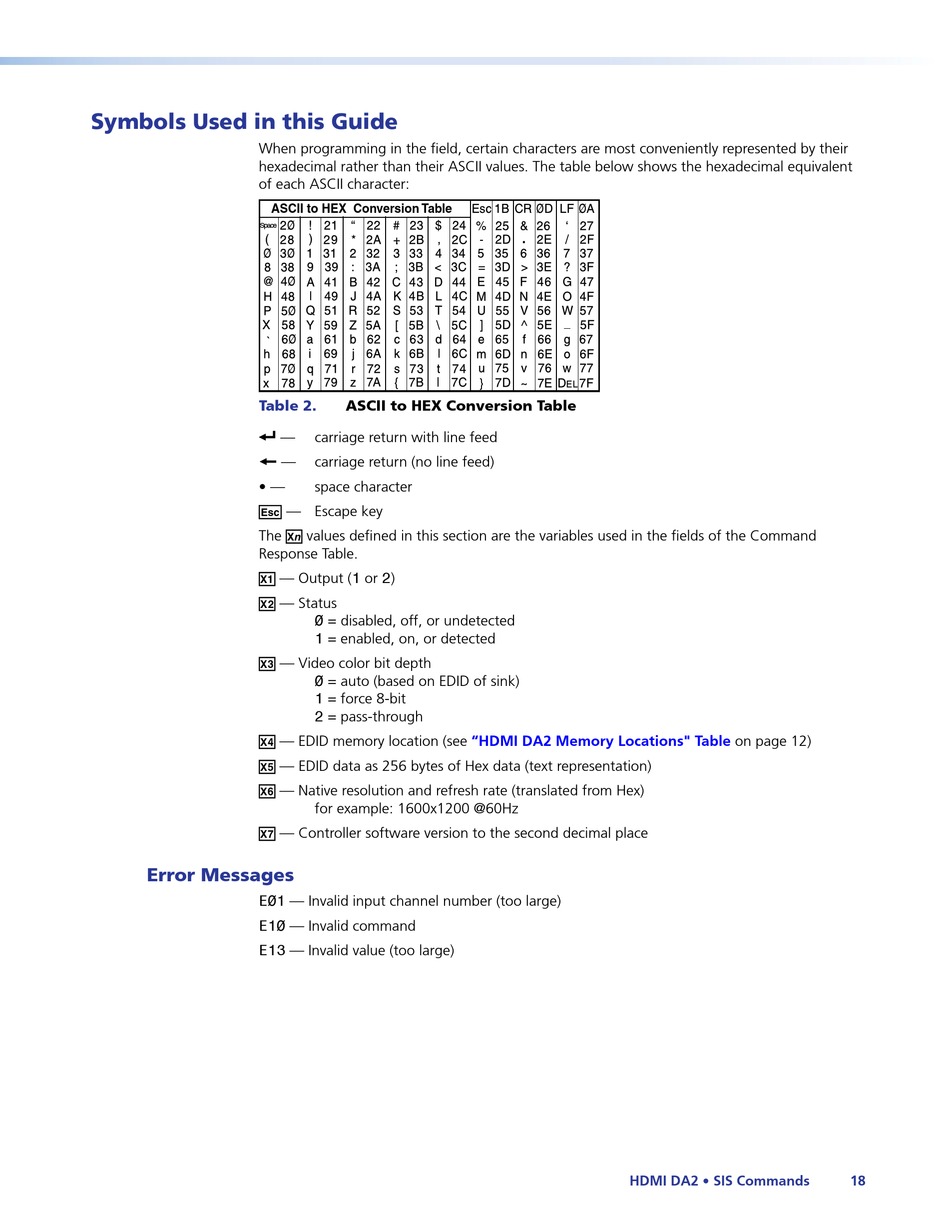

Symbols Used in this Guide

When programming in the field, certain characters are most conveniently represented by their
hexadecimal rather than their ASCII values. The table below shows the hexadecimal equivalent
of each ASCII character:
Space
Table 2.
]
}
• —
E
The
Response Table.
X!
X@
X#
X$
X%
X^
X&

Error Messages

E01 — Invalid input channel number (too large)
E10 — Invalid command
E13 — Invalid value (too large)
ASCII to HEX Conversion Table
ASCII to HEX Conversion Table
— carriage return with line feed
— carriage return (no line feed)
space character
— Escape key
X/
values defined in this section are the variables used in the fields of the Command
— Output (1 or 2)
— Status
0 = disabled, off, or undetected
1 = enabled, on, or detected
— Video color bit depth
0 = auto (based on EDID of sink)
1 = force 8-bit
2 = pass-through
— EDID memory location (see
— EDID data as 256 bytes of Hex data (text representation)
— Native resolution and refresh rate (translated from Hex)
for example: 1600x1200 @60Hz
— Controller software version to the second decimal place
.
"HDMI DA2 Memory Locations" Table
HDMI DA2 • SIS Commands
on page 12)
