SATELLINE-EASy
User Guide, Version 2.3
Base stations in high places should be supplied with high-Q cavity filters. Please note that the
higher the base station antenna, the larger the coverage area and in turn that the risk of
interference is also increased.
SATEL recommends the use of a band-pass filter with a large Q in the antenna cable of the base
station.

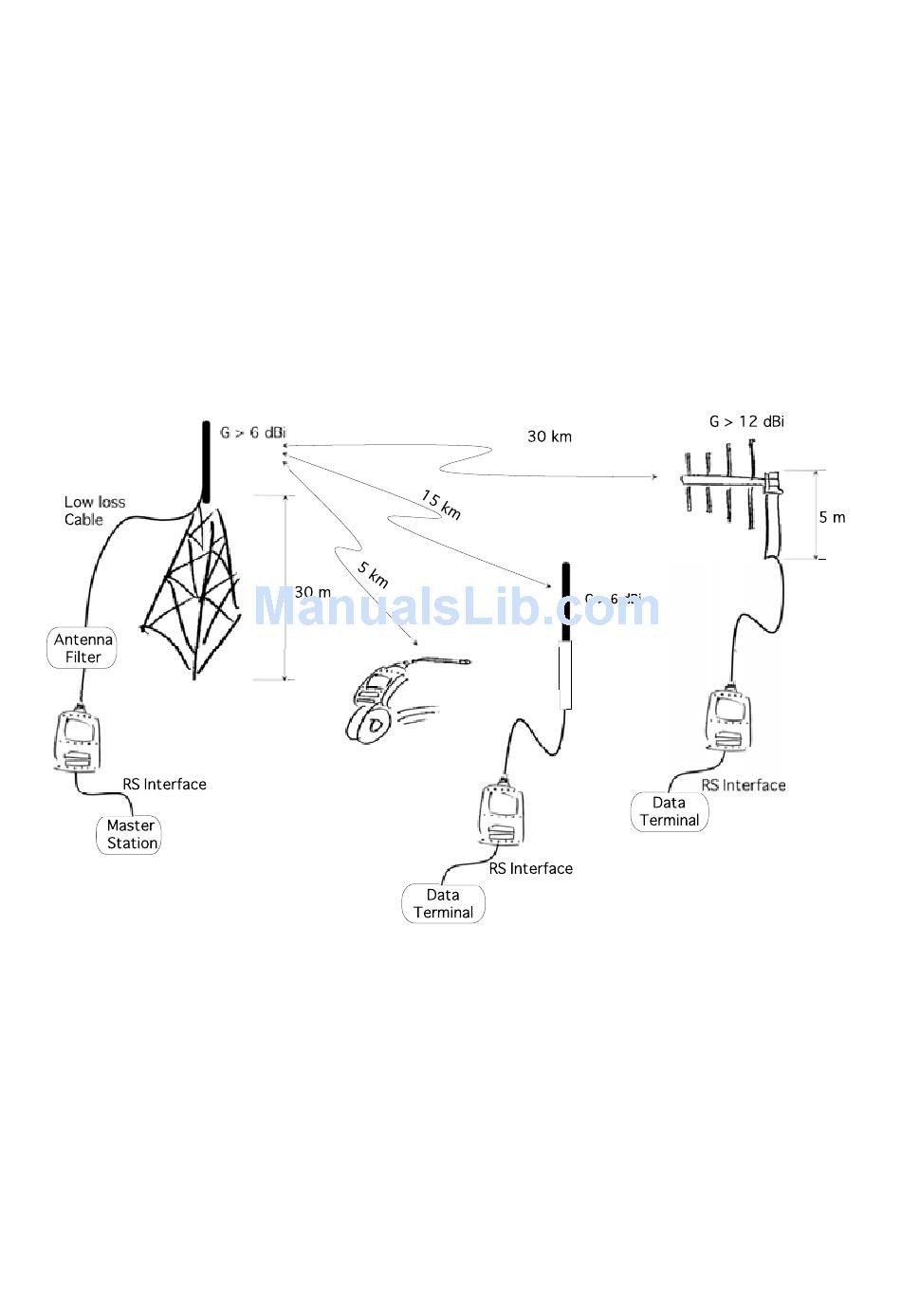

Example of an antenna installation: by using amplifying antennas (G=Gain) and by
installing the antenna high, long connection distances can be realised using the SATELLINE-EASy.
92
