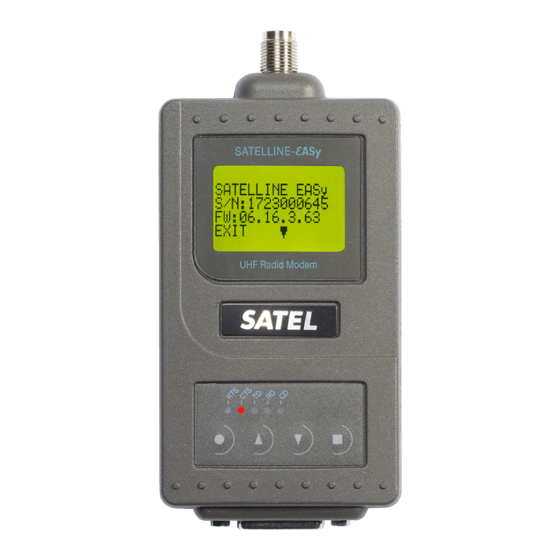

Satel SATELLINE-EASy User Manual

Transceiver radio modem
Hide thumbs Also See for SATELLINE-EASy:
Table of Contents

Advertisement

Quick Links

Transceiver Radio
Modem
User Guide Version 2.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATELLINE-EASy and is the answer not in the manual?

Questions and answers

Related Manuals for Satel SATELLINE-EASy

Summary of Contents for Satel SATELLINE-EASy

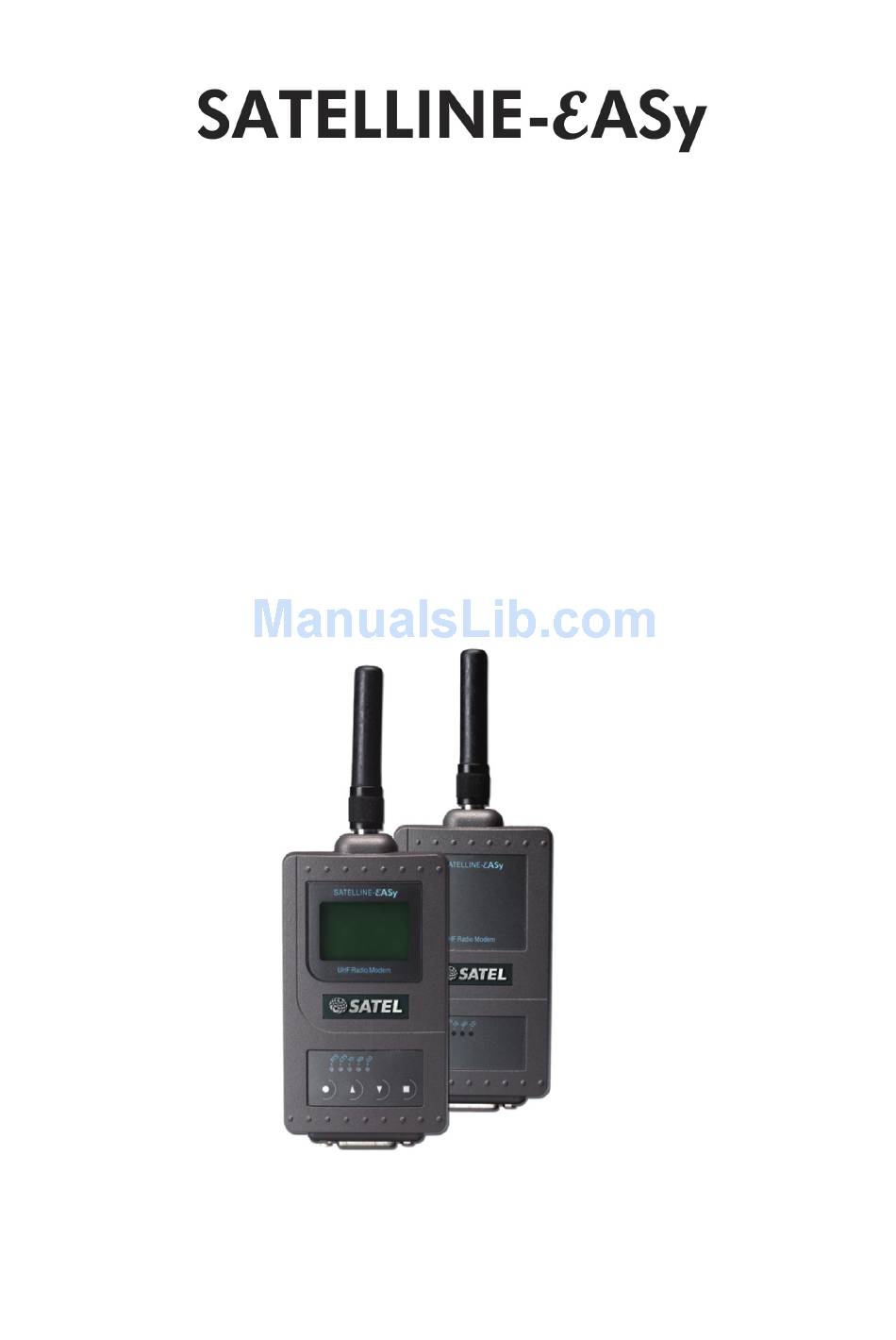

  • Page 1 Transceiver Radio Modem User Guide Version 2.3...

  • Page 2: Important Notice

    No part of this document may be reproduced, transmitted or stored in a retrieval system in any form or by any means without the prior written permission of SATEL Oy. This document is provided in confidence and must not be distributed to third parties without...

  • Page 3: Restrictions On Use

    SATELLINE-EASy is allowed to be used in the following countries, either on licence free channels or on channels where the operation requires a licence. More detailed information is available at the local frequency management authority.

  • Page 4: Product Conformity

    User Guide, Version 2.3 PRODUCT CONFORMITY Hereby, SATEL Oy declares that SATELLINE-EASy radio modem is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking.

  • Page 5: Warranty And Safety Instructions

    The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways.

  • Page 6: Table Of Contents

    IMPORTANT NOTICE..................1 RESTRICTIONS ON USE..................2 PRODUCT CONFORMITY ..................3 WARRANTY AND SAFETY INSTRUCTIONS ............4 TABLE OF CONTENTS..................5 INTRODUCTION....................10 1 SATELLINE-EASY TECHNICAL SPECIFICATIONS ..........11 1.1 Default settings..................13 2 SERIAL INTERFACE ..................15 2.1 D15 connector ..................16 9.1 Operating Voltage ..................17 2.1.1 Power supply ........................ 18 2.1.2...
  • Page 7 SATELLINE-EASy User Guide, Version 2.3 4.3 RS-485 interface (externally connected), Port 2 ........26 4.3.1 RS-485 wiring, Port 2 ....................27 4.4 Termination of RS-422 / 485 lines ............28 4.4.1 Connection to Profibus device..................28 5 RF INTERFACE .....................29 5.1 Transmitter....................29 5.2 Receiver....................30...
  • Page 8 SATELLINE-EASy User Guide, Version 2.3 8.1.5 Changing Channel spacing ................... 43 8.1.6 Changing radio settings ....................44 8.1.7 Free channel scan......................45 8.1.8 Changing addressing settings (primary and secondary RX- and TX-addresses) ....46 8.1.9 Changing serial port settings (Port 1 and Port 2).............. 47 8.1.10...
  • Page 9 Overhop function in Source Mode Routing ..............85 11.3.4 Network ID......................... 87 12 INSTALLATION ..................88 12.1 Installation of a Radio Data Modem ............88 12.1.1 Prepare installation of SATELLINE-EASy into the SATEL-321 casing........89 12.2 Antenna installation ................89 12.2.1 Hand-held equipment ....................89 12.2.2 Mobile equipment....................... 89 12.2.3...
  • Page 10 SATELLINE-EASy User Guide, Version 2.3 15.7 Battery pack..................97 15.8 Installation and enclosures ..............97 16 APPENDIX A .....................98 17 APPENDIX B .....................99 17.1 Functional delays ..................99 17.2 Transmission related delays..............99 17.2.1 Transmission delays when the radio TX frequency is changed........100 17.2.2...

  • Page 11: Introduction

    Both the amount of data transferred, and the size of local area networks is increasing constantly. SATEL OY has addressed these market requirements by introducing the SATELLINE-3AS radio modem range. The SATELLINE-EASy can offer speeds up to 19.2 kbps and has a selectable serial interface between 300 … 38 400 bps.

  • Page 12: Satelline-Easy Technical Specifications

    SATELLINE-EASy User Guide, Version 2.3 1 SATELLINE-EASy technical specifications SATELLINE-EASy complies with the following international standards: o EN 300 113-2 o EN 301 489 (EMC-requirements) o EN 60950 (Safety Standard) o FCC CFR47 section 90 o EN 61000-4-3 (2006), 10V/m Immunity test...
  • Page 13 SATELLINE-EASy User Guide, Version 2.3 DATA MODEM Timing RS-232 Electrical Interface PORT 1:RS-232 (fixed) PORT 2 functions are PORT 2: RS-232/RS-422, LVTTL, TTL delivery options Interface Connector D-15 (female) Data speed of I/O-interface 300 – 38400 bps Data speed of Radio...

  • Page 14: Default Settings

    SATELLINE-EASy User Guide, Version 2.3 1.1 Default settings SATELLINE-EASy is shipped with the following default settings (unless otherwise specifically agreed): DEFAULT VALUES O F THE ADJUSTABLE SETTING S (user can change settings later on) Setting Default value Range Radio frequency Operating TX frequency 438.000 MHz...
  • Page 15 Basic settings for the serial port of the host computer, when using a terminal program to communicate with SATEL radio modems, are as follows: “COM1, 9600 bps, 8-bit data, none parity, 1 stop bit”. The power cable (+V and GND) must be connected to a power supply with a proper output voltage and with a minimum output current of 2 A (for +3 …...

  • Page 16: Serial Interface

    The radio modem is referred to as DCE (Data Communication Equipment) whereas the PC is referred to as DTE (Data Terminal Equipment). SATELLINE-EASy includes a 15-pin D-type female connector, which contains all the connections required to establish communication between the radio modem, acting as the DCE, and the PC, acting as the DTE.

  • Page 17: D15 Connector

    SATELLINE-EASy User Guide, Version 2.3 2.1 D15 connector D-15 female connector in the radio modem Direction I I N is from DTE (Data Terminal Equipment) to the radio modem. Direction O O UT is to the DTE from the radio modem.

  • Page 18: Operating Voltage

    = positive pole of the operating voltage. 9.1 Operating Voltage The SATELLINE-EASy radio modem can have two (2) operating voltage ranges. The range is defined by the PWR-module, which is installed and set at the factory. I I f not specifically agreed the default operating voltage is +6 …...

  • Page 19: Power Supply

    SATELLINE-EASy User Guide, Version 2.3 2. When the nominal operating voltage is more than +33 V, it may damage the module. 2.1.1 Power supply The radio modem must only be connected to a power supply with an adequate current output.

  • Page 20: User Interface - With/Without Display

    LED-indicator. 3.2 Display and push buttons SATELLINE-EASy includes a LCD-display with a backlight. In the Data Transfer Mode the display will show the operating settings of the radio modem, for example the radio field strength and the supply voltage.
  • Page 21 RX 438.000.000 indicator. INFO SETUP TX/RX = Operational TX and RX frequency. n-120 11.5V Compatibility: Satel 3AS is one of the radio protocols. Satel 3AS INFO SETUP n-120 11.5V Power TX= Output transmission power. TX Power: 1000 mW Spacing= Channel spacing...
  • Page 22 SATELLINE-EASy User Guide, Version 2.3 Ref 438.000.000 Reference frequency Exit Band 1 limits The modem can be limited to operate only on certain frequencies. The range is shown Lo 403.000.000 as LO=Low and HI=High. Hi 473.000.000 Exit Band 2 limits The modem can be limited to operate only on certain frequencies.

  • Page 23: Connection Cables

    SATELLINE-EASy User Guide, Version 2.3 4 CONNECTION CABLES NOTE! When installing the cables of the serial interface, it is recommended that the operating voltage of all devices is powered OFF. 4.1 Port 1 4.1.1 RS-232 interface RS-232 standard defines the method of serial data transfer between a computer and its peripherals.

  • Page 24: Port 2

    SATELLINE-EASy User Guide, Version 2.3 Basic RS-232 connection between the radio modem (PORT1) and a typical PC (COM- port) using handshaking: 9-PIN D-CONN. 25-PIN D- RADIO MODEM SGND SGND SGND Fuse 14,1 4.2 Port 2 Port 2 becomes valid only by setting it first ON. Setting can be done from the programming menu.

  • Page 25: Interface, Port 2

    SATELLINE-EASy User Guide, Version 2.3 4.2.2 RS-422 interface, Port 2 RS-422 standard defines a serial data transfer method, which is very similar to the RS-232 standard. In RS-422 however, the signal lines are balanced (or differential) transmission lines. A balanced (or differential) transmission line is formed by using two signal wires together to convey each single signal.

  • Page 26: Wiring, Port 2

    SATELLINE-EASy User Guide, Version 2.3 4.2.3 RS-422 wiring, Port 2 PORT 2 RS-422 connection: RADIO MODEM Terminatio resisto Fuse 14,1 If the transmission lines are long the receiving end of the lines must be terminated using a separate termination resistor (typical values range from 100-120 Ohm depending on the characteristic impedance of the transmission line).

  • Page 27: Interface (Externally Connected), Port 2

    SATELLINE-EASy User Guide, Version 2.3 4.3 RS-485 interface (externally connected), Port 2 RS-485 is an extension of the RS-422 standard and enables the connection of more than two devices on to the same bus. Communication is half-duplex, so there is only one cable pair, compared to two when using the RS-422.

  • Page 28: Wiring, Port 2

    Both ends of the transmission line must be terminated by connecting a separate terminating resistor between the positive and negative signal wire. Typical values range from 100 – 120 Ohm depending on the characteristic impedance of the line. NARS-2-4A Port 2 =RS-232/ RS-485 RS-422 RS-422 to RS-485 using NARS-2-4A- adapter (SATEL code YC0486)

  • Page 29: Termination Of Rs-422 / 485 Lines

    SATELLINE-EASy User Guide, Version 2.3 4.4 Termination of RS-422 / 485 lines Each differential pair of wires is a transmission line. A transmission line must be terminated properly to prevent, or at least minimise, harmful reflections formed between the transmitting and receiving end of the transmission line.

  • Page 30: Rf Interface

    The setting and/or using of non-approved power levels may lead to prosecution. SATEL and its distributors are not responsible for any illegal use of its radio equipment, and are not responsible in any way of any claims or penalties arising from the operation of its radio equipment in ways contradictory to local regulations and/or requirements and/or laws.

  • Page 31: Receiver

    5.3 Priority RX/TX SATELLINE-EASy offers a Priority setting, which selects the priority between reception and transmission. The setting can be changed in Programming Mode. By default, transmission has higher priority than reception i.e. the default value is Priority TX.

  • Page 32: Error Checking

    5.6 Dual radio function, separate RX/TX-frequencies The SATELLINE-EASy can transmit (TX-frequency) and receive (RX-frequency) on separate frequencies. Separate frequencies can be set within the whole tuning range. The frequencies can be set in the display menu, in the programming mode or by the Configuration Manager.

  • Page 33: Free Channel Scan (Fcs)

    To make the use easier SATEL provides the FCS terminal software for your PC. Using the program it is easy to configure the radio modems to use the FCS function. There is also a scanning tool for measuring the power level of the selected radio channels.

  • Page 34: Transparent Data Transmission

    6 TRANSPARENT DATA TRANSMISSION 6.1 Serial interface, data format The SATELLINE-EASy serial interface uses an asynchronous data format. No external synchronising signal is needed, since necessary timing information is acquired from the start and stop bits transmitted before and after each data field bits (byte).

  • Page 35: Handshake Lines

    SATELLINE-EASy User Guide, Version 2.3 6.2 Handshake lines When using the RS-232 serial interface, handshake signals can be used to control data transfer. Handshake signals are used, for example, by the radio modem to inform the terminal that the radio channel is busy, and that it cannot initiate transmission. The terminal can also control the radio modem via RTS-line.

  • Page 36: Rts-Line

    SATELLINE-EASy User Guide, Version 2.3 2) D D ata on channel CD will switch to active state only after recognition of a valid data transmission. CD will not react to interference signals. 3) A A lways ON CD is always in the active state. This option can be used with terminal equipment, which use the CD-line as an indicator of an active connection (the radio modem can transmit and receive at any time).

  • Page 37: Pause Length

    SATELLINE-EASy User Guide, Version 2.3 than the speed of the radio interface, the internal transmit buffer memory cannot overflow. However, when the serial interface speed exceeds the speed of the radio interface, data will eventually fill transmit buffer memory. In this instance, it will take a moment after the terminal device has stopped transmission of data for the radio modem to empty the buffer and before the transmitter switches off.

  • Page 38: Tx Delay

    SATELLINE-EASy User Guide, Version 2.3 6.3.3 TX delay The radio modem can be configured to delay the beginning of a radio transmission by 1...65000 ms. This function can be used to prevent packet contention in a system, where all substations would otherwise answer a poll of a base-station simultaneously.
  • Page 39 SATELLINE-EASy User Guide, Version 2.3 The strength of the received signal can be monitored using the LCD-display of the receiving radio modem. NOTE 1! Green TD led indicates active test mode. NOTE 2! Normal data transfer is not available while the Test mode is active. Remember to switch it OFF before starting the normal data transfer.

  • Page 40: Settings

    User Guide, Version 2.3 7 SETTINGS The configuration of SATELLINE-EASy can be easily changed. Simply by connecting pin 12 of the D-connector to ground (GND) the radio modem will switch into Programming Mode. Serial PORT 1 is used whenever the radio modem is in the Programming Mode. The serial port settings are 9600 bps, N, 8,1 (data transfer speed 9600 bps, no parity, character length 8 bits and one (1) stop bit).

  • Page 41: Changing Parameters Using A Terminal Device

    Spacing 25 kHz 2) Radio settings Tx power 1000 mW / Signal threshold -115 dBm / FCS OFF / TX start delay 0 ms / Compatibility Satel 3AS 3) Addressing RX address OFF / TX address OFF / RX address to RS port OFF / TX address autoswitch OFF...

  • Page 42: Restoring Factory Settings

    Spacing 25 kHz 2) Radio settings Tx power 1000 mW / Signal threshold -115 dBm / FCS OFF / TX start delay 0 ms / Compatibility Satel 3AS 3) Addressing RX address OFF / TX address OFF / RX address to RS port OFF / TX address autoswitch OFF...

  • Page 43: Changing Frequency (Active Radio Channel Frequency)

    SATEL Oy is not responsible for any illegal use practiced with any devices manufactured and/or sold by SATEL Oy and is not liable to pay any damages or compensation caused by such illegal use.

  • Page 44: Changing Reference Frequency

    SATELLINE-EASy User Guide, Version 2.3 8.1.4 Changing Reference frequency The Reference frequency (also known as “Center frequency”) defines the starting point, which is used by the specific SL-command to calculate the channels a a bove or b b elow the Reference frequency.

  • Page 45: Changing Radio Settings

    1000 mW 2) Signal threshold -115 dBm 3) TX start delay 4) Free Channel Scan RX Slave / OFF 5) Radio compatibility Satel 3AS Enter selection or ESC to previous menu >1 TX power setup -------------- 1) 100 mW 2) 200 mW...

  • Page 46: Free Channel Scan

    Use or intended use of forbidden transmitter power levels may lead to prosecution and penalties. SATEL is not responsible for any illegal use practised with any devices manufactured and/or sold by SATEL and is not liable to pay any damages or compensation caused by such illegal use.

  • Page 47: Changing Addressing Settings (Primary And Secondary Rx- And Tx-Addresses)

    SATELLINE-EASy User Guide, Version 2.3 The hardware information can be seen in the main menu ***** SATELLINE ***** FW: 06.16.3.40e / HW: SPL0005c / PV: 00.02 / IM: 05 / S/N: 30032010 ------------------------------------------------------------------------------- FW= Firmware HW=Hardware version PV=Product variant version IM=Interface module (Voltage range and interface type) S/N= serial number.

  • Page 48: Changing Serial Port Settings (Port 1 And Port 2)

    SATELLINE-EASy User Guide, Version 2.3 RX address ON 0020/0000 Enter new address (HEX) or ESC to previous menu > The new value is displayed in the menu. To get back to the main menu press ESC (and then E for Exiting and saving).
  • Page 49 SATELLINE-EASy User Guide, Version 2.3 4) Parity bits None parity 5) Stop bits 1 stop bit 6) Interface level RS-232 Enter selection or ESC to previous menu >2 Serial port 2 data speed ------------------------ 1) 300 bit/s 2) 600 bit/s...
  • Page 50 Ref freq: 460.00000 MHz / Spacing 12.5kHz 2) Radio settings TX power 100 mW / Signal threshold -110 dBm / FCS OFF / TX start delay 0ms / Compatibility Satel 3AS 3) Addressing RX address ON 0020/0000 / TX address OFF /...
  • Page 51 Enter selection or ESC to previous menu > To get back to the main menu press ESC (and then E for Exiting and saving). When installing SATELLINE-EASy into SATEL-321, please see chapter “Prepare installation of SATELLINE-EASy into the SATEL-321 casing”.

  • Page 52: Modification Of Handshaking Functions

    SATELLINE-EASy User Guide, Version 2.3 8.1.10 Modification of handshaking functions Handshaking related configuration settings can be modified by selecting the options from the main menu ”6”. In the following example characteristics of the CTS-line (CLEAR TO SEND BUFFER STATE), CD-line (RSSI-THRESHOLD DATA ON CHANNEL) and RTS-line (IGNORED FLOW CONTROL) are changed.

  • Page 53: Special Functions

    Ref freq: 438.00000 MHz / Spacing 20kHz 2) Radio settings TX power 1000 mW / Signal threshold -118 dBm / FCS OFF / TX start delay 0ms / Compatibility Satel 3AS 3) Addressing RX address OFF / TX address OFF /...

  • Page 54: Modification Of Routing

    SATELLINE-EASy User Guide, Version 2.3 8.1.12 Modification of routing Configuration settings defining routing can be changed by selecting main menu selection ”8”. Enter selection >8 Routing Setup ------------- 1) Mode 2) Protocol 3) Address 4) Net id 5) Route list...
  • Page 55 SATELLINE-EASy User Guide, Version 2.3 User defined address position setup ----------------------------------- 1) Start position 2) Length Enter selection or ESC to previous menu >1 User defined address start position setup ----------------------------------------- Current value: 01 Enter new start position (0-16) >02...
  • Page 56 SATELLINE-EASy User Guide, Version 2.3 Following this, a new address will be modified (”0009” ”0002”) and a new Network ID is defined (”testnet” ”newname”): Routing Setup ------------- 1) Mode Virtual routing 2) Protocol Userdefined 3) Address 0009 4) Net id...
  • Page 57 SATELLINE-EASy User Guide, Version 2.3 Routing Setup ------------- 1) Mode Virtual routing 2) Protocol Userdefined 3) Address 0002 4) Net id newname 5) Route list 6) Route add 7) Route delete 8) Delete all routes Enter selection or ESC to previous menu >ESC Selection ”5”...

  • Page 58: Activating Tests

    SATELLINE-EASy User Guide, Version 2.3 8.1.13 Activating tests Tests can be activated by selecting main menu selection ”9”. Tests are activated by setting the status of the desired test to ”ON” and will remain active until the value of the selection in the menu is returned to the value ”OFF”.

  • Page 59: Saving Modified Settings Into The Permanent Memory

    (D15 pin 12) must be disconnected from ground (GND). Configuration saved! mode Please turn off program switch! 8.1.17 Updating Firmware The Firmware of SATELLINE-EASy is stored in a flash memory. It can be updated by Saterm terminal program or SATEL Configuration Manager.

  • Page 60: Changing Parameters Using The Lcd-Display

    SATELLINE-EASy User Guide, Version 2.3 9 CHANGING PARAMETERS using the LCD-display SATELLINE-EASy contains an LCD-display that shows the valid functions and allows modification of the settings. On standby mode the LCD-display will shortly display the basic information which is revolving automatically in 5 5 seconds.

  • Page 61: Changing Frequency (Frequency Of The Active Tx/Rx Radio Channel)

    SATELLINE-EASy User Guide, Version 2.3 >Radio frequency Radio settings After pressing the ”SET-UP-button the Addressing display will show the main menu, which Port 1 is a list of modifiable parameters. Port 2 Pressing the buttons the cursor Handshaking moves upwards and downwards. When Additional the cursor >...
  • Page 62 SATELLINE-EASy User Guide, Version 2.3 The cursor > will now blink under the first digit of the value indicating the (this first digit cannot be New common freq edited). To move onto the next digit, press ”Next”. 468.52500 MHz Press...
  • Page 63 SATELLINE-EASy User Guide, Version 2.3 Band 1 limits are shown. Band 1 limits By pressing again the display will show B B and 2 Lo 403.000.000 limits (these values cannot be changed). Hi 473.000.000 Cancel Band 2 limits Lo 467.2000 MHz To activate Reference frequency window, press Set.

  • Page 64: Changing Radio Settings (Transmitter Power And Receiver Sensitivity)

    SATELLINE-EASy User Guide, Version 2.3 9.1.2 Changing radio settings (transmitter power and receiver sensitivity) Radio frequency >Radio settings Addressing Press until the Port 1 cursor > points to Port 2 Handshaking “Radio settings” Additional selection and press Tests ”Select” to move on Factory setup to the submenu.

  • Page 65: Changing Addressing

    SATELLINE-EASy User Guide, Version 2.3 MODIFYING THE COMPATILBILITY: TX level Press until the Sig. Threshold cursor > points to TX start delay the setting to be >Compatibility modified and press ”Change”. Back Change >SATEL 3AS Option 1 The display will show the current value.

  • Page 66: Changing Serial Port Settings (Port 1 And Port 2)

    SATELLINE-EASy User Guide, Version 2.3 9.1.4 Changing serial port settings (Port 1 and Port 2) Radio frequency Radio settings Addressing Press until the cursor > >Port 1 points to the desired port (in this Port 2 example to P P ort 1) and move...

  • Page 67: Modification Of Handshaking Functions

    SATELLINE-EASy User Guide, Version 2.3 MODIFICATION OF THE NUMBER OF STOP BITS: Press until the cursor > points to the desired number of STOP bits. Confirm selection by pressing >1 stop bit ”SET”. The display will return to the previous (higher) 2 stop bits level submenu.

  • Page 68: Selecting Special Functions

    SATELLINE-EASy User Guide, Version 2.3 9.1.6 Selecting special functions Radio frequency Radio settings Addressing Port 1 Press until the cursor > points to Port 2 “Additional” selection and press Handshaking >Additional ”SELECT” to move on to the submenu. Test Factory setup...

  • Page 69: Restoring Factory Settings

    SATELLINE-EASy User Guide, Version 2.3 9.1.8 Restoring factory settings Radio frequency Radio settings Addressing Press to move cursor > to Port 1 point to “Factory set-up” Port 2 selection and press ”SELECT” to Additional Test move on to the submenu.

  • Page 70: Saving Modified Values Into The Internal Memory

    SATELLINE-EASy User Guide, Version 2.3 9.1.10 Saving modified values into the internal memory After all desired modifications have been performed; they have to be saved in order to make them permanent (until next modification). This is accomplished by choosing selection ”EXIT” from the main menu.

  • Page 71: Frequency

    User Guide, Version 2.3 In case you need more information on the time delays related to the use of SL-commands, please contact the manufacturer. In order to get information of the latest and/or special SL-commands please contact SATEL Oy. 9.2.1 Frequency Command Effect and description of command SL&FR=nnn.nnnnn Set RX-frequency to nnn.nnnnn MHz...

  • Page 72: Addressing

    SATELLINE-EASy User Guide, Version 2.3 9.2.2 Addressing xxxx = address in hexadecimal format (0000 … FFFF) Command Effect and description of command SL#I=xxxx Set all addresses (RX1, RX2, TX1, TX2) to value xxxx SL#I? Get both primary addresses (TX1, RX1) (response ’xxxx;yyyy’)

  • Page 73: Other Functions

    Get modem serial number (response ‘nnnnnnnnnn’ or ‘No Serial nr’) SL%C? Get specified information field. If not specified the response is ‘No version id’). For more information please contact SATEL Oy. SL%P=1 ActivateProgramming mode without the use of PROG pin. Note that the serial port data speed remains the same as in the data transfer mode.

  • Page 74: Repeater Mode And Addressing

    10.1 Repeater In circumstances where it is necessary to extend the coverage area of a radio modem network, SATELLINE-EASy can be used as repeater stations. The maximum size of a repeated data packet is 1kB (kilobyte). The Repeater Function is switched on using the Programming Mode.

  • Page 75: Addressing

    “Message Routing” function in use, Tx / Rx addresses are ignored by the modem. SATELLINE-EASy allows the use of individual addresses both for reception and transmission. Addresses can be switched on separately, or simultaneously, in both data transfer directions.
  • Page 76 SATELLINE-EASy User Guide, Version 2.3 Transmission: Transmission address has been set OFF. Transmission addressing has been set Radio modem will transmit the data ON. The radio modem will add the packet as such. primary TX address to the beginning of the data packet.

  • Page 77: Connection Between Two Points

    SATELLINE-EASy User Guide, Version 2.3 Reception addressing has Reception addressing Reception addressing been set OFF. been set OFF. been set ON but there is no address in the data packet. The radio modem will radio modem will Data will appear on the RS-...

  • Page 78: Using Repeaters And Addresses In The Same System

    SATELLINE-EASy User Guide, Version 2.3 For example, if the substation terminal devices are not able to check and form addresses by themselves, addressing may be achieved with the help of the addresses of the radio modems attached to these terminal devices. The base station may, in such a case, define the destination of a message by adding the address of the corresponding radio modem into the beginning of the data packet.

  • Page 79: Repeater Chain Using Address Pairs

    SATELLINE-EASy User Guide, Version 2.3 - The above is the same message after being relayed from repeater 1 to repeater 2. S ADD DATA - The above is the same message after being relayed from the last repeater in the chain (repeater 2) to the substation.

  • Page 80: Repeater Chain Using Dual Addressing

    SATELLINE-EASy User Guide, Version 2.3 10.3.3 Repeater chain using dual addressing If the terminal devices cannot add address chains to the beginning of the data packets, a network with several repeaters may still be realised by using dual addressing. In dual addressing each link (see arrows below in figure) is given a unique address, which will prevent duplication of messages and endless loops in the network.

  • Page 81: Message Routing

    User Guide, Version 2.3 11 MESSAGE ROUTING 11.1 Introduction to Message Routing, Message Routing is an exciting feature in SATELLINE-EASy. This feature allows messages from terminal devices to be automatically routed over the radio modem network to a specified recipient terminal.

  • Page 82: Features Of Message Routing

    User Guide, Version 2.3 11.1.1 Features of Message Routing The Message Routing feature of the SATELLINE-EASy is designed to be a fast and transparent to fit real time systems. The features include: o Transparent to user protocols. o Easy construction of a network containing several repeaters.

  • Page 83: Saterm And The Configuration Of The Message Routing

    SATELLINE-EASy User Guide, Version 2.3 3. Configure the radio modems accordingly. There are two ways to configure the parameters related to the Message Routing: SaTerm PC-program Manual configuration in the setup menu. In either case, please check the chapter on Settings before changing the setup of the radio modems.

  • Page 84: Manual Configuration Of The Message Routing

    SATELLINE-EASy User Guide, Version 2.3 11.1.5 Manual configuration of the Message Routing The radio modems can be configured manually via the programming menu. However, this is recommended only if the structure of the network is very simple, or if it is desirable to define such special functions that are not possible to draw using the graphical interface of SaTerm.

  • Page 85: Operating Modes Of Message Routing

    SATELLINE-EASy User Guide, Version 2.3 11.2 Operating modes of Message Routing The Message Routing has two different operating modes: o Source Mode Routing o Virtual Mode Routing The most important differences between the two modes are shown in the table below.

  • Page 86: Detailed Description Of Message Routing

    (2, 1, 0) and saved to be used in the transmission of subsequent reply packets. 11.3.2 Virtual Mode Routing Please contact SATEL for more information of Virtual Mode Routing. 11.3.3 Overhop function in Source Mode Routing...
  • Page 87 SATELLINE-EASy User Guide, Version 2.3 When using repeaters, the same packet is sent via a (radio) channel several times. A radio modem situated in the repeater chain will often hear other radio modems in addition to the immediate neighbouring radio modems. With Source Mode Routing the complete address information is sent together with the packets enabling the use of these secondary routes.

  • Page 88: Network Id

    SATELLINE-EASy User Guide, Version 2.3 The overhop function allows for the use of mobile substations. In the example above, a mobile substation is first located in the coverage area of repeater R2. The route is defined as M, R1, R2 and vehicle.

  • Page 89: Installation

    SATELLINE-EASy User Guide, Version 2.3 12 INSTALLATION 12.1 Installation of a Radio Data Modem The radio modem should be installed with the installation accessories supplied with the radio modem. There is also available an installation component for mounting the radio modem to a DIN-rail.

  • Page 90: Prepare Installation Of Satelline-Easy Into The Satel-321 Casing

    12.1.1 Prepare installation of SATELLINE-EASy into the SATEL-321 casing Before installing a SATELLINE-EASy casing, the battery pack function must be selected as follows: NOTE! Both serial ports must be RS-232 (Not LV-/TTL or RS-422). To get RS-232 on Port 2, the PWR- module of the modem must be separately specified in the ordered.

  • Page 91: Base Stations

    SATELLINE-EASy User Guide, Version 2.3 12.2.3 Base stations Omni-directional antennas ( - or 5/8-wave antenna) Directional antennas (yagi /multi-element antenna or corner antenna) The antenna should be installed in a vertical position. The exact location of the antenna depends on several factors, such as the size of the overall system and the coverage area terrain contours.
  • Page 92 SATELLINE-EASy User Guide, Version 2.3 When designing and installing a system it is advisable to prepare to test the system, and also to consider serviceability of the system. In particular cabling should be planned to allow easy access and to allow for maintenance. It is often practical to use long antenna cables, so that the radio modem can be installed far enough from the antenna itself to a location that is easily accessible (see section 10).
  • Page 93 SATEL recommends the use of a band-pass filter with a large Q in the antenna cable of the base station.

  • Page 94: Designing Systems

    The transmitter power of the SATELLINE-EASy is 1 W (maximum) and the sensitivity of the receiver better than -115 dBm. Thus in a flat area and in free space with a 1/4 wave antenna (antenna amplification 1dBi) and antenna height of 1 m communication distances of 3 to 4 km can be achieved.

  • Page 95: Radio Field Strength

    SATELLINE-EASy User Guide, Version 2.3 13.2 Radio field strength Radio signal strength must be good enough for successful data transfer. Where field strength is above a certain level, the operational results are very good. Below this level, a few dB marginal areas occur in which errors begin to be generated by noise and interference that will eventually lead to loss of connection.

  • Page 96: Check List

    SATELLINE-EASy User Guide, Version 2.3 14 CHECK LIST The following points must be taken into account when installing and configuring a radio modem: 1. All operating voltages of all the equipment concerned must always be switched OFF before connecting the serial interface cable.

  • Page 97: Accessories

    SATELLINE-EASy User Guide, Version 2.3 15 ACCESSORIES 15.1 RS-232 cables and adapters Type Description Length Note NARS-1F-4A Interface adapter D15 m / D9 f, 4A fuse CRS-9 Interface cable D9 m / D9 f CRS-1M Interface cable D15 m / D25 m...

  • Page 98: Antennas

    If a station is installed to a location exposed to lightning, it is recommended to insert a lightning protector to the feed-line outside the protected zone. SATEL Technical Support can give guidance in the selection of suitable products. 15.6 Power supplies...

  • Page 99: Appendix A

    SATELLINE-EASy User Guide, Version 2.3 16 APPENDIX A ASCII CHARACTER TABLE NUL 43 2B 129 81 172 AC 215 D7 SOH 44 2C W 130 82 173 AD 216 D8 45 2D 131 83 174 AE 217 D9 46 2E...

  • Page 100: Appendix B

    SATELLINE-EASy User Guide, Version 2.3 17 APPENDIX B 17.1 Functional delays Function Delay (ms) Wakeup time from STAND-BY to ON 123 ms (CTS active) (controlled by DTR line) Wakeup time from Power OFF -> Power ON 123 ms/typical (=ready to receive)

  • Page 101: Transmission Delays When The Radio Tx Frequency Is Changed

    SATELLINE-EASy User Guide, Version 2.3 17.2.1 Transmission delays when the radio TX frequency is changed o If the modem’s transmitter frequency (TX) is different than the receiver frequency (RX), there has to be at least 40 ms delay from the Receive Data (RD) to Transmit Data (TD).
  • Page 102 SATELLINE-EASy User Guide, Version 2.3 Transmission delays with FEC-function (Forward Error Correction). Number of bytes sent 1200 4800 9600 19200 38400 Delays are in milliseconds and with a 10% margin. 12.5 kHz radio channel with error correction 1200 4800 9600...

  • Page 103: Transmission Delays Using A 25 Khz Radio Channel

    SATELLINE-EASy User Guide, Version 2.3 17.2.3 Transmission delays using a 25 kHz radio channel Transmission delays without FEC-function (Forward Error Correction). Number of bytes sent 1200 4800 9600 19200 38400 Delays are in milliseconds and with a 10% marginal. 25 kHz radio channel without error correction...
  • Page 104 SATELLINE-EASy User Guide, Version 2.3 Transmission delays with FEC-function (Forward Error Correction). Number of bytes sent 1200 4800 9600 19200 38400 Delays are in milliseconds and with a 10% margin. 25 kHz radio channel with error correction 1200 4800 9600...
