Satel SATELLINE-EASy User Manual page 22

Ref 438.000.000
Exit
Band 1 limits
Lo 403.000.000
Hi 473.000.000
Exit
Band 2 limits
Lo 403.000.000
Hi 473.000.000
Exit
Voltage: 6-30V
Port 1:RS232/ON
Port2:RS232/OFF
Exit
Board: SPL0005c
IM:05
Exit

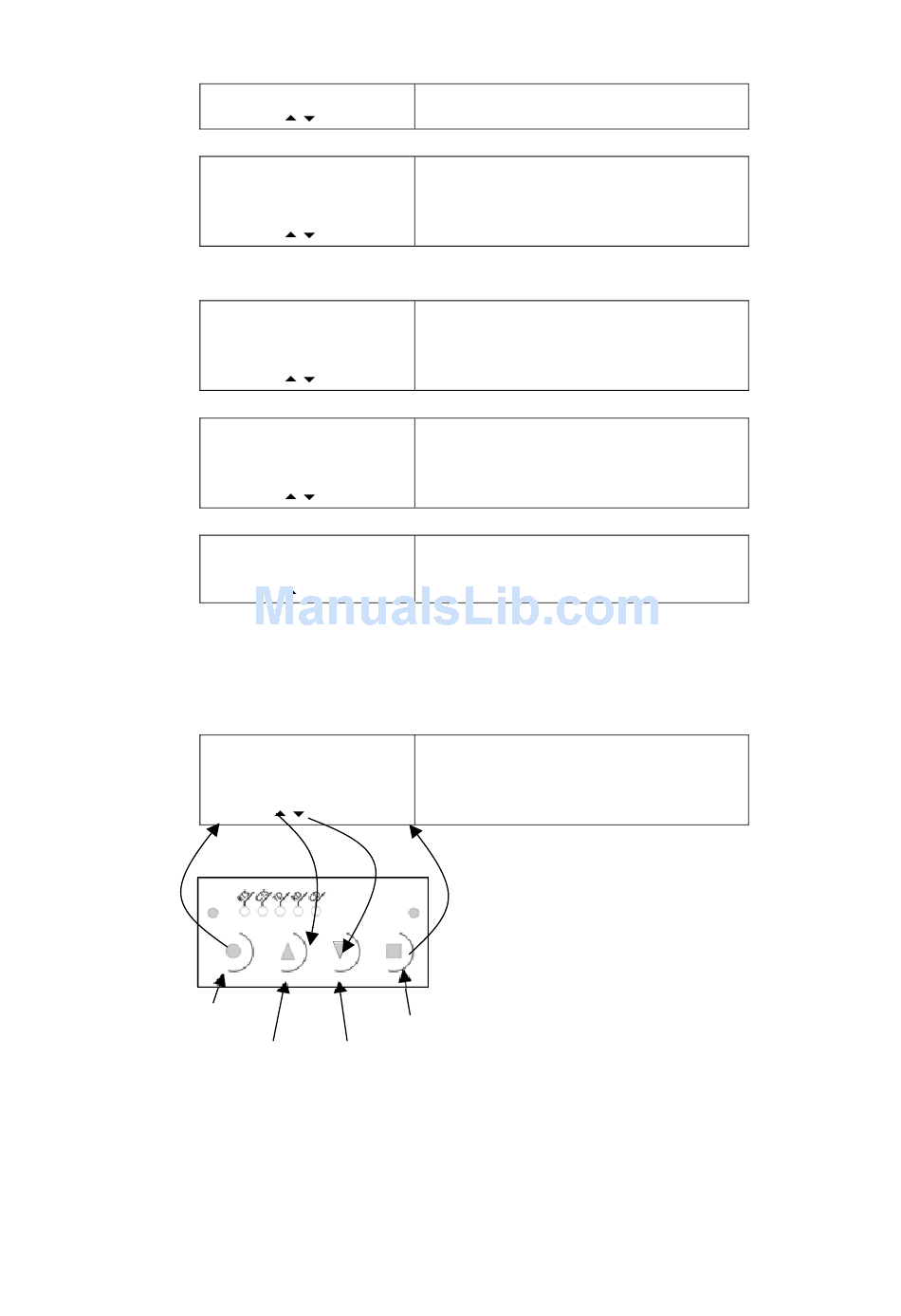

Display in Setup Mode
>Radio frequency
Exit
Cancel/Back -button
Up-button
Keypad buttons
Radio settings
Select
Down-button
Reference frequency
The modem can be limited to operate only
on certain frequencies. The range is shown
as LO=Low and HI=High.
The modem can be limited to operate only
on certain frequencies. The range is shown
as LO=Low and HI=High.
Voltage: Operation Voltage range.
Port1: Port interface and status.
Port2: Port interface and status.
Board: HW version
IM: Interface module type
> The cursor indicates active line
Select-button
