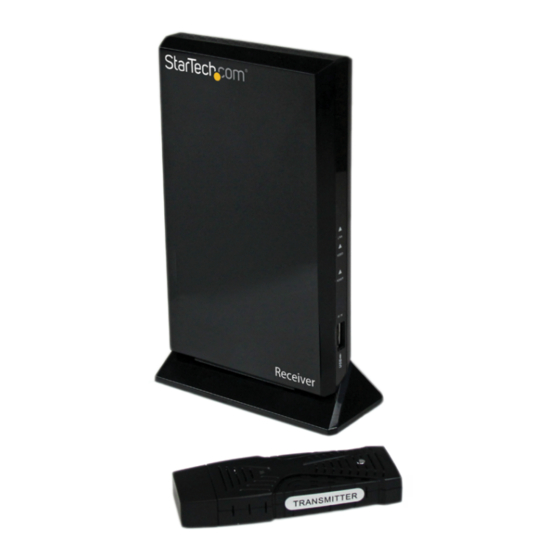

HDMI® Extender Over WHDI Wireless -
50ft (15m)
ST121WHDST
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/17/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121WHDST
Summary of Contents for StarTech.com ST121WHDST
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/17/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Transmitter ..............................1 Receiver ................................ 2 Introduction ....................3 Packaging Contents ..........................3 System Requirements ..........................3 Preparing Your Site ................4 Hardware Installation ................4 Additional Operation ..........................5 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Product Diagram
Product Diagram Transmitter Sync Button Mini USB B Power Port (Power) Male HDMI Port (Hidden) Port Protecting Instruction Manual... -
Page 5: Receiver
Receiver Link LED (Wireless Video LED (Video Network Status) Source Connected) Power LED USB Port (Firmware updates only) Stand Sync Button HDMI Out Port Power Adapter Port Instruction Manual... -
Page 6: Introduction
Introduction Packaging Contents • 1x Wireless HDMI Transmitter • 1x Wireless HDMI Receiver • 1x Remote Control • 1x USB Cable (for Transmitter power) • 1x Power Adapter (for Receiver) • 1x Stand (for Receiver) • 1x Right Angle HDMI Adapter (for Transmitter) •... -
Page 7: Preparing Your Site
Preparing Your Site 1. Determine where the remote display will be located and place/ mount the display appropriately. NOTE: The maximum distance between the transmitter and the receiver is 15 meters (50ft). If the wireless signal is obstructed by walls, or other interference the signal quality and maximum distance will likely be reduced. -
Page 8: Additional Operation
Additional Operation IR Remote Control Power On/Off Menu Open on screen display (OSD) menu Exit Close OSD menu / Cancel connection Source Switch transmitters (If more than one is connected) Next Source Switch transmitters (to next logical source if more than one is connected) Pre Source Switch transmitters (to... - Page 9 Add Additional Video Transmitter Sources (Must have multiple transmitting units) By default the ST121WHDST’s transmitter and receiver units are paired together. If you have more than one transmitter, this device you can add additional transmitters to switch between sources. 1. Using the IR remote control, press MENU - > Select Add new Video Source 2.
-
Page 10: Specifications
Specifications Max Distance 15m (50ft) Maximum Digital Resolutions 1920x1080 TV: 1080p, 1080i, 720p, 480p Supported Resolutions PC: VGA(640X480), SVGA(800X600), XGA(1024X768), SXGA(1280X1024) Frequency 5.1-5.9HGHz Instruction Manual... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
