StarTech.com ST121WHDS Quick Start Manual

Quick-start guide
HDMI Over Wireless Extender - 1080p - 65 ft.
ST121WHDS
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Product overview

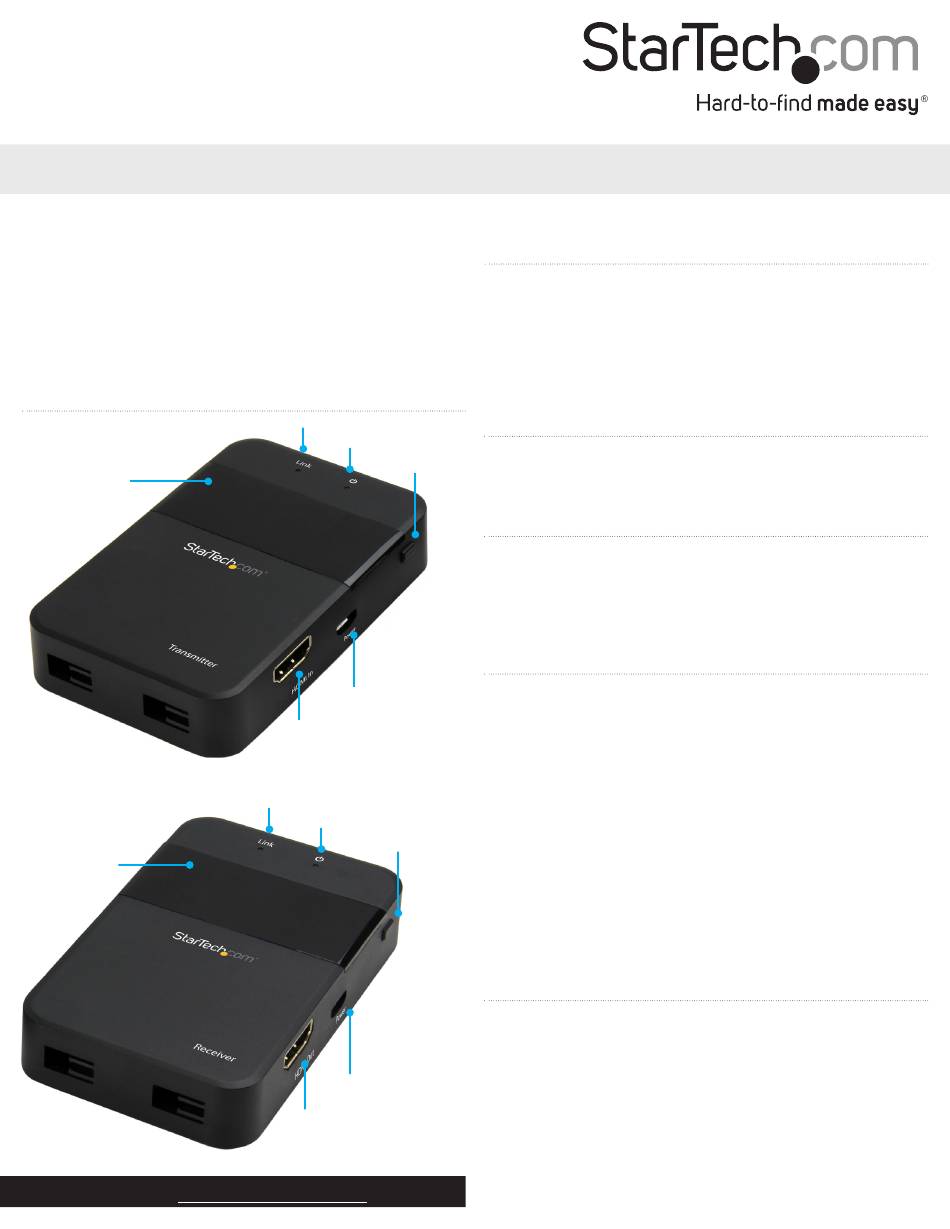

Transmitter
Wireless
antenna
Receiver
Wireless
antenna
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ST121WHDS
Link LED
Power LED
Function
button
Power port
(Micro-USB)
HDMI
In port
Link LED
Power LED
Power
button
Power port
(Micro-USB)
HDMI
Out port
*actual product may vary from photos
Packaging contents
• 1 x wireless transmitter
• 1 x wireless receiver
• 2 x universal power adapters (NA, EU, UK)
• 2 x USB power cables
• 2 x vertical stands
• 2 x adhesive mounting strips
• 1 x quick-start guide
Requirements
• A local HDMI® video source, such as a computer or Blu-ray™ player
with cabling.
• A remote HDMI display with cabling.
About this product
This HDMI over wireless extender lets you wirelessly transmit the
video and audio signal from an HDMI source to a remote display
located up to 65 ft. (20 m) away. The extender kit uses wireless
technology to transmit an uncompressed, high-definition 1080p
HDMI signal. This devive will NOT allowed to operate on aircraft.
Preparing your site
1. Set up your local HDMI video source in your desired location, and
position the transmitter near the video source.
2. Set up your remote HDMI display in your desired location, and
position the receiver near your display..
Note:
• The maximum supported distance between the transmitter
and the receiver is 65 feet. If the wireless signal is obstructed
by walls, or other interference the signal quality and maximum
distance may be reduced.
• Ensure there is an available USB power source or an AC power
outlet, at your local and remote locations.
• Ensure each device is powered off before you begin
installation.
Hardware installation
1. Connect an HDMI cable (not included) to the HDMI In port on
the transmitter and to the HDMI video output port on your video
source device.
Note: Both the transmitter and the receiver have a
wireless antenna located on the front surface. For optimal
performance, it's important to ensure the wireless antennas
on each device are facing toward the general direction of each
other.
Manual Revision: 08/08/2016
