- Page 1 SAFETY AND OPERATING MANUAL 80W SPRAY GUN SF75...
- Page 3 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 5. Service a. Have your power tool serviced by a qualified repair person using only Safety Instructions identical replacement parts.This will ensure that the safety of the power tool is maintained. 80W SPRAY GUN SF75...
-
Page 6: Health Advice
HEALTH ADVICE Warning! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint). You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure. - Page 7 The use of other tools will reduce the users’ total working period on this tool. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades 80W SPRAY GUN SF75...
-
Page 8: Double Insulation

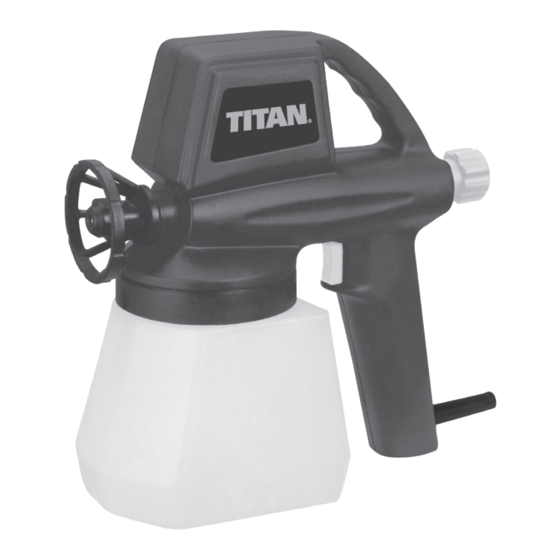

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) Avoid using tools in temperatures of 10°C or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. - Page 9 1. JET NOZZLE 2. LOCKNUT 3. FLOW ADUSTMENT KNOB 4. SWITCH 5. HANDLE 6. CORD 7. MATERIAL CONTAINER 8. EXTENSION NOZZLE 9. CAP MEASURED VISCOSITY 10. SPARE VALVE 11. CLEANING TOOL 80W SPRAY GUN SF75...
-
Page 10: Technical Data
TECHNICAL DATA Voltage: 230V~50Hz Input power: Container capacity: 1000ml Max delivery capacity: 260ml/min Spray tip: 0.5mm Double insulation: Weight: 1.6Kg NOISE DATA Sound pressure level: 90.0dB (A) Sound power level: 103.0dB (A) Uncertainty: 3dB(A) Wear ear protection when sound pressure is over 85dB (A) ACCESSORIES Viscosity pot... - Page 11 15 and 30s. The table below shows recommended times for different types of material. Plastic & latex 24-28 Water based 20-25 Varnish 20-25 Oil based paint 18-22 Enamel paint 18-22 Aluminum paint 22-25 25-30 Wood sealers 27-30 80W SPRAY GUN SF75...
-
Page 12: Adjusting The Spray Pattern
If the paint takes longer than the recommended time to empty, then further thinning is required. Mix in a small quantity of the appropriate thinner and use the viscosity test until the correct thickness is achieved. 2. FILLING AND ATTACHING THE CONTAINER (see fig2 and fig3) (a) Remove the container from the machine. -
Page 13: Spraying Techniques
This can lead to too much, or Fig 6 not enough paint being applied. Do not tip the spray gun to more than 45 Fig 7 Fig 8 80W SPRAY GUN SF75... -
Page 14: Cleaning, Maintenance And Troubleshooting
5. FITTING AND USING THE EXTENSION NOZZLE (see fig9) (a) The extension nozzle should be used to spray ceiling and floor. It should also be used in areas with limited access. (b) To remove the nozzle, unscrew the nozzle and remove from the cylinder, make sure that the valve remains in the cylinder. - Page 15 1. Use the correct solvent excessive being used fogging 2. Hold the spray gun closer 2. Spray gun is too far to the surface be sprayed from the surface 3. Thin the paint 3. The paint is too thick 80W SPRAY GUN SF75...
-
Page 16: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle- more.co.uk PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. -
Page 17: Declaration Of Conformity
Standards and technical specifications referred to: EN50144-1:1998+A1+A2 EN50144-2-7:2000 EN55014-1:2006 EN55014-2:1997+A1 EN61000-3-2:2006 EN61000-3-3:1995+A1+A2 Authorised Signatory and technical file holder Date: 01/05/09 Signature: Name: Peter Harries Titan Power Tools (UK)Ltd. Trade House , Mead Avenue ,BA22 8RT Quality Manager 2009 80W SPRAY GUN SF75...
