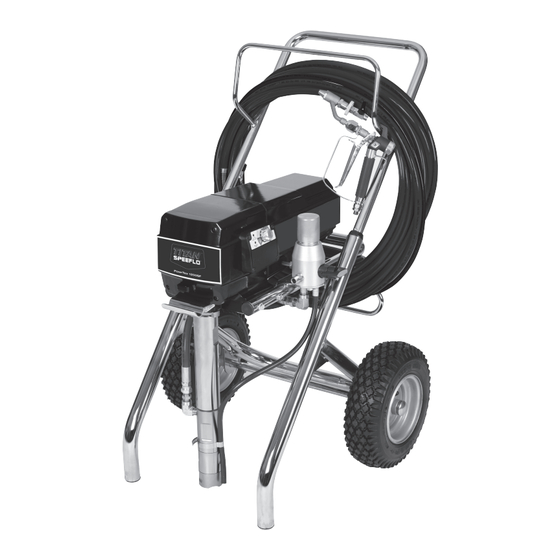

PowrTex 1200 SF
Airless Texture and Paint Sprayer
Model Numbers:
Complete
Bare
Printed in USA
600-150
600-151
Owner's Manual
For professional use only
Do not use this equipment
before reading this manual!
NOTE: This manual contains important warnings
and instructions. Please read and retain
for reference.
© Titan Tool Inc. All Rights Reserved. Form No. 0528920A
0110
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowrTex 1200 SF and is the answer not in the manual?

Questions and answers

Related Manuals for Titan PowrTex 1200 SF

Summary of Contents for Titan PowrTex 1200 SF

  • Page 1 Airless Texture and Paint Sprayer Model Numbers: NOTE: This manual contains important warnings Complete 600-150 and instructions. Please read and retain for reference. Bare 600-151 Printed in USA © Titan Tool Inc. All Rights Reserved. Form No. 0528920A 0110 •...

  • Page 2: Safety Precautions

    Do not use plastic drop cloths when blood stream. consultation with a plastic surgeon or spraying flammable materials. reconstructive hand surgeon may be advisable. • Use lowest possible pressure to flush equipment. • Do not spray onto pump assembly. © Titan Tool Inc. All rights reserved.
  • Page 3 • Do not expose the hose to temperatures or pressures in IMPORTaNT: When the sprayer is used with a generator excess of those specified by manufacturer. or uncontrolled line voltage, the use of Titan’s “Line Surge Protector” (P/N 800-935) is recommended. • Do not spray outdoors on windy days.

  • Page 4: Table Of Contents

    Read and understand the warnings in the Safety Precautions section at the front of this 7. Turn off the sprayer by moving the ON/OFF switch to the manual before operating this equipment. OFF position. © Titan Tool Inc. All rights reserved.

  • Page 5: Preparing To Spray

    NOTE: If the sprayer is equipped with an Xact Digital preparing for cleanup. control System, go to “Xact Digital control System Operation” at the end of the Operation section of this Manual. © Titan Tool Inc. All rights reserved.

  • Page 6: Control Panel Indicators

    Pressing the #3 key performs a function described on the active menu screen or decrease a value. #4/Select Key Pressing the #4 key selects the active menu screen or performs a function described on the active menu screen. © Titan Tool Inc. All rights reserved.
  • Page 7 Main Screen. Service Time Screen The Job Volume screen allows the user SERVICE TIME SELECT-4 MENU-1 to reset a gallon counter to track usage on specific jobs. © Titan Tool Inc. All rights reserved.

  • Page 8: Spraying Technique

    The cloth should be removed as soon as possible. Maintain uniform spray stroke action. Spray alternately from left Titan gun extensions are extremely helpful in these situations. to right and right to left. Begin movement of the gun before the Nearby objects such as automobiles, outdoor furniture, etc.

  • Page 9: Cleanup

    Always contact the supplier of solvents SPRAY position. for recommendations. 11. Turn on the sprayer. 4. If you have any further questions concerning your Titan Ground the gun by holding it Airless Sprayer, call TITAN: against the edge of the metal Customer Service (U.S.) .......

  • Page 10: Replacing The Motor Assembly

    Motor Mounting Housing Screw Front End Bell Assembly Electronic Control Assembly Armature Gear Motor 1st Stage Gear Baffle Assembly 2nd Stage Gear Housing Gasket Shroud Gasket Front Gear Box Assembly Housing Gasket Shroud Gasket © Titan Tool Inc. All rights reserved.

  • Page 11: Replacing The Transducer

    11. Slide the motor shroud over the motor. Make sure the Groove Pin Handle shroud gasket is positioned properly. 12. Secure the motor shroud with the four motor shroud screws. Motor Shroud Screws Electronic Control Assembly Motor Shroud Grommet Transducer Mounting Plate © Titan Tool Inc. All rights reserved.

  • Page 12: Servicing The Fluid Section

    25-30 ft. lbs. Retainer damaged. 15. Pre-form the lower packing using the lower packing sizing Lower tool (included in the repacking kit). 7. Reassemble the valves by Housing reversing the steps above. © Titan Tool Inc. All rights reserved.

  • Page 13: Replacing The Filters

    Core Spring NOTE: The filter body should be hand-tightened, O-ring but make sure it is seated fully into the filter housing. Filter Housing © Titan Tool Inc. All rights reserved.

  • Page 14: Troubleshooting

    Faulty or loose wiring. Inspect or take to a Titan authorized service center. Excessive motor temperature. Allow motor to cool. ON/OFF switch is defective.

  • Page 15: Xact Digital Control System Error Messages

    3300 PSI / 22.8 MPa. Take the sprayer to a Titan low level and the pressure control knob has not been adjusted. authorized service center for repair.

  • Page 16: Français

    Se servir de la pression la plus basse possible pour vidanger l’appareil. s’avérer nécessaire de consulter un plasticien ou un spécialiste en chirurgie reconstructive de la main. • Ne pas pulvériser de produit sur la pompe. Français © Titan Tool Inc. Tous droits réservés.
  • Page 17 électrique de la prise avant de travailler sur l’équipement. • N’utilisez pas le tuyau pour tirer ou soulever l’équipement. • Ne pas soulever par la poignée de chariot en chargeant ou en déchargeant. © Titan Tool Inc. Tous droits réservés. Français...

  • Page 18: Español

    • Use la presión más baja posible para enjuagar el equipo. • No rocíe el ensamblaje de la bomba. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 19 • No utilice la manguera como elemento de fuerza para tirar del equipo o levantarlo. • No levantar por la manija del carro al cargar o descargando. © Titan Tool Inc. Todos los derechos reservados. Español...

  • Page 20: Parts Listings

    Fitting ............1 763-551 Lock washer ..........2 860-002 Lock washer ..........2 858-625 Screw ............2 860-535 Screw ............2 800-328 Knock-off nut ..........1 800-266 Hose (not shown) ........1 800-268 Fitting ............1 818-002 Elbow (not shown) ........2 © Titan Tool Inc. All rights reserved.

  • Page 21: Drive Assembly

    Pressure control knob.......1 700-742 Tie wrap (not shown) 704-473 Control panel cover (for sprayers without Xact Digital Control System) .....1 NOTE: all electrical work should be performed by a Titan authorized service center. © Titan Tool Inc. All rights reserved.

  • Page 22: Fluid Section Assembly

    NOTE: When repacking the fluid section, make sure the raised lip on the bottom of the lower packing is fully outside the packing around the piston rod after insertion of the piston rod. © Titan Tool Inc. All rights reserved.

  • Page 23: High Rider Cart

    Groove pin ..........1 700-697 Valve handle ..........1 NOTE: When using “hot” solvents, replace viton valve stem o-ring (item 5) with optional Teflon valve stem o-ring (P/N 700-897). Install using o-ring replacement tool (P/N 700-890). © Titan Tool Inc. All rights reserved.

  • Page 24: Filter Parts

    Xact Instruction label 313-2430 Transducer warning label Item Part # Description quantity 800-705 Filter body ..........1 800-252 Filter spring ..........1 730-067 Filter, 60 mesh ..........1 702-251 Filter spring adapter........1 757-105 Core spring ..........1 © Titan Tool Inc. All rights reserved.

  • Page 25: Electrical Schematic

    Fuse, 15A Ground Switch WHITE Motor AC-Motor AC-Motor BLACK AC-Line AC-Neut Surge Suppressor Control Panel Electronic Control Board Assembly WHITE WHITE NOTE: all electrical work should be performed by an authorized service center. © Titan Tool Inc. All rights reserved.

  • Page 26: Accessories

    700-1037 ..Electrostatic discharge (ESD) wrist strap • 3900 PSI • Stainless Steel fluid passages • High Pressure Swivel • In-handle filter • 4-finger trigger pull Part # Description 550-250 S-3 — 4 Finger Gun © Titan Tool Inc. All rights reserved.
  • Page 27 4,908,538 4,768,929 4,744,571 D384,676 6,179,222 5,934,883 4,723,892 Material Safety Data Sheets (MSDS) are available on Titan’s website or by calling Customer Service. Brevets Ces produits sont protégés par un ou plusieurs des brevets (U.S.A.) suivants : 6,031,352 5,848,566 5,769,321 5,725,364...

  • Page 28: Warranty

    Warranty • Garantie • Garantía Titan Tool, Inc., (“Titan”) warrants that at the time of delivery to the original purchaser for use (“End User”), the equipment covered by this warranty is free from defects in material and workmanship. With the exception of any special, limited, or extended warranty published by Titan, Titan’s obligation under this warranty is limited to replacing or repairing without charge those parts which, to Titan’s reasonable satisfaction, are shown to be defective within twelve (12) months after...
