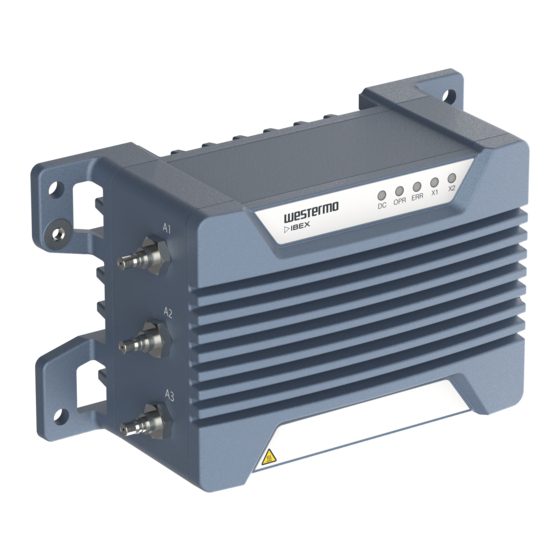

Ibex-330 Series
EN 50155 LTE Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ibex-330 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Westermo Ibex-330 Series

  • Page 1 Ibex-330 Series EN 50155 LTE Router...
  • Page 2: Table Of Contents

    Power Input and I/O Connection .................. 14 3.4.2 SIM Card Slot ......................... 15 3.4.3 Ethernet Ports ....................... 16 3.4.4 Antenna Ports ........................ 17 LED Indicators ........................17 Factory Reset ......................... 18 3.6.1 Factory Reset Procedure ....................18 Dimensions ..........................19 Installation ............................. 20 Westermo Network Technologies...
  • Page 3 Earth Connection ........................20 Connection of Cables ......................21 Cooling ........................... 21 Replacement of Product ......................23 Specifications ..........................24 Interface Specifications ......................24 Type Tests and Environmental Conditions ................27 Abbreviations and Terms ......................29 Revision Notes ..........................31 Westermo Network Technologies...
  • Page 4: General Information

    Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 5: Safety And Regulations

    No personal injury Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1 Warning levels Westermo Network Technologies...
  • Page 6: Safety Information

    For Ibex products outdoor installation is allowed. During installation, ensure a protective earthing conductor is first connected to the protective earthing terminal (only valid for metallic housings). Westermo recommends a cross-sectional area of at least 4 mm If the product does not have a protective earthing terminal, then the DIN-rail must be connected to protective earth.
  • Page 7 CAUTION - CABLE TEMPERATURE RATING There may be a requirement on the minimum temperature rating of the cable to be connected to the field wiring terminals, see Interface Specifications. Westermo Network Technologies...
  • Page 8: Care Recommendations

    If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo technical support.
  • Page 9: Agency Approvals And Standards Compliance

    EN 45545-2, Requirements for fire behaviour of materials and components on railway vehicles • NFPA 130, Fire protection and life safety requirements for fixed guideway transit and passenger rail systems Table 2 Agency approvals and standards compliance Westermo Network Technologies...
  • Page 10: United States - Fcc

    This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesired operation of the device. Westermo Network Technologies...
  • Page 11: Europe - Simplified Declaration Of Conformity

    This product contains the IC Certification number 10224A-201901EM12G (LTE). 2.5.5 Europe - Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information is available at www.westermo.com/support/product-support.
  • Page 12: Product Description

    Ethernet Figure 3 Ibex-RT-330-LV / Ibex-RT-330-HV block diagram The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local LED status indicators, and through SNMP/WebGUI.
  • Page 13: Hardware Overview

    VV = Product revision SSSSSSSS = Serial number YY = Manufacturing Year WW = Manufacturing Week Manufacturing date The Date Format is: YYWW YY = Manufacturing Year WW = Manufacturing Week Serial number Figure 5 Front side label content Westermo Network Technologies...
  • Page 14: Rear Side Label

    3.4 Connector Information 3.4.1 Power Input and I/O Connection M12 A-coded 4-pin male power connector according to IEC 61076-2-101 Marking Position Direction Description Positive terminal Negative terminal Housing Shield Chassis of product (ground) Table 4 Power input connection Westermo Network Technologies...
  • Page 15: Sim Card Slot

    In order to guarantee proper IP against dust and water, please check carefully that the drawer is fully inserted and screws are properly tightened. NOTICE Before removing and inserting the SIM drawer, ensure that power has been turned off by removing the power connector from the unit. Westermo Network Technologies...
  • Page 16: Ethernet Ports

    Chassis of product (ground) Table 5 Ethernet connection PoE connection on X2 (Ibex-RT-330-LV only) Position Device mode A Device mode B Table 6 Ethernet X2 PoE connection NOTE PoE is supported on X2 for the LV product variant only. Westermo Network Technologies...
  • Page 17: Antenna Ports

    To ensure specified IP protection, suitable QMA connectors / cables and terminations must be used. 3.5 LED Indicators Description Power status Operation status Error status Ethernet status for X1 port Ethernet status for X2 port NOTE Refer to management guide for detailed LED status indication. Westermo Network Technologies...
  • Page 18: Factory Reset

    ORANGE OPR LED and RED ERR LED Remove factory reset adapter within 15 seconds Successful initiation of the factory reset is indicated by blinking ORANGE OPR LED and RED ERR LED Table 8 Factory reset procedure Westermo Network Technologies...
  • Page 19: Dimensions

    3.7 Dimensions Dimensions are stated in mm and are regardless variants. Figure 9 Dimensional drawing Westermo Network Technologies...
  • Page 20: Installation

    4 mm shall be used. The grounding wire is set below the rip-lock washer. The nut is fixed for good reliable grounding contact. The tightening torque of the nut shall be 2.0 Nm. Westermo Network Technologies...
  • Page 21: Connection Of Cables

    This product has no replaceable fuse and should be connected via an external fuse for protection. 4.4 Cooling This unit uses convection cooling. It is recommended to install the product in areas where the natural convection airflow is not blocked and that there is enough spacing around the device. Westermo Network Technologies...
  • Page 22 When operating the device at high ambient temperatures, it is recommended to mount the device to a metallic base plate to improve the heat dissipation. The base plate increases the surface to spread the heat. Figure 12 Improved heat transfer based on fixing plate Westermo Network Technologies...
  • Page 23: Replacement Of Product

    Be aware of that the surface of this product may become hot. When it is operated at high temperatures, the external surface may exceed Touch Temperature Limit according to the product's relevant electrical safety standard. This product complies with Touch Temperature Limits throughout its operational temperature range. Westermo Network Technologies...
  • Page 24: Specifications

    Shielded cable CAT5e or better is recommended Conductive chassis NOTE The product is to be connected to internal Ethernet networks without exiting a facility and being subjected to TNVs. Recommended external supply current capability for proper startup Westermo Network Technologies...
  • Page 25 B2+B2; B3+B3; B4+B4; B7+B7; B25+B25; B38+B38; B39+B39; B40+B40; B41+B41; B66+B66; DL 3×CA / DL inter-band 3CA: B2+B4+B5; B2+B4+B13; B2+B5+B30; B2+B12+B30; B2+B29+B30; B3+B7+B20; B3+B7+B28; B3+B7+B8; B4+B5+B30; B4+B12+B30; B4+B29+B30; B5+B66+B2; B13+B66+B2; B66+B12+B30; B66+B29+B30; B66+B5+B30; B2+B14+B66; DL 3×CA / DL intra-band plus inter-band 3CA: Westermo Network Technologies...
  • Page 26 GPS: L1C/A SBAS: L1C/A QZSS: L1C/A, L1 SAIF GLONASS: L1OF BeiDou: B1I Galileo: E1B/C Supported GNSS constellations GPS+Galileo GPS+Galileo+GLONASS GPS+Galileo+BeiDou GPS+GLONASS GPS+BeiDou Galileo Galileo+GLONASS+BeiDou Galileo+BeiDou GLONASS GLONASS+BeiDou BeiDou NOTICE Unused antenna port must be terminated with 50-Ohm terminations. Westermo Network Technologies...
  • Page 27: Type Tests And Environmental Conditions

    DC power port > 100 MOhm to all other ports Dielectric strength EN 50155 DC power port Ibex-RT-330-LV: 750 VDC, 60 s to all other ports Ibex-RT-330-HV: 2250 VDC, 60 s Table 9 EMC and electrical conditions Westermo Network Technologies...
  • Page 28 The power and Ethernet cables need to be fastened 200 mm or closer to the unit. The same recommendation applies to the Antenna cables Provided all connectors are connected with IP66 cabling or fitted with protective caps (delivered with the unit) and tightened to the specified torque Westermo Network Technologies...
  • Page 29: Abbreviations And Terms

    Mean Time between Failure MTTR Mean Time to Repair Operation Pulse Modulated Power over Ethernet Quick-connect RF Connectors Quick Response QZSS Quasi-Zenith Satellite System Radio Frequency Telephone Network Voltage SBAS Satellite-Based Augmentation System Subscriber Identity Module Serial Number Westermo Network Technologies...
  • Page 30 SNMP Simple Network Management Protocol Virtual Private Network WebGUI Web Graphical User Interface WeConfig Westermo Configuration Tool WEEE Waste Electrical and Electronics Equipment Table 11 Abbreviations and terms Westermo Network Technologies...
  • Page 31: Revision Notes

    7 Revision Notes Revision Date Rev. A 2020-06 First revision Westermo Network Technologies...
  • Page 32 REV. A 6623-22901 2020-06 Westermo Network Technologies AB, Sweden...
