Summary of Contents for Westermo Viper 008

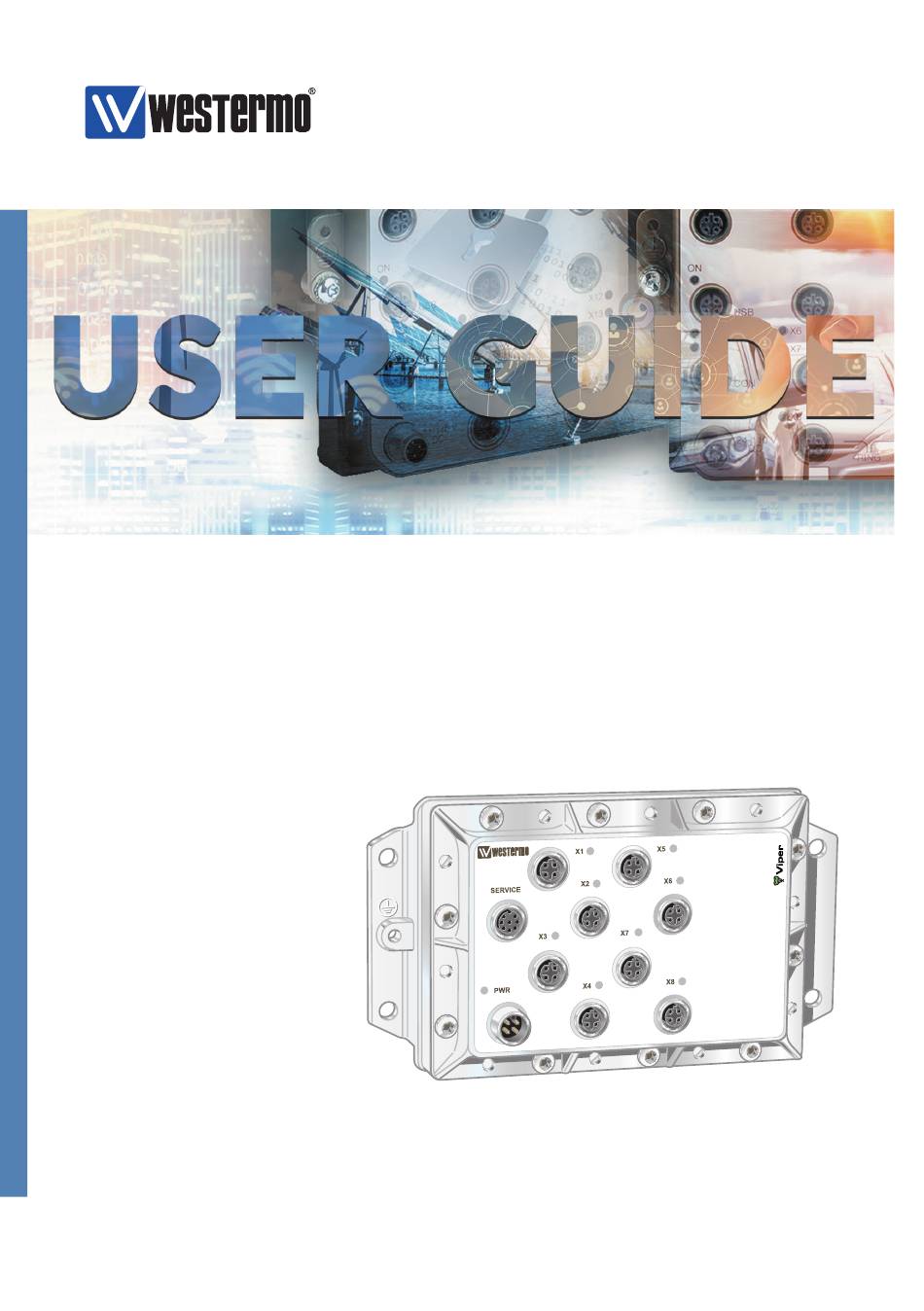

- Page 1 Viper 008 Unmanaged 8-port Ethernet Switch...
- Page 2 6641-2211...
-
Page 3: General Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Before Installation
Safety Before installation: Read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. This unit should only be installed by qualified personnel. This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only. -
Page 5: Care Recommendations
… Do not cover or bring mechanical force to the ventilation membrane on the back of the unit. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. -
Page 6: Simplified Eu Declaration Of Conformity
Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com. Agency approvals and standards compliance... -
Page 7: Type Tests And Environmental Conditions
Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV (crit A) Enclosure air ± 8 kV (crit A) RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 2500 MHz (crit A) Fast transient EN 61000-4-4 Ethernet ports... - Page 8 Phenomena Test Description Test levels Shock, half sine pulses IEC 60068-2-27, Operating Vertical: 50 m/s Cat. 1 class B Transverse: 50 m/s (EN 61373) Longitudinal: 50 m/s 30 ms, 3 x 6 shocks Shock, sawtooth IEC 60068-2-27, Operating Vertical: 100 m/s Cat.
-
Page 9: Functional Description

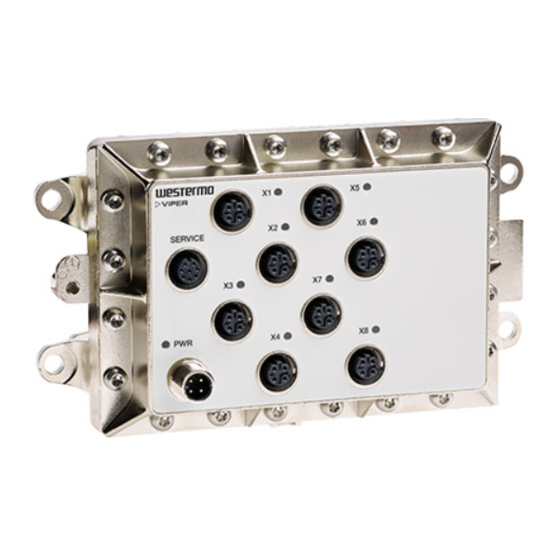

Description Functional description Viper 008 is a unmanaged switch developed for rail and industrial applications. To meet the environmental requirements from rail and harsh industrial applications the switch has rugged M12 Ethernet connectors and full metal housing. The IP65 sealed metal case make it robust and allows for the surrounding air temperature to be between –40 to... -
Page 10: Fault Contact
To logic input +24/48 VDC Viper Viper 1 kΩ Input on PLC Service port The Service Port should not be used by non other than the Westermo Technical Support team. Do not connect any device or cable to the Service Port. 6641-2211... - Page 11 Ethernet TX port X1 to X8 Electrical specification IEEE std 802.3. 2005 Edition Data rate 10 Mbit/s or 100 Mbit/s Duplex Full or half Circuit type TNV-1 Transmission range 100 m Isolation to Other Ethernet ports, 500 VAC PWR, 1500 VAC Galvanic connection to None, except for shielded contact to housing Connection...
-
Page 12: Led Indicators
Location of Interface ports, LED's LED indicators Status Description GREEN Unit indicates no fault Unit indicated fault X1 to X8 No Link GREEN Link is up GREEN Data is transmitted FLASH SERVICE 6641-2211... -
Page 13: Mounting, Din-Rail
Mounting, DIN-rail This unit can be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure. Removal Press down the support at the back of the unit using a screwdriver. See figure. 6641-2211... -
Page 14: Wall Mounting
Wall mounting There are four 6 mm bore holes intended for mounting the unit. The unit can be mounted vertical or horizontal. Use four M6 screws with 12 mm washer on a flat and stable surface. SERVICE Removal Disconnect all cables and unscrew the unit from the wall. Cooling This unit uses convection cooling. - Page 15 Dimensions Measurements are stated in millimeters. 6641-2211...
- Page 16 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. D 6641-2211 2019-01 Westermo Network Technologies AB, Sweden...
